Motor: 8 HP, 3-phase, 220V
Total Table Length: 107‑1/8″ (2,720mm)
Infeed Table Length: 59‑7/8″ (1,520mm)
Outfeed Table Length: 47‑1/4″ (1,200mm)
Table Width: 20‑1/2″ (520mm)
Max Depth of Cut: 5/16″ (8mm)

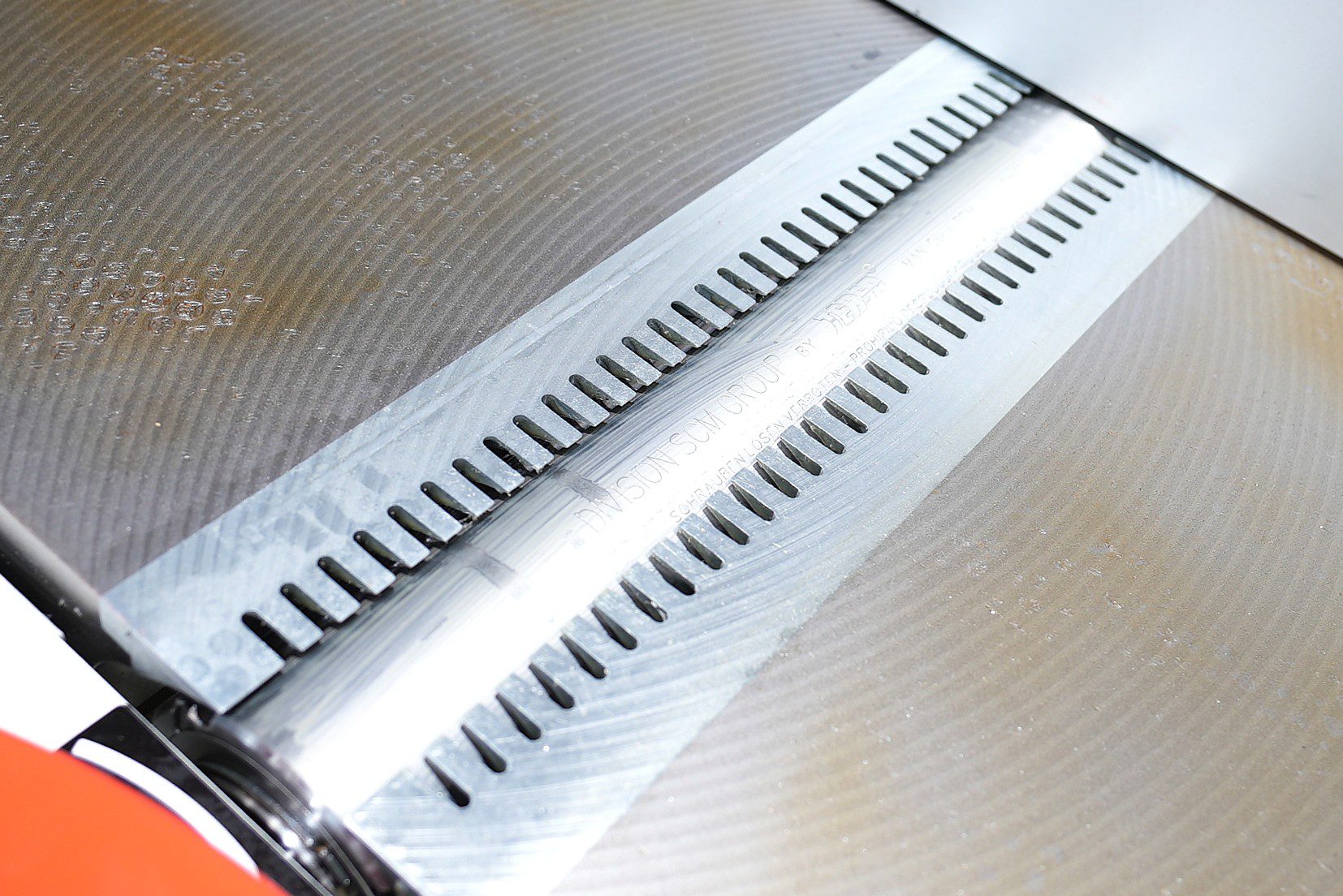

Cutterhead Type: Tersa — 4 straight knives
Knife Dimensions: 520mm × 35mm × 3mm
Knife Alloy Options: CR chrome steel, HSS, M42 cobalt, tungsten carbide
Cutterhead Diameter: 4.7″ (120mm)
Cutterhead Speed: 5,000 RPM

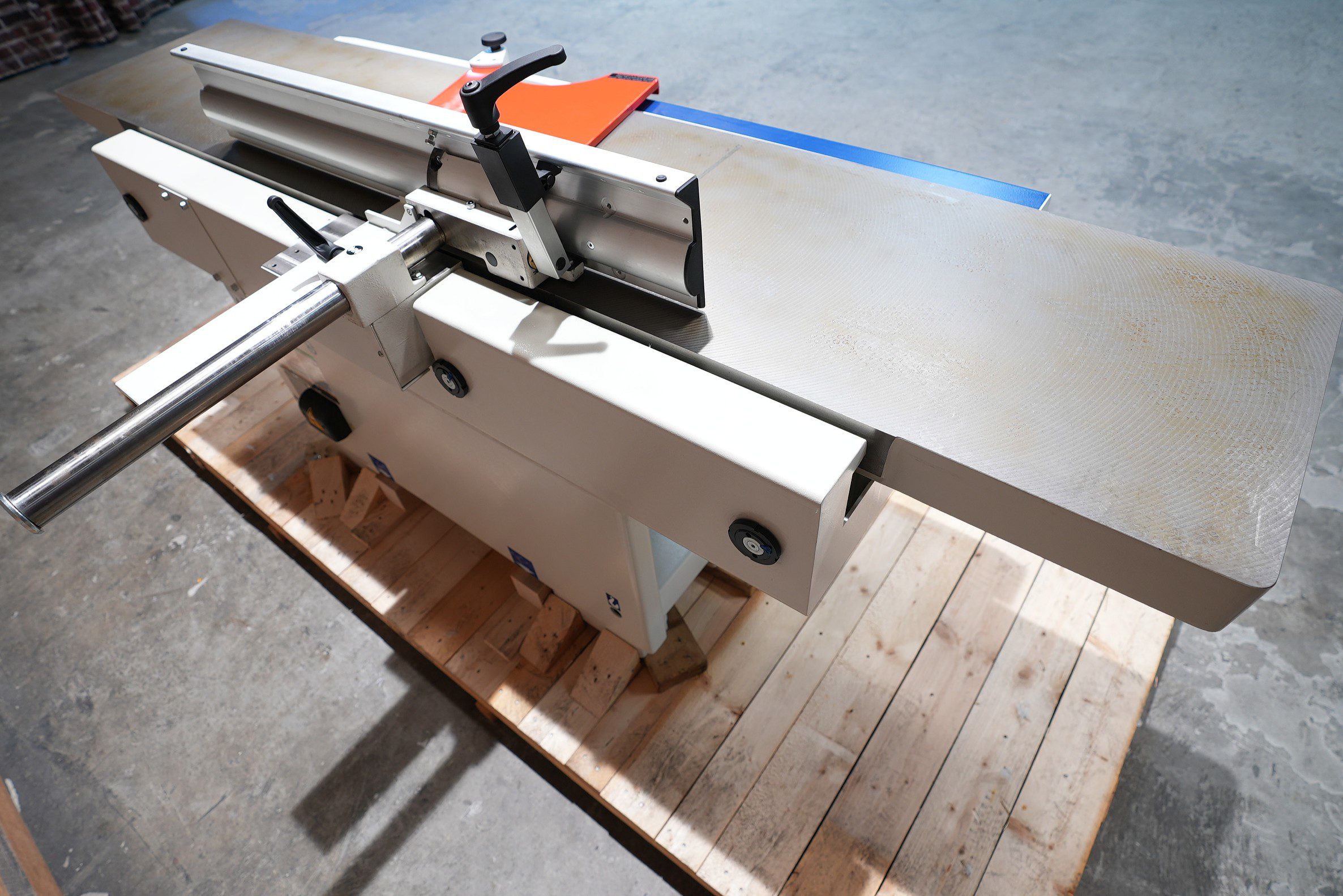

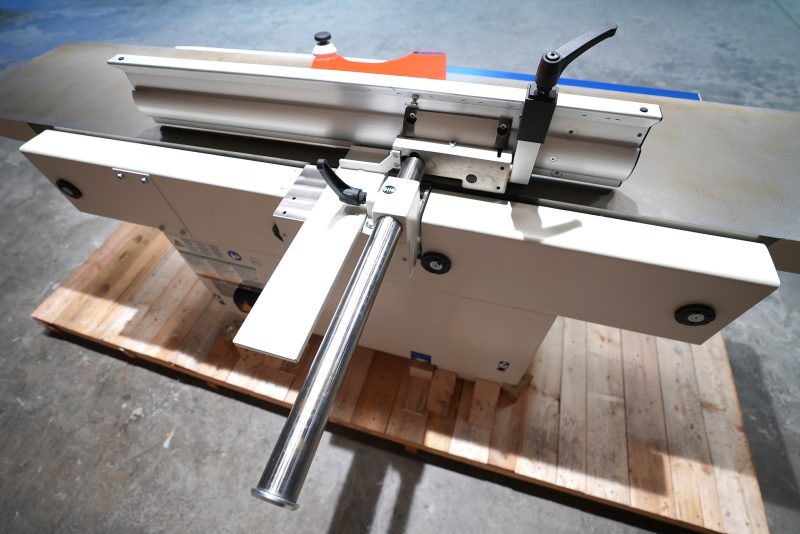

Fence Dimensions: 47‑1/4″ × 7‑1/2″ (1,200 × 190mm)
Fence Tilt: 0° to 45°

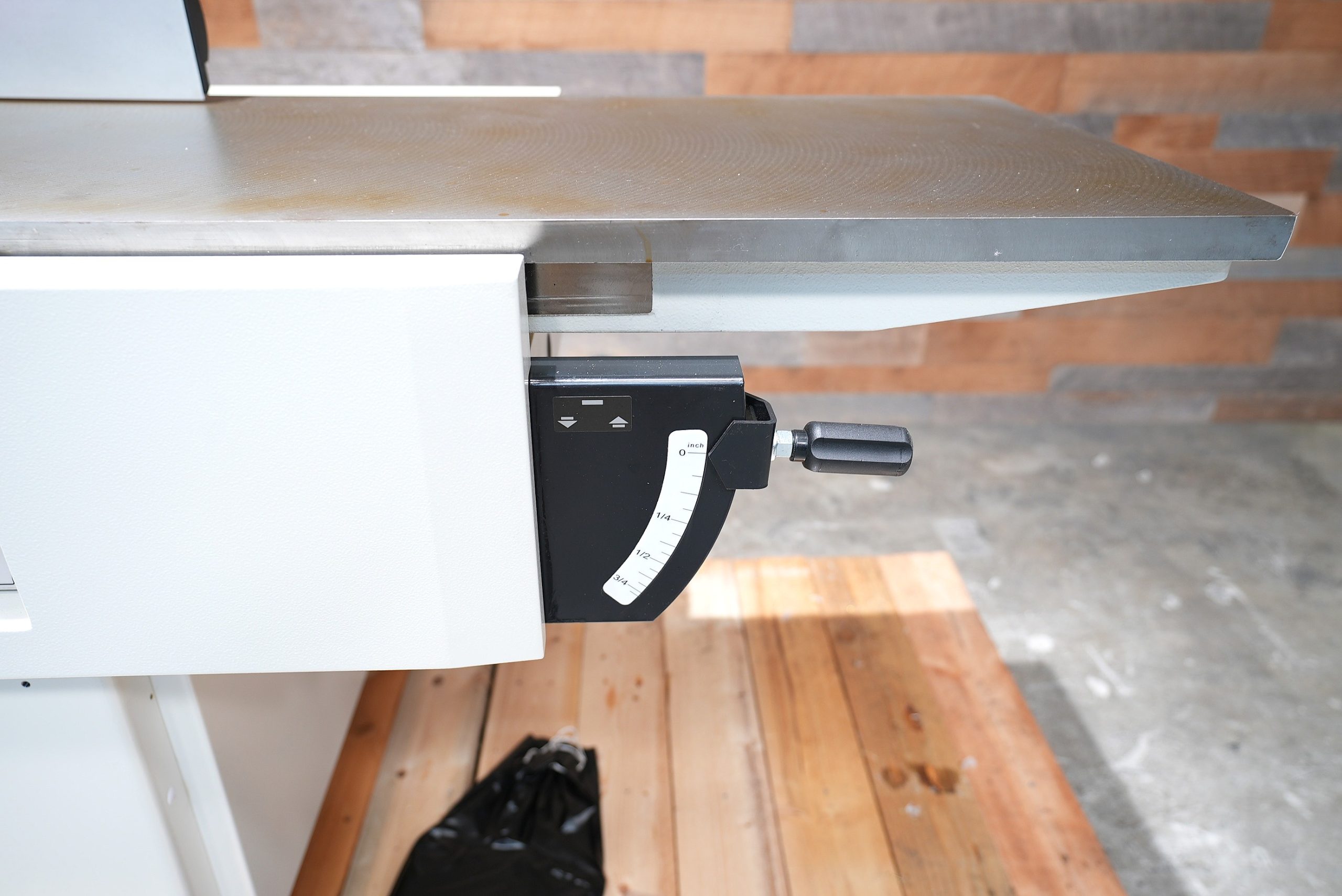

Table Movement: Parallelogram — 4 eccentric cams per table
Dust Port Diameter: 120mm (4.7″)
Dust Extraction Minimum: 980 CFM
Overall Dimensions: 107‑1/8″ × 59‑1/16″ (2,720mm × 1,500mm)
Net Weight: 1,875 lbs (850 kg)
Shipping Weight: 2,315 lbs

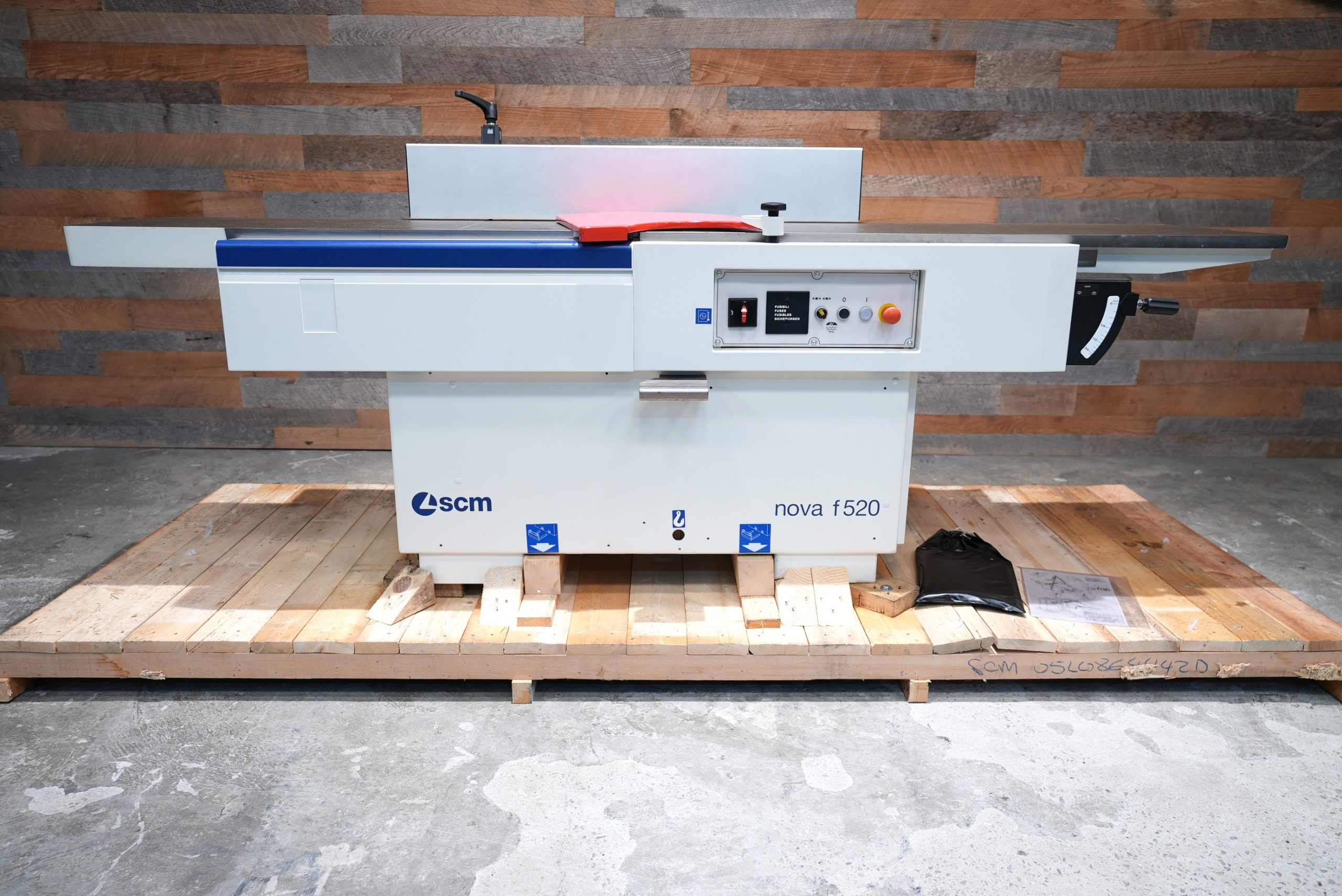

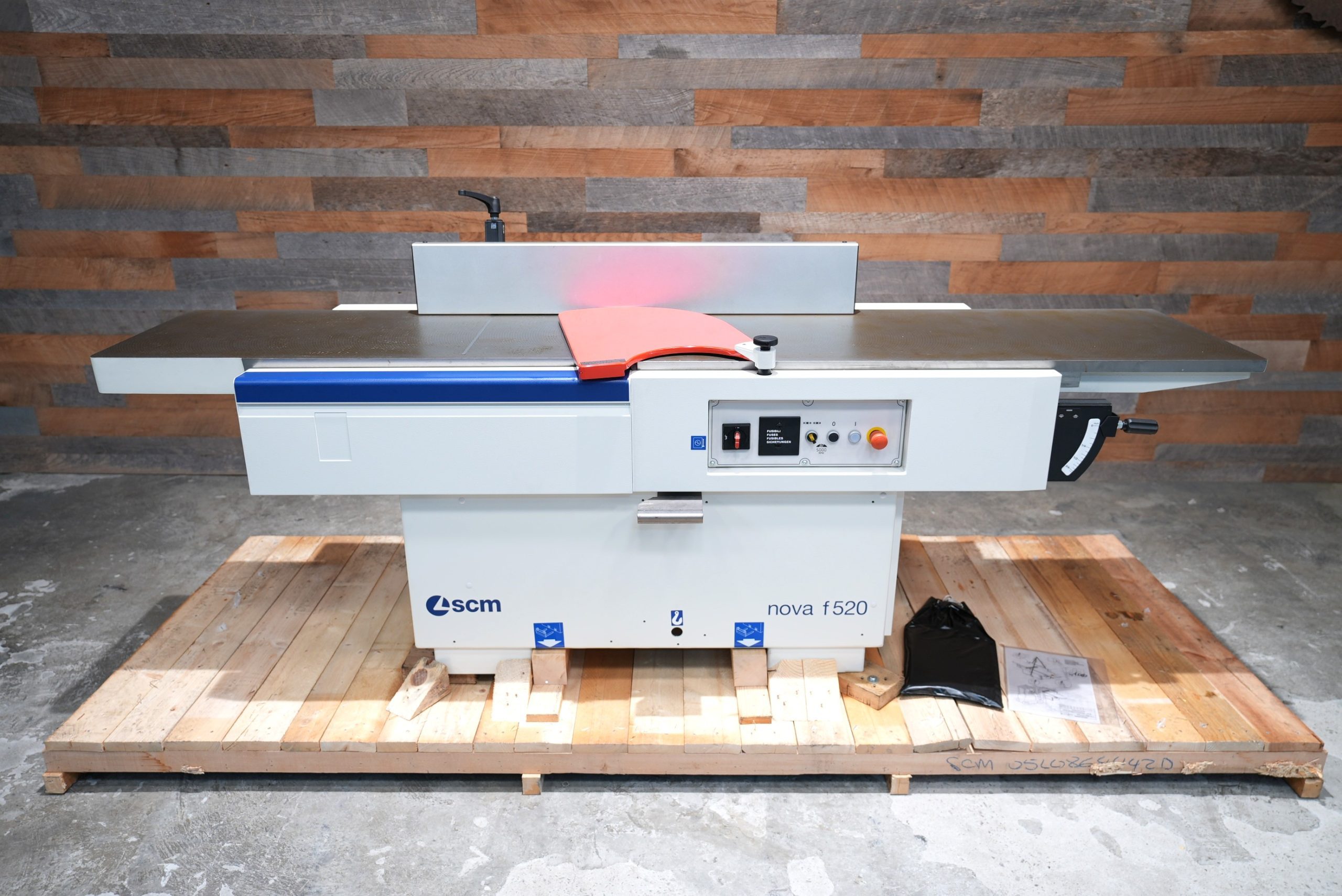

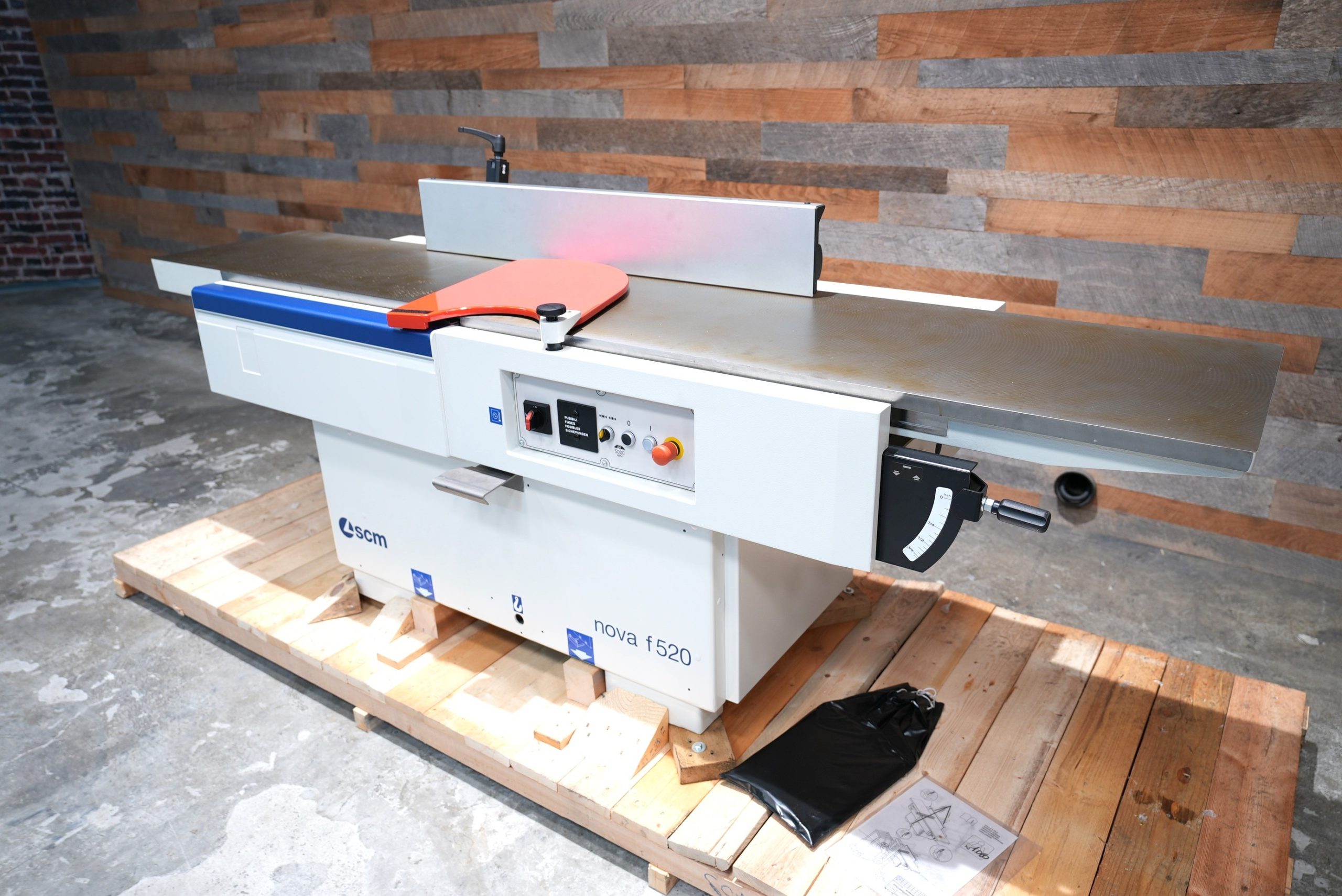

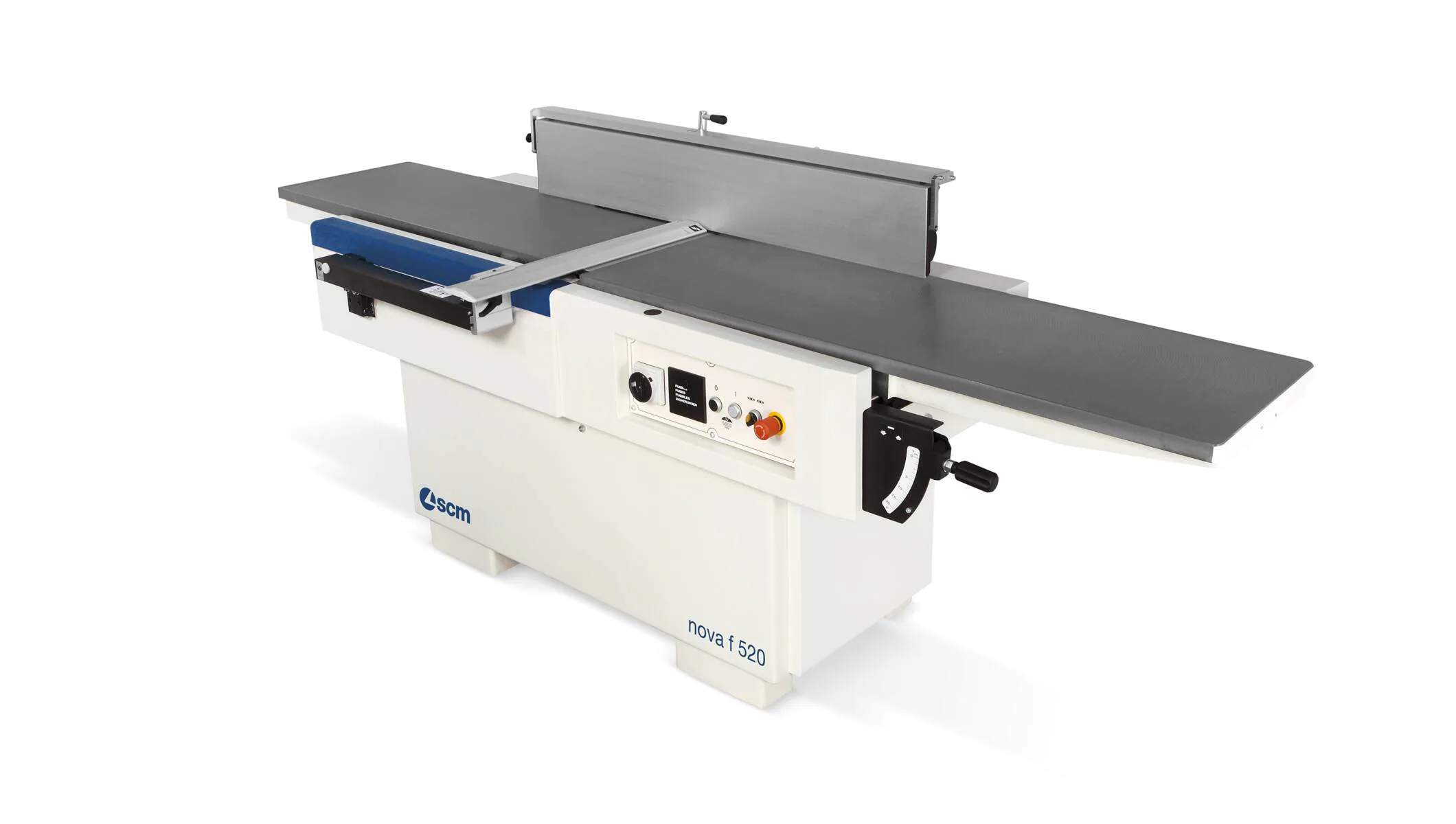

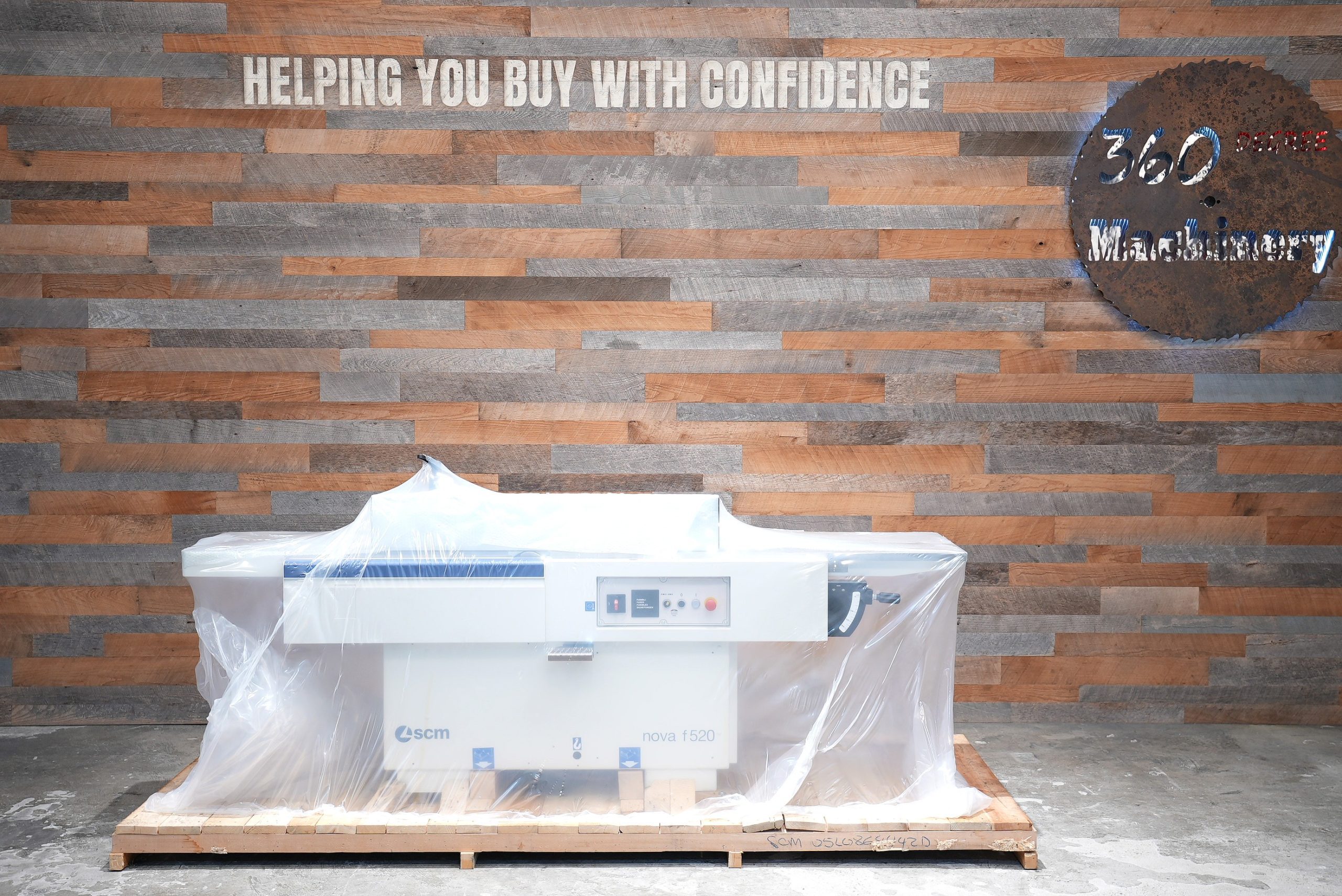

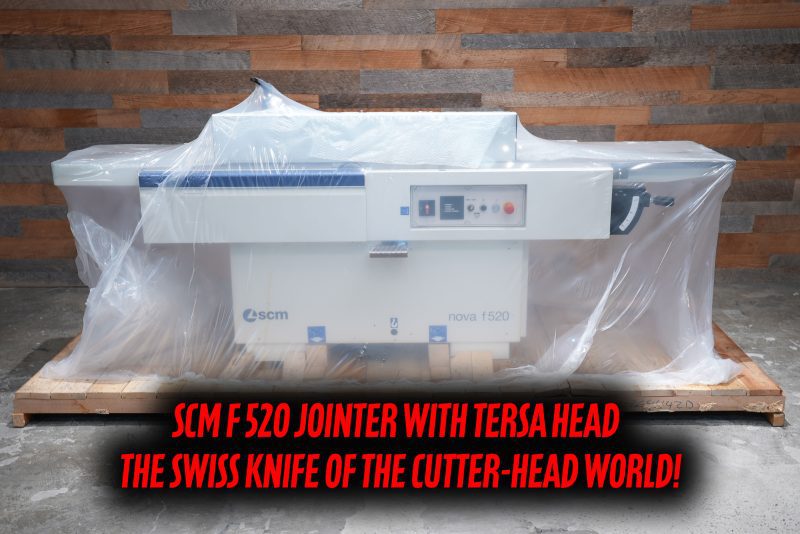

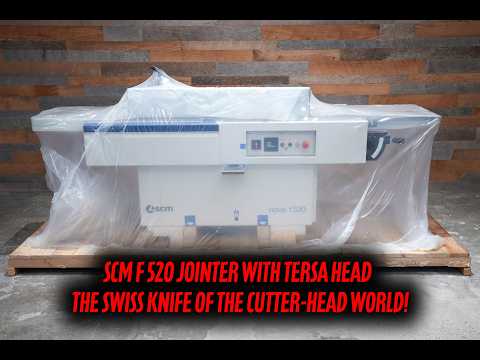

NEW SCM Nova F 520 – 20″ Tersa Jointer SAVE $1,000 + Split Ship
NEW SCM Nova F 520 – 20″ Tersa Jointer SAVE $1,000 + Split Ship
$13,875.00 Original price was: $13,875.00.$12,875.00Current price is: $12,875.00.

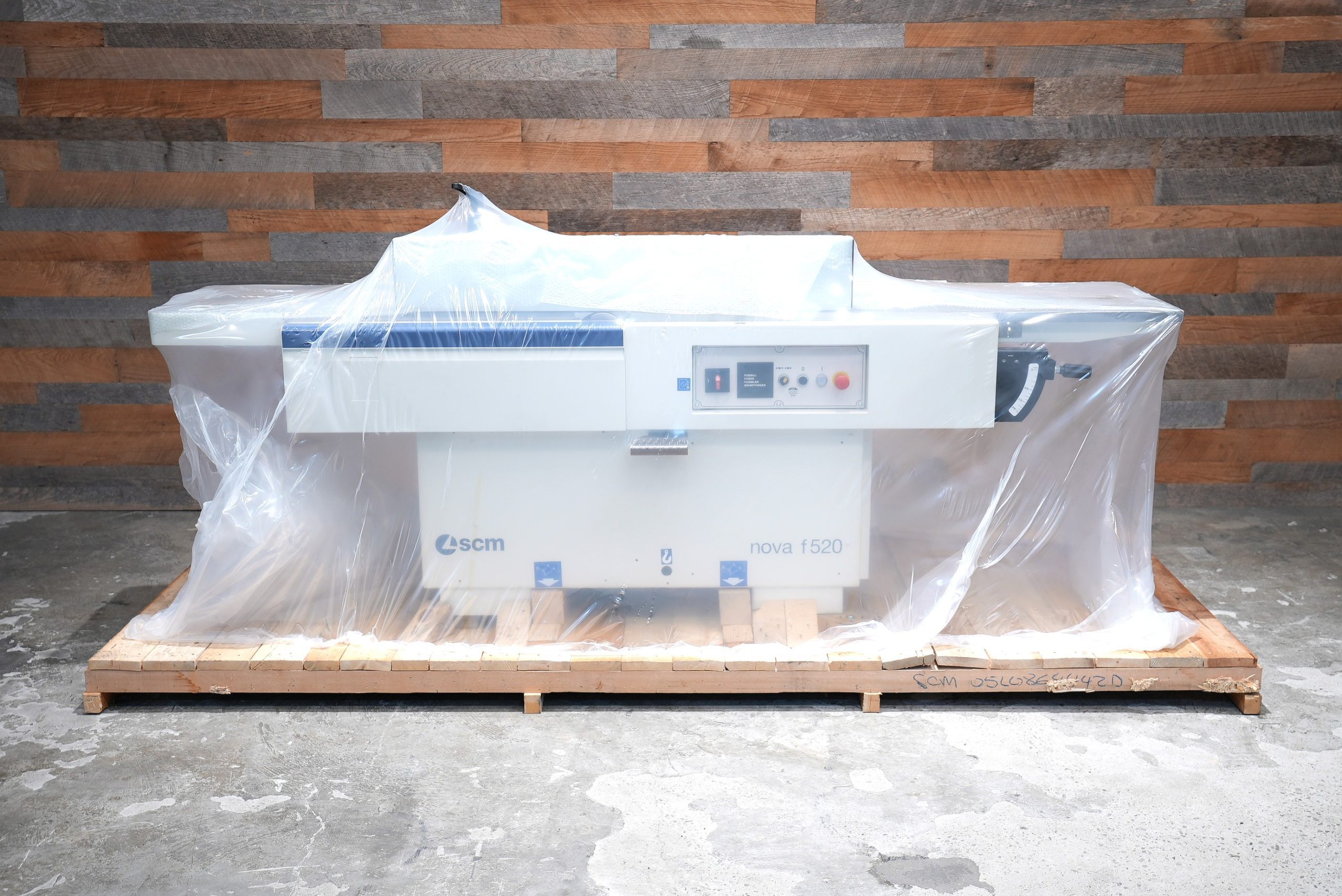

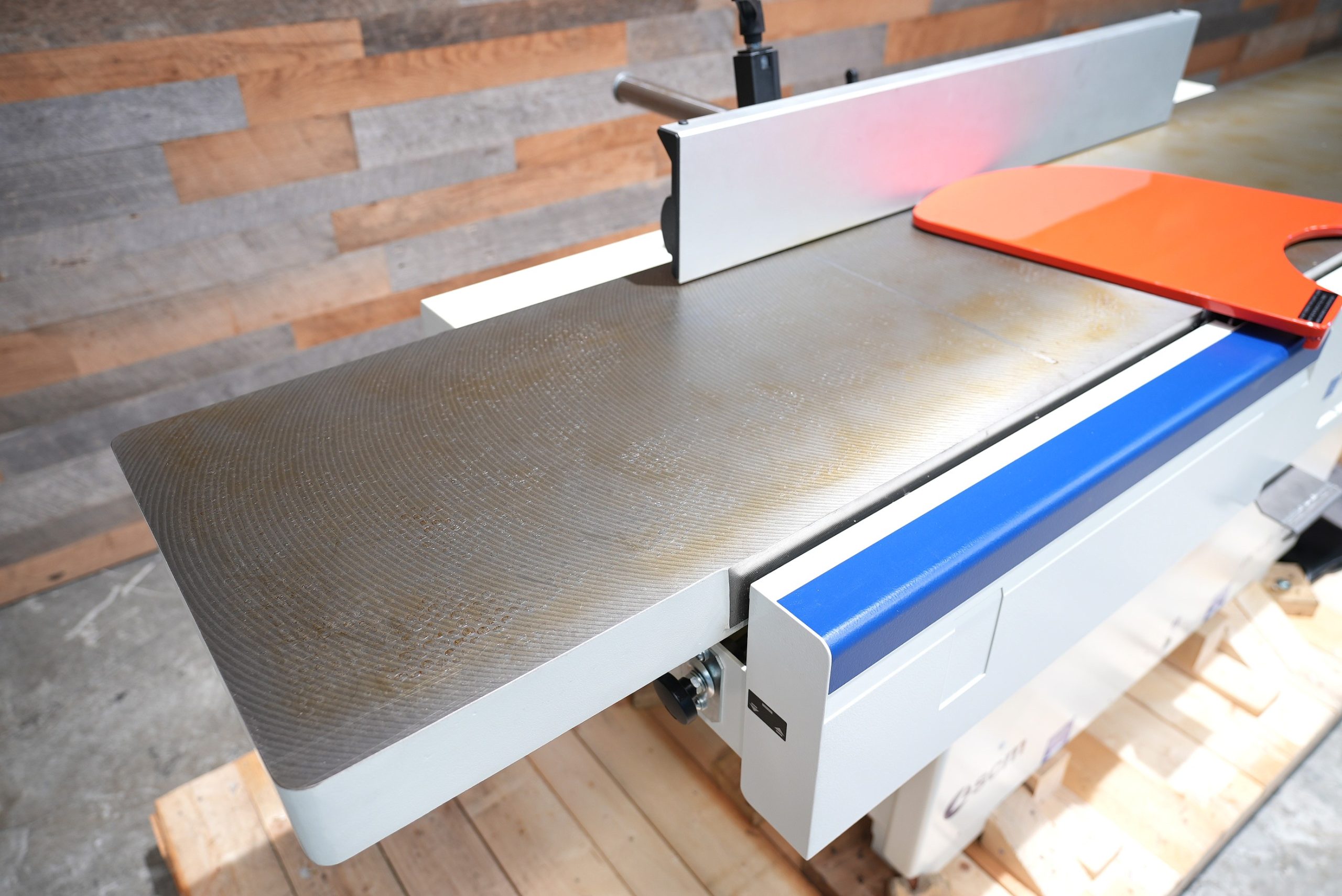

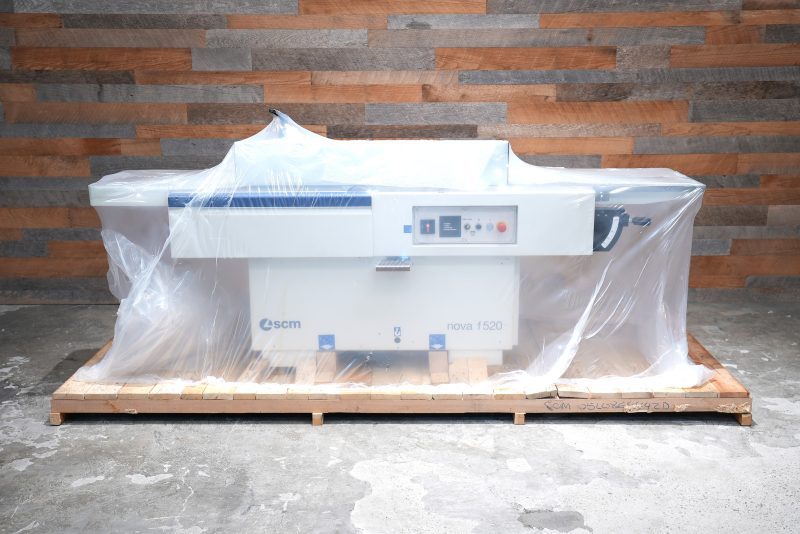

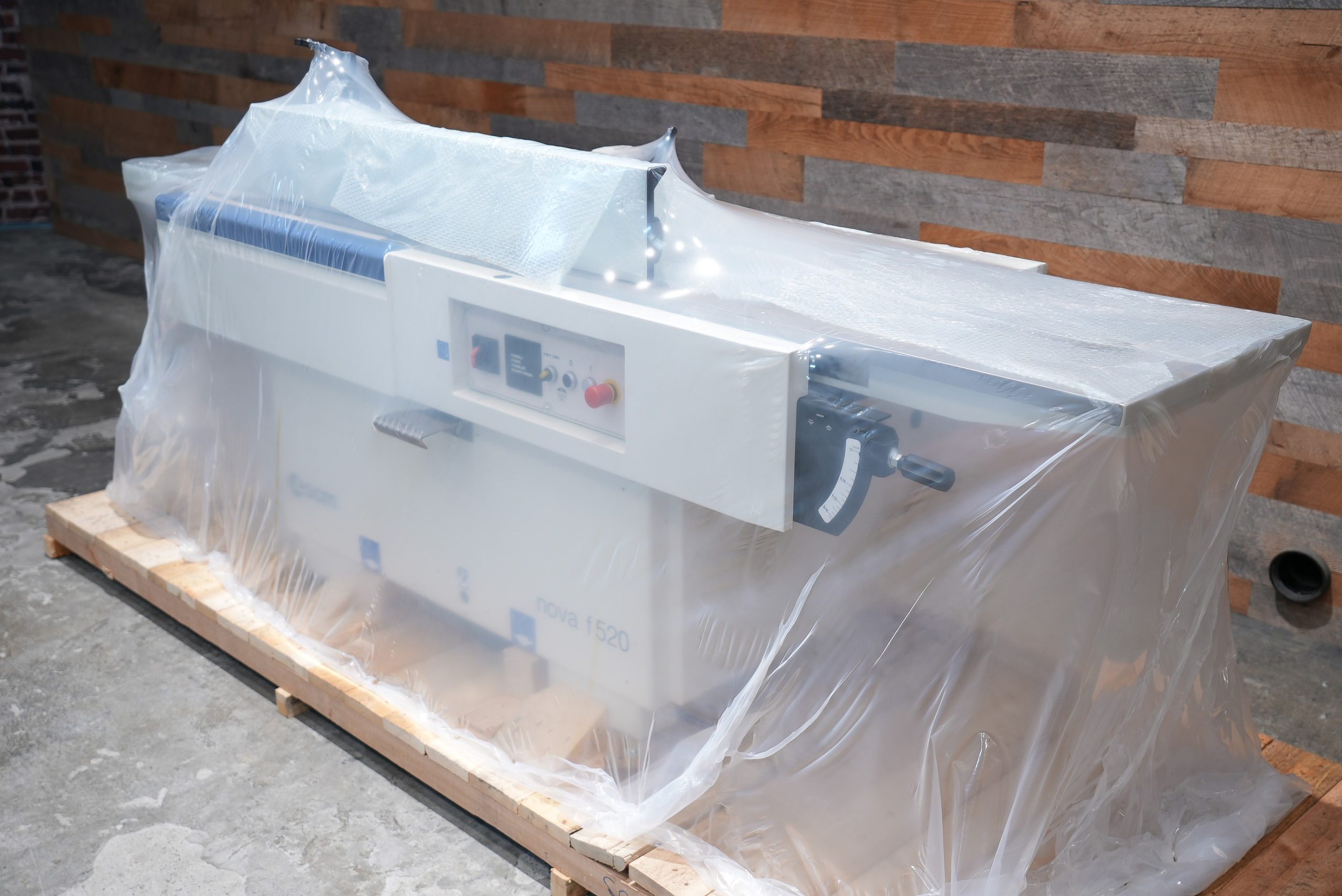

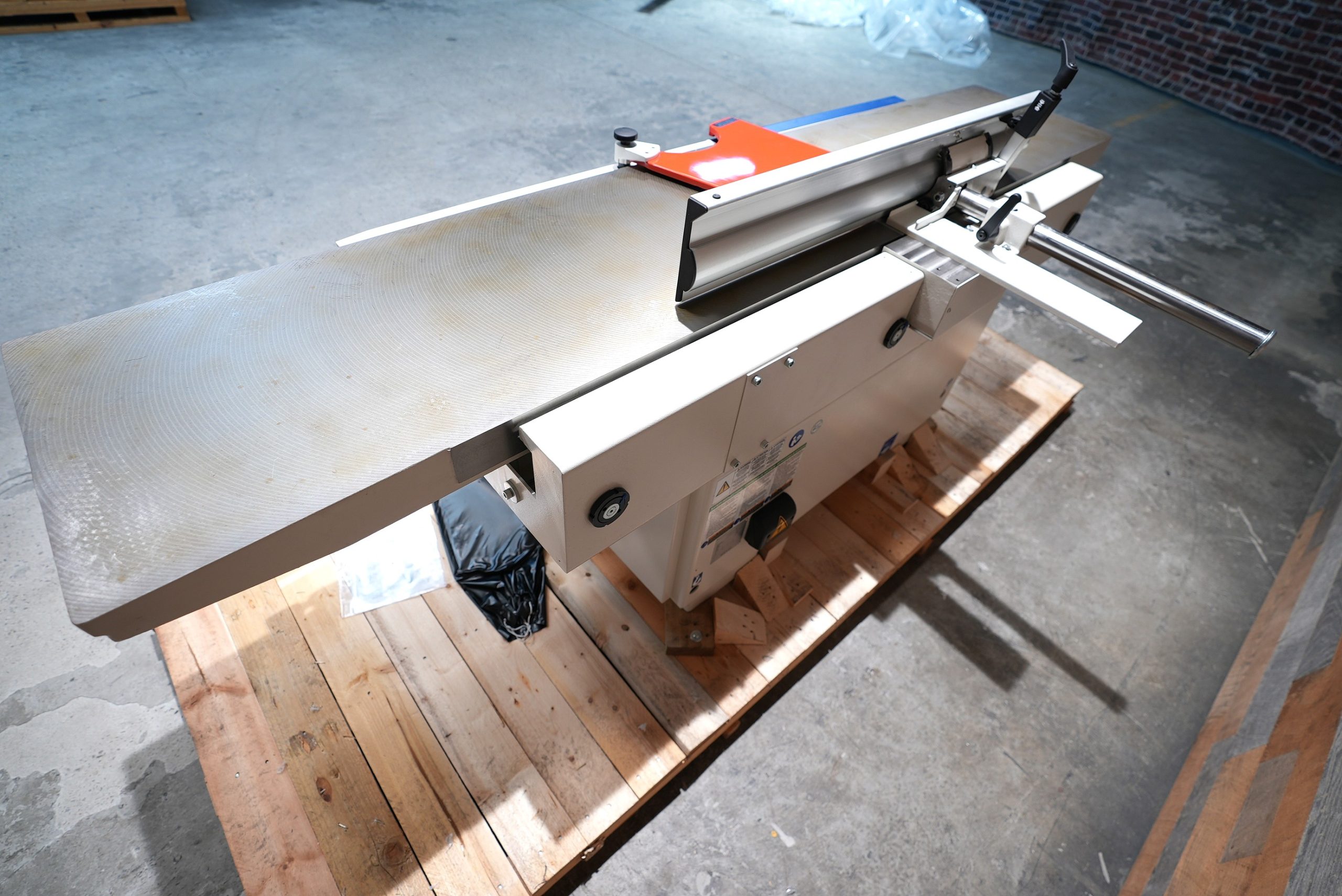

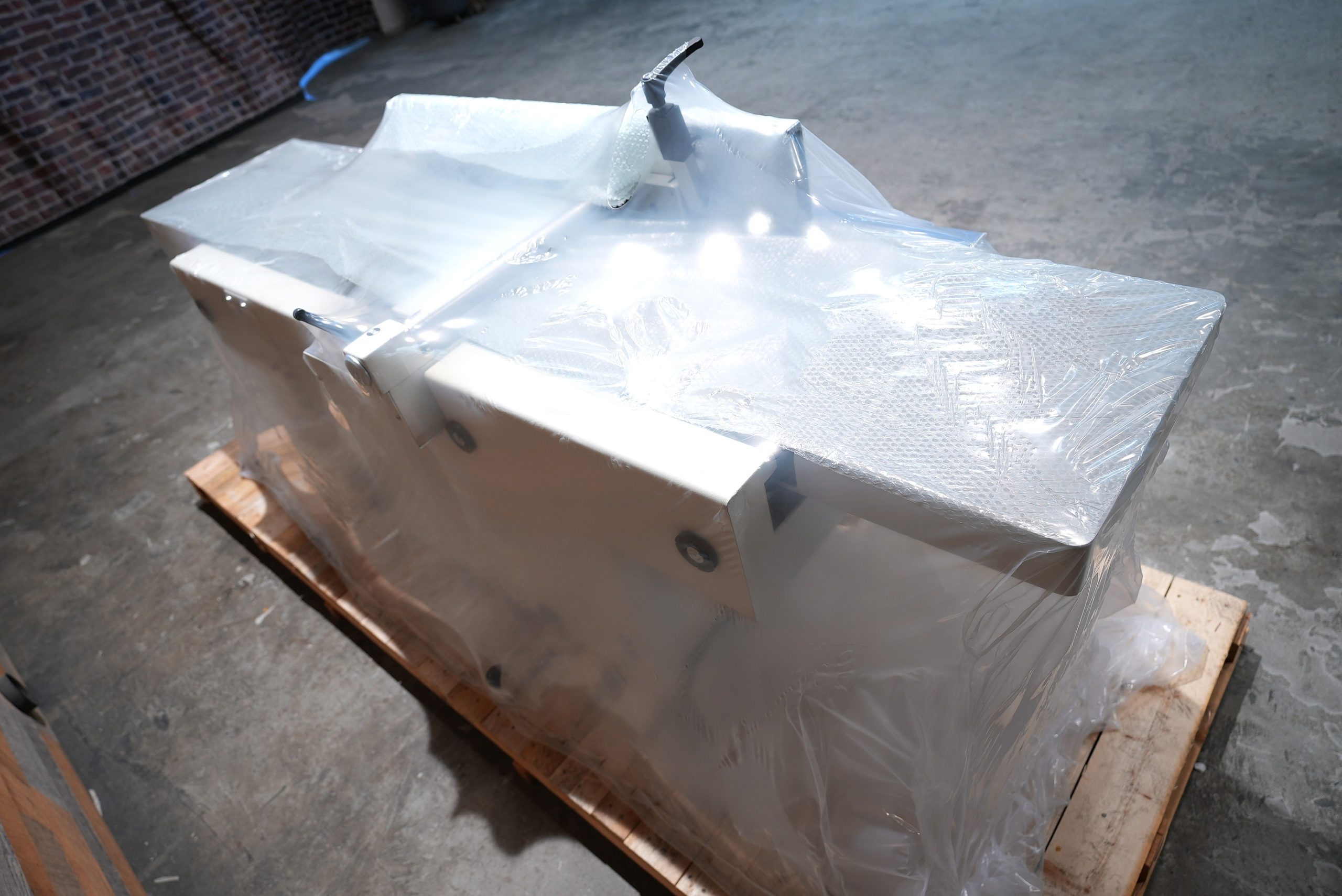

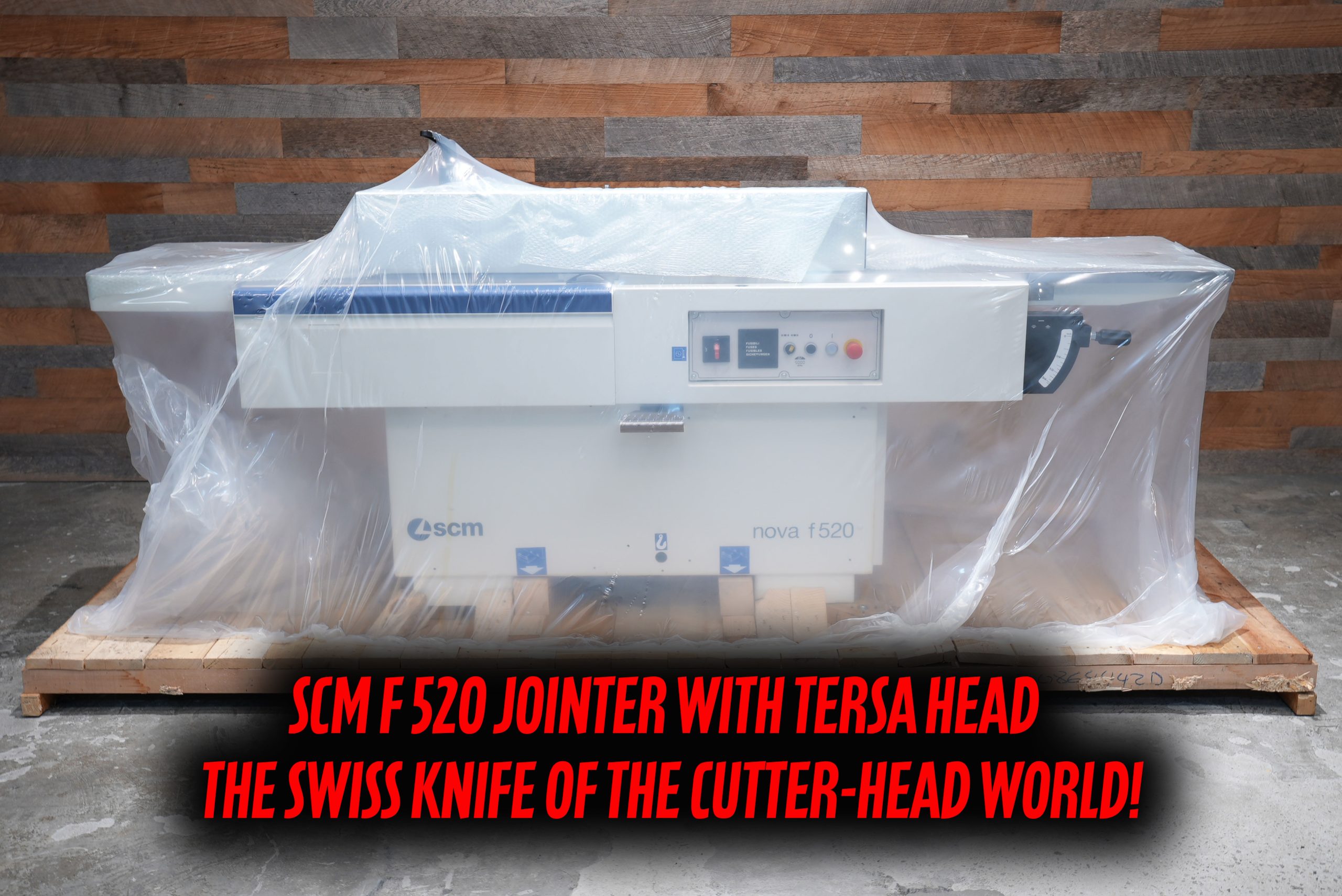

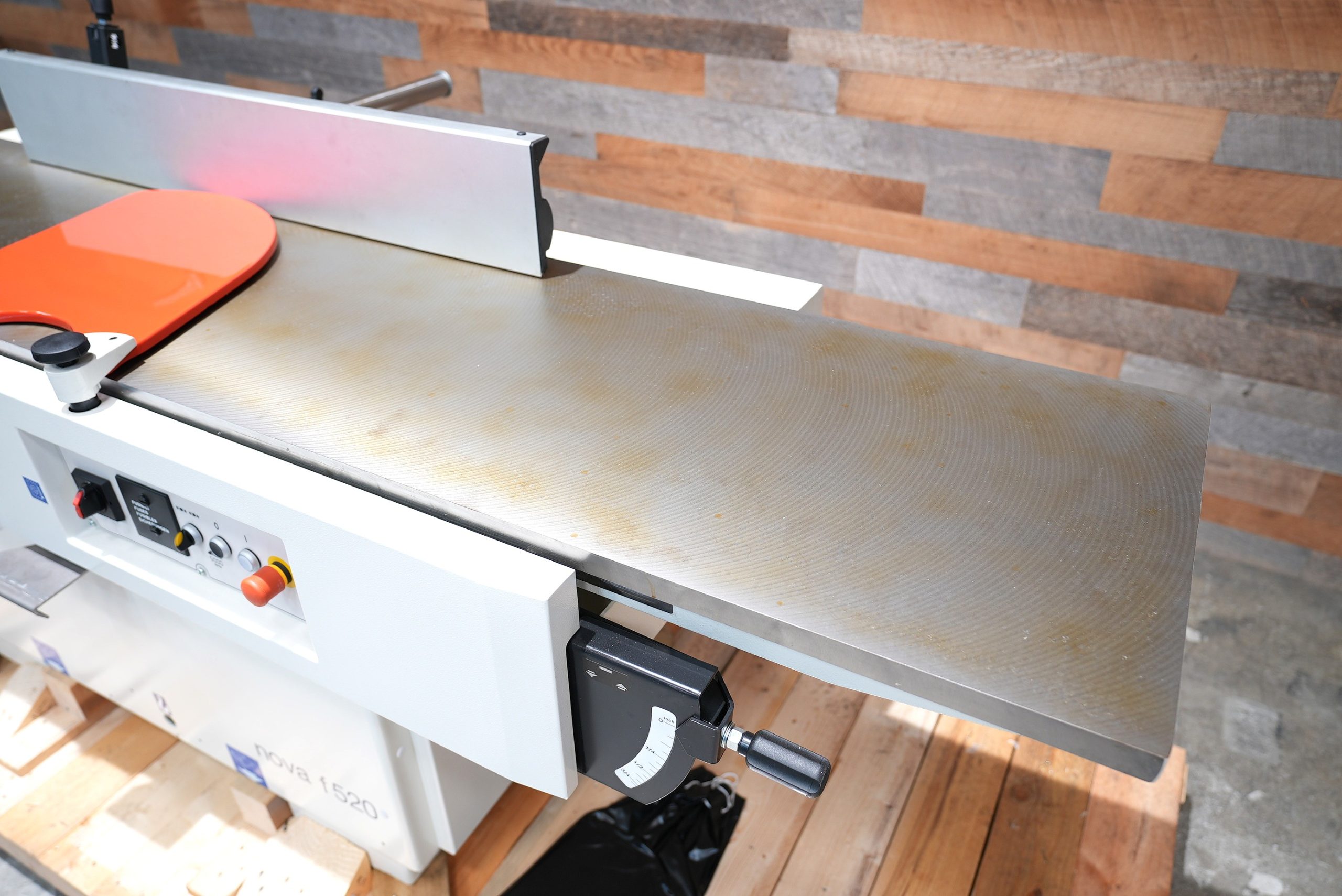

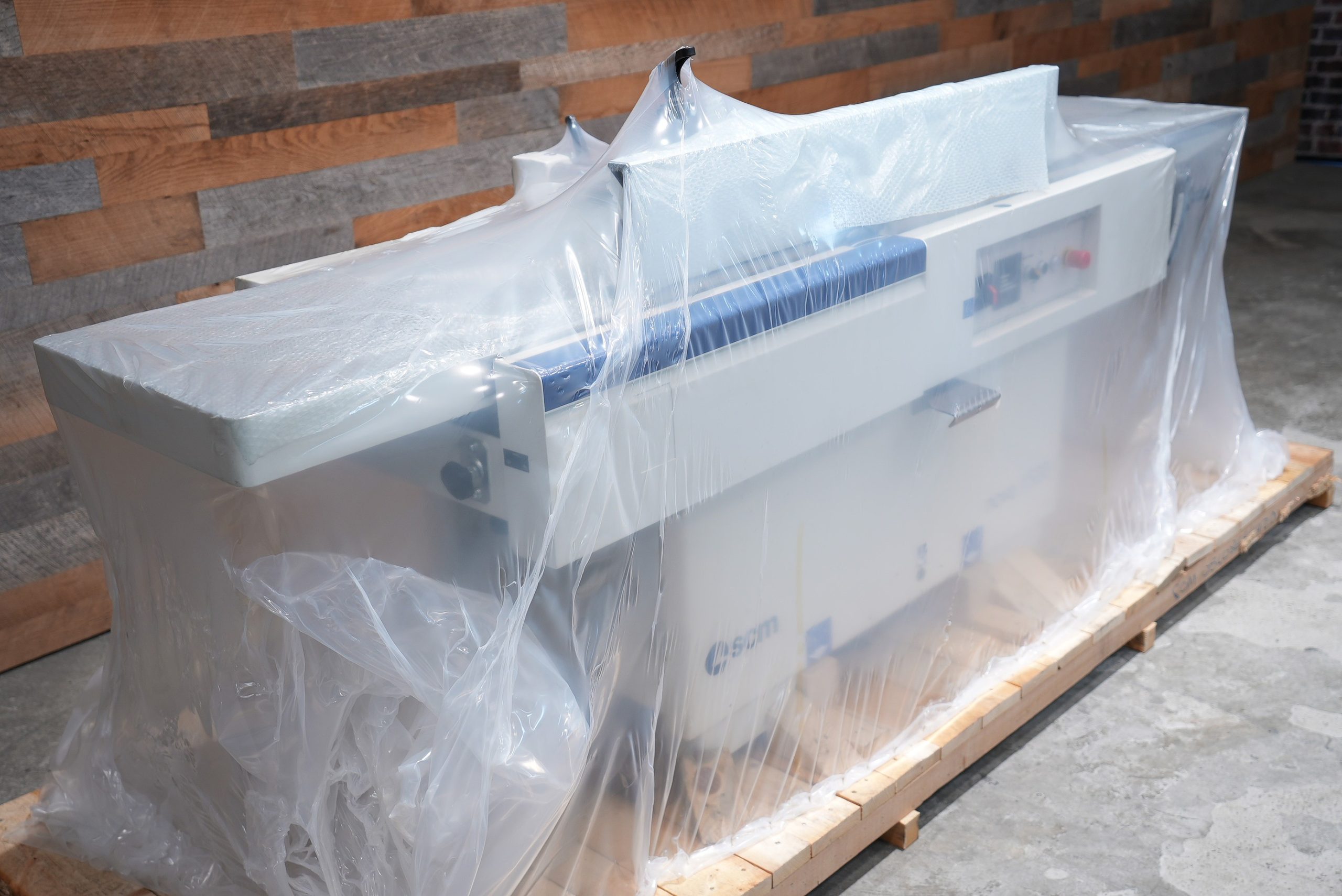

What is even better than a NEW SCM Nova F 520 with a Tersa head? $1,000 OFF PLUS split shipping! PLEASE NOTE: Tables still have factory protective coating on them. What you are seeing is not corrosion or rust rather protectant. Due to how the base is on the f 520, and packaging, this machine ships via flatbed side loaded for safe transit. The Tersa head is the top choice for many woodworkers as it is the Swiss Army Knife of cutter-heads. Allowing you to switch between (4) different types of double sided knives with in minutes. Choose between:
*M+ Tersa Planer Knives are an HSS knife with a custom cutting angle to the blade that makes the knives more durable. Suitable for smaller runs of hardwoods like maple or oak.
**High Speed Steel (HSS) Tersa Planer Knives are our most popular knife, and are the best choice for general woodworking on softwoods like fir, pine, and cedar.
***Tersa Carbide planer knives are the perfect match for daily and extended use with all hardwoods, exotic woods and material with glue lines. Although the carbide steel is more brittle than high speed steel, if used on clean wood, it typically lasts 8-10 times as long.
****Chrome Steel Tersa Planer Knives are offered at a lower price than HSS and M+. Intended for working with soft woods and less likely to chip if used on dirty wood. A set of chrome blades can be used to clean the surface of dirty wood, then changed over quickly for HSS, M+ or carbide blades.
Specs & Features

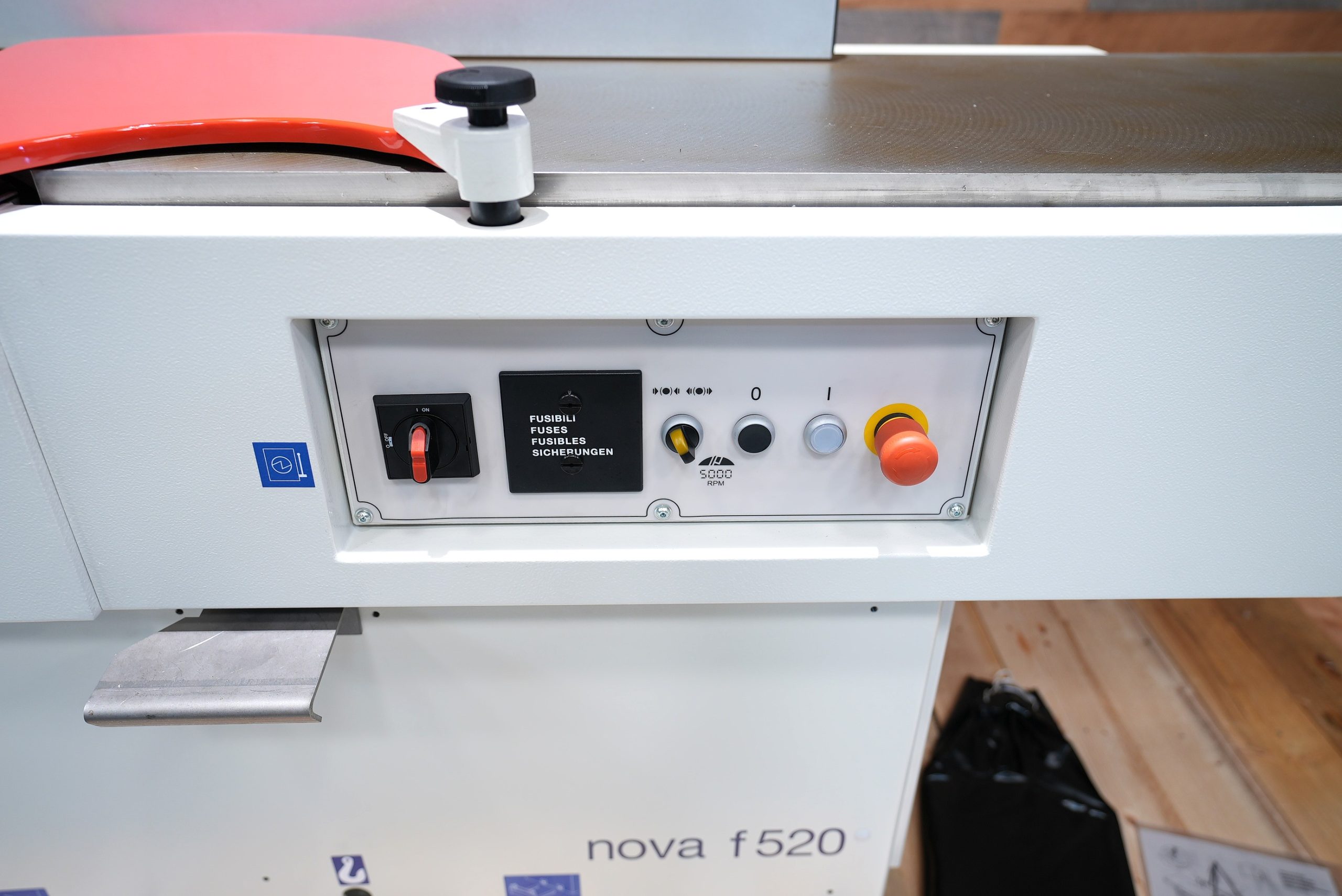

Motor: 8 HP, 3-phase, 220V
Total Table Length: 107‑1/8″ (2,720mm)
Infeed Table Length: 59‑7/8″ (1,520mm)
Outfeed Table Length: 47‑1/4″ (1,200mm)
Table Width: 20‑1/2″ (520mm)
Max Depth of Cut: 5/16″ (8mm)
Cutterhead Type: Tersa — 4 straight knives
Knife Dimensions: 520mm × 35mm × 3mm
Knife Alloy Options: CR chrome steel, HSS, M42 cobalt, tungsten carbide
Cutterhead Diameter: 4.7″ (120mm)
Cutterhead Speed: 5,000 RPM

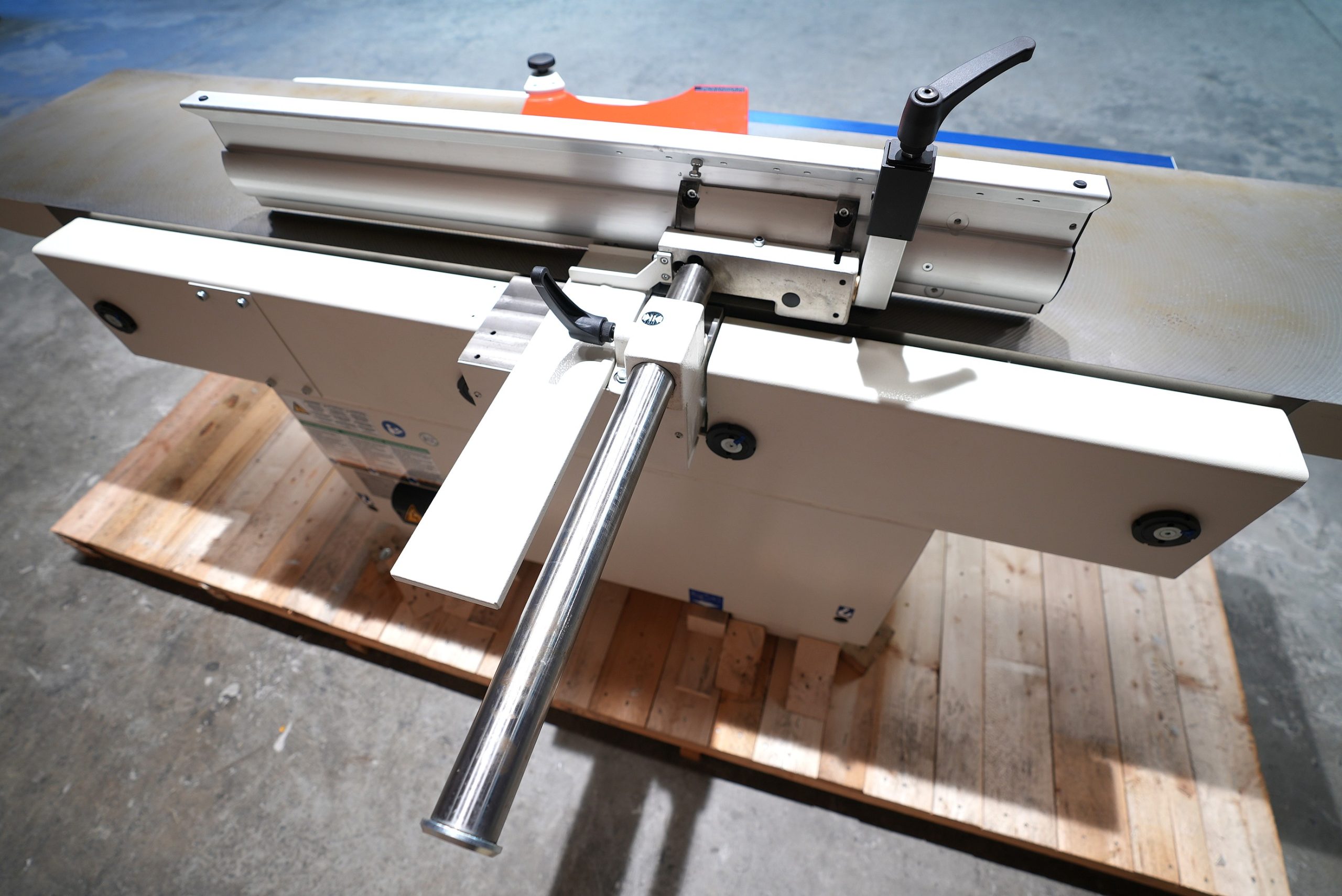

Fence Dimensions: 47‑1/4″ × 7‑1/2″ (1,200 × 190mm)
Fence Tilt: 0° to 45°
Table Movement: Parallelogram — 4 eccentric cams per table
Dust Port Diameter: 120mm (4.7″)
Dust Extraction Minimum: 980 CFM
Overall Dimensions: 107‑1/8″ × 59‑1/16″ (2,720mm × 1,500mm)
Net Weight: 1,875 lbs (850 kg)
Shipping Weight: 2,315 lbs
Shipping
FREE SHIPPING DOES NOT APPLY TO PRE-OWNED MACHINERY
Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.
***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.
Applies to lower 40 of the contiguous states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage, Oliver, nor JLT Machinery or other machines listed as not free shipping.
Literature, Manuals, and or Drawings
