SCM Nova F 520 20.5 inch Jointer (Xylent or Tersa Head)

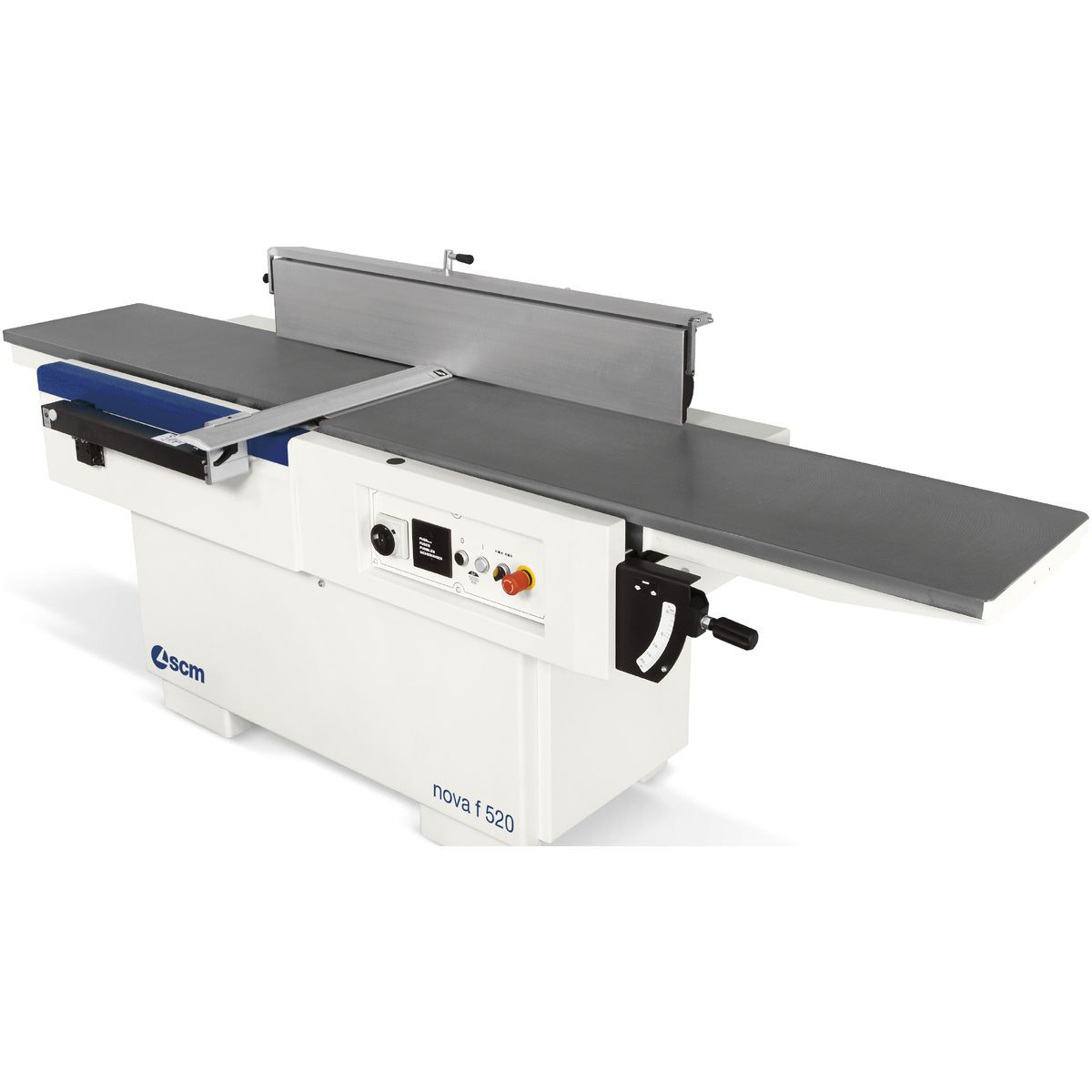

SCM Nova F 520 Jointer

The F 520 is the wider of SCM’s two Nova jointers: 520 mm of cut against the F 410’s 410 mm, on a bed that runs nine feet end to end. As with its smaller sibling, the choice is the head. SCM builds it with either the TERSA knife system or the XYLENT spiral cutterblock, and the rest of the machine is the same either way. The sections below cover that choice, then the tables, the fence, and the drive.

TERSA or XYLENT

Both heads measure 120 mm (4.75 in) across and both spin at 5,000 rpm. The difference is in how the edges are carried and renewed.

TERSA is cut from one piece of steel rather than built up from parts, and SCM’s stated reason is stability when the machine is worked hard. Centrifugal force holds the knives in place, so there are no screws to undo and knife changes are quick.

XYLENT puts 84 square inserts into three spiral rows. SCM claims a very good finish, less noise while cutting, and easier extraction because the chips it produces are small. Each insert carries four cutting tips, so a dull edge is turned rather than thrown away, which extends the head’s working life.

Tables and Fence

The tables are ribbed cast iron, and SCM attributes the lack of vibration to their size and construction. Movement runs on connecting rods, which keeps the setting smooth and the tables true over time. The infeed table raises and lowers by hand.

• Total table length: 2,750 mm (108.25 in) — infeed 1,550 mm, outfeed 1,200 mm
• Working width: 520 mm (20.5 in)
• Maximum stock removal: 8 mm (0.31 in)
• Fence: aluminum, 1,200 × 190 mm (47.25 × 7.5 in)

Motor and Extraction

The standard motor is 8 HP (6 kW) three-phase at 60 Hz on a 230 V supply, drawing 24 A, and SCM lists an 11 HP upgrade for this model. Extraction leaves through one 120 mm (4.75 in) outlet.

Specifications

Contact 360 Degree Machinery

360 Degree Machinery is an authorized SCM dealer. Call 630-229-6705 or request a quote online. Tell us which head you want and whether you want the 11 HP motor included in the quote. If 20 inches is more width than you need, the Nova F 410 is the narrower version, at 16 inches on a shorter 102-inch bed. Installation fees may apply.
