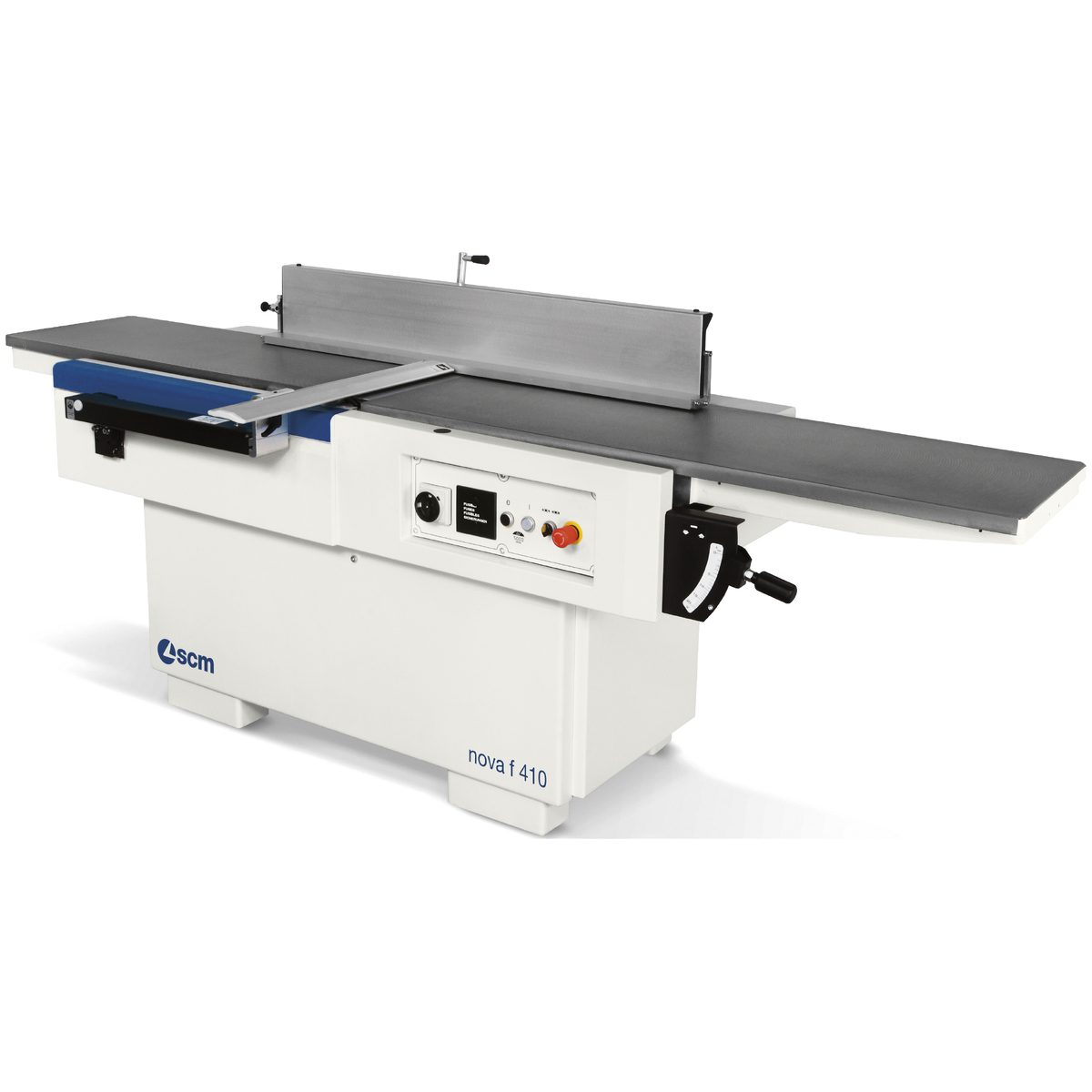

SCM Nova F 410 16 inch Jointer (Xylent or Tersa Head)
$11,975.00 – $12,675.00Price range: $11,975.00 through $12,675.00
Request a call back

SCM Nova F 410 16 inch Jointer (Xylent or Tersa Head)

SCM Nova F 410 16 inch Jointer (Xylent or Tersa Head)

Price range: $11,975.00 through $12,675.00

Categories , , , Tag Brands ,

Sixteen inches of cast iron, and your choice of cutterhead. The Nova F 410 runs a 102-inch bed on 8 HP, and you choose between TERSA quick-change knives and the XYLENT spiral with rotatable carbide inserts. Everything else is the same machine:

  • 410 mm (16 in) working width, 2,610 mm (102.75 in) table
  • 120 mm cutterblock at 5,000 rpm
  • 8 HP (6 kW) three-phase motor, 11 HP optional
  • Ribbed cast-iron tables on a connecting-rod system
  • Aluminum fence, 1,200 x 190 mm

*Photos may include optional equipment.

Advertised Price Configurations:

  • NOVA F 410 – T: 3ph, 8HP, 16″ TERSA cutterblock (4 knives), 102.75″ jointer bed
  • NOVA F 410 – X: 3ph, 8HP, 16″ XYLENT cutterblock, 102.75″ jointer bed
Add to Quote Request

SCM Nova F 410 Jointer

A 16-inch jointer with a 102-inch bed will flatten almost anything that comes through a small shop, and the F 410 is SCM’s Nova-line answer at that size. The decision on this machine isn’t the size, but the head: SCM offers it with either the TERSA quick-change knife system or the XYLENT spiral cutterblock, and everything else about the two builds is identical. The sections below explain the difference, then cover the tables, fence, and drive.

TERSA or XYLENT

Both heads are 120 mm (4.75 in) in diameter, and both turn at 5,000 rpm. What changes is how the cutting edges are held and replaced.

TERSA XYLENT
Price $11,975 $12,675
Cutting edges 4 knives 66 inserts in 3 spiral rows
Knife or insert size 410 × 35 × 3 mm 15 × 15 × 2.5 mm
Edge changes Knives swap out; no fixing screws Each insert has 4 tips, rotated as they wear
Included — 10 spare inserts
Crated weight 1,621 lb 1,628 lb
MPN NOVAF410_COMP4 NOVAF410_COMP1

The TERSA head is cut from one piece of steel rather than assembled, which SCM credits for staying rigid through hard, repeated cuts. Its knives are clamped by centrifugal force rather than screws, and SCM says changing them is very fast.

The XYLENT head carries three spiral rows of square carbide inserts. SCM claims it delivers an exceptional finish, quieter cutting, and better extraction because the chips it makes are very small. Each insert has four usable tips, so the operator rotates a worn edge rather than replacing it, which extends the head’s life before new cutters are needed.

Tables and Fence

The worktables are ribbed cast iron, and SCM attributes the absence of vibration to their size and construction. Table movement runs on connecting rods, which SCM says hold the setting smoothly and keep the tables true over time. The infeed table is moved by hand, with cutting depth read from a scale.

  • Total table length: 2,610 mm (102.75 in) — infeed 1,450 mm, outfeed 1,160 mm
  • Working width: 410 mm (16 in)
  • Maximum stock removal: 8 mm (0.31 in)
  • Fence: aluminum, 1,200 × 190 mm (roughly 47 × 7.5 in)

Motor and Extraction

The standard motor is 8 HP (6 kW) three-phase at 60 Hz, drawing 24 A, and SCM offers an 11 HP upgrade on this model. Extraction leaves through a single 120 mm (4.75 in) outlet.

Specifications

Type Jointer (surface planer)
Working width 410 mm (16 in)
Total table length 2,610 mm (102.75 in)
Infeed table 1,450 mm (57.06 in)
Outfeed table 1,160 mm (45.69 in)
Cutterblock diameter 120 mm (4.75 in)
Cutterblock speed 5,000 rpm
Max stock removal 8 mm (0.31 in)
Fence Aluminum, 1,200 × 190 mm
Infeed table movement Manual, with cutting depth readout on scale
Main motor 8 HP (6 kW), three-phase, 60 Hz (11 HP optional)
Power absorption 24 A
Exhaust outlet 120 mm (4.75 in)
Crate dimensions 105 × 46 × 47 in
Product line SCM Nova

Contact 360 Degree Machinery

360 Degree Machinery is an authorized SCM dealer. Call 630-229-6705 or request a quote online. Tell us which head suits your work and whether you want the 11 HP motor, and we will quote it built that way. Installation fees may apply.
