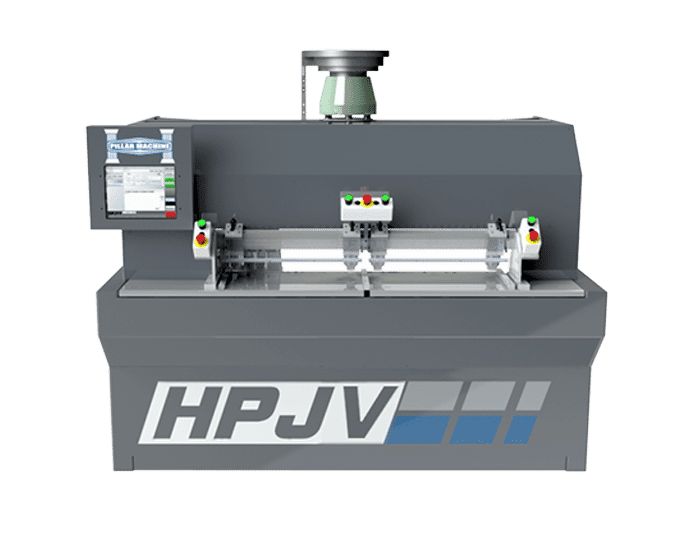

Pillar Machine HPJV: Horizontal & Vertical Bore and Dowel Mastery
Meet the Pillar Machine HPJV—a game-changing CNC machining center that fuses horizontal and vertical boring with dowel insertion to transform your woodworking workflow. Crafted for cabinetmakers, furniture artisans, and production shops, this machine tackles intricate tasks like cam lock drilling and dowel placement with pinpoint accuracy. Its dual-axis design slashes setup hassles and boosts output by offloading work from CNC routers and point-to-point systems. Discover this versatile marvel at 360 Degree Machinery and redefine what’s possible in your shop.
Standout Features and Advantages
- Two-in-One CNC Control: Seamlessly positions horizontal and vertical spindles for simultaneous boring and dowel tasks, delivering flawless results every time.
- Swift Processing: Executes dual-plane operations in a flash, cutting wait times and accelerating project completion.
- Quad Work Zones: Comes standard with four zones for pendulum processing—machine one part while prepping the next without pause.
- Effortless Operation: A 15″ vibrant touchscreen simplifies programming, making it accessible even for newcomers.
- Scalable Design: Add extra spindles or hardware inserters to match your shop’s evolving needs.
- Built to Last: Forged with a welded frame and top-tier components for relentless performance in tough settings.
Technical Breakdown
| Feature | Specification |
|---|---|
| Machine Type | Horizontal & Vertical Bore and Dowel CNC Center |
| Work Zones | 4 (base model) |
| Spindle Positioning | CNC-driven horizontal and vertical control |
| Dowel System | CNC inserter with glue/water injection |
| Display | 15″ industrial touchscreen |
| Software Tools | Parametric programming, pattern operations, diagnostics |
| Build | Welded tubular steel frame |
| Extras | Optional multi-spindle setups, hardware inserters |
Smart Software & Interface
The HPJV’s 15″ touchscreen is your command hub, blending power with simplicity. Import designs via .xml files or barcodes (optional reader required) and tweak settings on the fly. Highlights include:
- Visual guides for drilling and dowel placement across both axes.
- Parametric flexibility for instant customization.
- Patterned operations for complex layouts.
- Secure access and remote diagnostics (with internet).
About Pillar Machine
Pillar Machine is based in Salt Lake City, Utah and builds all of its equipment in the USA. Machines come with a one-year warranty and free online training direct from the factory.
Request a Quote
Use the button above to add this machine to your quote, or call 360 Degree Machinery at 630-229-6705.
