Pillar HPJ: Horizontal Bore & Dowel Insertion Machine

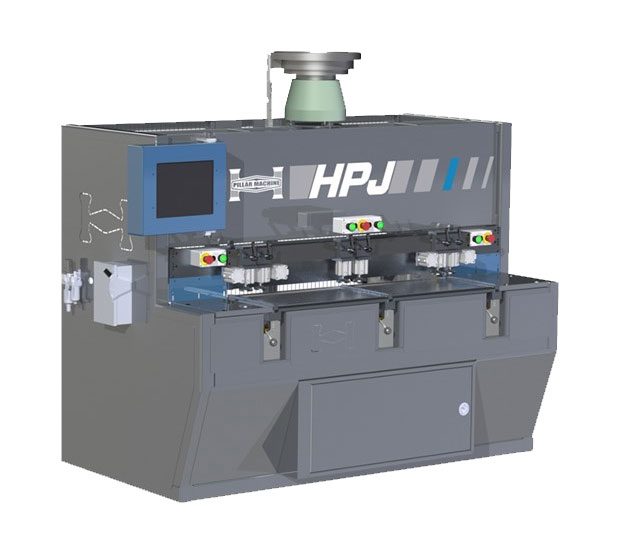

The HPJ is a high-speed horizontal CNC boring and dowel insertion machine with four work zones and pop-up side fences for unlimited width capability. Each bore-glue-dowel cycle runs in under one second. The 2020 redesign added a wider frame, rear enclosure, and swivel-mounted touchscreen; optional 3 HP or 7 HP spindles extend the machine to confirmat screw drilling and deeper routing.
Standout Features and Advantages
- Rapid CNC Accuracy: CNC positions the spindle to bore holes and the inserter to inject glue or water (for pre-glued dowels), inserting 8 mm dowels in under 1 second per cycle at 64 mm intervals.
- Four Work Zones: Equipped with four zones and manual pop-up side fences, enabling pendulum processing and unlimited width capability for oversized parts.
- Ergonomic Design: Features a swivel-mounted 15″ touchscreen for intuitive programming, adjustable to your preferred position.
- Modern Upgrades: 2020 enhancements include a wider frame, rear guarding, and sleek graphics, improving durability and aesthetics.
- Customizable Power: Optional 3 HP or 7 HP router-rated spindles allow for advanced operations like confirmat screw drilling or deep routing.
- Robust Construction: Built with high-precision square rail guides and a welded frame for reliable performance in demanding shops.
Technical Breakdown
| Feature | Specification |
|---|---|
| Machine Type | Horizontal point-to-point bore and dowel insertion |
| Work Zones | 4 with manual pop-up side fences |
| Max Width | 49″ (unlimited with side fences removed) |
| Length Capability | Unlimited |
| Thickness Capability | 0.5″ to 1″ |
| Cycle Time | <1 second per bore, glue, dowel (64 mm intervals) |
| Dowel Size | 8 mm diameter (standard) |
| Spindle | 3 HP high-frequency (optional 7 HP) |
| Display | 15″ industrial touchscreen |
| Motion Guides | High-precision square rail guides (X, Y, Z axes) |
| Electrical | 3-phase, 208-230V, 60 cycles, 20 amps |
Smart Software & Interface
The HPJ’s 15″ touchscreen is a user-friendly command hub, enabling rapid program creation in under a minute. Its open-architecture software supports .xml file imports or barcode scanning (with optional reader) for seamless integration. Key features include:
- Graphic guides for drilling and dowel placement.
- Parametric programming for tailored setups.
- Pattern drilling and inserting for complex designs.
- Secure access and online diagnostics (with internet).
About Pillar Machine
Pillar Machine is based in Salt Lake City, Utah and builds all of its equipment in the USA. Machines come with a one-year warranty and free online training direct from the factory.
