Maggi Boring System 23

Maggi Boring System 23

Price range: $9,350.00 through $9,950.00

SKU N/A Categories , , Tags , Brand:

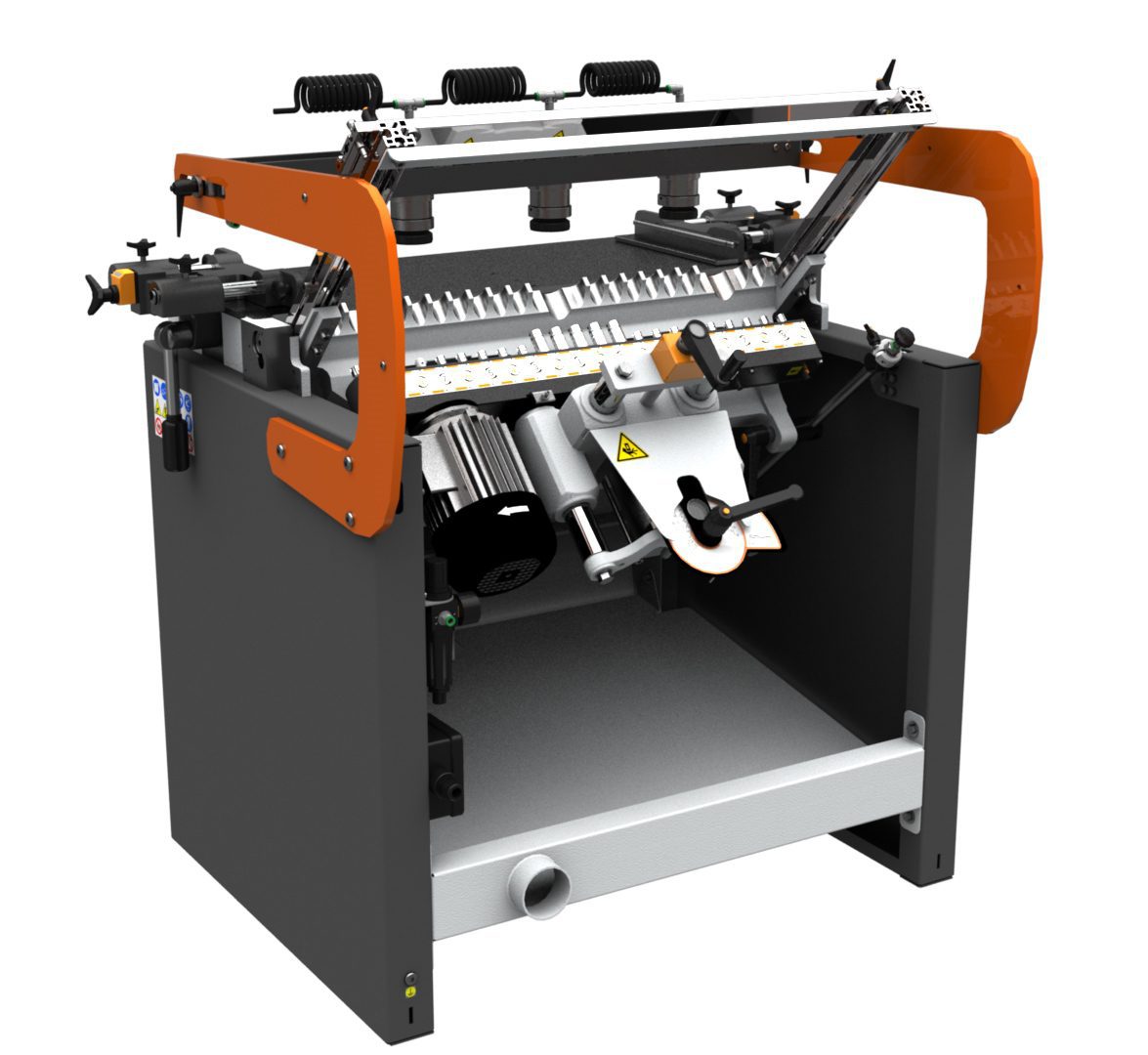

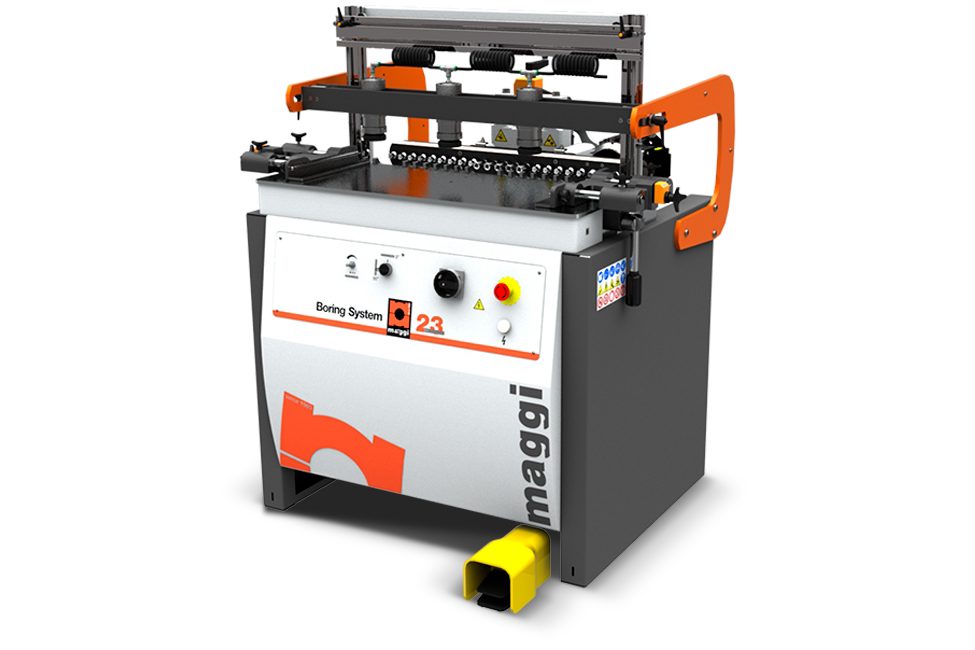

Maggi System 23 Construction/Line Borer

Efficient and durable with an unbeatable price-performance ratio. Maggi single-head boring machines are simple, compact solutions, ideal for those who manufacture custom-made furniture and furnishings.



Add to Quote Request

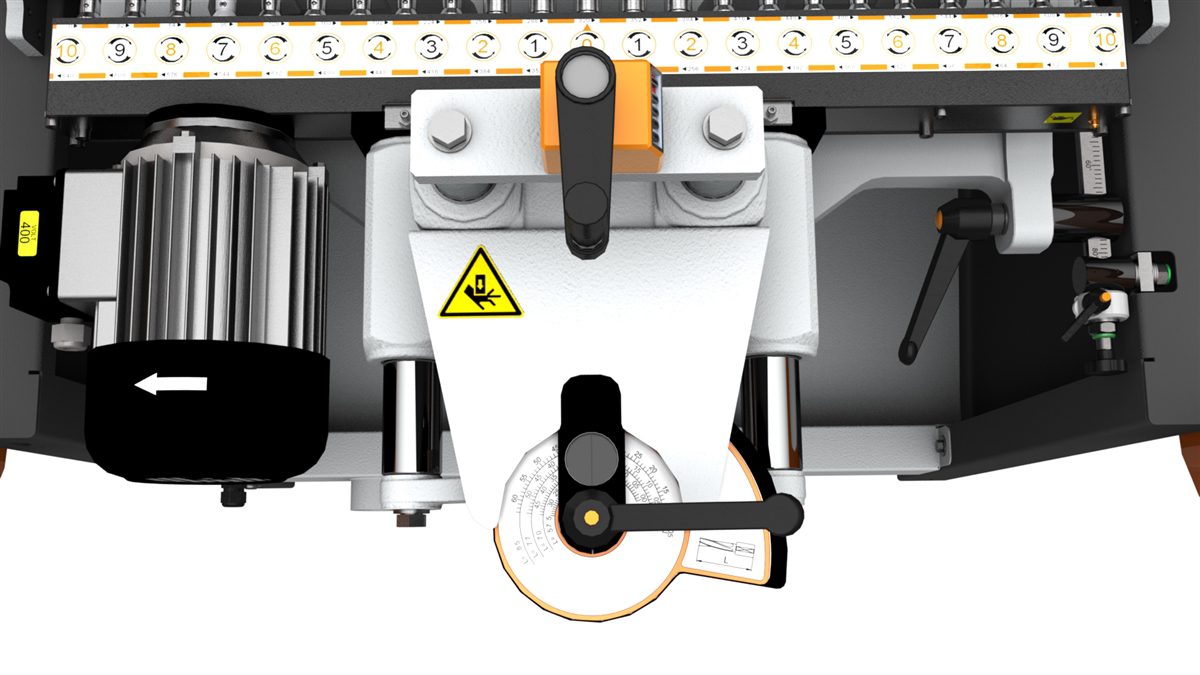

The Maggi System 23 Boring Machine provides a 23 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle.

Features:

  • Accurate Positioning Of The Boring Unit To The Table With Digital Readout.
  • 0 To 2.5″ Adjustable Drilling Depth With Patented Spiral Setting Device.

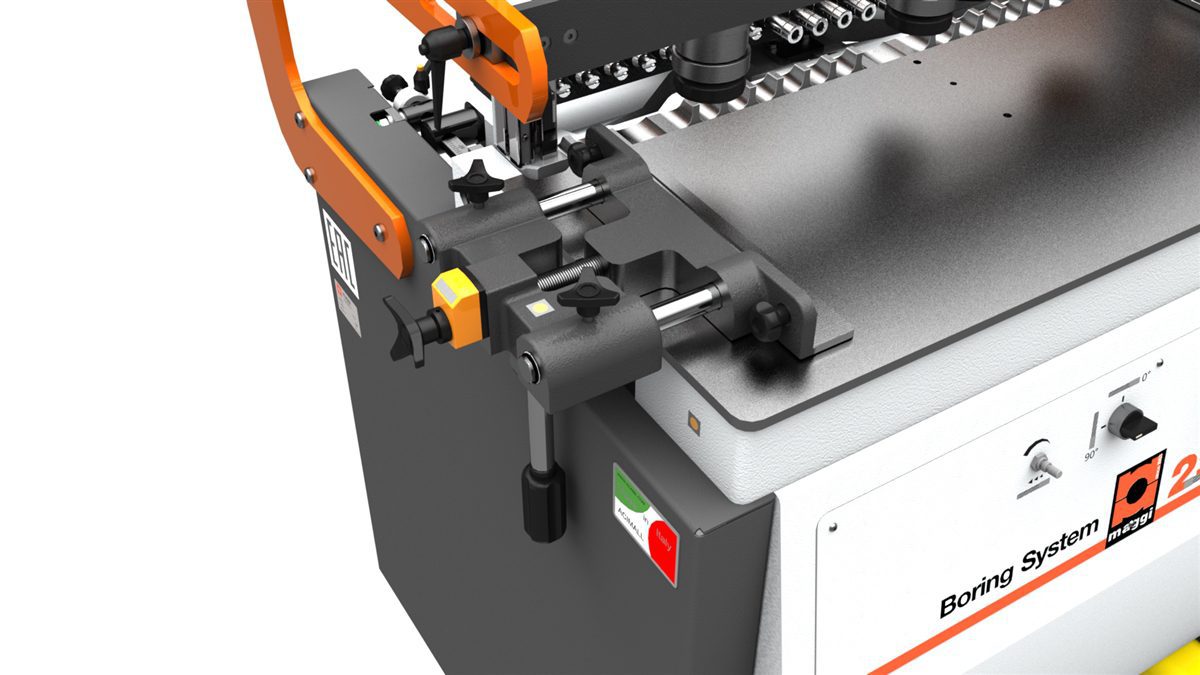

  • (2) Patented Quick Release Material Clamps With Auto-Setting To Firmly Hold Material To Table.
  • Powerful 2 HP Motor.
  • 37″ X 13″ Cast Iron Table.
  • Side Fences With Mechanical Digital Readout For Quick And Accurate Setting.
  • 120″ Line Boring Fence With (4) Stops.
  • Foot Actuated Pneumatic Clamps And Drill Cycle.
  • Includes: Magnetic Starter With Overload Protection And (23) Quick Change Chucks.

Specifications:

Spindle Spacing:

 1-1/4″ (32mm)

Dust Outlet:

3″

Net Weight:

630 Lbs

Dimensions:

51.7″ x 37.8″ x 50″ Tall

Crated Dimensions:

42.2″ x 37.4″ x 40.5″ Tall

Crated Weight:

 705 Lbs

Options (single head boring machines):



Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.

***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.

Applies to lower 40 of the contiguous states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage Machines nor JLT Machinery or other machines listed as not free shipping.

Financing & Leasing Options for Your Convenience!

360 Degree Machinery offers financing solutions with competitive rates, flexible terms, and a simple application. Take the hassle out of machinery purchases. Click Here to learn more now!

The Maggi System 23 Boring Machine provides a 23 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle.

Features:

  • Accurate Positioning Of The Boring Unit To The Table With Digital Readout.
  • 0 To 2.5″ Adjustable Drilling Depth With Patented Spiral Setting Device.
  • (2) Patented Quick Release Material Clamps With Auto-Setting To Firmly Hold Material To Table.
  • Powerful 2 HP Motor.
  • 37″ X 13″ Cast Iron Table.
  • Side Fences With Mechanical Digital Readout For Quick And Accurate Setting.
  • 120″ Line Boring Fence With (4) Stops.
  • Foot Actuated Pneumatic Clamps And Drill Cycle.
  • Includes: Magnetic Starter With Overload Protection And (23) Quick Change Chucks.

Specifications:

Spindle Spacing:

 1-1/4″ (32mm)

Dust Outlet:

3″

Net Weight:

630 Lbs

Dimensions:

51.7″ x 37.8″ x 50″ Tall

Crated Dimensions:

42.2″ x 37.4″ x 40.5″ Tall

Crated Weight:

 705 Lbs

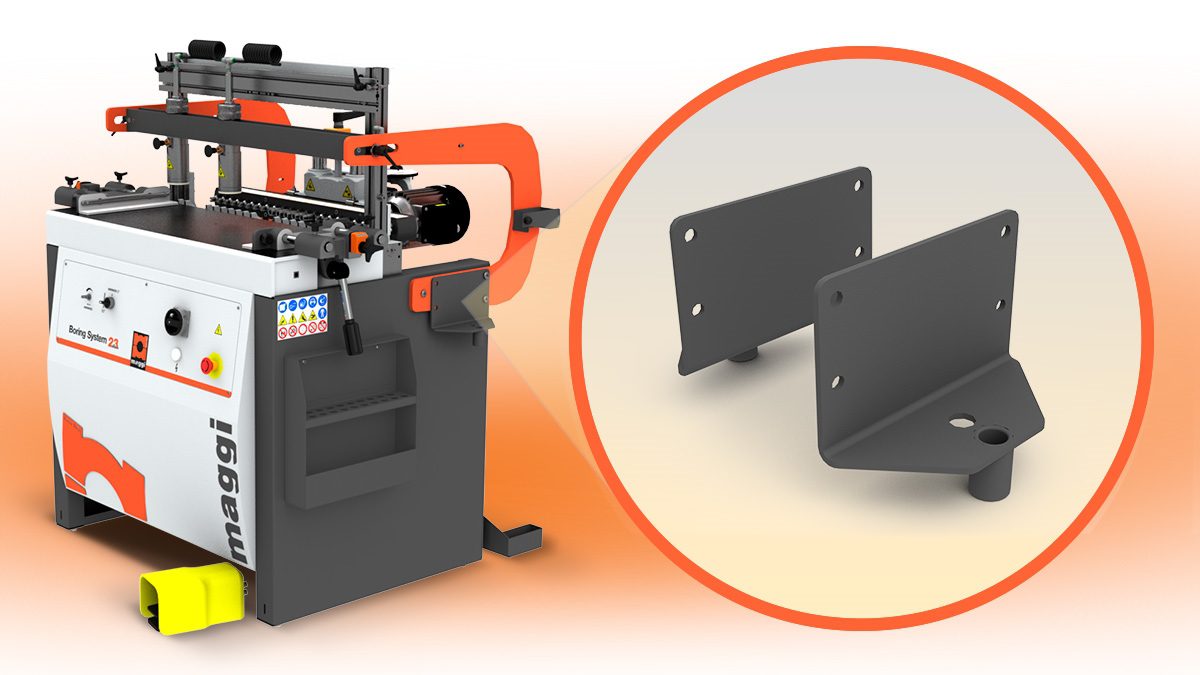

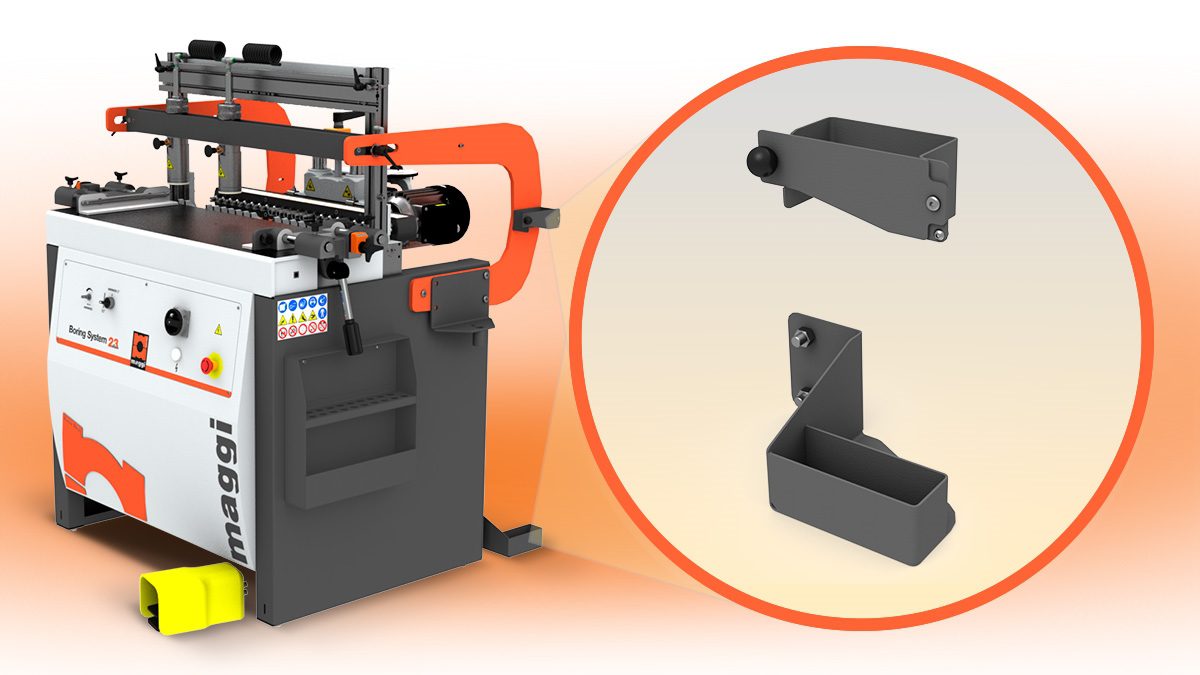

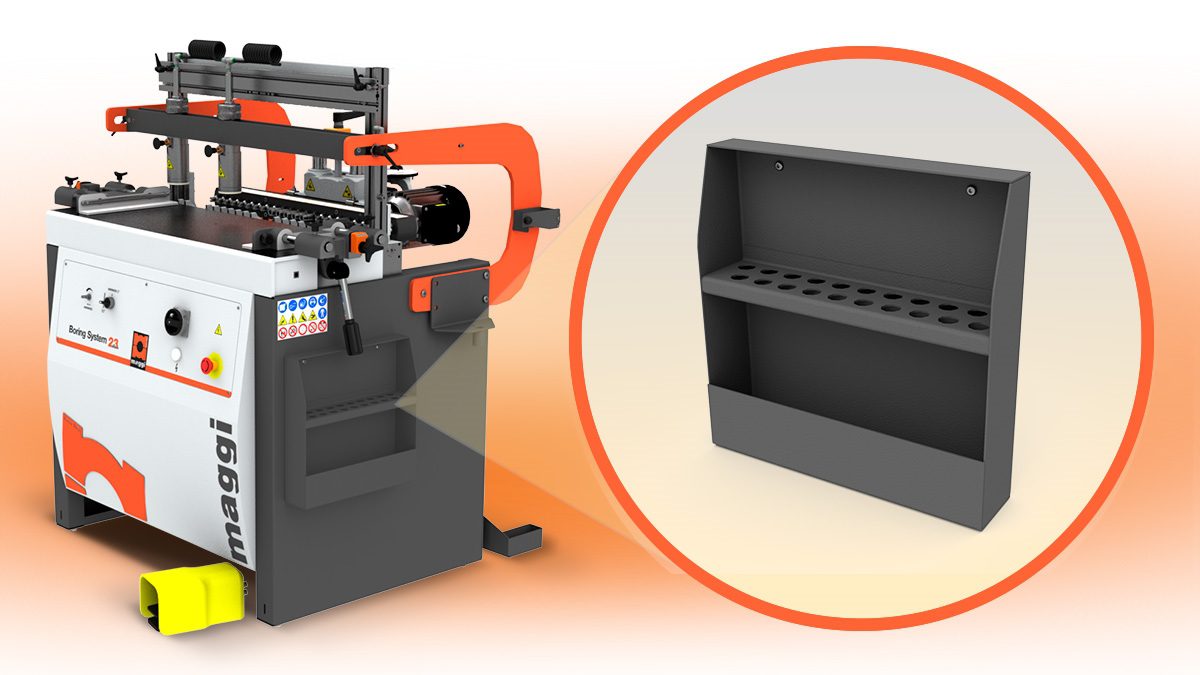

Options (single head boring machines):



Additional information

Voltage: No selection

230V/1-phase, 230V/3-Phase
