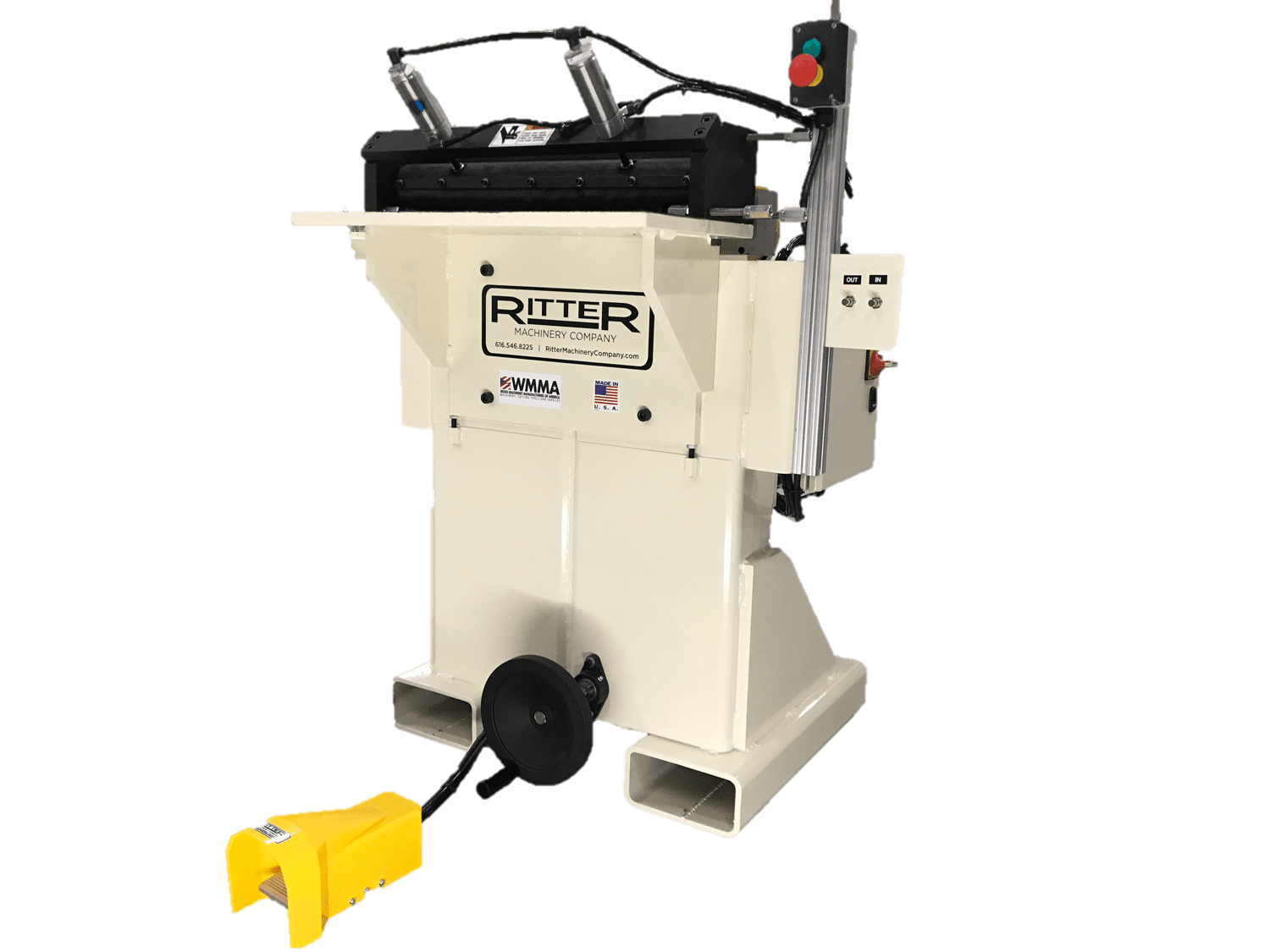

Ritter R853 Horizontal/vertical Line-dowel Drill / Drawer Drill

Ritter R853 Horizontal/vertical Line-dowel Drill / Drawer Drill

$23,390.00

Categories , , , Tags , , Brand:
  • Foot Actuated Drilling and Clamping Cycle
  • (13)-Spindle Gear Head
  • 32mm Spindle Centers on Gear Head
  • (7) Right Hand, (6) Left Hand
  • 10mm Bored Collets
  • 2 HP Spindle Drive Motor, TEFC
  • 0-2″ Adjustable Boring Depth Turret
  • 1/2″ – 3/4″ Thick Drawer Box Sides
  • 14″ Maximum Drawer Box Height
  • 12″ X 24″ Machined Steel Work Table
  • 34″ Work Height
  • Horizontal / Vertical Boring Fence System
  • Horizontal / Vertical Material Clamp System
  • Wired 3-Phase 230 Volt, 60 Hz.
  • Tooling Not Included
  • Designed and Manufactured in the USA

Additional options for this machine include:

  • E55 – 1.5 HP 1-Phase Motor, 220 Volt



The Ritter R853 is a robust 13 spindle horizontal borer, designed as a dedicated and accurate boring center with single, or multiple part capability. The operation sequence helps eliminate costly mistakes and rejected parts, and it helps increase production and efficiency. Ideal for drawer assembly, and other functions for the clean and accurate drilling of wood components. The workpiece is held firmly against the table by a pneumatic clamps, and there is full adjustability of the index stops, bed height, and depth of cut.

Add to Quote Request

BENEFITS OF THE R853 SYSTEM

  • Back fence allows for vertical and horizontal boring positions without added machine set-up.
  • Boring depth is controlled by the quick-change turret for different boring depth as required.
  • Chip clearance is provided for by the back fence design to eliminate dust and chip build-up.
  • Boring bits are guarded for operator safety.
  • Unlimited drawer box width and depth.
  • Maxumum drawer box height is 14″.
  • Capacity for 5mm to 8mm dowels.

Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.

***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.

Applies to lower 40 of the contiguous states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage, Oliver, nor JLT Machinery or other machines listed as not free shipping.

Financing & Leasing Options for Your Convenience!

360 Degree Machinery offers financing solutions with competitive rates, flexible terms, and a simple application. Take the hassle out of machinery purchases. Click Here to learn more now!

BENEFITS OF THE R853 SYSTEM

  • Back fence allows for vertical and horizontal boring positions without added machine set-up.
  • Boring depth is controlled by the quick-change turret for different boring depth as required.
  • Chip clearance is provided for by the back fence design to eliminate dust and chip build-up.
  • Boring bits are guarded for operator safety.
  • Unlimited drawer box width and depth.
  • Maxumum drawer box height is 14″.
  • Capacity for 5mm to 8mm dowels.
