Pillar H49: Horizontal Bore and Dowel Insertion Machine

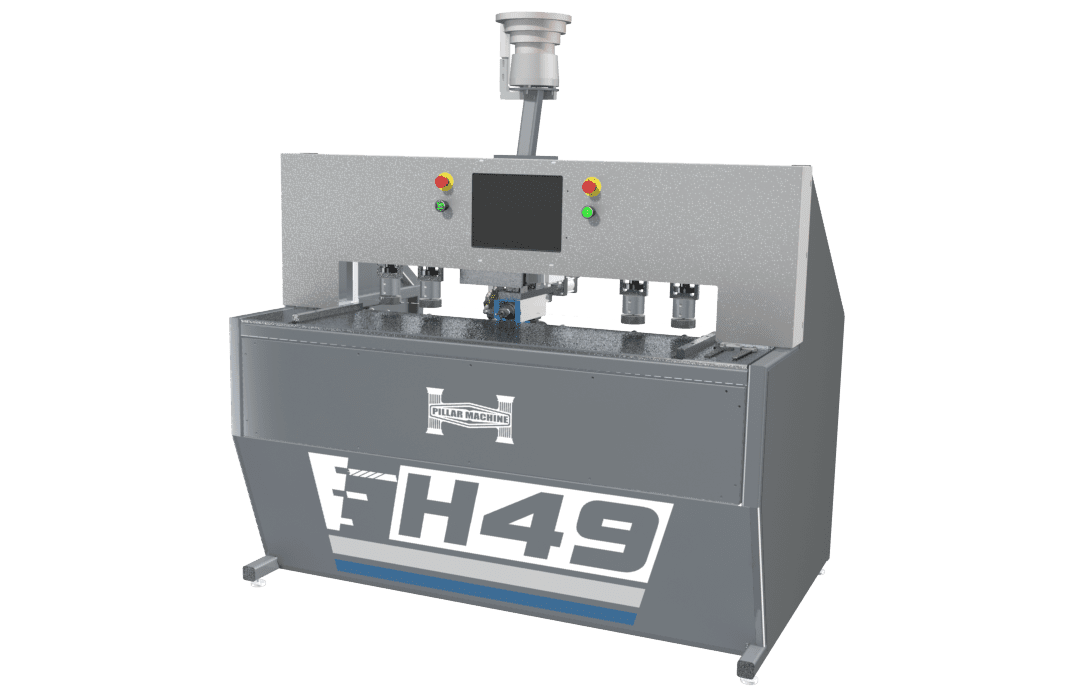

The H49 is a horizontal point-to-point CNC boring and dowel insertion machine built for case construction in cabinet and furniture manufacturing. A 49" working width and two pendulum zones let you load one part while the machine cycles another, and the CNC-controlled spindle completes each bore, glue injection, and 8 mm dowel insertion in under one second at standard 64 mm intervals.
Key Features and Benefits
- CNC Precision: Automatically positions the spindle to bore holes and the inserter to inject glue (or water for pre-glued dowels) and insert dowels with pinpoint accuracy.
- Quick Cycle Times: Completes each bore, glue, and dowel insertion in less than 1 second when holes are spaced at 64 mm intervals, maximizing productivity.
- Dual Work Zones: Features two zones for pendulum processing, allowing you to load one part while machining another, minimizing downtime.
- User-Friendly Interface: A 15″ industrial touchscreen with intuitive graphics enables quick programming and easy operation, even for less experienced users.
- Customizable Options: Can be outfitted with additional horizontal and vertical spindles, horizontal dowel inserters, and hardware inserters for expanded capabilities.

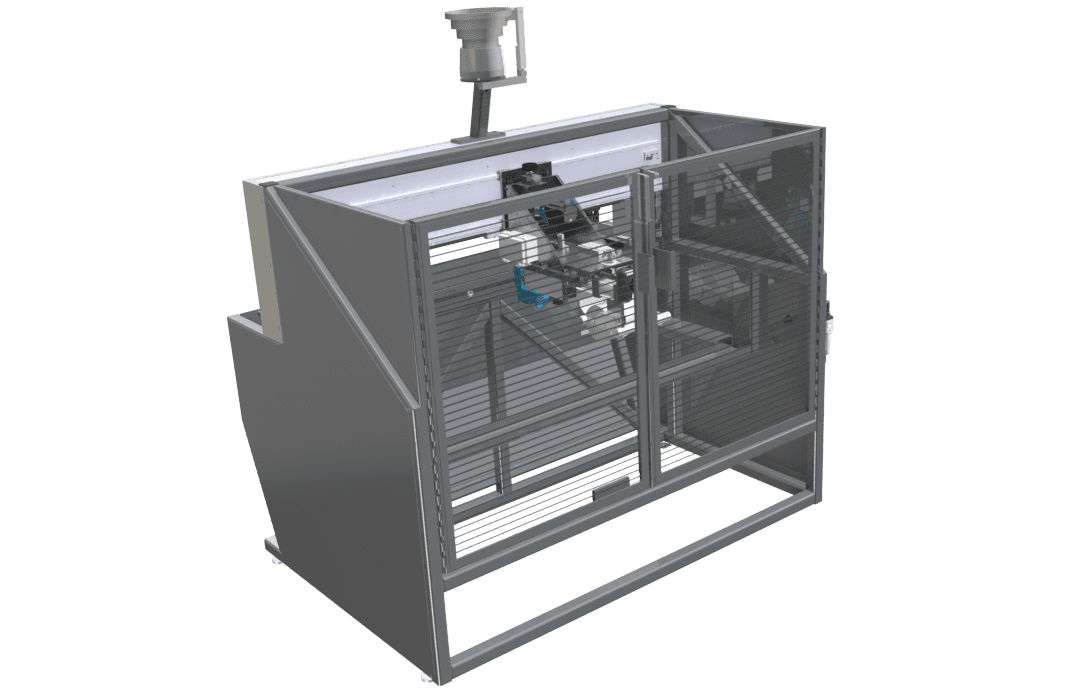

- Built for Durability: Constructed with a welded main frame and high-quality components, ensuring long-term reliability in demanding shop environments.
Applications
The H49 is ideal for:
- Case construction in cabinet and furniture manufacturing.
- Woodworking shops needing precise, efficient horizontal boring and dowel insertion.
- Operations seeking to shift boring and doweling tasks from CNC routers or point-to-point machines for faster production.
Technical Specifications
| Specification | Details |
|---|---|
| Machine Type | Horizontal point-to-point bore and dowel insertion machining center |
| Work Zones | 2 (standard) |
| Max Width Capacity | 49″ (1245 mm) |
| Cycle Time | <1 second per bore, glue, and dowel insertion (at 64 mm intervals) |
| Spindle Control | CNC positioning |

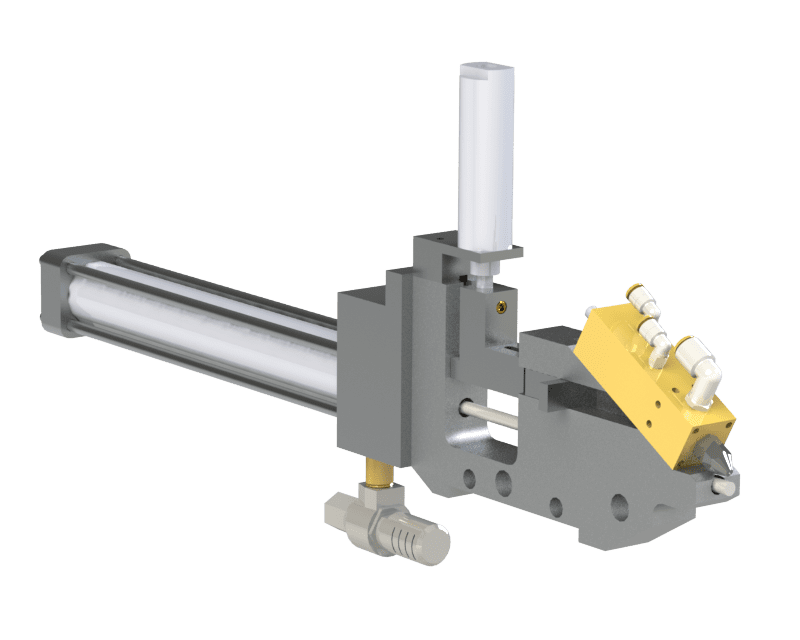

| Dowel Inserter | CNC-controlled with glue or water injection |
| Interface | 15″ industrial color touchscreen |
| Software Features | Parametric programming, pattern drilling/inserting, online diagnostics |
| Construction | Welded main frame, tubular frame construction |
| Additional Options | Multiple spindles, horizontal dowel inserters, hardware inserters |
Software and User Interface
The H49’s 15″ touchscreen interface is designed for ease of use, allowing operators to write, store, and recall programs quickly. The open-architecture software integrates with design systems via .xml files or barcodes (with optional reader), streamlining workflow. Features include:
- Graphic interface for easy hole and dowel placement.
- Parametric programming for flexible adjustments.
- Pattern drilling and inserting for complex designs.
- Password protection and online diagnostics for maintenance.
