Maggi Boring System 29

Maggi Boring System 29

$10,950.00

Categories , , Tags , Brand

Maggi System 29 Construction/Line Borer

Efficient and durable with an unbeatable price-performance ratio. Maggi single-head boring machines are simple, compact solutions, ideal for those who manufacture custom-made furniture and furnishings.



Add to Quote Request

The Maggi System 29 Boring Machine provides a 29 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle.

Features:

  • Accurate Positioning Of The Boring Unit To The Table With Digital Readout.
  • 0 To 2.5″ Adjustable Drilling Depth With Patented Spiral Setting Device.
  • (3) Patented Quick Release Material Clamps With Auto-Setting To Firmly Hold Material To Table.
  • Powerful 2 HP Motor.
  • 47″ X 13″ Cast Iron Table.
  • Side Fences With Mechanical Digital Readout For Quick And Accurate Setting.

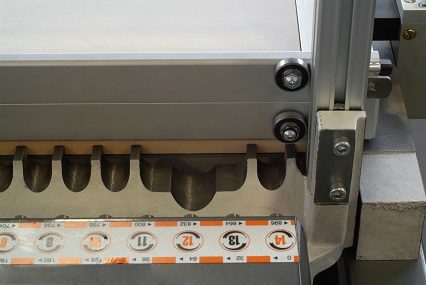

  • 120″ Line Boring Fence With (4) Stops.
  • Foot Actuated Pneumatic Clamps And Drill Cycle.
  • Includes Magnetic Motor  Starter With Overload Protection And (29) Quick Change Chucks.

Specifications:

Spindle Spacing:

 1-1/4″ (32mm)

Dust Outlet:

3″

Net Weight:

705 Lbs

Dimensions:

59.3″ X 37.8″ X 50″ Tall

Crated Dimensions:

59.8″ X 37.4″ X 40.5″ Tall

Crated Weight:

 815 Lbs

Options (single head boring machines):
