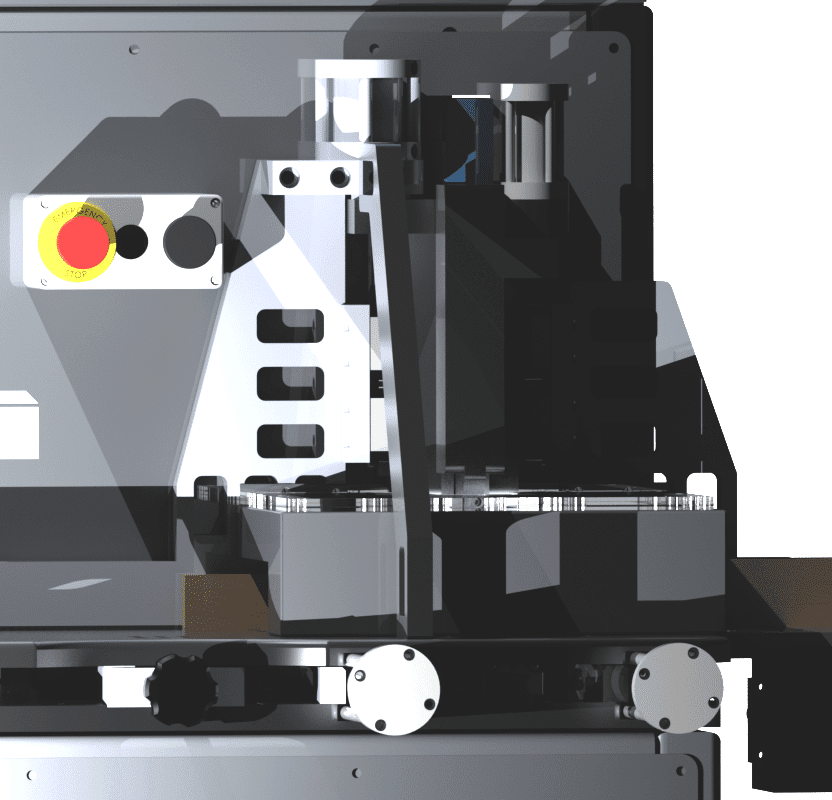

Pillar HMJ: CNC Haunch Machine for Beaded Face Frames
Transform your woodworking shop with the Pillar HMJ, a CNC machining center engineered for crafting high-quality haunch joints in beaded face frames for cabinets and furniture. Recognized as an IWF Challengers semi-finalist, this jump haunch machine miters profiles on stiles and rails with precision, producing self-aligning joints that ease assembly. Its ability to stack two parts for simultaneous cutting doubles output, while its compact footprint fits seamlessly into any shop. With a user-friendly touchscreen and servo-driven controls, the Pillar HMJ delivers speed, accuracy, and efficiency for woodworking professionals.
Standout Features and Advantages

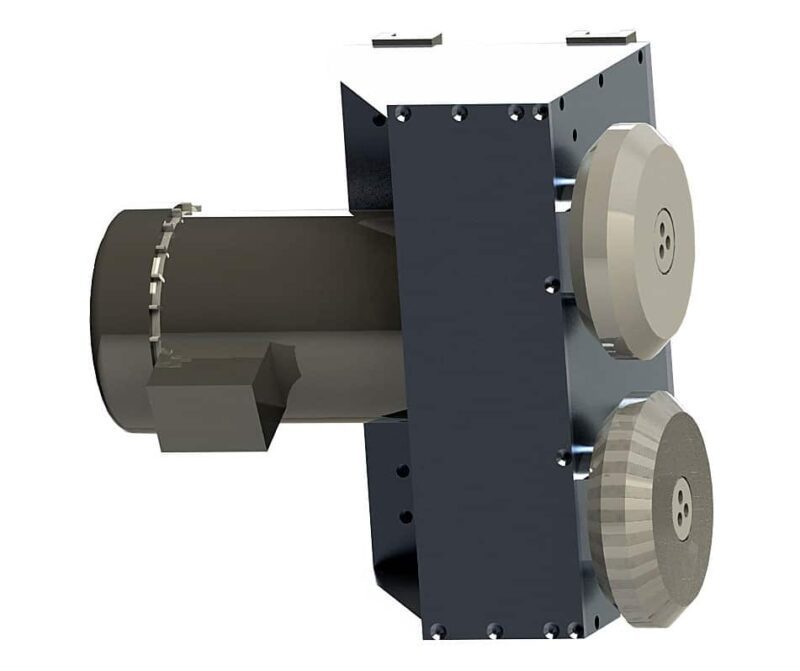

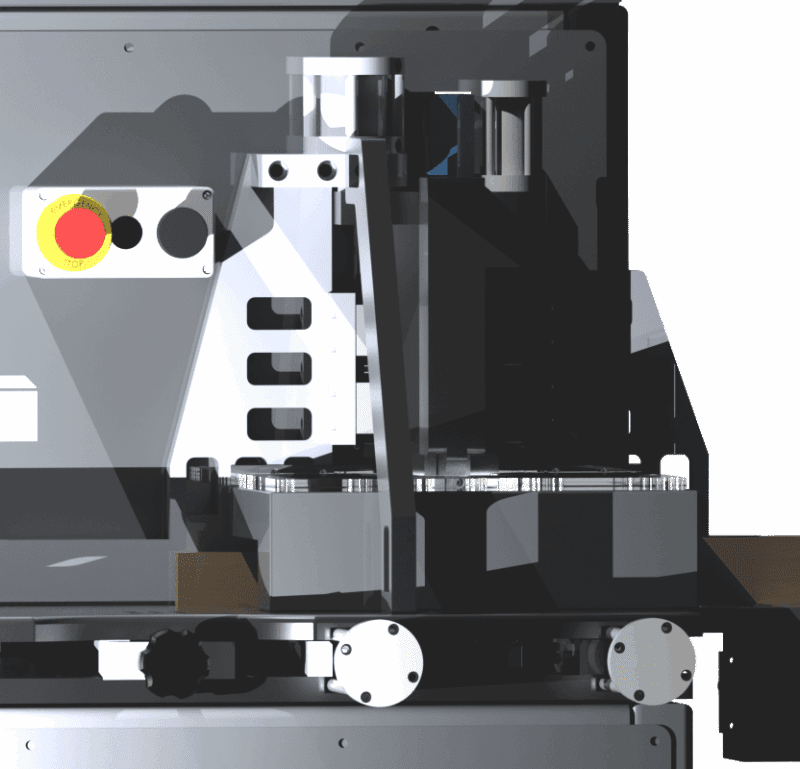

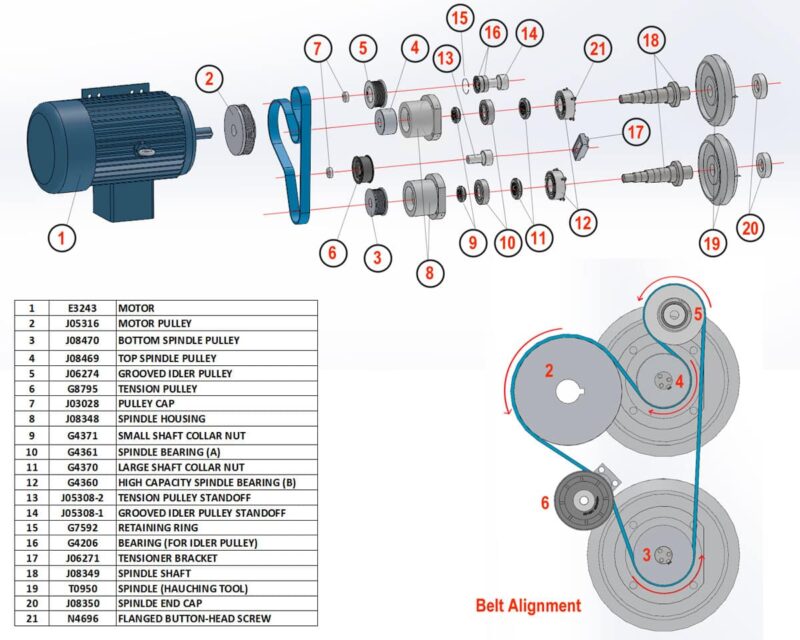

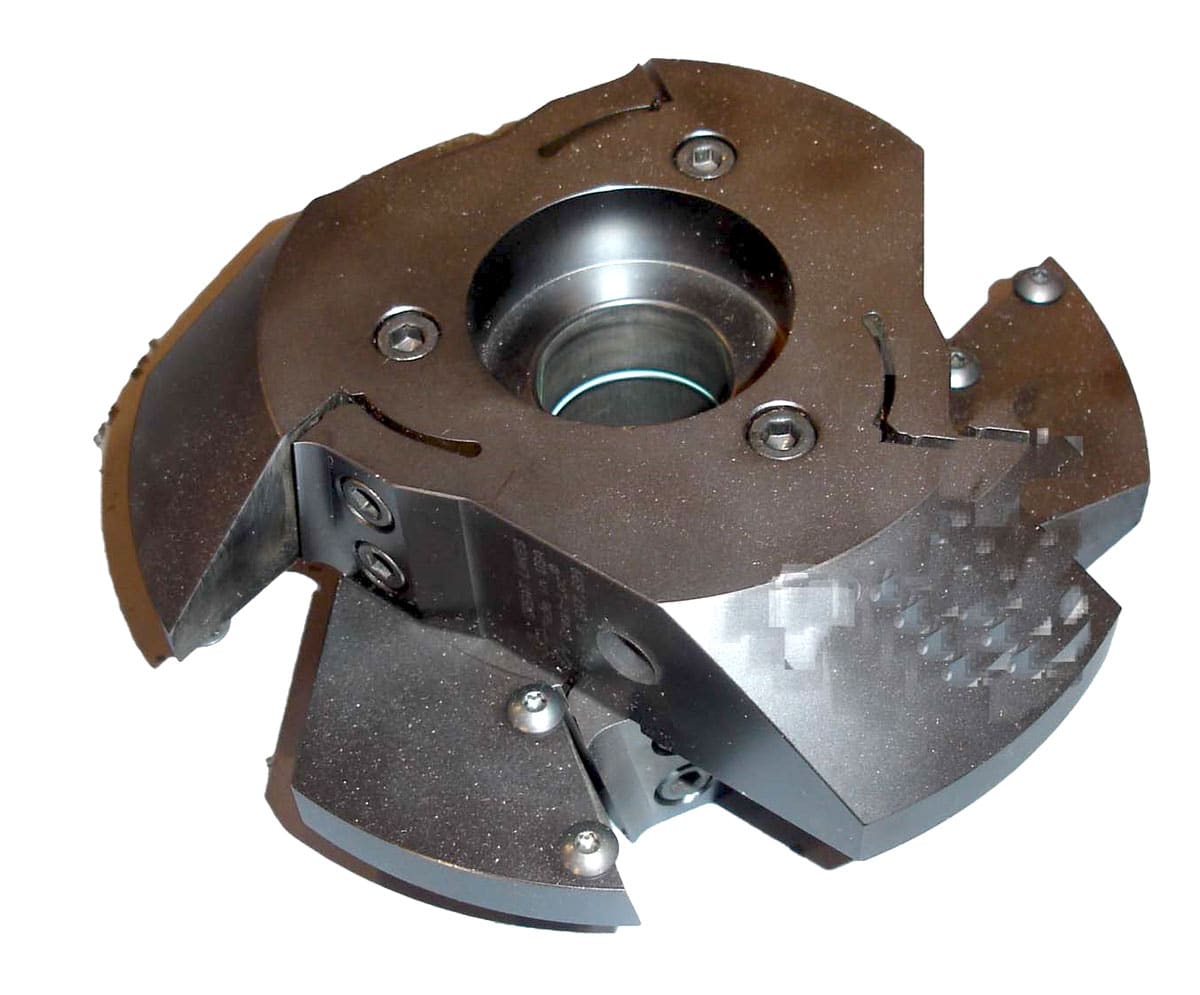

- CNC Haunch Precision: Servo-driven X-axis with belt control miters profiles for tear-out-free haunch joints on beaded face frames.

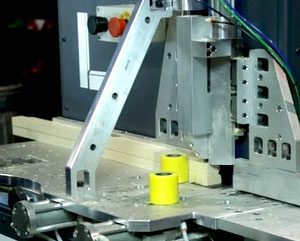

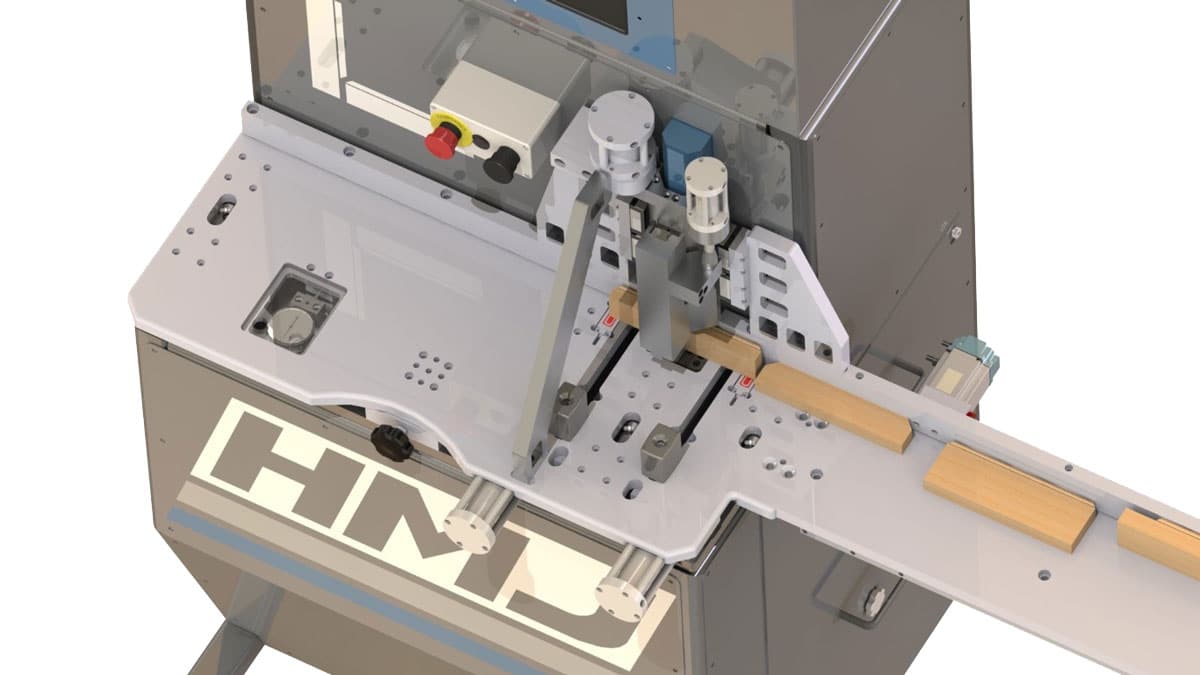

- Doubled Output: Stacks two stiles or rails for simultaneous cutting, boosting production without extra labor.

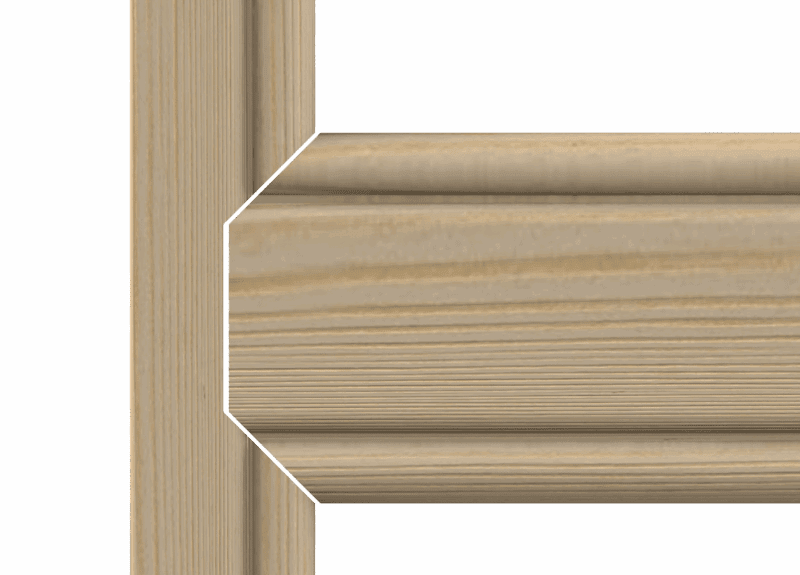

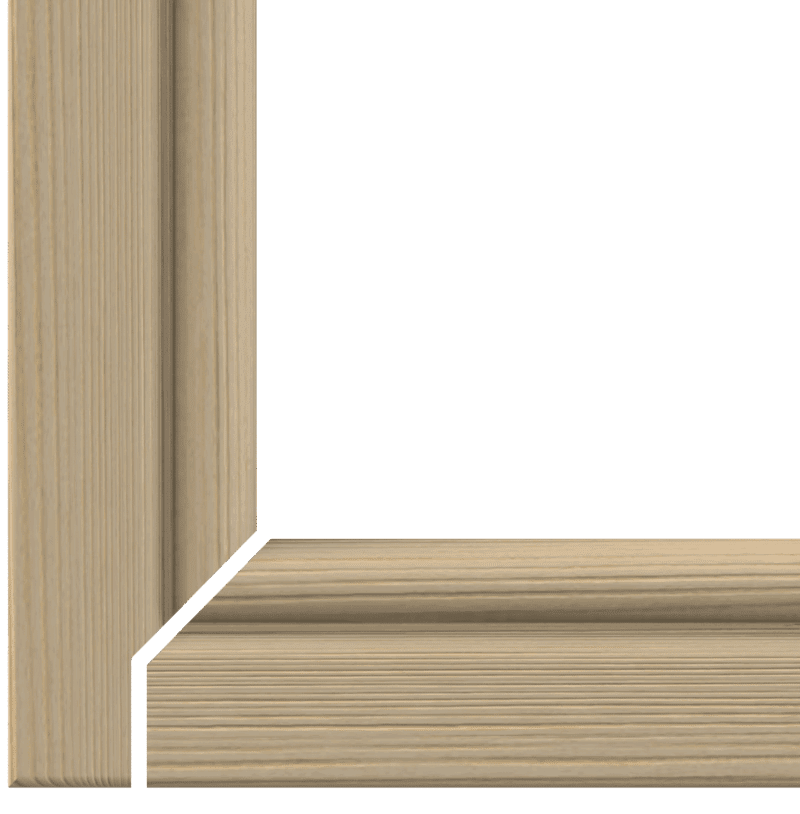

- Self-Aligning Joints: Produces joints that simplify assembly, reducing time and effort in cabinet and furniture construction.
- Compact Footprint: Measures 177″ W x 37″ D x 82″ H, ideal for shops with limited space yet needing high output.
- Intuitive Interface: A 15″ industrial touchscreen with open-architecture software enables quick program setup and unlimited storage.
- Rugged Durability: 1,400 lb. frame with high-precision square rail guides ensures reliable performance in demanding environments.
Technical Breakdown
| Feature | Specification |
|---|---|
| Machine Type | CNC haunch machine for beaded face frames |
| Production Capacity | Stackable parts for doubled output |
| Material Compatibility | Beaded face frame stiles and rails |
| X-Axis Control | Servo belt-driven part stop |
| Guides | High-precision square rail guides and bearings |
| Display | 15″ industrial touchscreen |
| Software Tools | Parametric programming, unlimited program storage, online diagnostics |
| Dimensions | 177″ W x 37″ D x 82″ H |
| Weight | 1,400 lbs. (approx.) |
| Electrical | 3-phase, 208-230V, 60 cycles, 20 amps |
| Compressed Air | 90 PSI at 5 CFM |
| Dust Collection | 2 x 4″ ports, 696 CFM total |
Smart Software & Interface

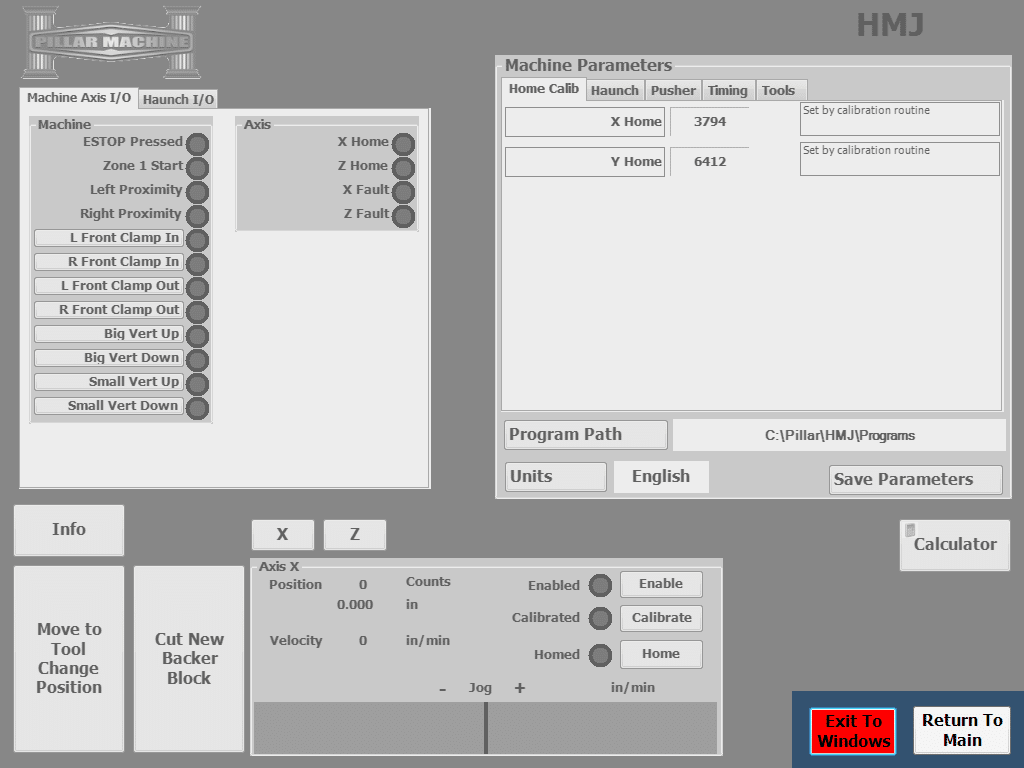

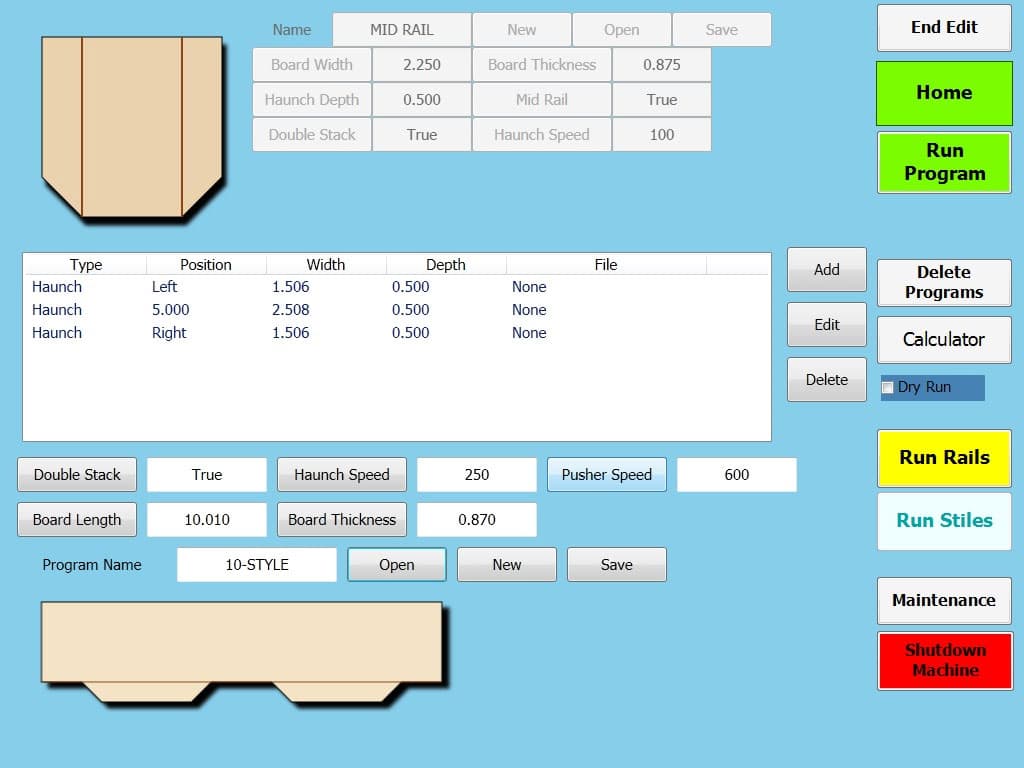

The Pillar HMJ’s 15″ touchscreen is a control hub designed for simplicity, allowing program setup in seconds. Its open-architecture software supports .xml file imports or barcode scanning (optional reader required), ensuring a smooth workflow. Key features include:
- Visual guides for haunch joint placement.
- Parametric programming for custom setups.
- Unlimited program storage and online diagnostics (with internet).
Available HMJ Options
The HMJ is a CNC haunch machine for beaded face frame production, cutting haunch joints on stiles and rails with servo-driven precision. The joints come out self-aligning, which simplifies assembly and reduces handling errors. Two parts can be stacked for simultaneous cutting, doubling output without adding operators.
Automatic Oiler System

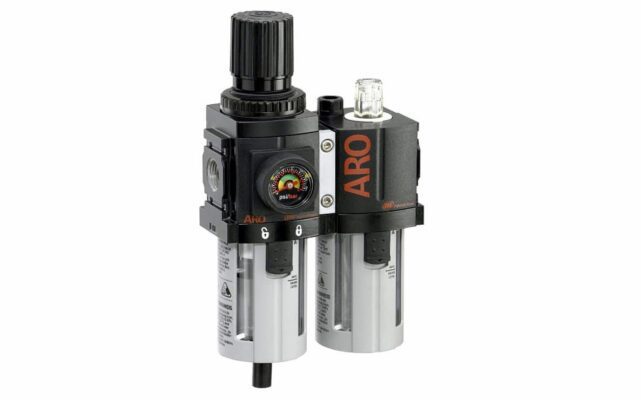

Includes a pneumatic automatic oiler that delivers oil-lubricated compressed air to key linear bearings (X‑axis, drill‑spindle, groove‑spindle) whenever the spindle runs. Helps prevent dust-related wear. Note: may affect lead time.
Fixed‑Mount Barcode Reader
Enables operators to scan barcodes on parts to automatically load the correct program via the included software. Comes with one fixed reader. Note: may affect lead time
About Pillar Machine
Pillar Machine is based in Salt Lake City, Utah and builds all of its equipment in the USA. Machines come with a one-year warranty and free online training direct from the factory.
