Pillar HPMT: 3-Axis CNC Mortise and Tenon Machine

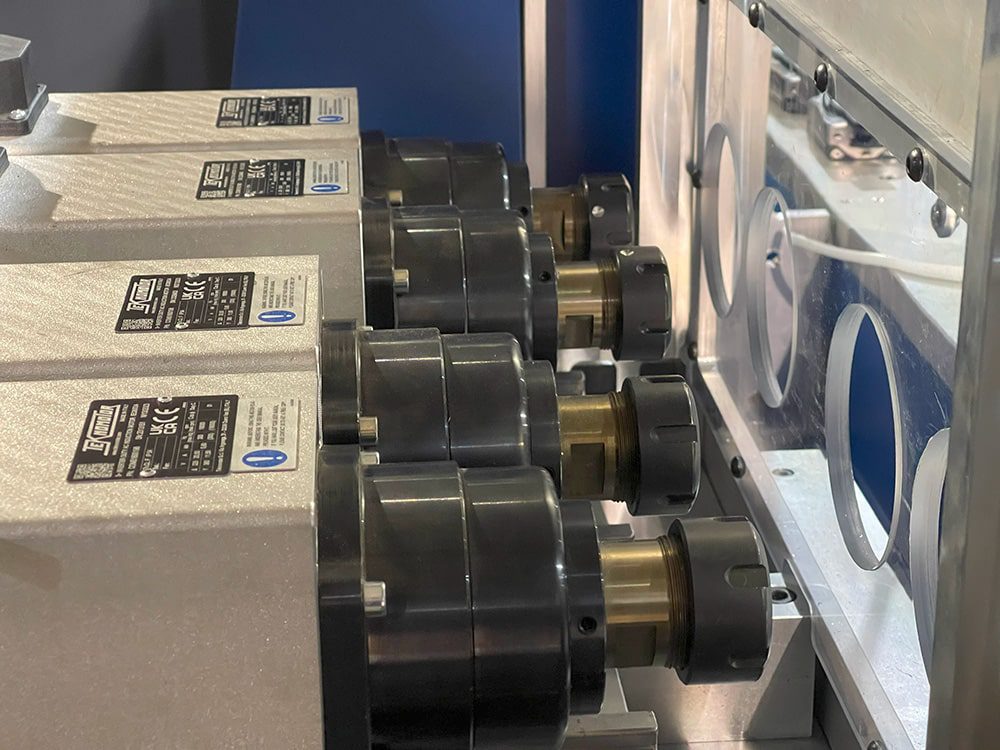

The HPMT is a 3-axis CNC horizontal mortise and tenon machine with a 48" working length and two pendulum zones. Separate 3 HP mortise (24,000 RPM) and 6 HP tenon (18,000 RPM) spindles handle each operation; the machine also cuts louvers, slots, and grooves in the same setup. Table extensions to 96" or 120" are available for longer stile and rail work.
Standout Features and Advantages
- 3-Axis CNC Precision: X, Y, and Z axes with rack-and-pinion and ball screw systems deliver exact mortise and tenon cuts for flawless joints.
- Dual Work Zones: Two zones with left and right-hand programs enable pendulum processing, maximizing throughput with minimal downtime.

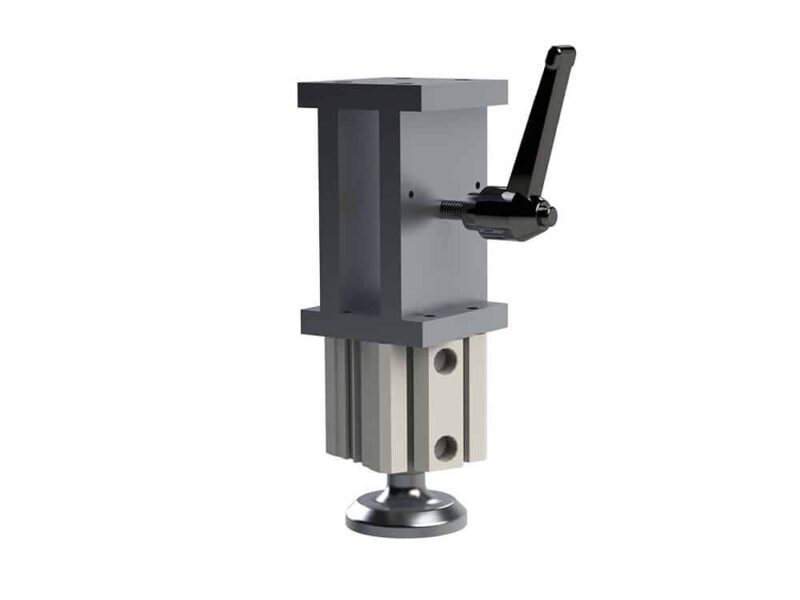

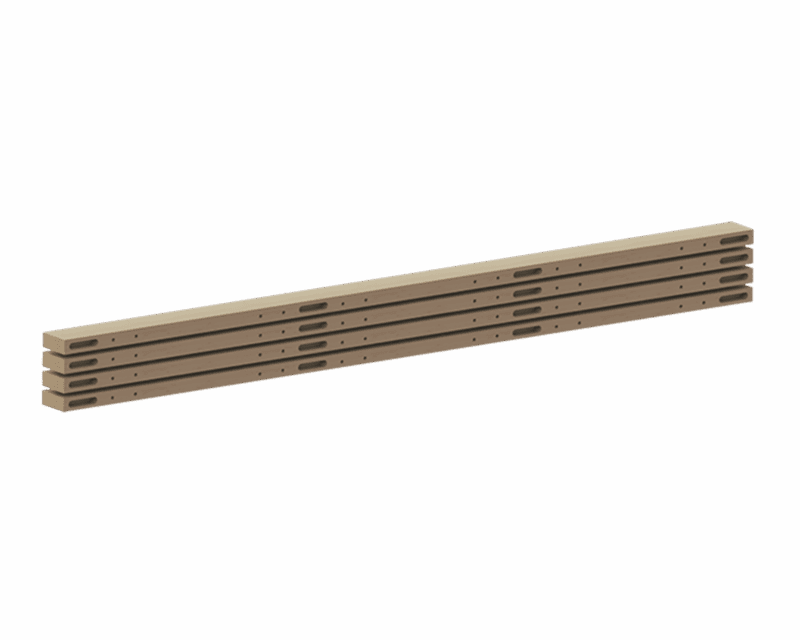

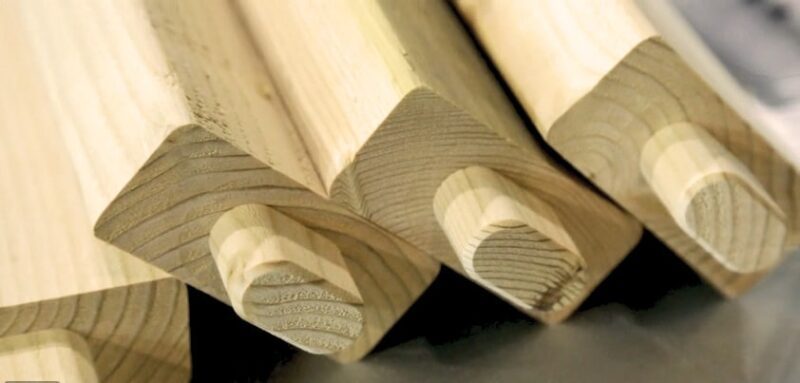

- Versatile Machining: Cuts mortise and tenon joints, louvers, slots, and grooves, supporting cabinet, furniture, and shutter applications.

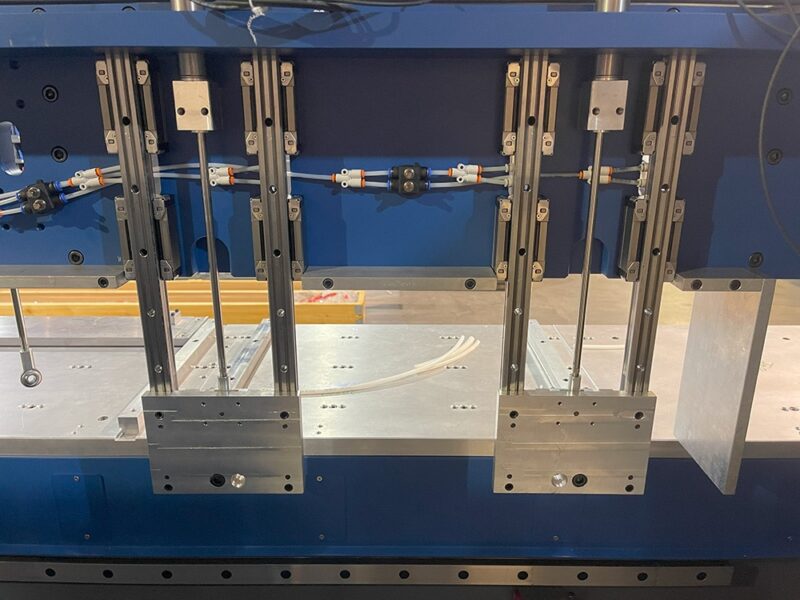

- Flexible Capacity: Handles material up to 48″ wide (unlimited with side fence removal) and 2″ thick, accommodating diverse project needs.
- User-Friendly Interface: A 15″ touchscreen with graphical displays and parametric programming simplifies setup and operation.

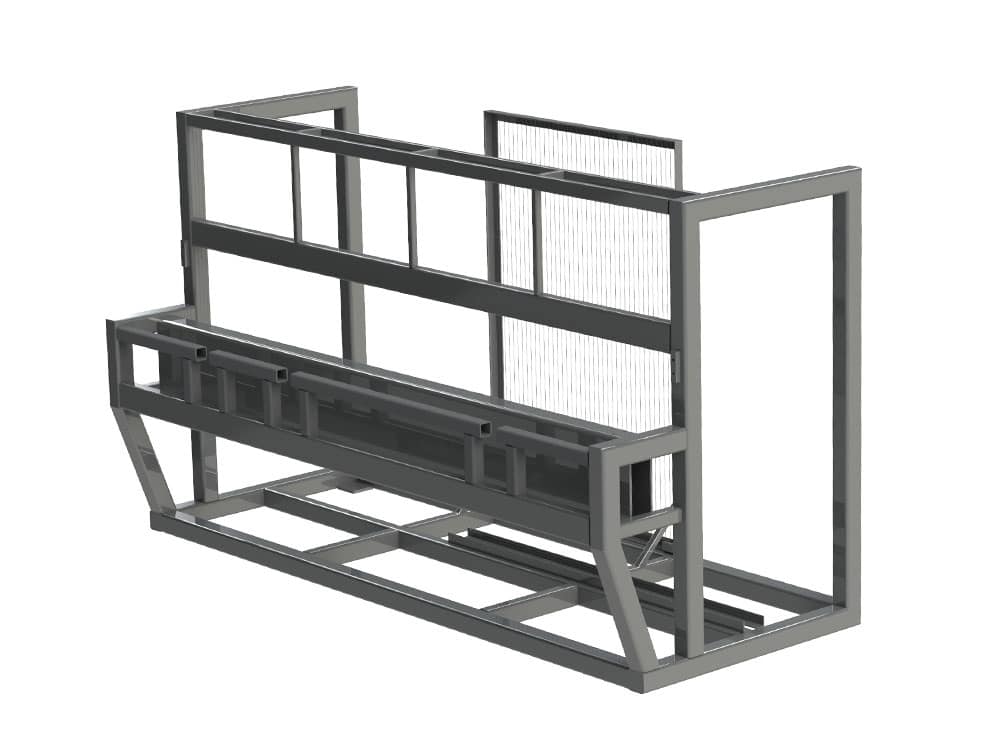

- Heavy-Duty Build: 2,800 lb. frame with high-precision square rail guides ensures durability in demanding shop environments.
Technical Breakdown
| Feature | Specification |
|---|---|
| Machine Type | 3-axis CNC horizontal mortise and tenon machining center |
| Work Zones | 2 (standard) |
| Max Width Capacity | 48″ (unlimited with side fence removal) |
| Length Capacity | Unlimited |
| Thickness Capacity | Min: 0.5″; Max: 2″ |
| Spindles | 3 HP mortise (24,000 RPM), 6 HP tenon (18,000 RPM) |
| Axes Control | X: Rack-and-pinion; Y, Z: Servo ball screw |
| Guides | High-precision square rail guides and bearings |
| Electrical | 3-phase, 208-230V, 60 cycles, 20 amps |
| Compressed Air | 90 PSI at 10 CFM |
| Dust Collection | 1 x 2.5″ port, 1 x 4″ port, 700+ CFM total |
| Weight | 2,800 lbs. (approx.) |
| Display | 15″ industrial touchscreen |
| Software Tools | Parametric programming, pattern machining, online diagnostics |
Smart Software & Interface

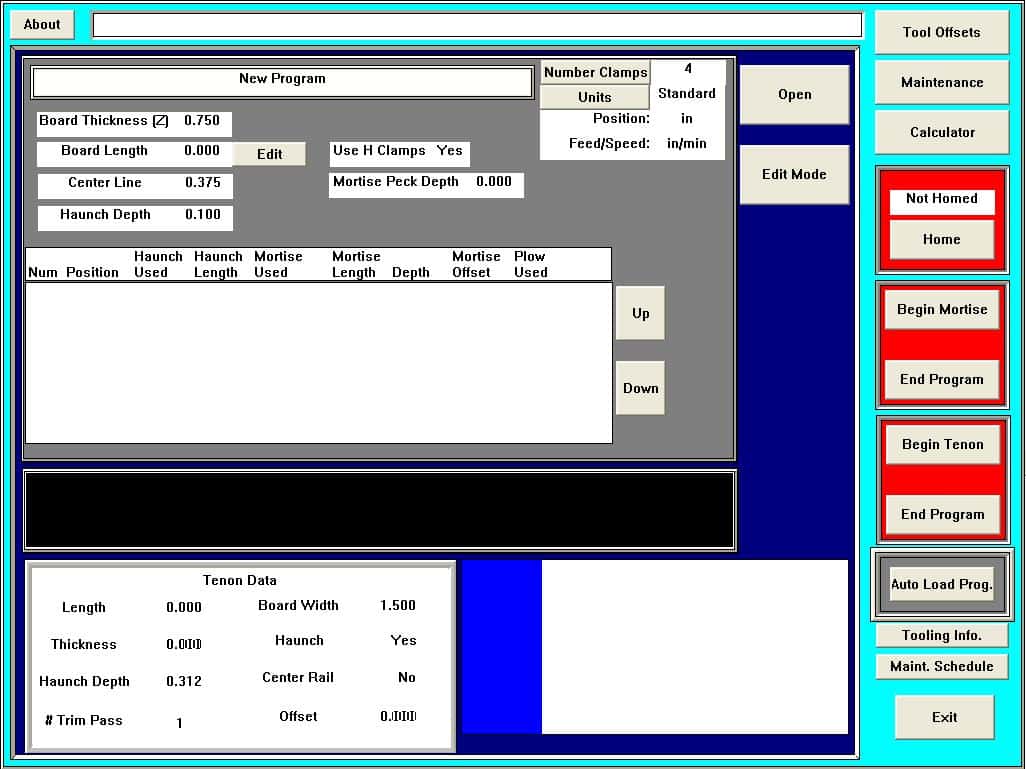

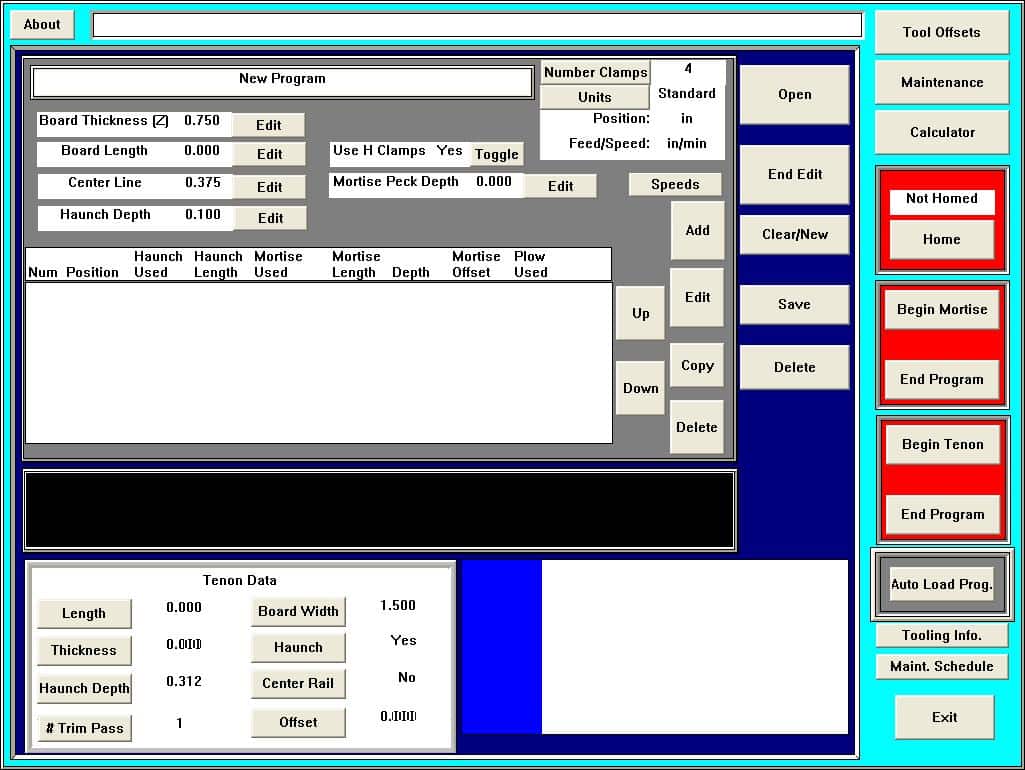

The Pillar HPMT’s 15″ touchscreen is a control nexus, enabling program setup in under a minute. Its open-architecture software supports .xml file imports or barcode scanning (optional reader required) for efficient workflow integration. Key features include:
- Graphical displays for mortise, tenon, and groove placement.
- Parametric programming for custom flexibility.
- Password-protected editing and online diagnostics (with internet).
Available HPMT Options

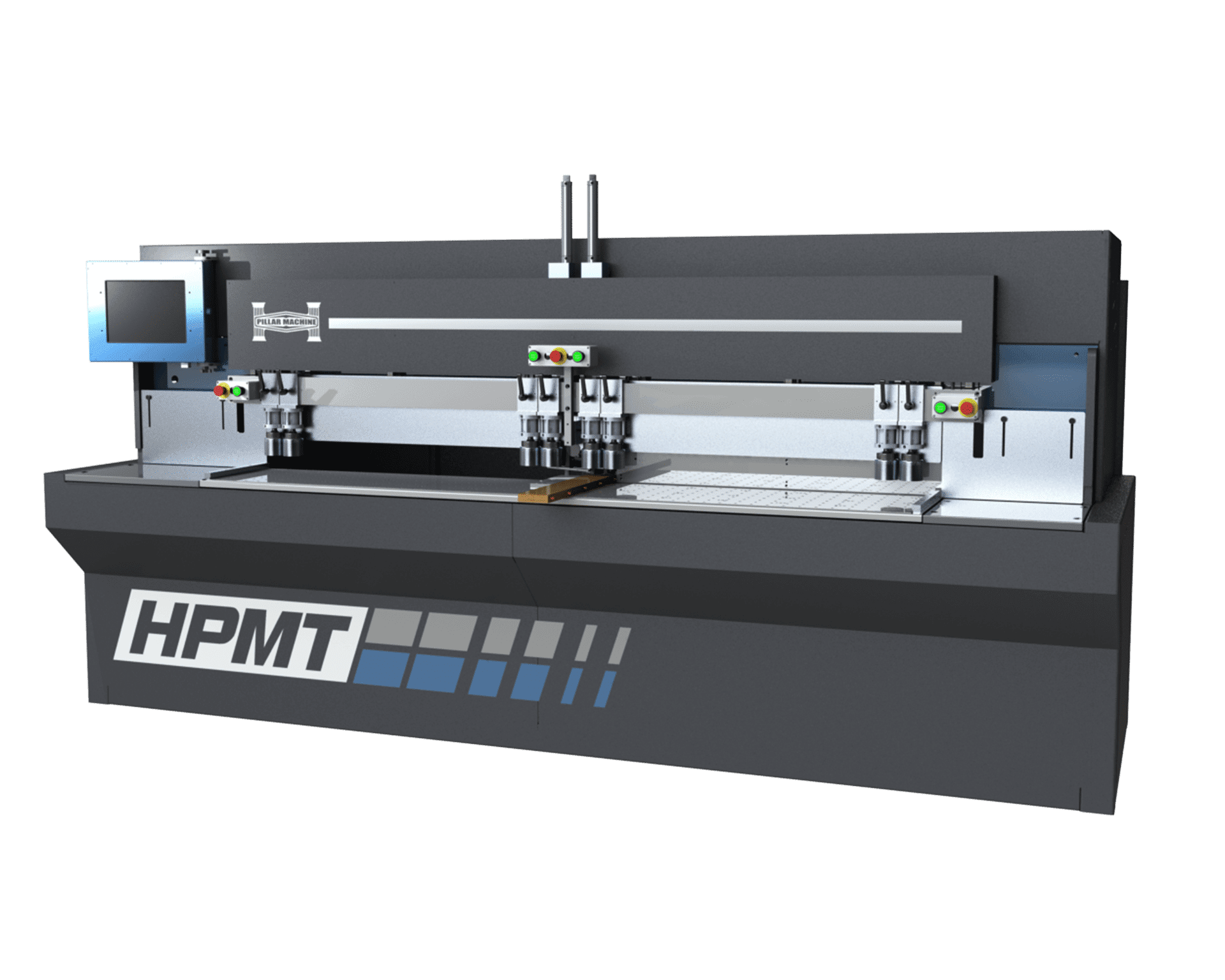

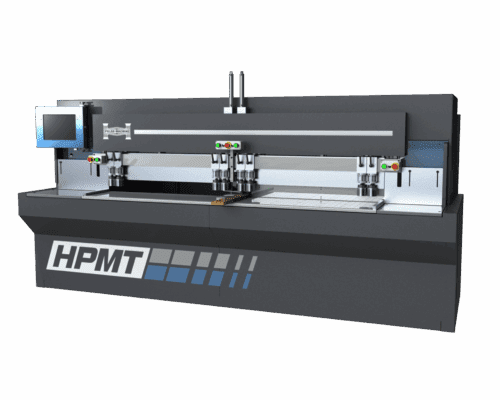

96‑Inch Table Extension
Expands the standard 48″ table to a 96″ working length—ideal for longer rail and stile processing.
120‑Inch Table Extension
Extends the table to 120″, accommodating extra-long components beyond the default 48″ reach.
Automatic Oiler System
Adjustable pneumatic oiler pressurizes and lubricates 12 linear bearings (X‑axis + under mortise and tenon spindles) whenever the spindles run. Note: may affect lead time.

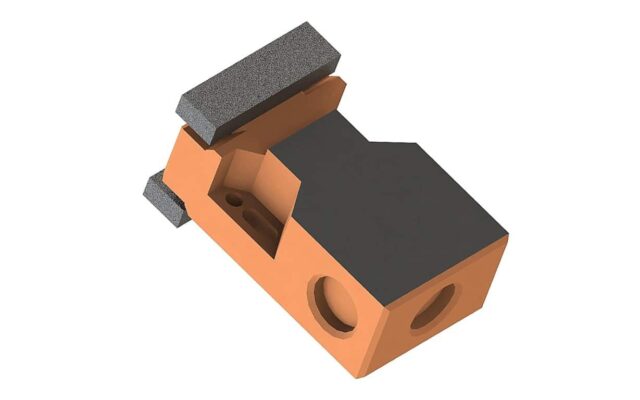

Keyed Electronic Interlock
Integrates a safety switch into rear access doors that acts as an emergency stop. Note: may affect lead time.
About Pillar Machine
Pillar Machine is based in Salt Lake City, Utah and builds all of its equipment in the USA. Machines come with a one-year warranty and free online training direct from the factory.
Request a Quote
Use the button above to add this machine to your quote, or call 360 Degree Machinery at 630-229-6705.
