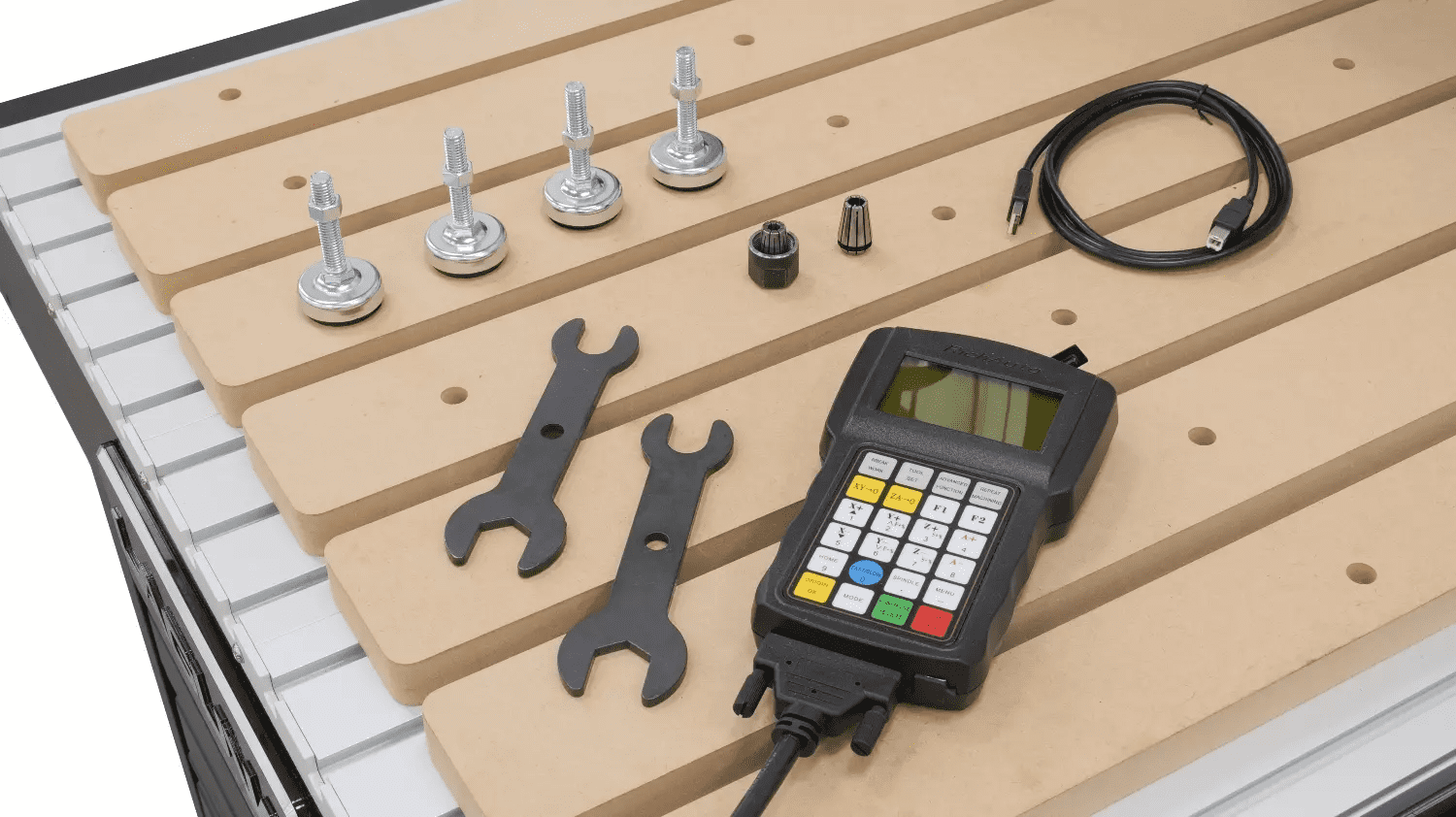

Parts Included With Machine:
- Dust Shoe
- Hold Down Clamp Set (4 Total Clamps)
- 1/8″ & 1/4″ Collets
- Collet Wrenches
- Integrated MDF Spoil Board
X Axis Travel: 23.81″
Y Axis Travel:
- 2′ x 3′ Table: 35.82″
- 2′ x 4′ Table: 47.63″
Z Axis Travel: 3.937″
Table Work Area:
- 2′ x 3′ Table: 28.4″ x 49″
- 2′ x 4′ Table: 28.4″ x 61″
Spindle Configuration: ER16

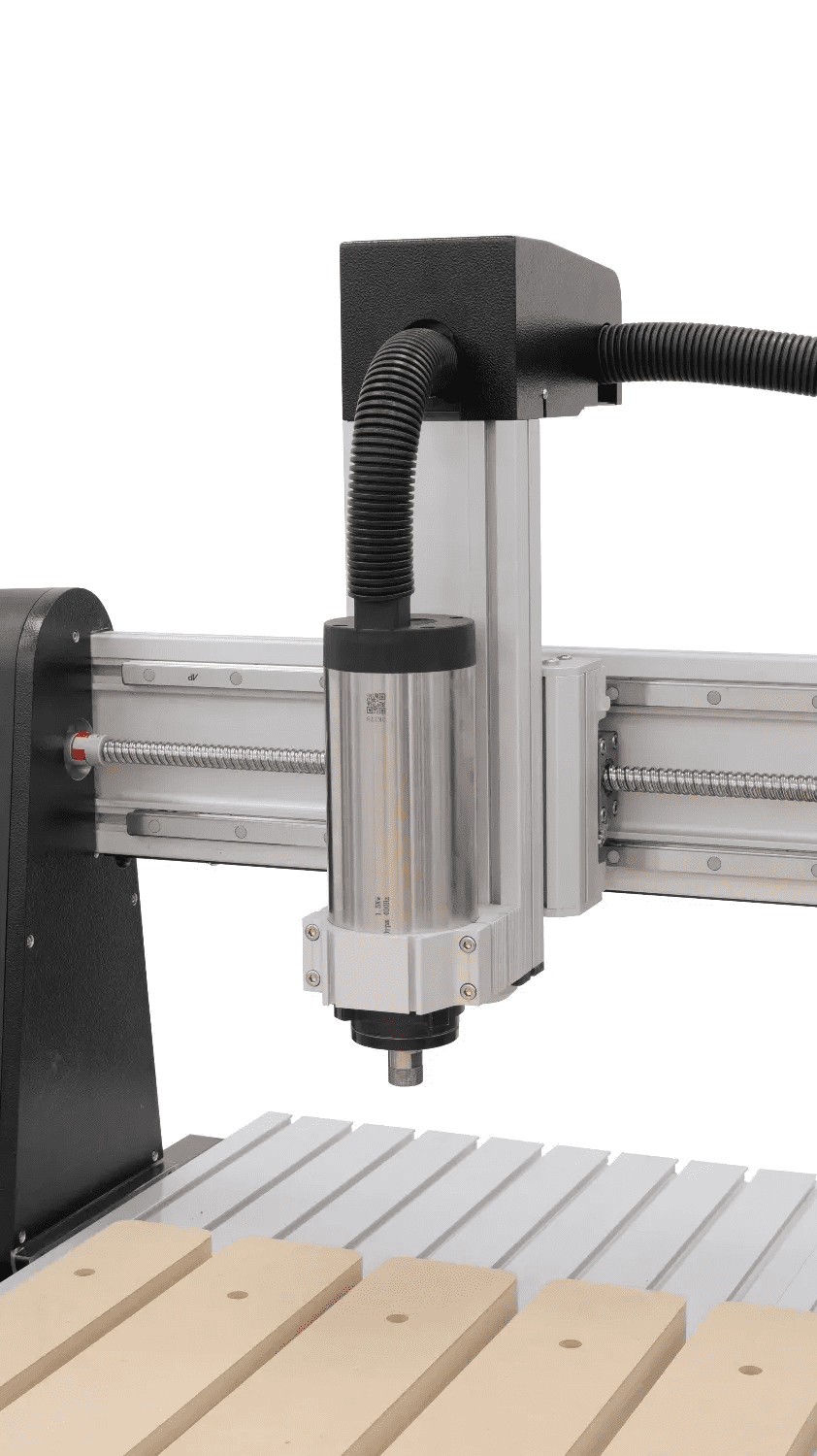

Electro Spindle: 1.5KW (2HP)
Spindle Speed: 0-24000 RPM
Rapid Shuttle Rate: 150 IPM
Precision Linear Guideway: X/Y/Z
Precision Ball Screw: X/Y/Z
Ball Screw Diameter: 16mm
Positional Accuracy: +/- 0.00589″
Power Requirements: 220V, 50~60Hz, 13A, 1-Phase
Working Table: High Rigidity Aluminum Extrusion
Gantry Bridge: High Rigidity Aluminum Extrusion
Gantry Supports: Aluminum Billet Machined
Max Gantry Clearance: 5-1/2″
Machine Dimensions (L x W x H):
- 2′ x 3′ Table: 50″ x 35″ x 28″
- 2′ x 4′ Table: 62″ x 35″ x 28″
Shipping Dimensions (L x W x H):
- 2′ x 3′ Table: 55″ x 38″ x 21″
- 2′ x 4′ Table: 65″ x 38″ x 21″
Machine Weight:
- 2′ x 3′ Table: 209 lbs.
- 2′ x 4′ Table: 242 lbs.
Tool Touch-Off Device: Included
Onboard Cooling System: Air Cooled
Controller:
- RichAuto B18-E DSP
- CNC Motion Control System
- USB Port For Easy File Transfer (No PC Required)
Applicable Language: Support English / Chinese
CSA Approved: Yes
Warranty: 1 Year
