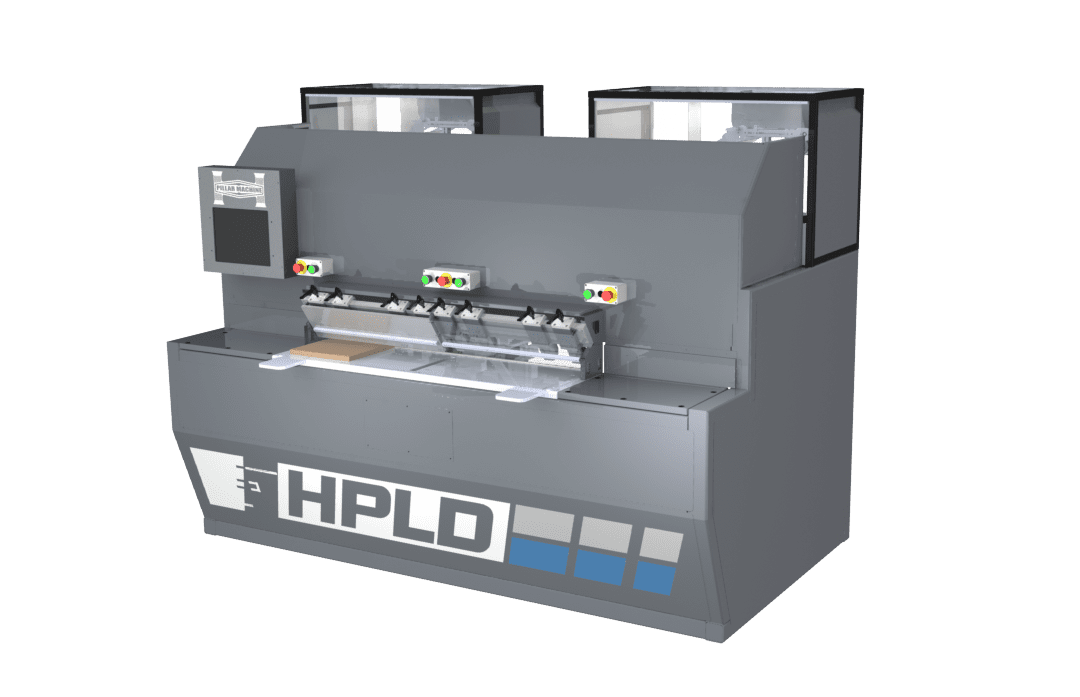

Pillar HPLD: Horizontal Position Lock Dowel Insertion Machine
The HPLD is a horizontal CNC machine for Lockdowel hardware insertion: it bores the hole and inserts H-clips, Channel Locks, or Spring Pins in one cycle, without glue or clamping. Assembly time drops by up to 80% compared to traditional glue-and-clamp methods. Two fixed and two pop-up work zones support pendulum processing.
Standout Features and Advantages

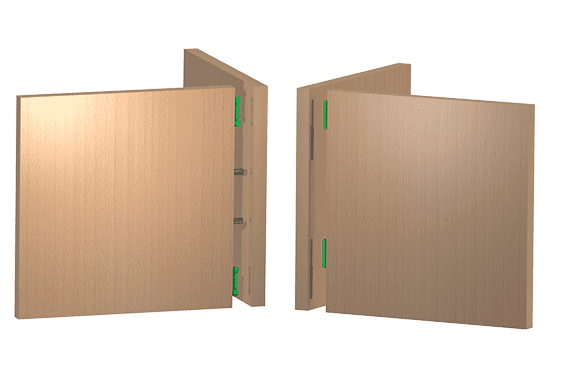

- Glue-Free Innovation: Inserts Lockdowel hardware without glue or water, eliminating mess and speeding up assembly for cleaner, stronger joints.
- CNC-Driven Accuracy: Precisely positions the spindle for boring and hardware insertion, ensuring flawless results every time.
- High-Speed Output: Boosts productivity with rapid cycles, producing up to three times more product without additional labor.
- Four Work Zones: Includes two fixed and two pop-up zones for pendulum processing, keeping your production line moving smoothly.
- Smart Interface: A 15″ touchscreen with intuitive graphics simplifies programming, integrating with Cabinet Vision for seamless design-to-production flow.
- Built to Endure: Features a welded steel frame and premium components for reliable performance in high-demand environments.
Technical Breakdown
| Feature | Specification |
|---|---|
| Machine Type | Horizontal point-to-point Lockdowel insertion |
| Work Zones | 2 fixed, 2 pop-up (standard) |
| Hardware Types | H-clips, Channel Locks, Spring Pins |
| Spindle Control | CNC positioning |
| Display | 15″ industrial touchscreen |
| Software Tools | Parametric programming, pattern drilling/inserting, online diagnostics |
| Build | Welded tubular steel frame |
| Extras | Customizable configurations available |
Smart Software & Interface
The Pillar HPLD’s 15″ touchscreen is a user-centric control hub, enabling fast program setup in under a minute. Its open-architecture software syncs with design tools like Cabinet Vision via .xml files or barcodes (optional reader required), ensuring a smooth workflow. Key features include:
- Visual guides for precise hole and hardware placement.
- Parametric programming for custom flexibility.
- Patterned operations for complex designs.
- Secure access and online diagnostics (with internet).
