Maggi Boring System 35

Maggi Boring System 35

$14,950.00

Categories , , Tags , Brand

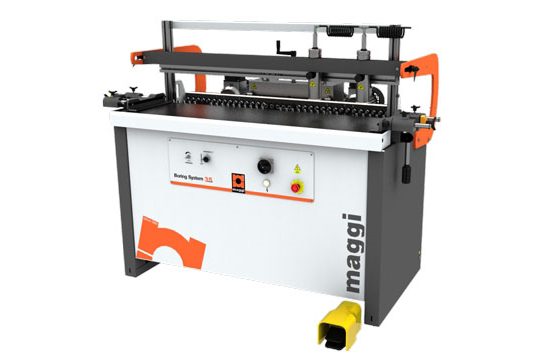

Maggi System 35 Construction/Line Borer

Efficient and durable with an unbeatable price-performance ratio. Maggi single-head boring machines are simple, compact solutions, ideal for those who manufacture custom-made furniture and furnishings.



Add to Quote Request

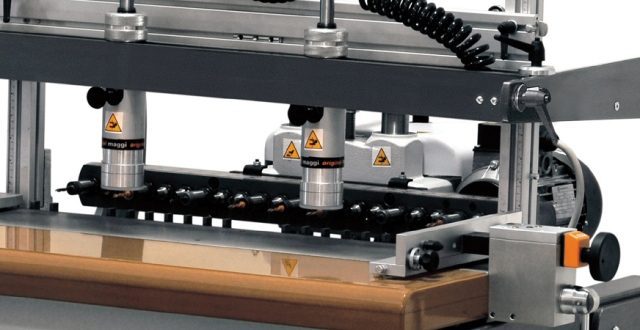

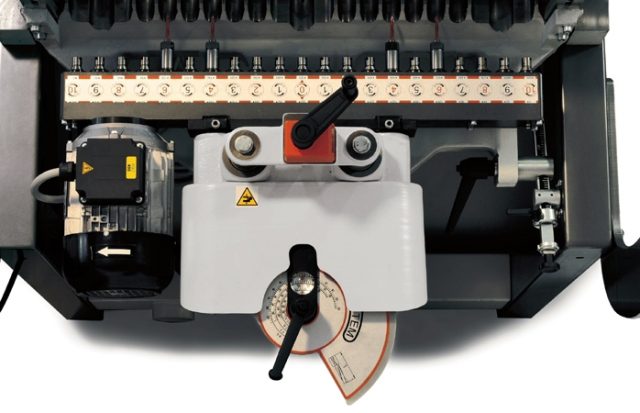

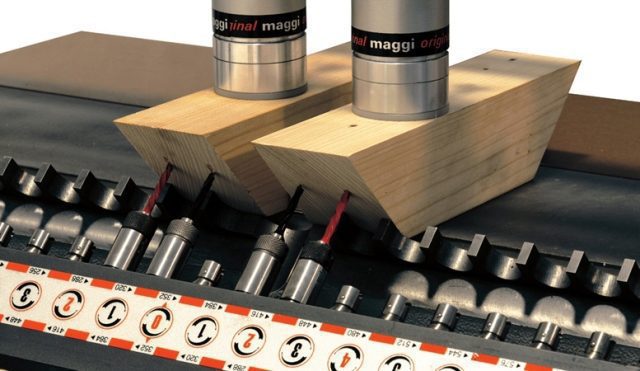

The Maggi System 35 Boring Machine provides a 35 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle

Features:

  • Accurate Positioning of The Boring Unit To The Table With Digital Readout
  • 0 To 3.25″ Adjustable Drilling Depth With Patented Spiral Setting Device
  • (4) Patented Quick Release Material Clamps With Auto-Setting To Firmly Hold Material To Table
  • (2) Powerful 2 HP Motors

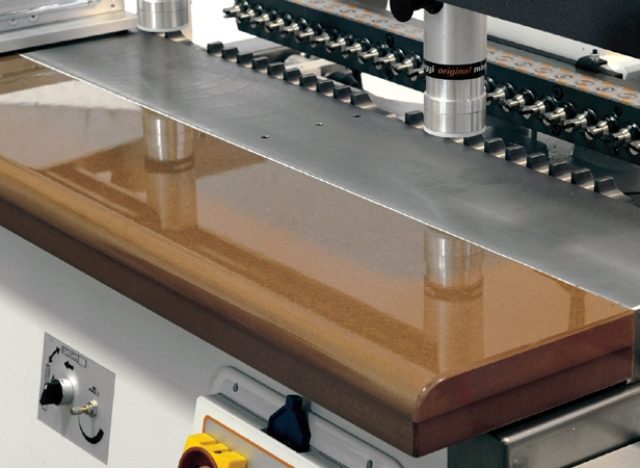

  • 52.4″ X 16.2″ Cast Iron and MDF Table
  • The MDF Portion Of The Table Is Treated With Non-Scratch Paint For Highest Operator Comfort And To Help Prevent Scratching Of The Panel
  • Side Fences With Mechanical Digital Readout For Quick And Accurate Setting
  • 120″ Line Boring Fence With (4) Stops
  • Foot Actuated Pneumatic Clamps And Drill Cycle

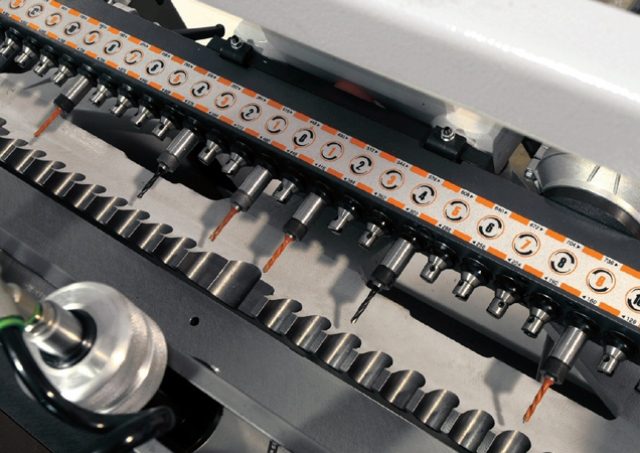

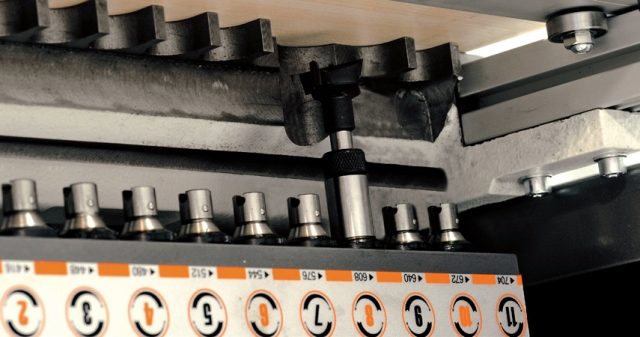

  • Includes Magnetic Starter With Overload Protection And (35) Quick Change Chucks

Specifications:

Spindle Spacing:

 1-1/4″ (32mm)

Dust Outlet:

3″

Net Weight:

705 Lbs

Dimensions:

65.75″ x 38.9″ x 50″ Tall

Crated Dimensions:

59.8″ x 37.4″ x 40.5″ Tall

Crated Weight:

 995 Lbs

Options (single head boring machines):
