Maggi Boring System 21 Prestige
Maggi Boring System 21 Prestige
$7,650.00 – $8,250.00Price range: $7,650.00 through $8,250.00

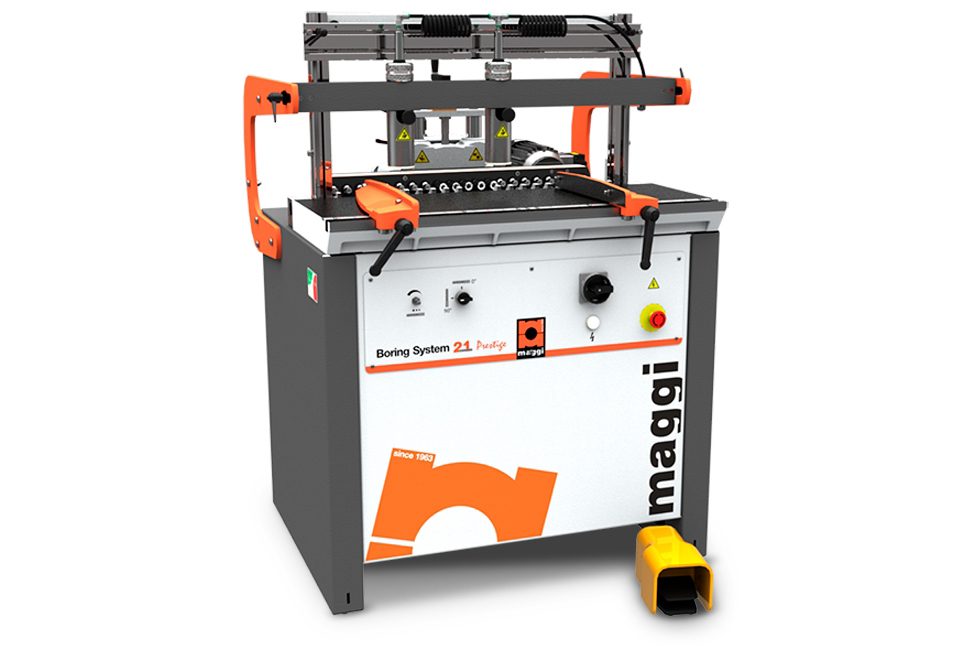

Maggi System 21 Prestige Construction/Line Borer
Efficient and durable with an unbeatable price-performance ratio. Maggi single-head boring machines are simple, compact solutions, ideal for those who manufacture custom-made furniture and furnishings.
Specs & Features

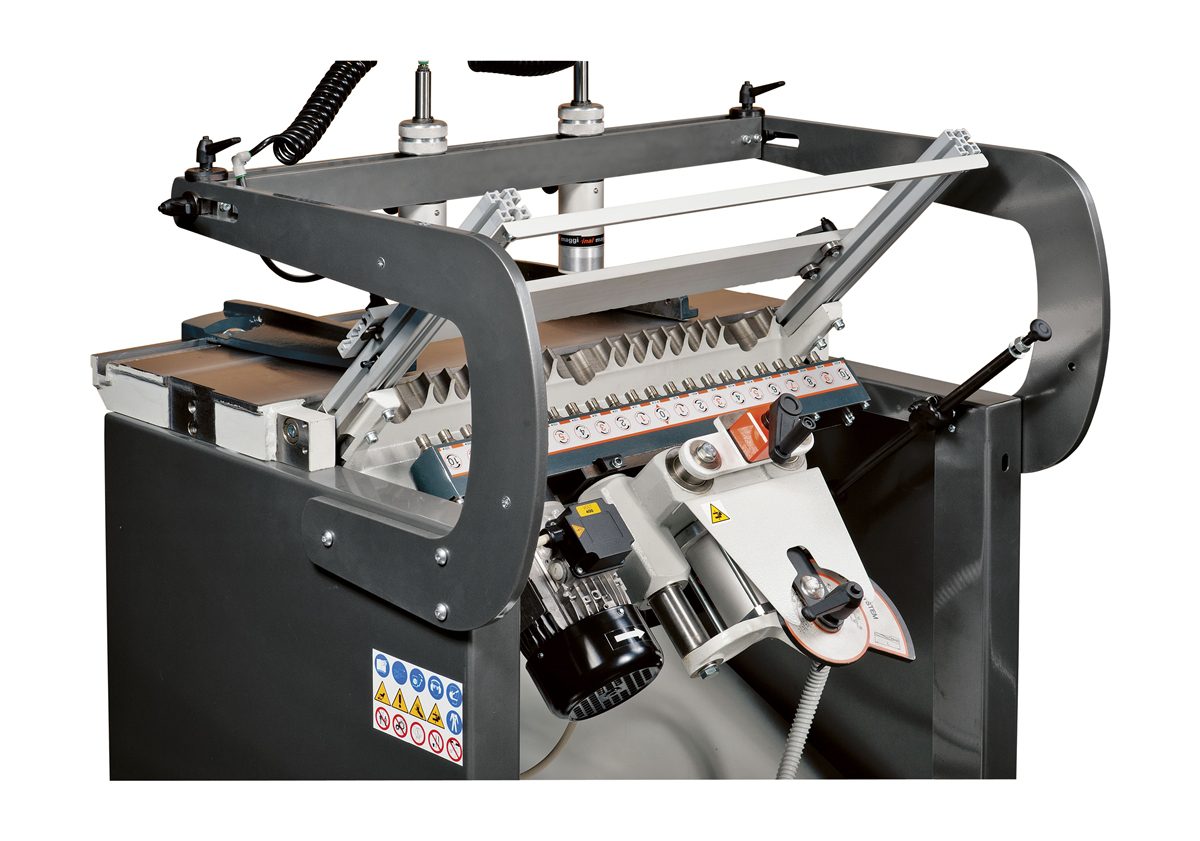

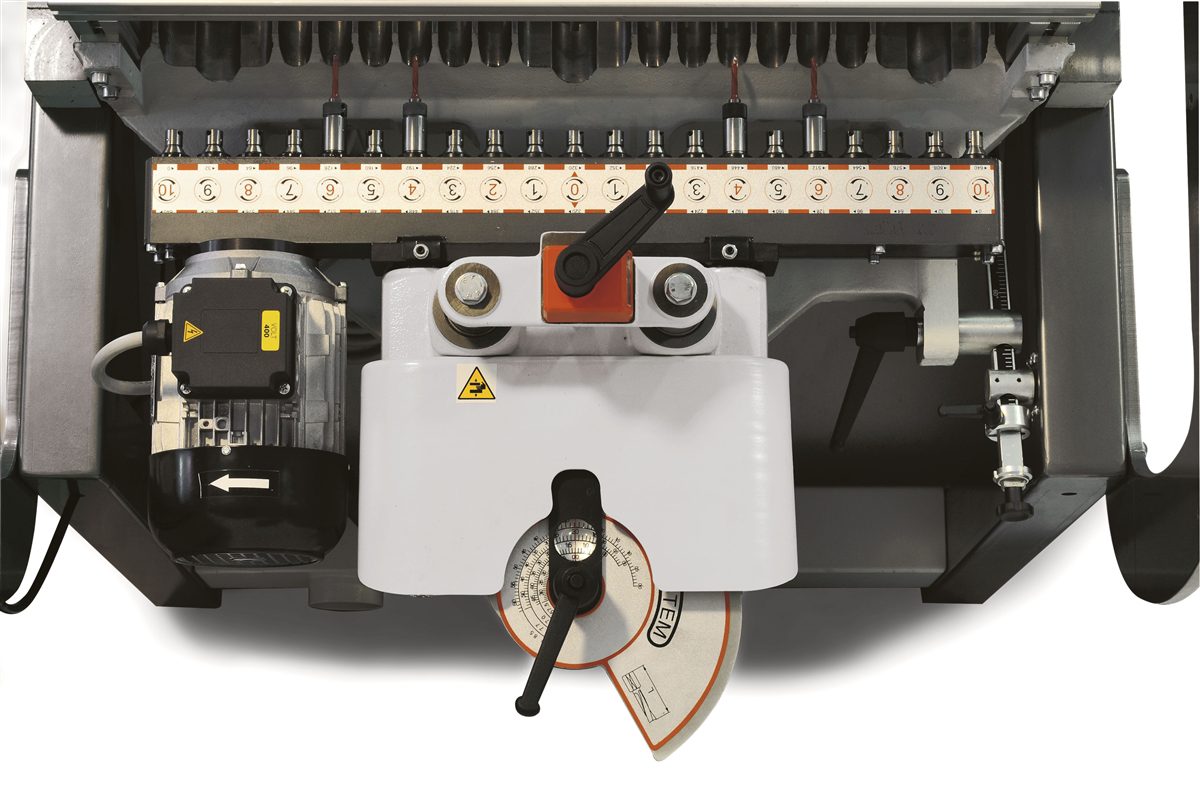

The Maggi System 21 Prestige Boring Machine provides a 21 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle;
Features:
- Accurate Positioning Of The Boring Unit To The Table With Digital Readout.
- 3-Phase Standard. Single Phase Is Also Available.
- 0 To 2.5″ Adjustable Drilling Depth With Patented Spiral Setting Device.
- (2) Patented Quick-Release Material Clamps With Auto-Setting To Firmly Hold Material To Table; Powerful 2 HP Motor; 34″ X 15″ Cast Iron Table.

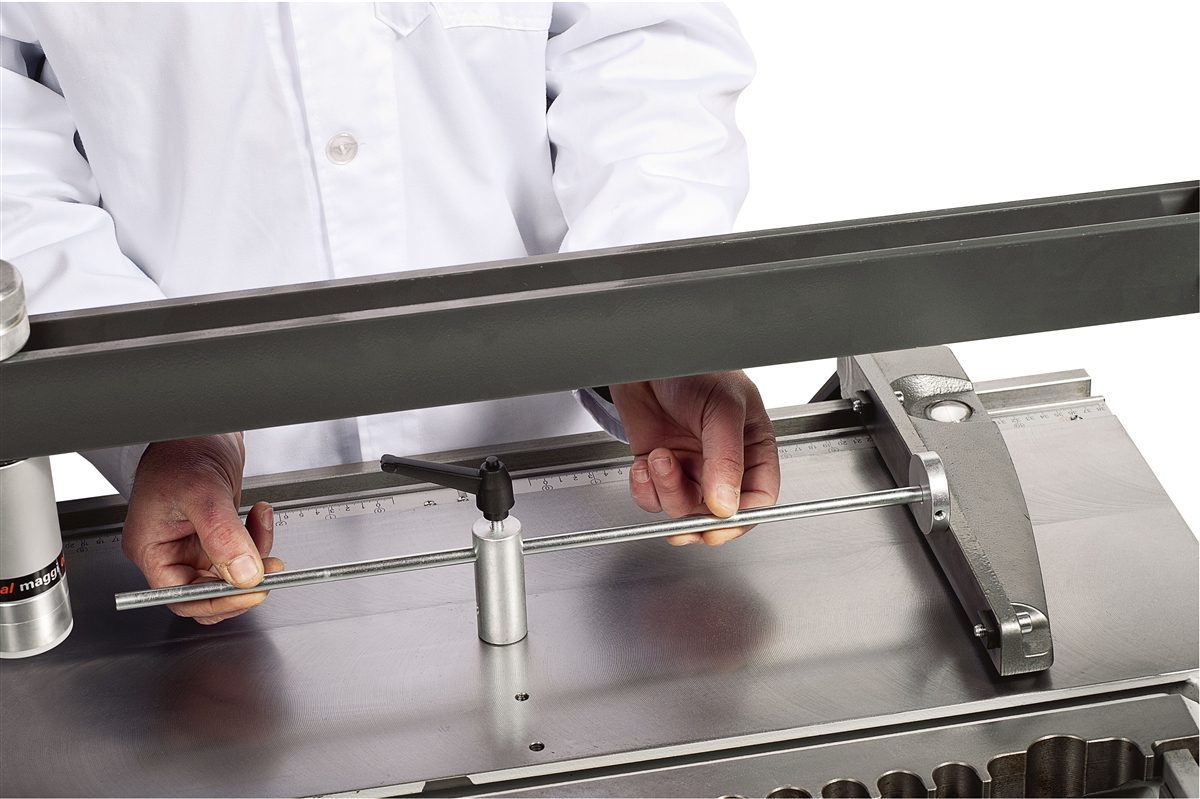

- Cast Iron Side Fences With Ruler And Magnifying Glass.
- Mirror Imaging Device To Ensure Quick And Accurate Set-Up Of The Side Fences.

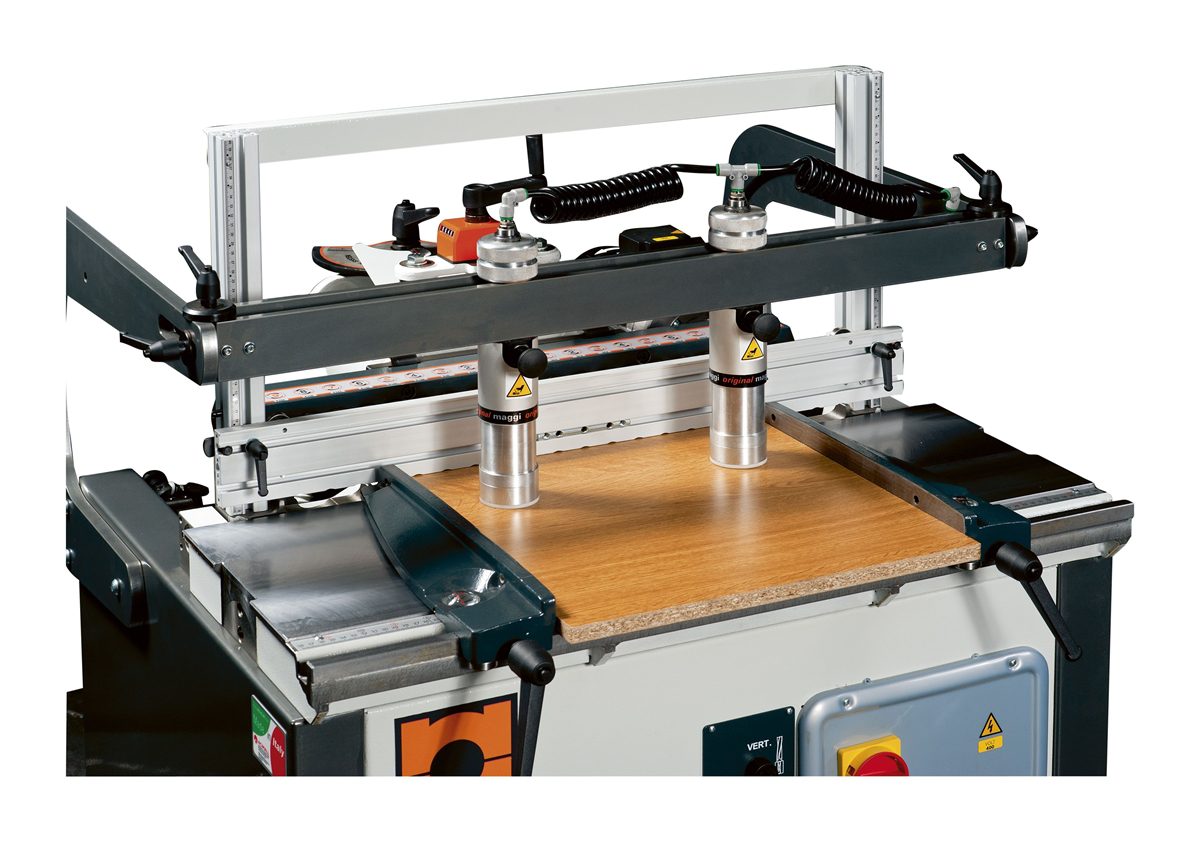

- 120″ Line Boring Fence With (2) Stops; Foot-Actuated Pneumatic Clamps And Drill Cycle.
- Includes Magnetic Motor Starter With Overload Protection And (21) Quick Change Chucks.
- Made In Italy.
Specifications:
Spindle Spacing: |
1-1/4″ (32mm) |
Dust Outlet: |
3″ |
Net Weight: |
605 Lbs |
Dimensions: |
40.5″ X 40.5″ X 50″ Tall |
Crated Dimensions: |
42.2″ X 37.4″ X 40.5″ Tall |
Crated Weight: |
685 Lbs |
Options (single head boring machines):

Shipping
FREE SHIPPING DOES NOT APPLY TO PRE-OWNED MACHINERY
Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.
***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.
Applies to lower 36 of the contiguous states only. AZ, CA, CO, ID, MT, ND, NV, OR, SD, UT, WA, & WY do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage, Oliver, nor JLT Machinery or other machines listed as not free shipping.
Manuals & Technical Documents
