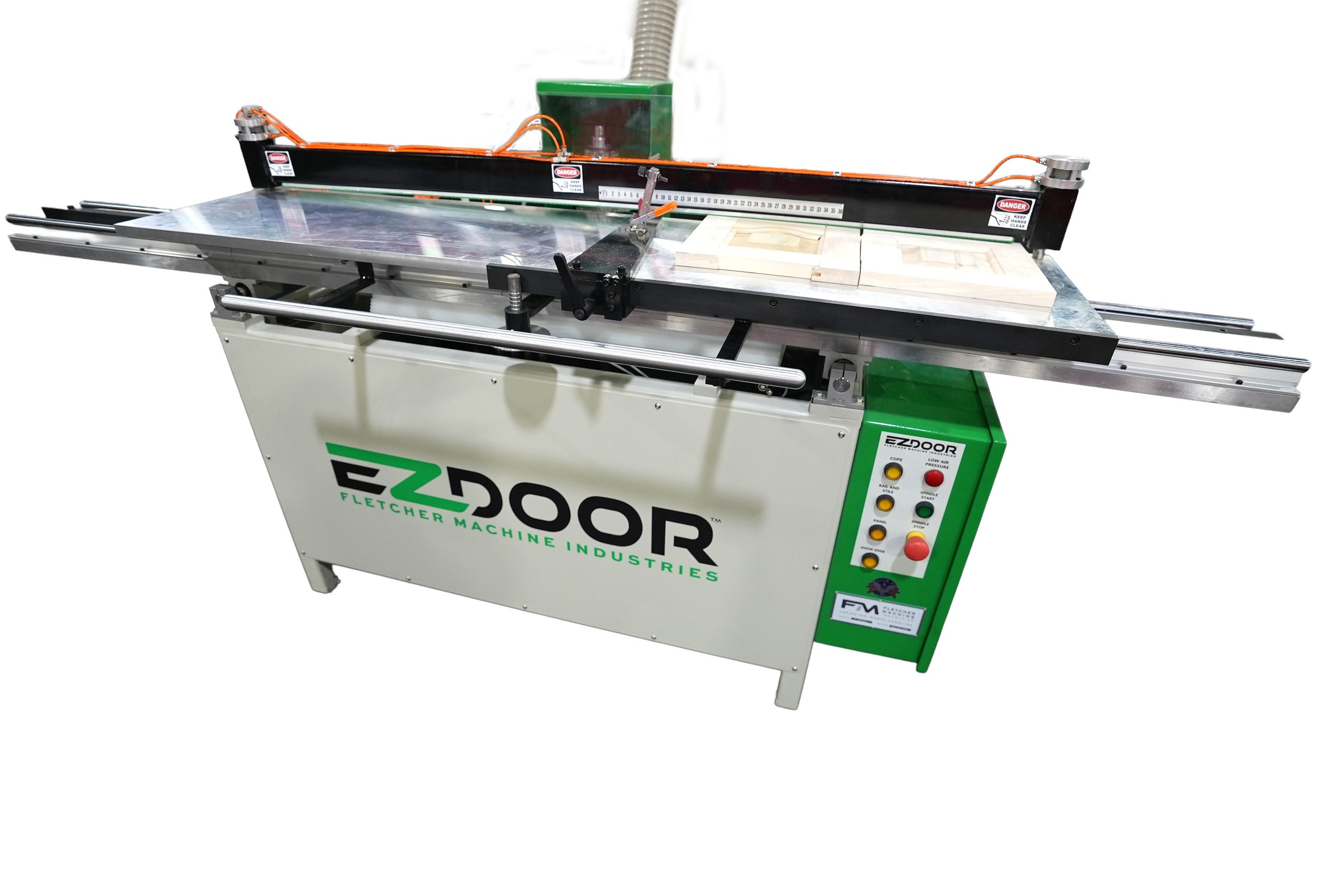

EZDOOR PDF Order GuideFletcher EZ Door Machine Overview
The Fletcher EZ Door Machine is engineered to meet the demands of cabinet shop owners and woodworking professionals who require precision, speed, and safety in their production processes. It is built for raised panel cabinet door production, pairing a button-selected four-position spindle with 2-inch steel tube construction.
Efficient Door Production
The standout feature of the Fletcher EZ Door Machine is its button-operated four-position spindle, which allows for seamless transitions between cutting tasks. Whether you’re shaping rails, stiles, panels, or outside edges, the single-button selection system repositions insert blades and material stops quickly, minimizing downtime and boosting productivity.
- Quick-Change Cutter Height Adjustment: Eliminate the hassle of manual adjustments with a pre-calibrated block that adapts to each cutter stack, saving time on every job.
- Versatile Cutting Capabilities: Create square or arched doors, including mullions for glass panels, with ease, a good fit for custom cabinetry projects.
Durable Construction
Constructed with 2-inch heavy wall steel tube framing, the Fletcher EZ Door Machine is built to endure the toughest workloads. Its sturdy design ensures long-term reliability and stability, making it a valuable addition to any professional woodworking shop.
- Heavy-Duty Build: Engineered to handle daily use without compromising performance.
- Precision Components: Features a rigid lubricated spindle assembly and recirculating ball bearing slides for smooth, accurate cuts.
User-Friendly Operation
Designed with safety and simplicity in mind, the Fletcher EZ Door Machine is easy to operate and maintain, even for woodworkers with minimal experience.

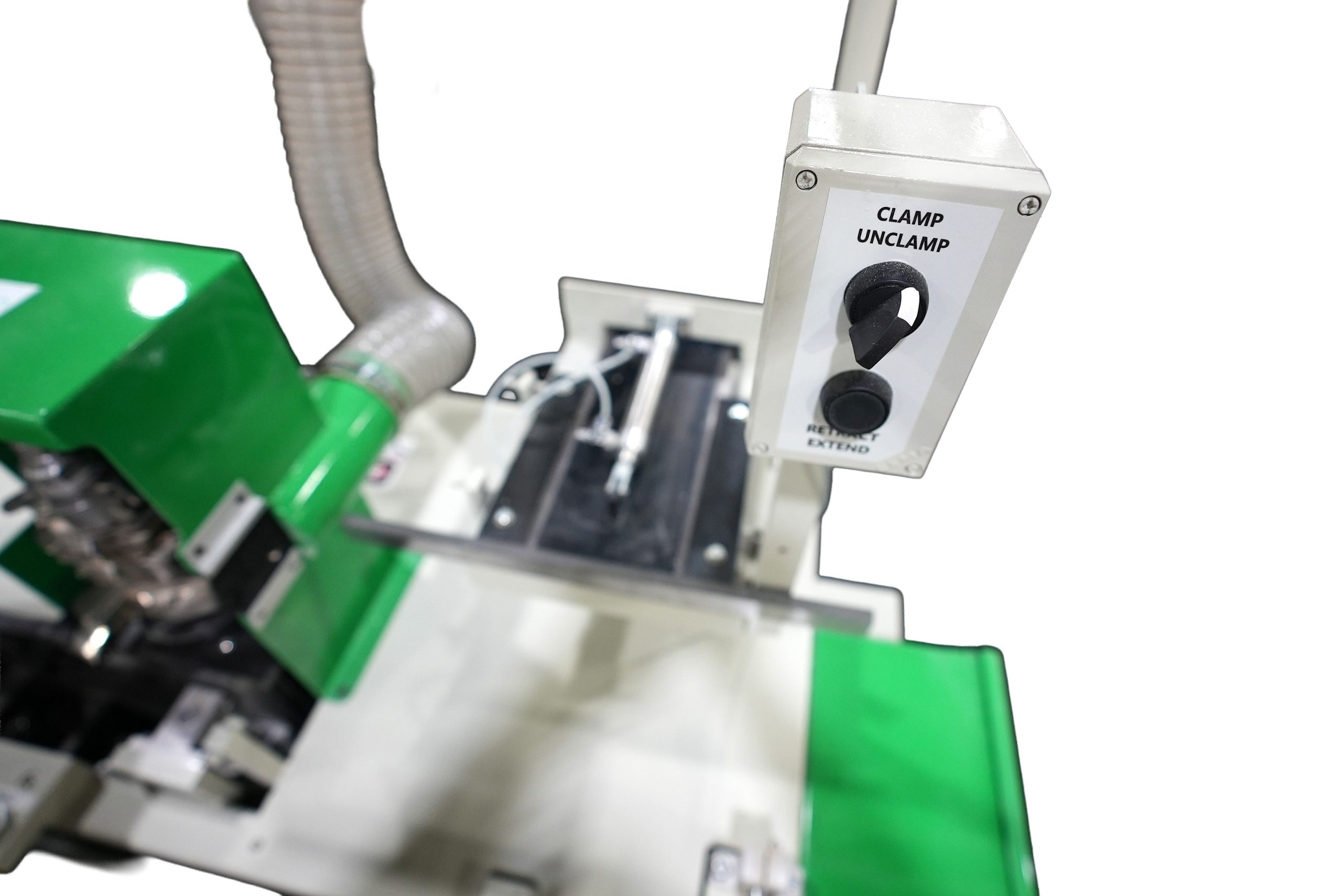

- Pneumatic Clamping Fence: Keeps hands safely away from cutters, enhancing operator safety.
- PLC-Controlled Pneumatics: Delivers repeatable stops and precise control, free from dust or chip interference.
- Intuitive Design: Quick to learn, allowing your team to maximize productivity with minimal training.
Applications
The Fletcher EZ Door Machine excels in:
- High-volume cabinet door production for busy shops.
- Custom woodworking projects requiring precision and flexibility.
- Businesses aiming to improve efficiency and safety standards.
Why Choose the Fletcher EZ Door Machine?
- Speed: Craft a complete 5-piece door in minutes, accelerating your workflow.
- Safety: Prioritizes operator protection with thoughtful design features.
- Customization: Adapts to various door styles using a quick-change template system.
- Reliability: Built tough to withstand demanding production schedules.
Specifications*
| Specification | Value |
|---|---|
| Spindle Size | 1-1/4″ diameter with 6″ capacity |
| Motor Power | 10 HP, 6,500 RPM |
| Table Travel Length | 62″ |
| Maximum Cut Length | 59″ for rails, 55″ for panels |
| Maximum Material Thickness | 1″ |
| Maximum Arch Width | 24-1/2″ for standard templates |
| Maximum Arch Height | 7/8″ to 2″ for standard templates |
| Minimum Rail Material Width | 1-1/2″ plus depth of cut |
| Positions on Spindle | 4 |
| Selection | Single button for rail/stile, cope, panel, and outside edge |
| Dust Extraction | (1) 4″ diameter outlet (392 CFM) |
| Air Requirements | Minimum 70 PSI |
| Electrical Requirements | 20 full load amps @ 230 volt 3-phase |
| Machine Footprint | 41″ x 96″ |
| Floorspace Required | 48″ x 129″ |
| Machine Weight | 1,250 lbs |
*The EZ-Door machine can be customized per your specifications. Call or email us to learn more. Specifications are subject to change.
Advertised Price Configuration
10 HP, four-position spindle, 1-1/4″ diameter with 6″ capacity, maximum cut length 59″ for rails and 55″ for panels, one set of H3D Tool insert tooling (four heads) and one arch template set.

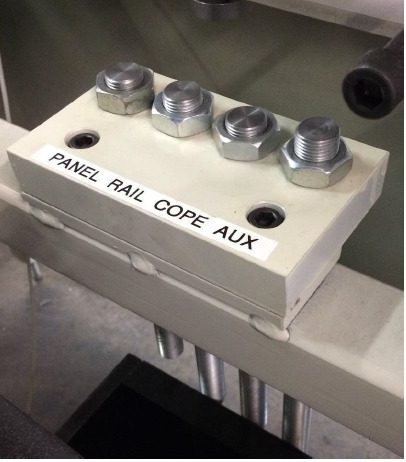

Cutter Height Adjustment Block
One cutter height adjustment block is included with every EZ Door machine, factory-calibrated to the correct cutter heights before delivery. Each additional full cutter stack purchased comes with its own block, so every stack can keep a block set to its heights, which cuts out most on-the-fly height adjustments.
Blocks ordered later can be calibrated by the shop at its own facility. Blocks ordered together with a new machine are calibrated at the factory.
Door Tooling

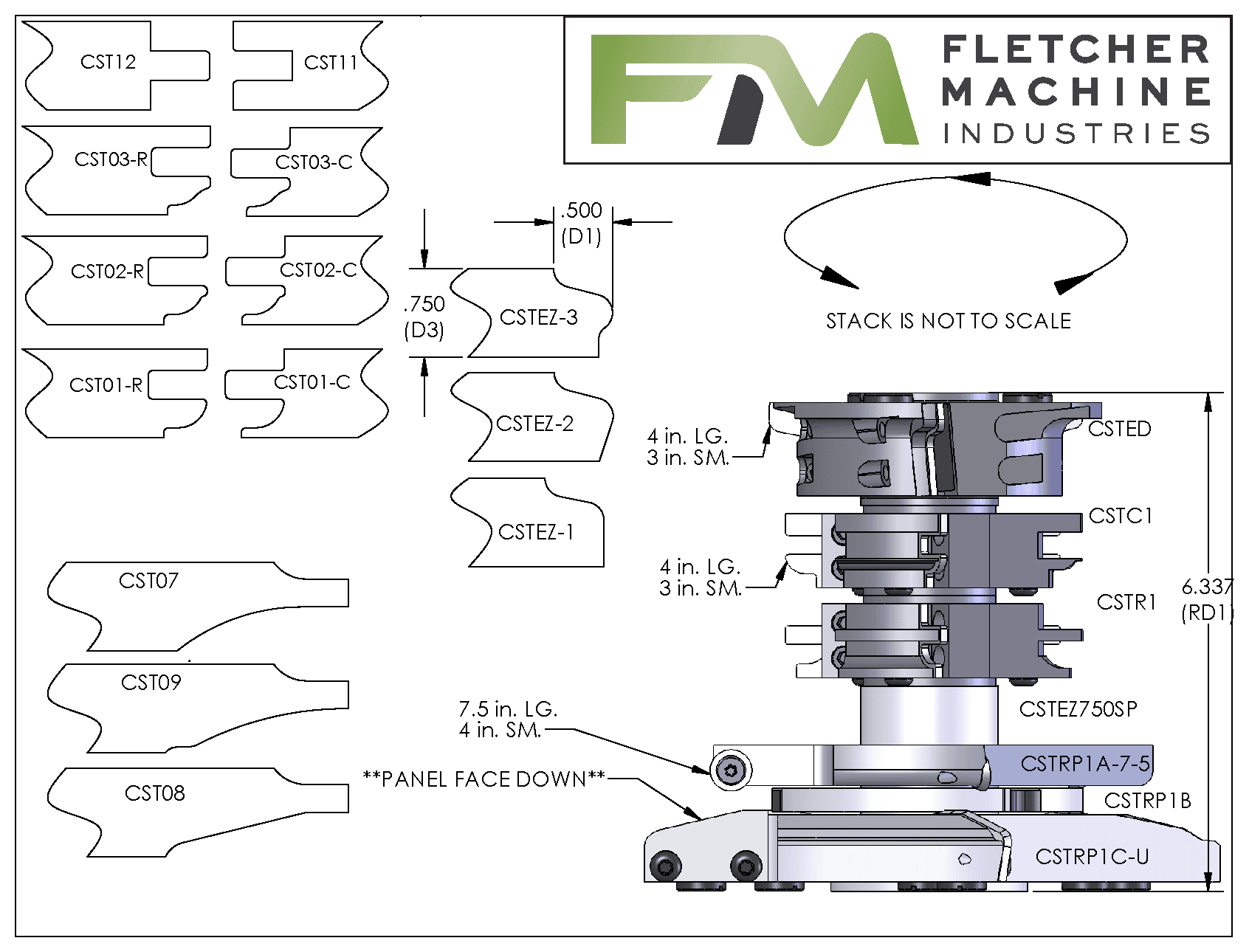

One full cutter stack (four heads) is included with the machine: H3D Tool High Definition insert tooling, plus a standard arch template set for 7/8″ to 2″ arches. Most profiles fit the same heads, with a few exceptions.
Spindle Motor
The EZ Door is fitted with an Elektrim NEMA Premium 20N series motor, part number 20NFM-3-10-36. Key ratings from the manufacturer’s data sheet:
| Horsepower | 10 HP |
|---|---|
| Motor speed | 3,535 RPM |
| Frame | 215T |
| Voltage | 230/460 V, 3-phase, 60 Hz (usable at 208 V) |
| Full-load amps | 25.2 A at 208 V, 11.4 A at 460 V, 9.1 A at 575 V |
| Full-load torque | 14.8 lb-ft |
| Locked-rotor / breakdown torque | 300% / 335% |
| Full-load efficiency | 90.2% (NEMA Premium) |
| Power factor at full load | 91% |
| Service factor | 1.3 |
| NEMA design / code letter | A / J |
| Enclosure | TEFC, rigid cast iron frame, IP55 |
| Inverter duty | 10:1 constant torque, 20:1 variable torque |
| Insulation | Class F, with temperature rise below Class B |
| Motor weight | 173 lb |
The full motor data sheet is in the Manuals & Technical Documents tab.
Contact 360 Degree Machinery
Request a quote or call 630-229-6705 and we will go through configuration, tooling and freight to your dock. The EZ-Door is made in the USA; ask about current lead time.
