Northtech NT 525S-732 7.5 HP Spindle Shaper With Sliding Table

Northtech NT 525S-732 7.5 HP Spindle Shaper With Sliding Table

Categories , , , Tag Brand:

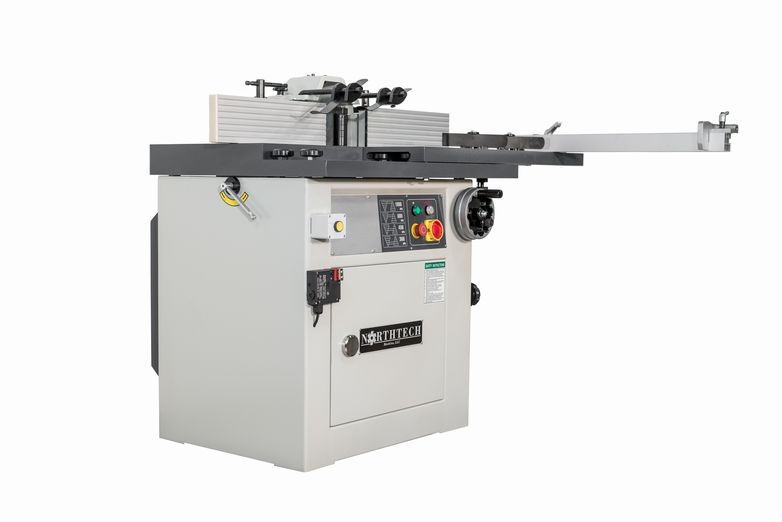

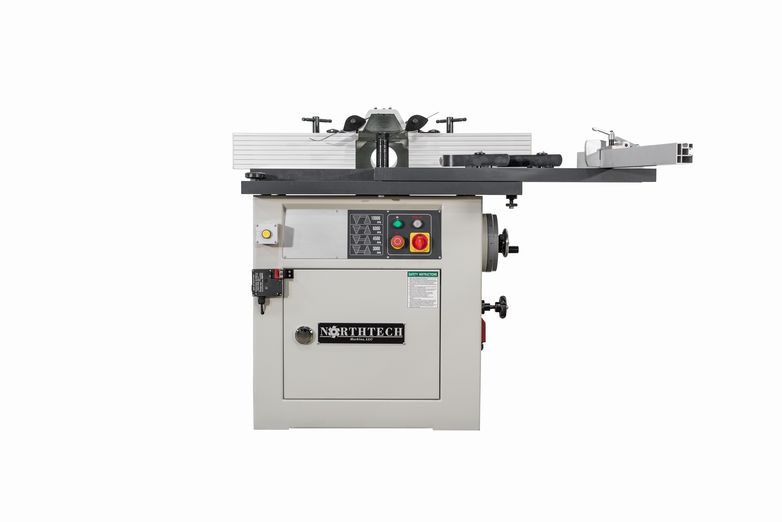

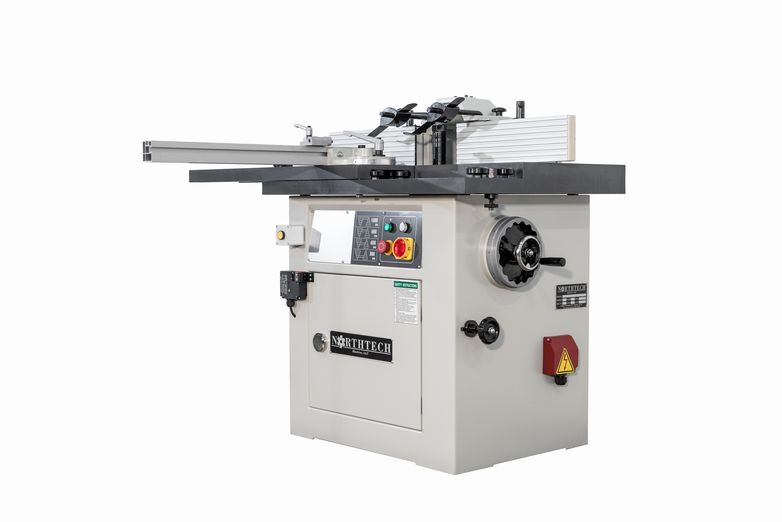

This Northtech 525 series shaper offers a sliding table to reduce material marring from pushing through the spindle. The dependable 7.5 HP motor powers the spindle through operator-adjustable speeds from 3,000 to 10,000 RPM to suitably handle a wide variety of cutter heads and species. The 1-1/4″ diameter spindle has a vertical adjustment range of 5″.  The included micro-adjustment fence system is independent from left to right for fast and easy setup and includes metal hold-downs, a sliding-table clamp, and a safety guard for secure and safe operation.

Add to Quote Request

Specifications:

  • Machine Hp. = 7.5 hp.
  • Voltage/ Freq. = 230 Volt 60Hz
  • Phase = 3 Phase
  • Amp Requirement = 21 Amps
  • Spindle Diam. = 1-1/4”

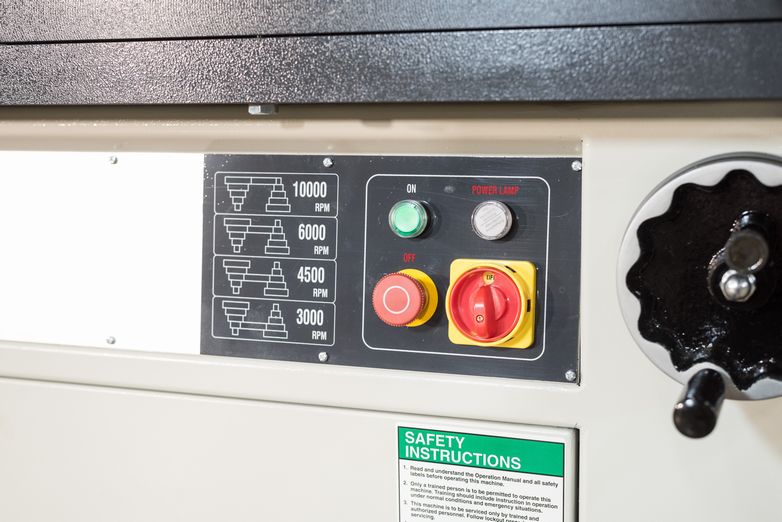

  • Spindle RPM = 3000 – 10000 RPM
  • Under Nut Cap. = 5”
  • Elevation Style = Manual Wheel Adjustment

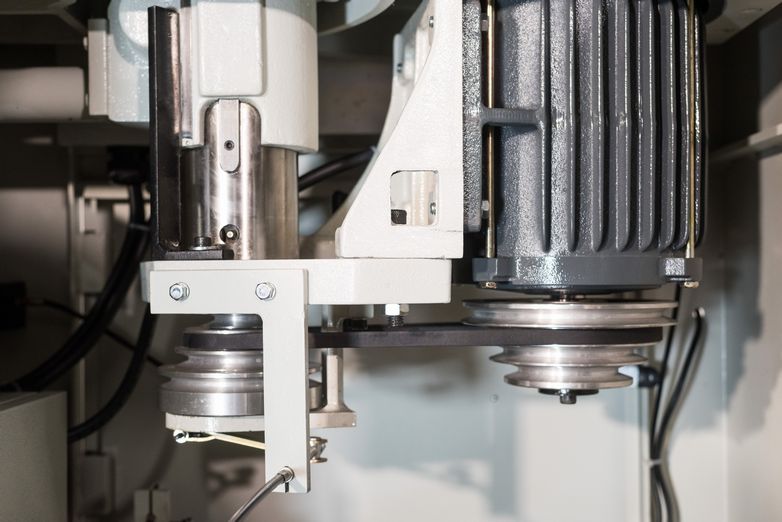

  • Elevation Sys. = Quill Housing/Jack Screw
  • Total Hp. = 7.5 Hp.
  • Electronics = CE Approved Components
  • Dual Voltage = 230/460 Volt
  • Control Voltage = 110 Volt / 24 Volt
  • Pass-Line = 34-1/4”
  • Vertical Travel = Spindle 5”
  • Dust Collection = (1) 4” @ 450 CFM
  • Hold Down Style = Adjustable Metal Hold Downs
  • Total Clamps = (1) Sliding Table Clamp
  • Emergency Stop = Push Button
  • Fence Type = Micro Adjustment Fence
  • Fence Dims. = (2) 5” x 17”
  • Sliding Table = 33-1/2” Travel
  • Frame Const. = Cast Construction
  • Worktable Dims. = 35-1/2” x 27-1/2”
  • Table Const. = Cast Iron
  • Decible Rating = 70 dB
  • Net Weight = 882 Lbs.
  • Gross Weight = 980 Lbs.
  • Machine Dims. = 35” x 41” x 43”
  • Packaging Dims = 41” x 38” x 48”

Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.

***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.

Applies to lower 40 of the contiguous states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage Machines nor JLT Machinery or other machines listed as not free shipping.

Financing & Leasing Options for Your Convenience!

360 Degree Machinery offers financing solutions with competitive rates, flexible terms, and a simple application. Take the hassle out of machinery purchases. Click Here to learn more now!
