127 Amps @ 220V/3-Phase.
Max workpiece – 230 mm x 130 mm (9″ x 5″)
Max workpiece finished size 220 mm x 120 mm (8.66″ x 4.72″)
10-1/2″ wide x 77″ long adjustable height infeed table
1″ high adjustable infeed fence
40mm Spindle dia.
1st head: bottom horizontal spindle 7-1/2 hp,
2nd head: right hand vertical spindle 7-1/2 hp
3rd head: left hand vertical spindle 7-1/2 hp
4th head: top horizontal spindle 15 hp
5th head: bottom horizontal spindle 10 hp

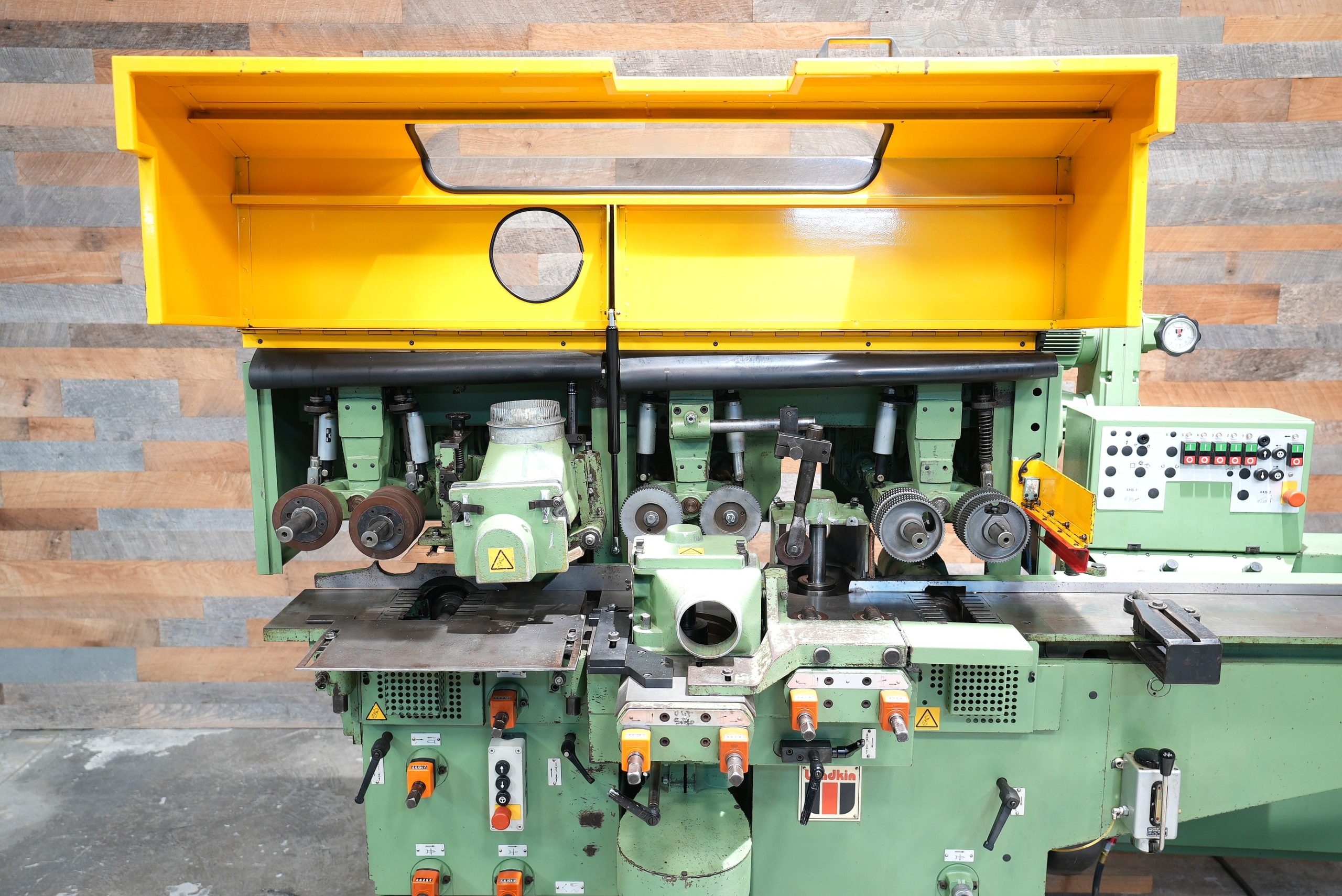

Sound and safety enclosure with lift up hood around all heads
3 hp feed/drive motor with Variable speed feed with 20 to 75 ft/min
Push button motor controls

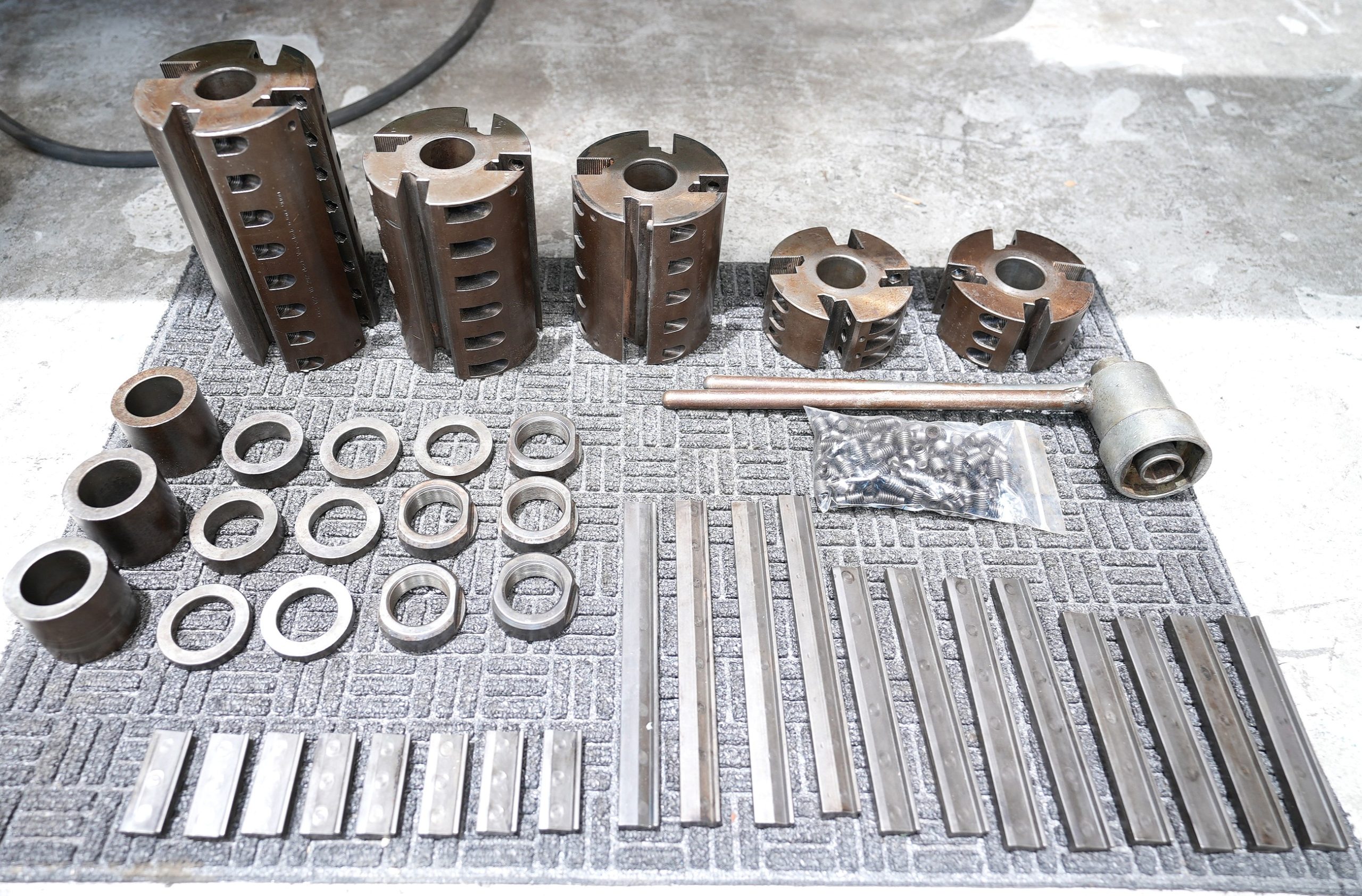

Comes with a set of tooling (5) Heads, spacers, and spindle wrench

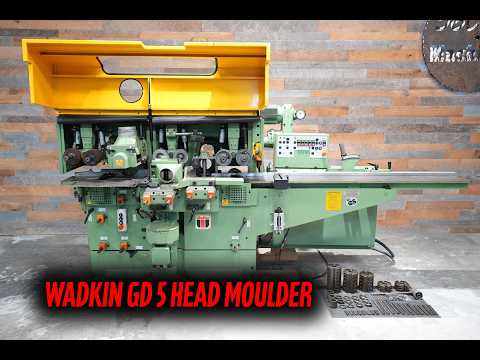

Wadkin GD 5 Head Moulder
Wadkin GD 5 Head Moulder
Original price was: $7,500.00.$3,750.00Current price is: $3,750.00.

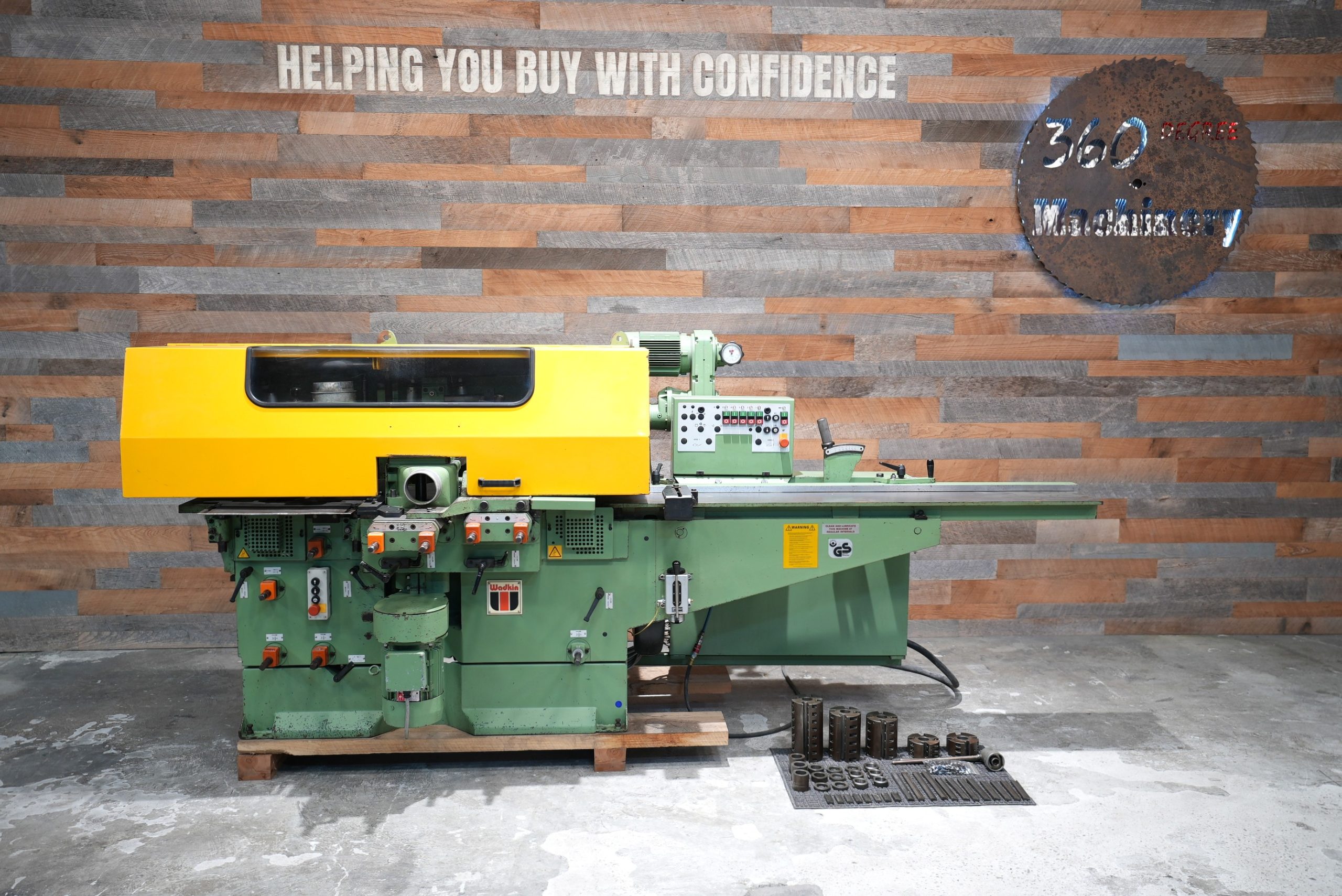

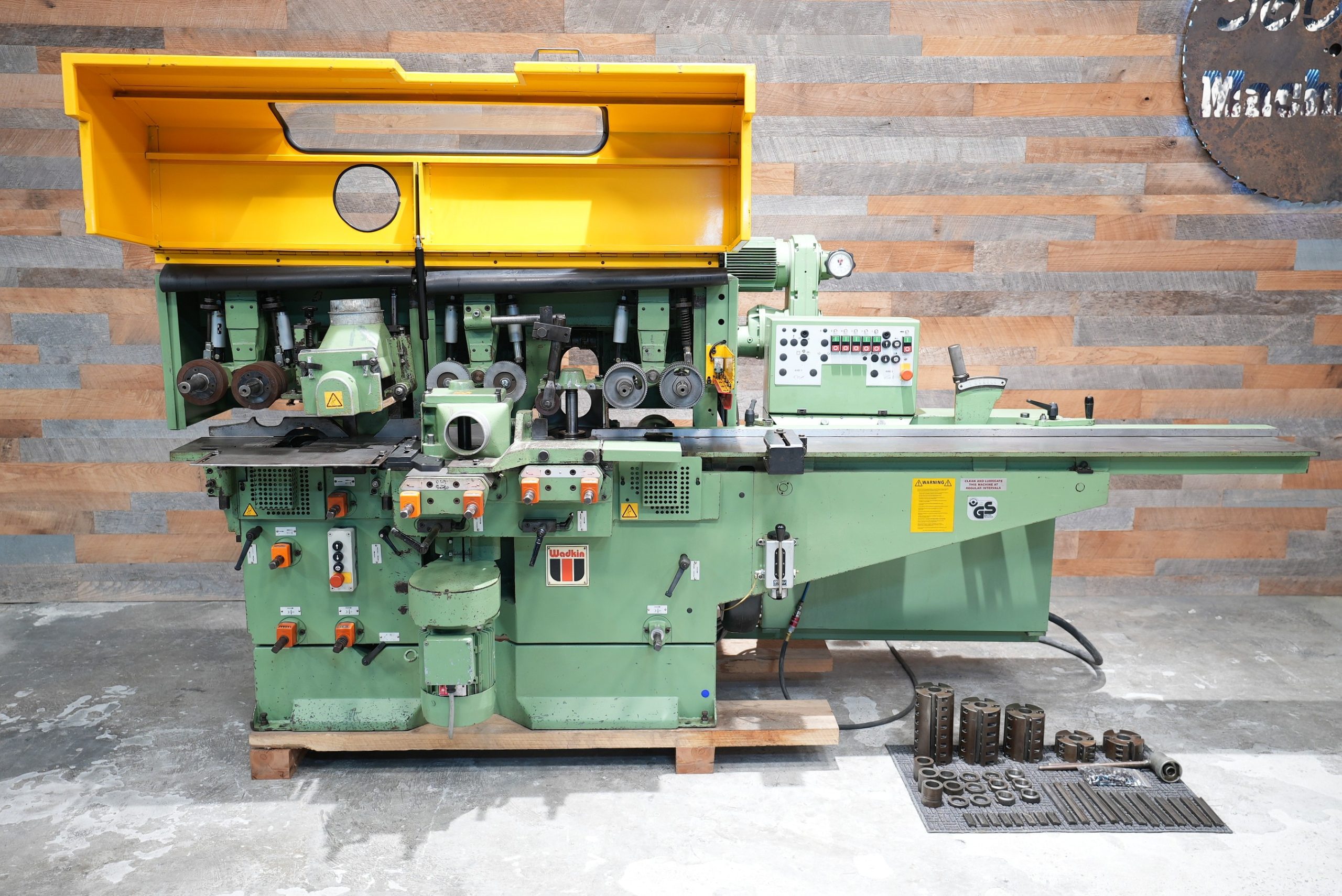

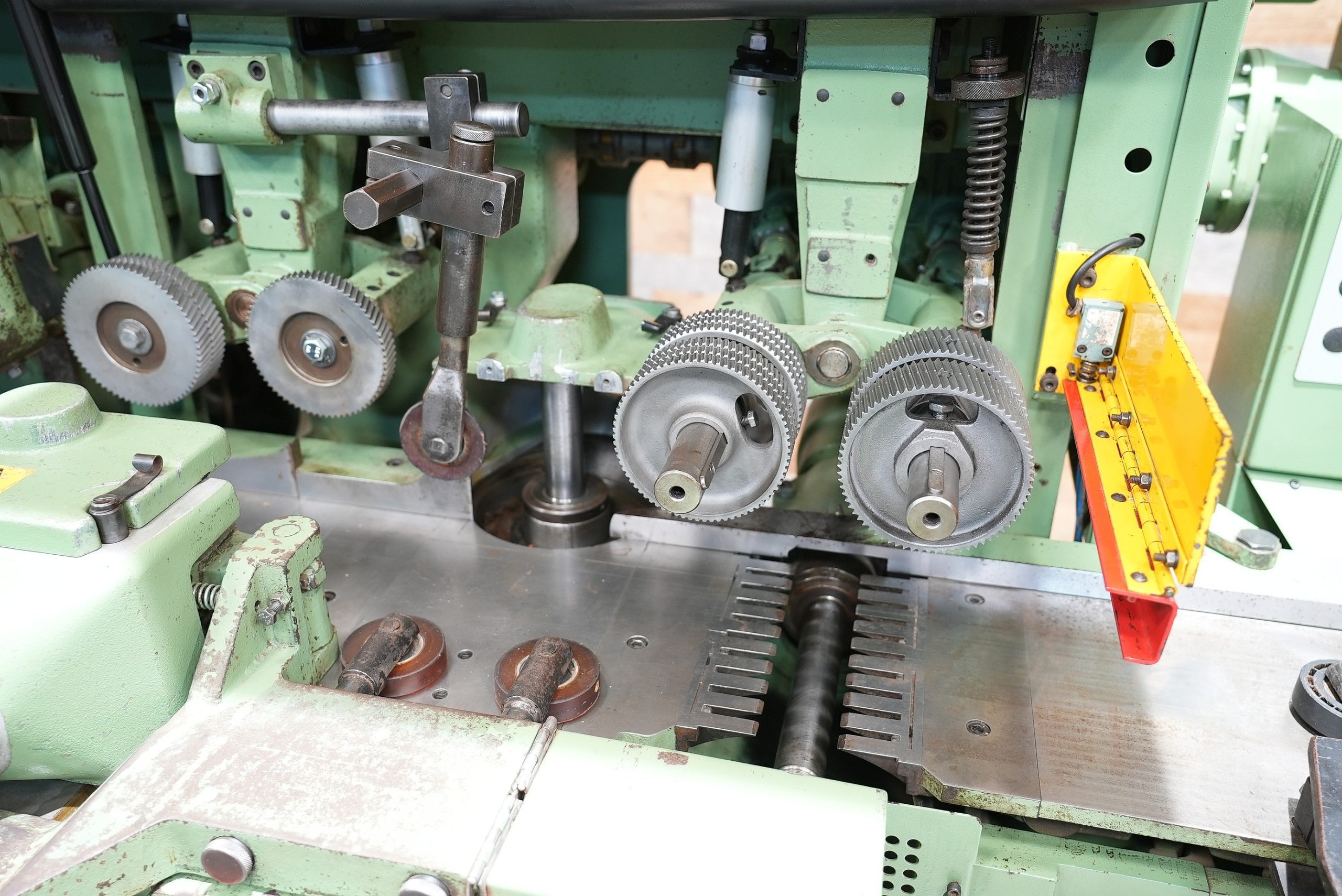

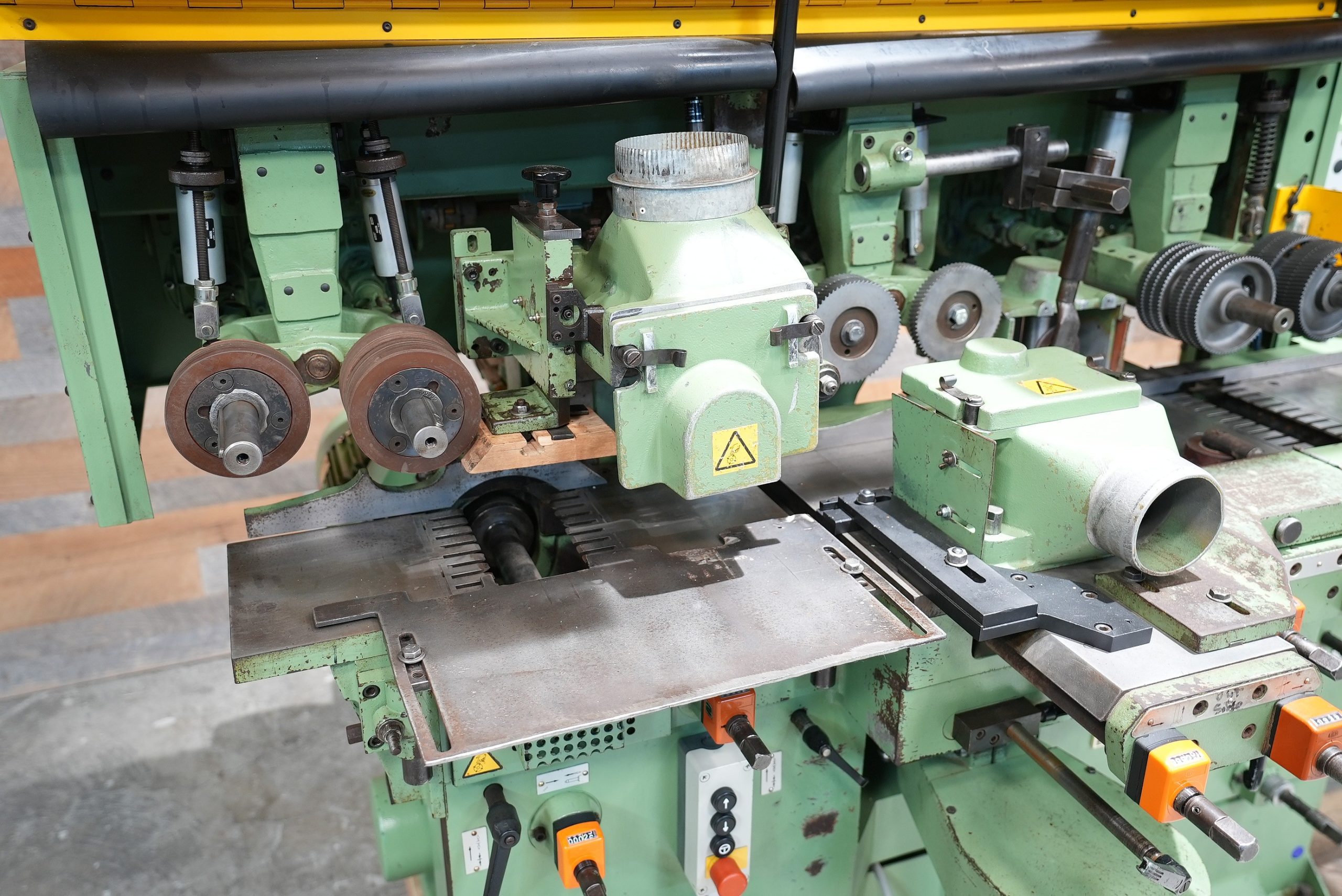

This is an overall clean Wadkin GD 5 Head Moulder wearing it’s original paint and everything functions. It has a B-R-L-T-B head configuration. The variable feed is capable of 20 to 75 ft/min. While the capacity is 9″ X 5″. Spindles are 40 mm. The only issue is wear on the front inside of the infeed table. So it will need to be reground. We priced this one accordingly and in most markets you can get the table reground for $750-1,500. The bed plates look fine. Great starter machine.
Specs & Features
127 Amps @ 220V/3-Phase.
Max workpiece – 230 mm x 130 mm (9″ x 5″)
Max workpiece finished size 220 mm x 120 mm (8.66″ x 4.72″)

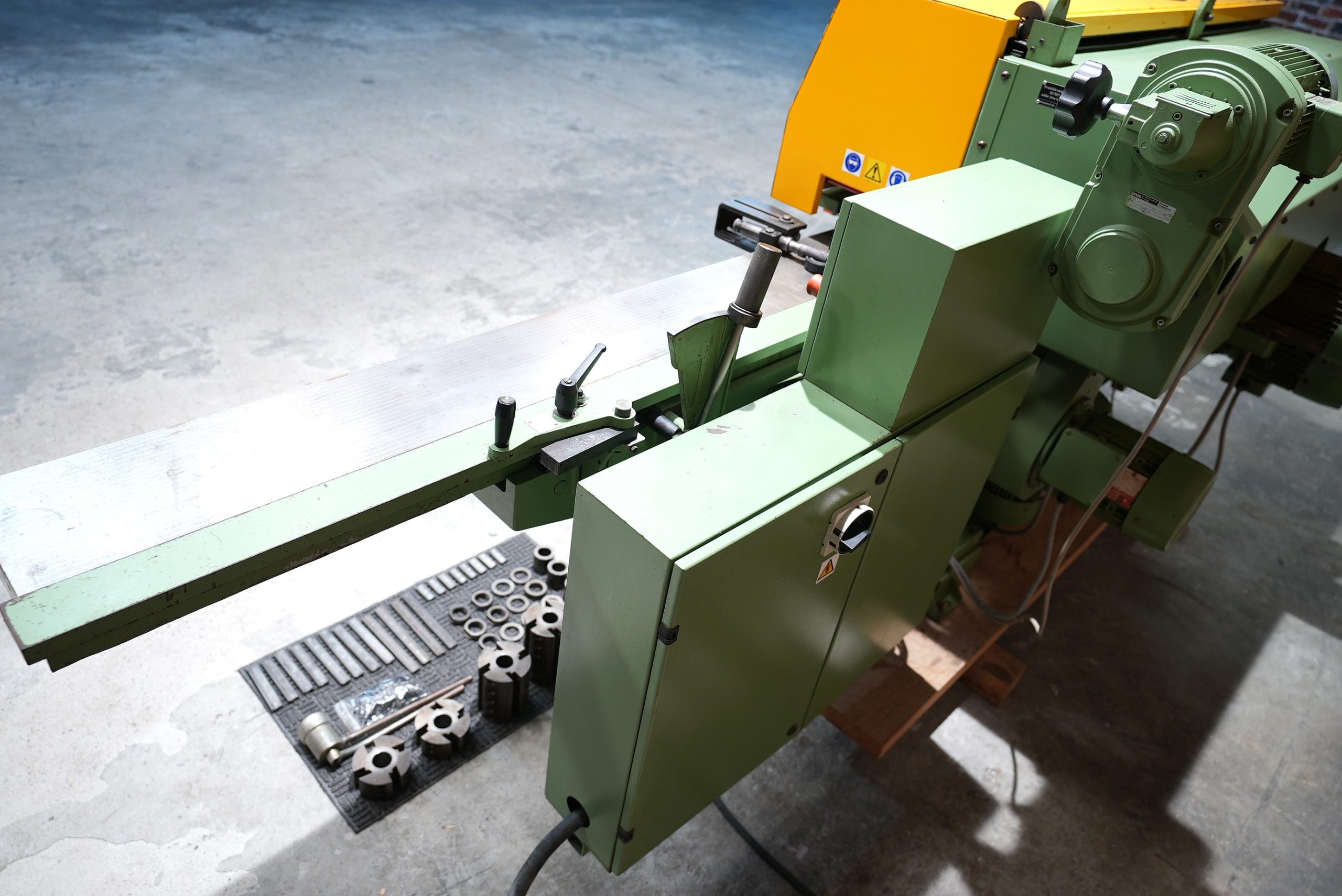

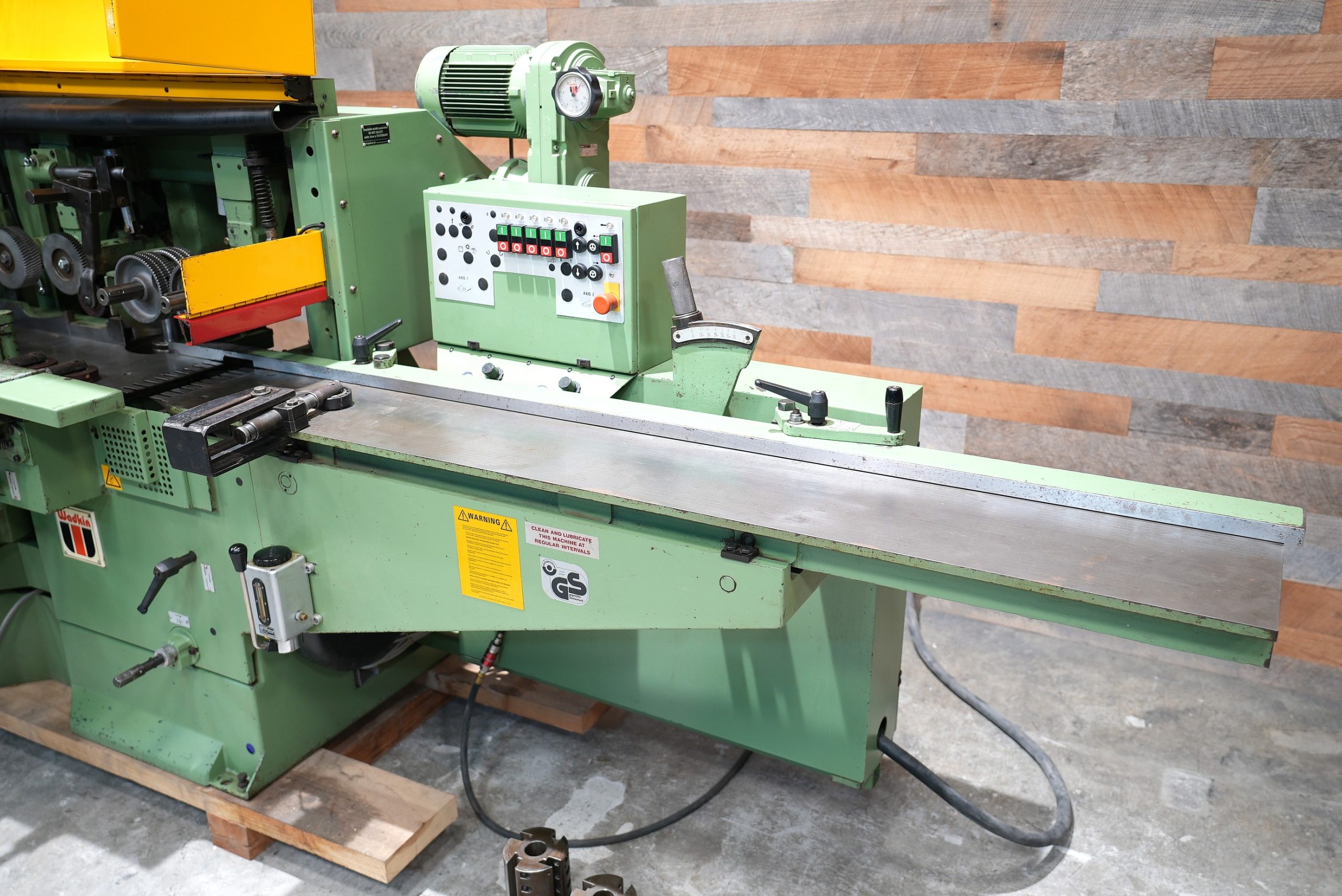

10-1/2″ wide x 77″ long adjustable height infeed table
1″ high adjustable infeed fence
40mm Spindle dia.
1st head: bottom horizontal spindle 7-1/2 hp,
2nd head: right hand vertical spindle 7-1/2 hp
3rd head: left hand vertical spindle 7-1/2 hp
4th head: top horizontal spindle 15 hp
5th head: bottom horizontal spindle 10 hp
Sound and safety enclosure with lift up hood around all heads
3 hp feed/drive motor with Variable speed feed with 20 to 75 ft/min

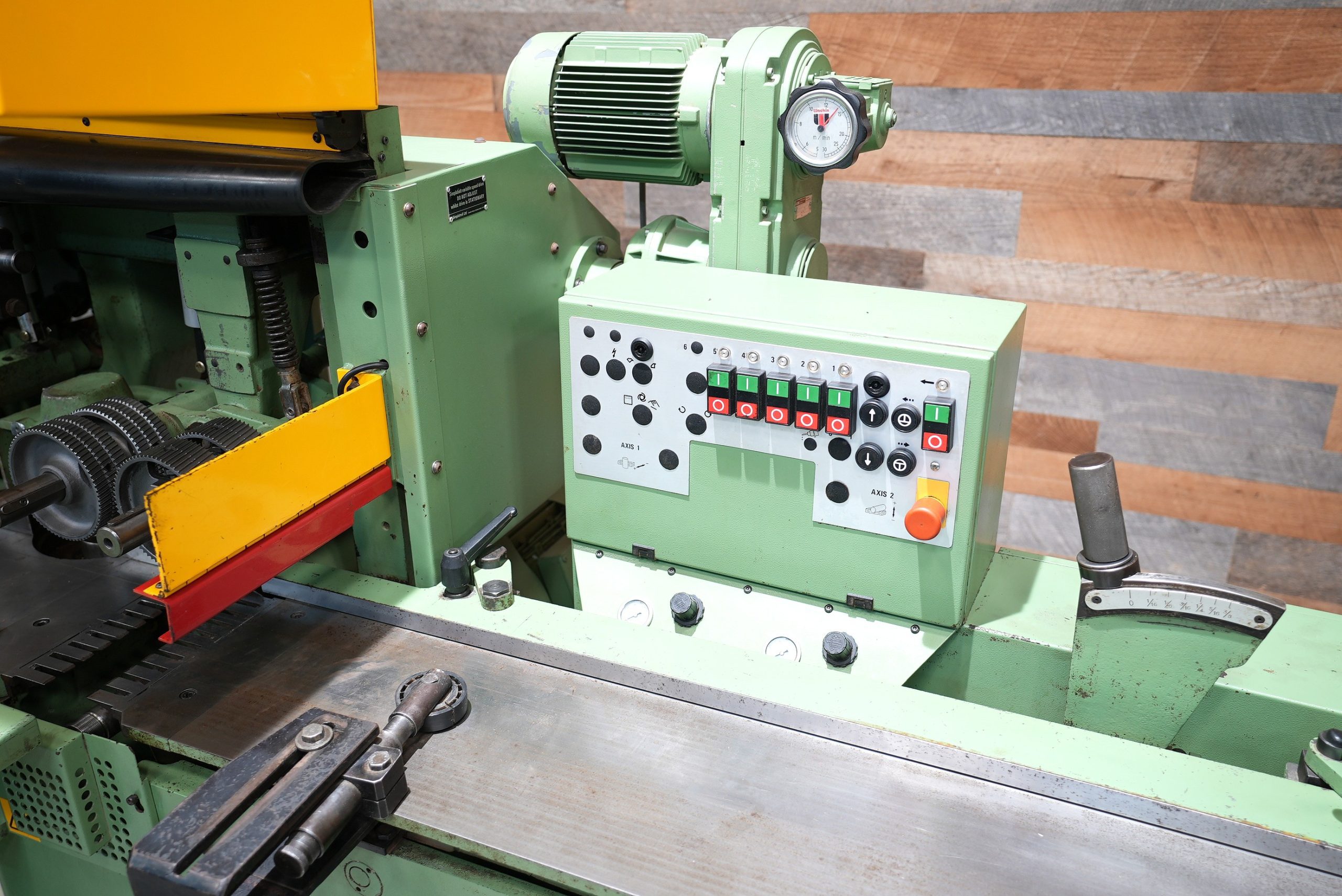

Push button motor controls
Comes with a set of tooling (5) Heads, spacers, and spindle wrench
