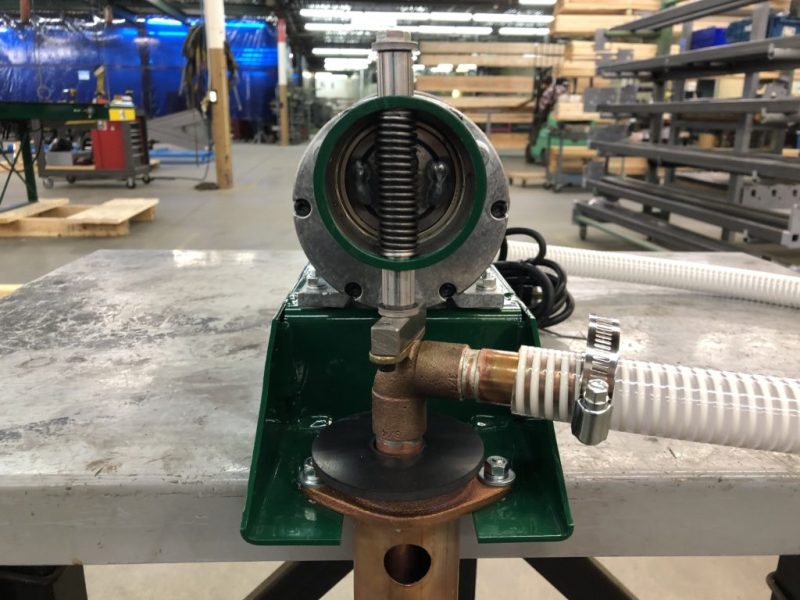

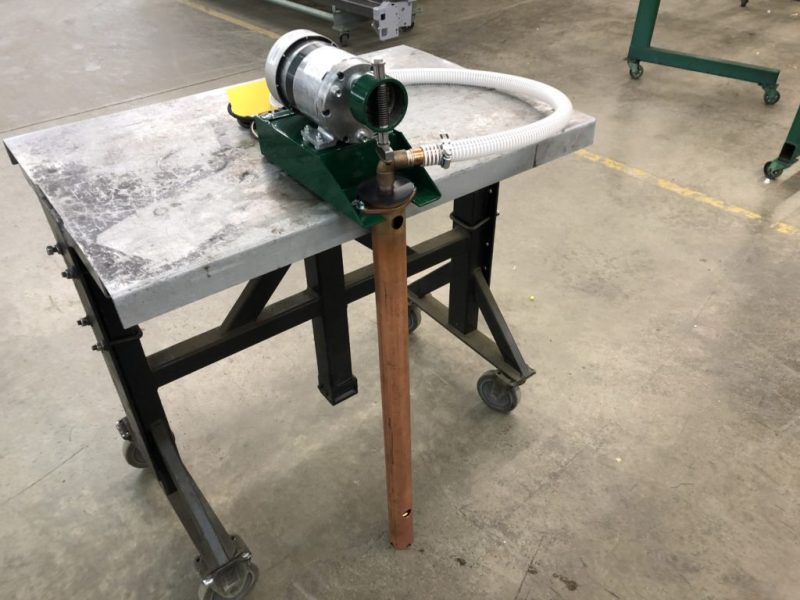

The Taylor PVA Glue Pump transfers glue directly from a 55 gallon drum on the floor to the Taylor Conveyorized Glue Applicator or the Taylor Plate Spreader. It can be used with all polyvinyl and aliphatic adhesives.
Equipped with an electronic sensing circuit, the pump turns on and off automatically to maintain the optimum glue level in the glue pan. The PVA Pump incorporates a unique hollow piston design and a force limiting system, ensuring reliable performance even when using cold or thick glues.
Power:
120 V(AC)
2 Amps
Metering Switch:
Conductive through “level probe” and glue.
Pumping Capacity:
6 Gallons Per Hour (standard speed – High Speed available)
Works with:
PVA Glue
Dimensions:
2″ Copper Cylinder Tube (2.041″ ID — 2.125″ OD)
34″ Standard Height from top of bung hole to bottom of Cylinder (custom height available)
Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.
***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.
Applies to lower 40 of the contiguous states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage, Oliver, nor JLT Machinery or other machines listed as not free shipping.
360 Degree Machinery offers financing solutions with competitive rates, flexible terms, and a simple application. Take the hassle out of machinery purchases. Click Here to learn more now!
Power:
120 V(AC)
2 Amps
Metering Switch:
Conductive through “level probe” and glue.
Pumping Capacity:
6 Gallons Per Hour (standard speed – High Speed available)
Works with:
PVA Glue
Dimensions:
2″ Copper Cylinder Tube (2.041″ ID — 2.125″ OD)
34″ Standard Height from top of bung hole to bottom of Cylinder (custom height available)
