SCM Nova SI 4K R Layout Drawing (PDF)SCM Nova SI 4K R Sliding Table Saw
On most sliding table saws in this price range, rip width is set the same way it was fifty years ago: release the fence, nudge it against a tape, lock it, test cut, adjust. The SI 4K R replaces that routine with a numerically controlled fence: type the dimension, and the fence drives itself there. The sections below cover what the R package adds, the choice between single- and three-phase power, the dado capability American shops keep asking European saws for, and the carriage SCM guarantees for ten years.
What the R Buys You: A Fence That Positions Itself
The R in the name is SCM’s READY control. Enter a rip width on the keypad and the fence drives itself there, so the cut widths a shop uses every day are recalled instead of re-measured. The fence system runs on:
- Three positioning modes: continuous, incremental, or automatic
- Memory for up to 99 stored programs
- A recirculating ball screw drive with encoder position readout
- A fence assembly that lifts off entirely to clear the carriage for crosscuts
If the programmable fence is more than your work calls for, the base SCM Nova SI 4K is the same saw without the computer-controlled movement, at a lower price.
Pick Your Power: Single Phase or Three Phase
The SI 4K R comes in two configurations, and the choice is simply what power your shop has. The single-phase version runs a 5.5 HP main motor on 220 V household-style power. The three-phase version runs 8 HP, and costs a thousand dollars less. If your building has three-phase service, you get the stronger machine and keep the difference; if it does not, the single-phase version spares you a phase converter.
A Dado-Capable European Slider
European sliding table saws rarely offer dado capability. The SI 4K R ships with SCM’s DADO SET capability built in: the arbor accepts a dado tool up to 200 mm (7.8 in) in diameter and 19 mm (0.69 in) wide in place of the main blade. For cabinet shops that cut grooves and rabbets the American way, that removes the usual compromise of owning a slider for panels and keeping a cabinet saw around just for dados.

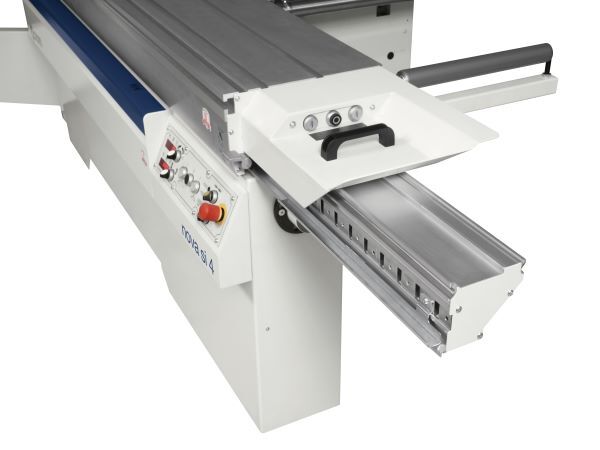

The Nova Carriage: Guaranteed for Ten Years

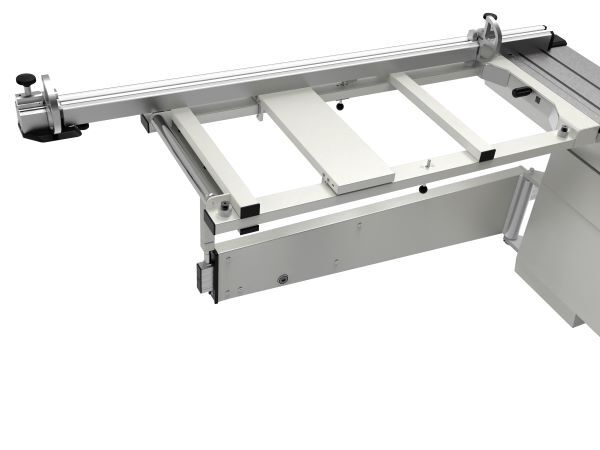

The anodized aluminum carriage rides mechanically fixed, hardened steel guides, and its closed lattice cross-section is built for rigidity with minimal flex. SCM guarantees the carriage sliding system for ten years. It locks at any point along its travel, which turns the carriage into a solid work surface when you need one, and the squaring frame carries a telescopic swinging arm and an idle roller so a full sheet loads without a second pair of hands.
Scoring, Blades, and the Numbers That Matter

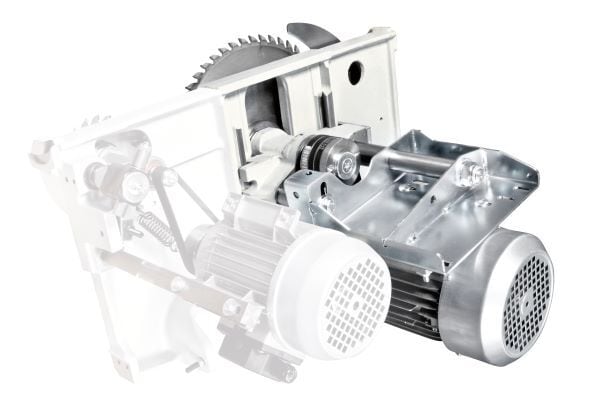

An independent powered scoring unit, with its own 1 HP motor and front-of-machine adjustments, leaves a clean underside on veneered panels. The saw ships with a 315 mm main blade and 120 mm scoring blade and accepts main blades up to 400 mm (15.75 in), for 136 mm (5.3 in) of cut at 90 degrees. The carriage squares 3,200 x 3,200 mm, a full 10.5 ft stroke, and the fence rips to 1,270 mm (50 in). SCM’s Thundercut app, activated with a QR code shipped on the machine, optimizes cutting lists and walks the operator through the sequence cut by cut.
Configurations
| Single Phase | Three Phase | |
| Main motor | 5.5 HP (4 kW) | 8 HP (6 kW) |
| Electrical | 220 V, 60 Hz, 28 A | 220 V, 60 Hz, 21 A |
| MSRP | $17,975 | $16,975 |
| MPN | NOVASI4K_COMP4 | NOVASI4K_COMP5 |
Specifications (both configurations)
| Type | Sliding table saw, tilting blade, NC rip fence |
|---|---|
| Rip fence | READY control: NC positioning, ball screw, encoder readout, 99 programs |
| Max blade diameter | 400 mm (15.75 in); ships with 315 mm blade |
| Scoring unit | Independent, powered, 1 HP; 120 mm blade |
| Simultaneous blades | 400 mm main + 120 mm scorer |
| Blade tilt | 90° to 46° |
| Max cutting height | 136 mm (5.3 in) at 90°; 97 mm (3.8 in) at 45° |
| Blade speed | 4,000 rpm (scorer 9,200 rpm) |
| Sliding carriage | 10.5 ft (3,200 mm), locks at any position; 10-year guarantee on the sliding system |
| Max squaring capacity | 3,200 × 3,200 mm (10.5 × 10.5 ft) |
| Rip capacity | 1,270 mm (50 in) |
| DADO capability | Yes; up to 200 mm (7.8 in) dia × 19 mm (0.69 in) wide (tool not included) |
| Worktable | 1,000 × 560 mm (39.4 × 22 in) |
| Dust extraction | 696 CFM nominal; 120 mm frame + 80 mm overhead outlets |
| Product line | SCM Nova |
Contact 360 Degree Machinery
360 Degree Machinery is an authorized SCM dealer. Call 630-229-6705 or request a quote online, choosing the phase that matches your shop’s power. If you don’t need the programmable fence, the base SCM Nova SI 4K shares the same saw at a lower price; if you want powered blade tilt and height as well, step up to the Nova SI 4K EP. Installation fees may apply.
