SCM formula FEED 32 and FEED 48 Power Feeders

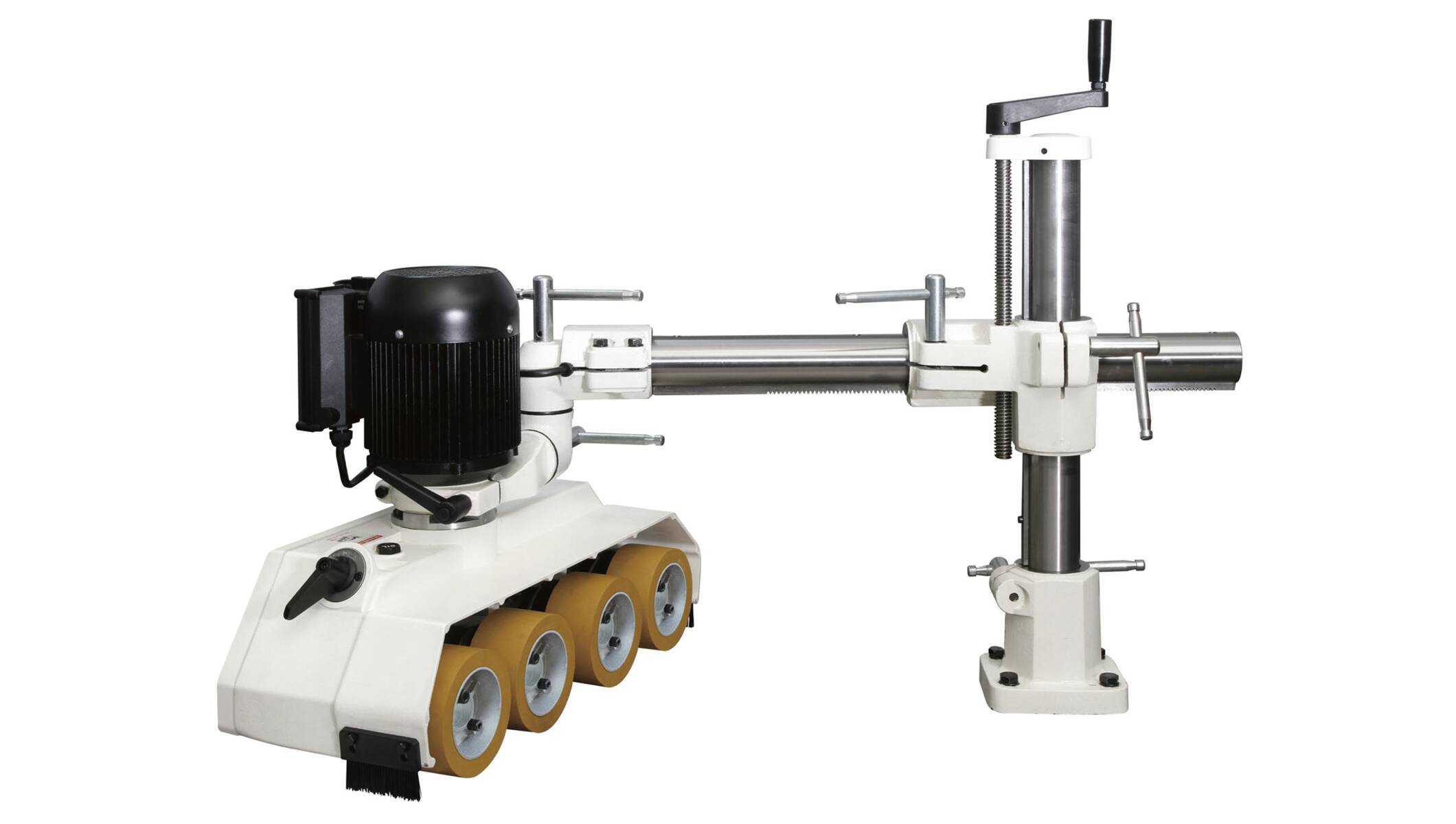

A power feeder does two jobs at once: it holds the workpiece down against the table and pushes it past the cutter at a constant rate, so your hands stay clear of the tool. SCM builds these two around the same idea and separates them by size. Choose the FEED 32 for its smaller three-roller head, which SCM describes as ideally sized for combination machines, or the FEED 48 for a four-roller head on larger rollers and a wider speed range. The sections below cover both configurations, the shared construction, and the full specifications.
Choosing Between Them
| FEED 32 | FEED 48 | |
|---|---|---|
| Rollers | 3 | 4 |
| Roller diameter | 80 mm (3.15 in) | 120 mm (4.72 in) |
| Roller width | 30 mm | 60 mm (2.36 in) |
| Feed speeds | 4: 5 / 6.5 / 8 / 11 m/min | 8: 2 / 4 / 5.5 / 7 / 11 / 13 / 16.5 / 33 m/min |
| Motor | 0.18 kW (1/4 HP), single-phase, 120 V / 60 Hz | 0.75 kW (1 HP), three-phase, 220 V / 60 Hz |
| Support | Stand, included | Mobile support arm, included |
| MPN | — | FEED48_COMP2 |
Shared Construction
Both feeders use the same approach to holding stock down. SCM mounts the wheels on high-stroke springs, whose stated job is to take up variation in the stock so the hold stays steady and each pass repeats the last. The support arm is rigid and adjustable in all directions, so the head can be set to suit the machining. Speed is selected mechanically rather than electronically on both models, and SCM notes the wheels are easy to replace without special tools.
- Rubber rollers at 60 Shore hardness
- High-stroke springs holding the wheels in contact with the stock
- Mechanical speed selector, which SCM describes as simple and reliable
- Adjustable support arm with adjustments in all directions
What Each One Suits

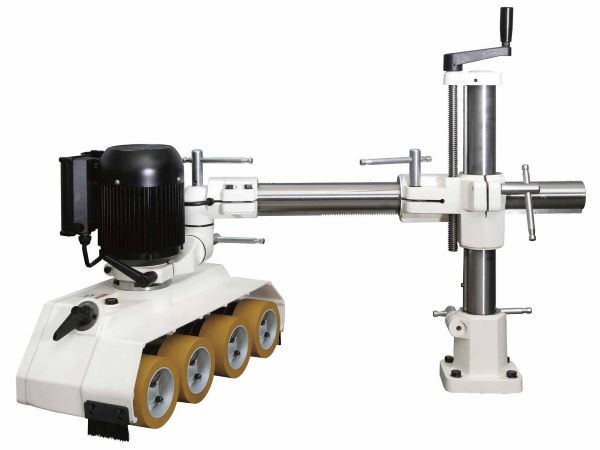

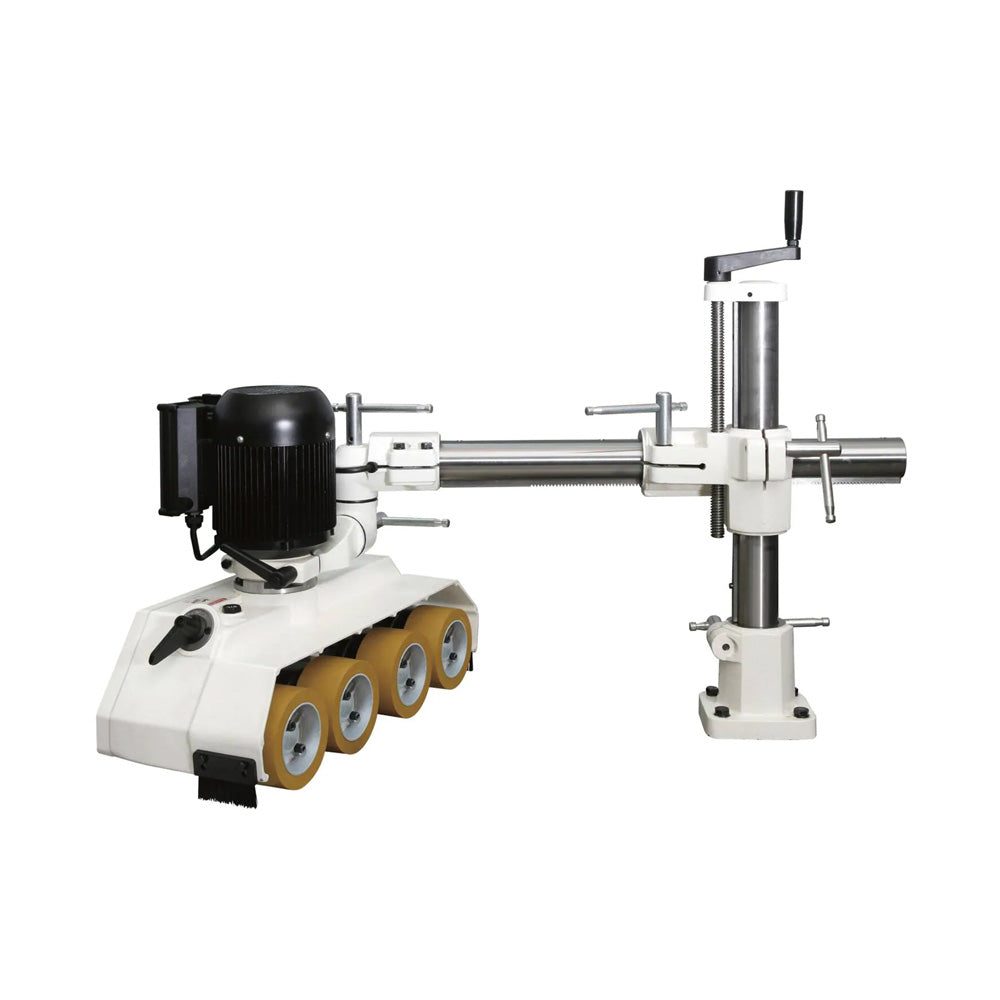

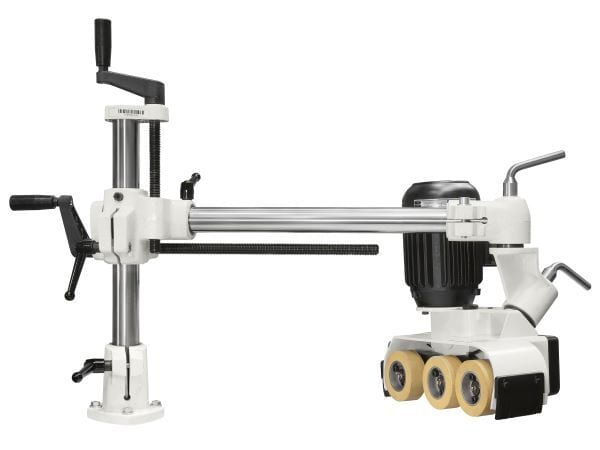

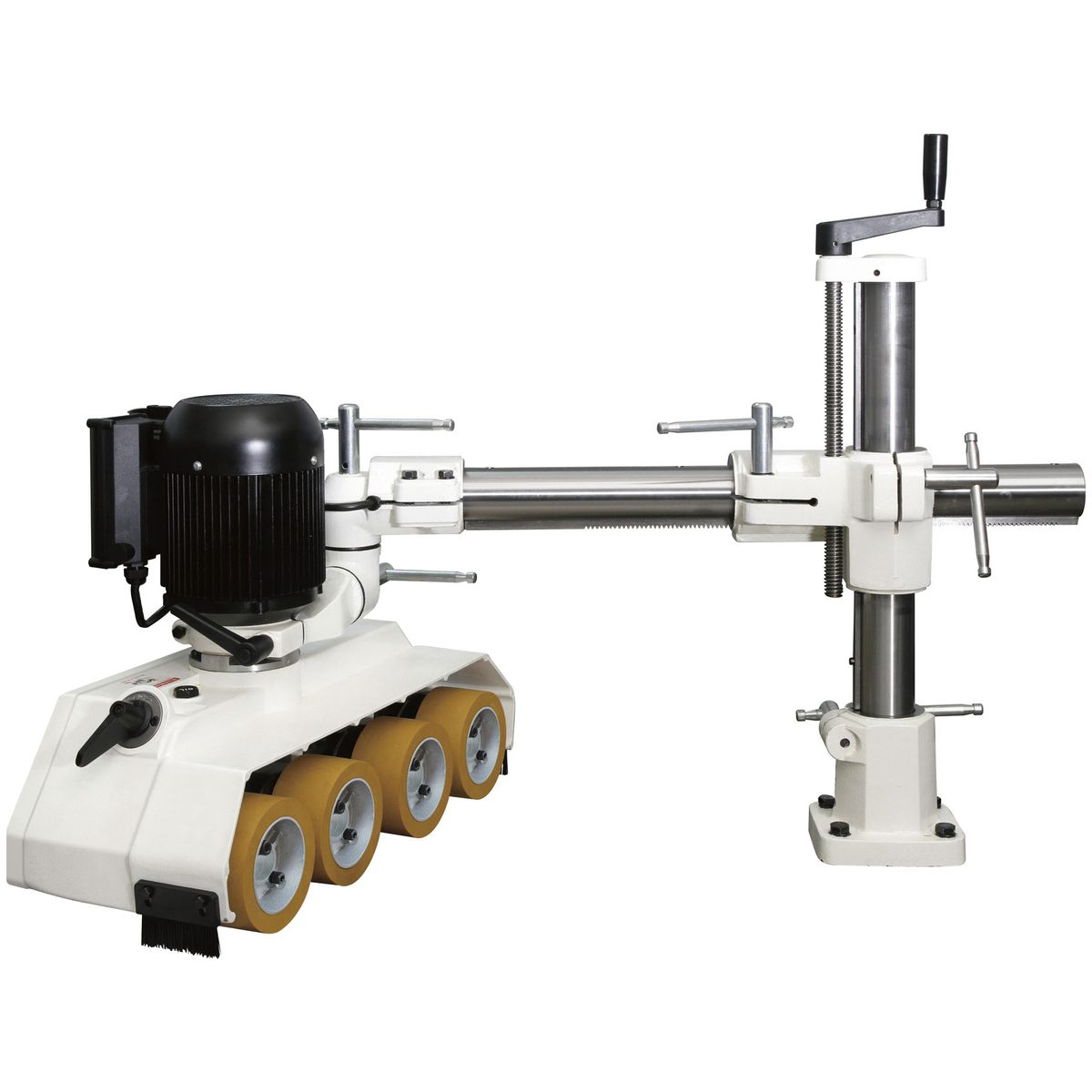

SCM positions the two differently. The FEED 32’s smaller three-roller build targets combination machines. SCM points the four-roller FEED 48 at any shaper in a working shop, and claims the fourth roller brings the work closer to the cutter safely while keeping the feed even and precise. Neither is tied to a particular machine family, so you can specify either alongside a shaper or a combination machine.
Before You Order
Two practical notes. SCM states directly that the FEED ships without a power cable. Please confirm the actual voltage and phase before your order ships rather than assuming either figure — tell us what power you have in the shop, and we will verify the machine matches it.
Specifications
| Type | Power feeder (stock feeder) |
|---|---|
| Roller excursion | 18 mm (0.71 in), both models |
| Roller material | Rubber, 60 Sh hardness |
| Speed selection | Mechanical selector |
| Support arm | Adjustable in all directions |
| FEED 48 packaged weight | 135 lb |
| FEED 48 crate dimensions | 43 × 13 × 23 in |
| Power cable | Not included |
| Product line | SCM formula |
Contact 360 Degree Machinery
360 Degree Machinery is an authorized SCM dealer. Call 630-229-6705 or request a quote online. Tell us which machine the feeder will sit on and what power you have in the shop, and we will confirm the right model and its electrical configuration before anything is ordered. If you need continuously variable feed speed instead of fixed steps, then look at the SCM formula FEED 4i.
