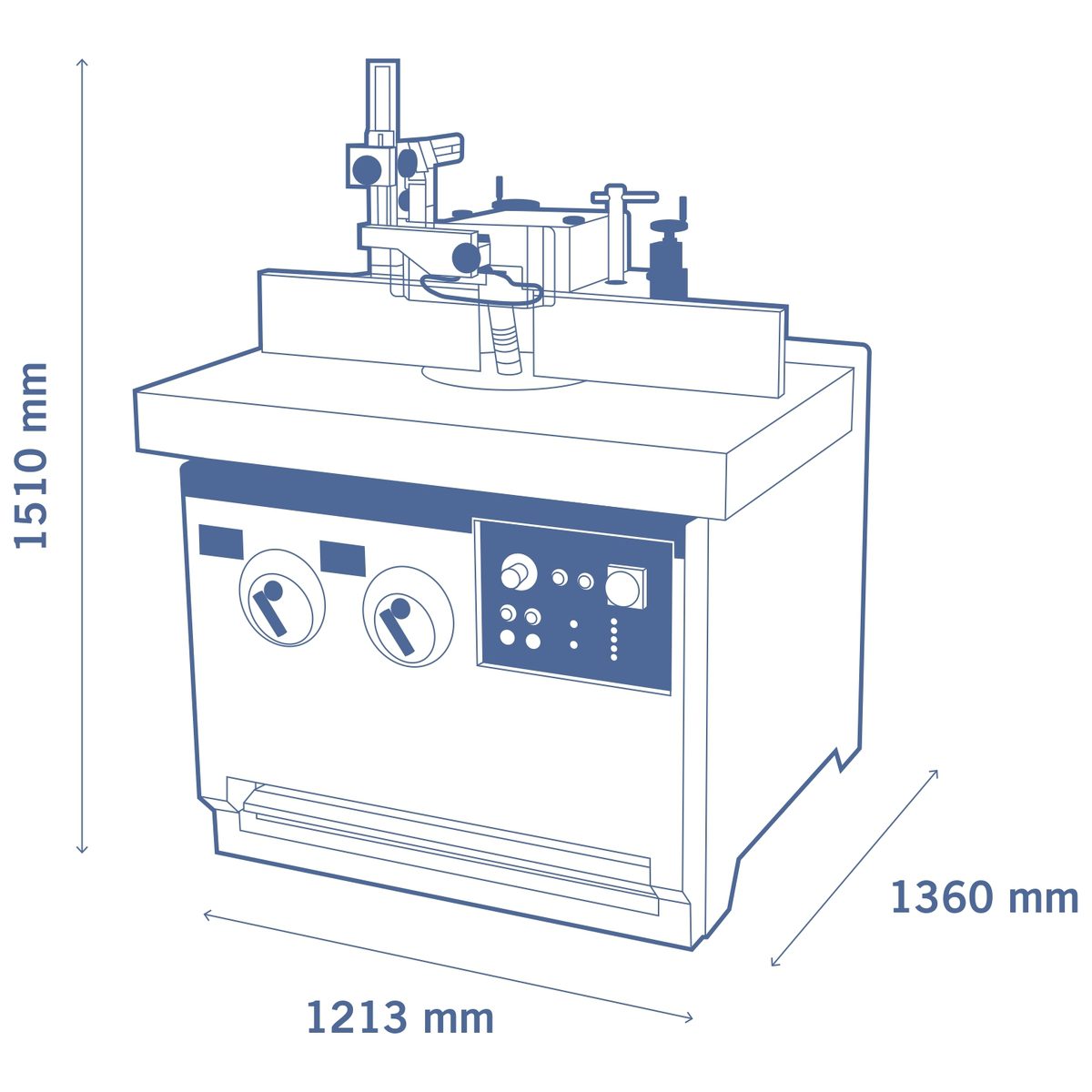

SCM Class TI 120 Tilting Spindle Shaper
SCM Class TI 120 Tilting Spindle Shaper
$17,575.00

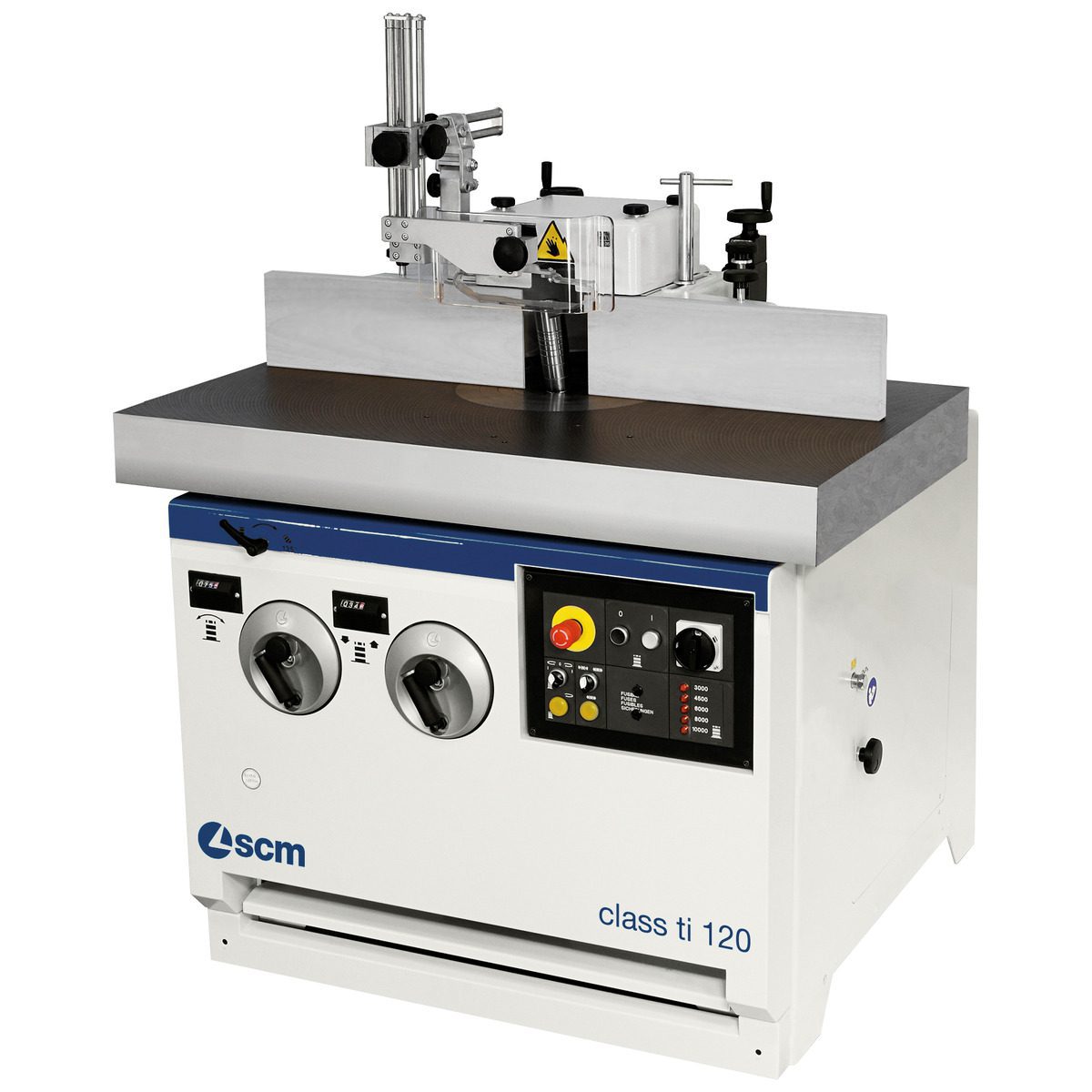

A full 90 degrees of spindle adjustment, 45 degrees either side of vertical. The Class TI 120 carries that on an 11 HP motor, and every movement sets from hand wheels with mechanical decimal readouts on the front of the machine:
- Spindle tilting ±45°
- 1 1/4 in MK4 interchangeable spindle, 180 mm working length
- Five speeds: 3,000 / 4,500 / 6,000 / 7,000 / 10,000 rpm
- Profiling tools to 250 mm (9.8 in) diameter
- 1,200 x 810 mm (47.2 x 31.9 in) worktable
- 11 HP three-phase motor, 1,570 lb machine
*Photos may include optional equipment.
Advertised Price Configuration:
- 3ph, 11HP, Tilting 1 1/4″ MK4 Interchangeable spindle, 5-speeds, aluminum fence w/ mechanical adjustments
Specs & Features

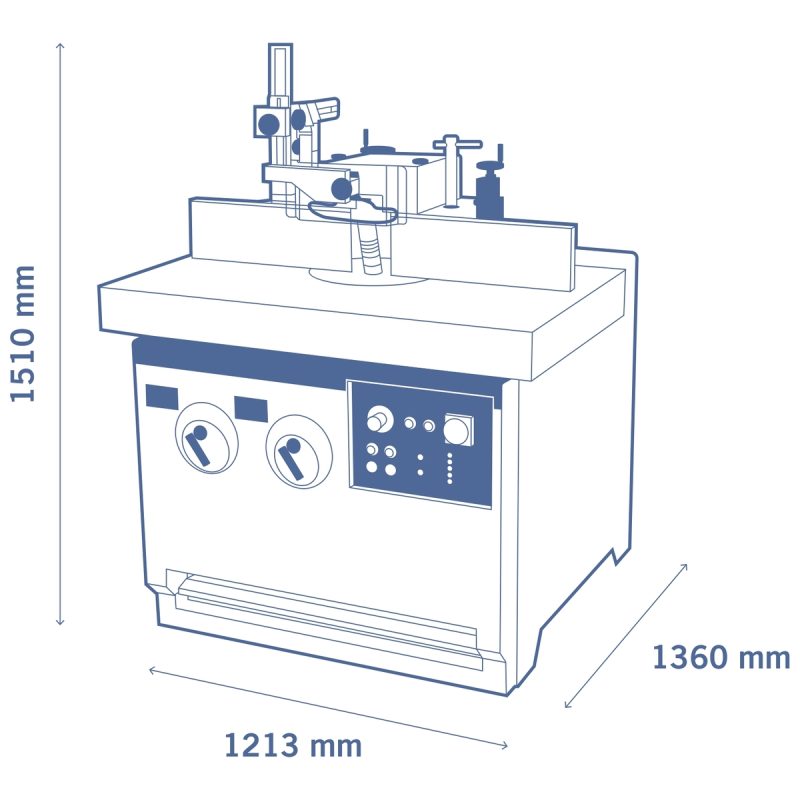

SCM Class TI 120 Spindle Shaper
A tilting spindle lets one tool cut a profile square or cut it leaning over. The Class TI 120 tilts 45 degrees either side of vertical and backs that with an 11 HP motor, five spindle speeds, and a 1,200 x 810 mm worktable. The sections below cover the spindle unit, the fence and its setup readouts, and the full specifications.
Tilting 45 Degrees Each Way
The spindle tilts from -45° to +45°, a full 90 degrees of adjustment. SCM carries it in a cast-iron column, with a cast-iron cup around the spindle that keeps shavings and dust out of the mechanics underneath. Profiling tools up to 250 mm (9.8 in) in diameter run on the spindle, and tooling up to 320 x 60 mm (12.6 x 2.3 in) retracts completely under the worktable.
Setup From the Front of the Machine

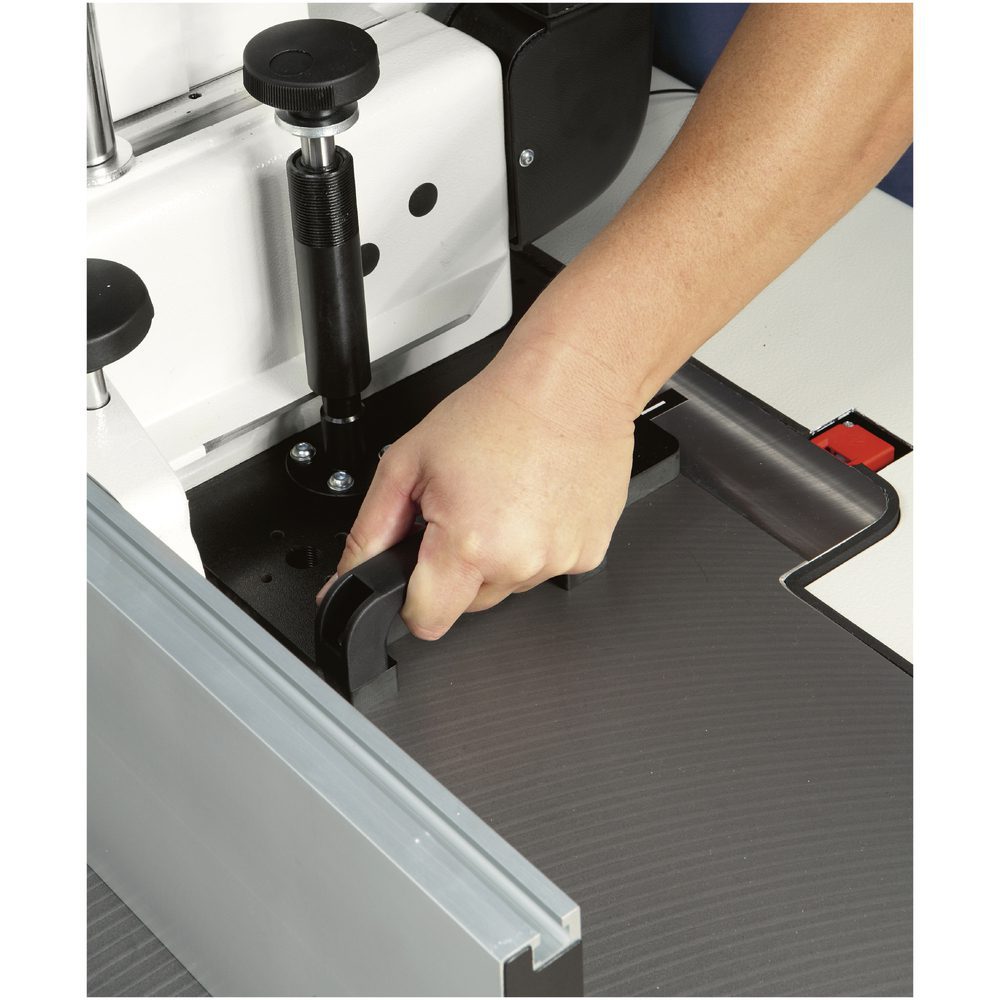

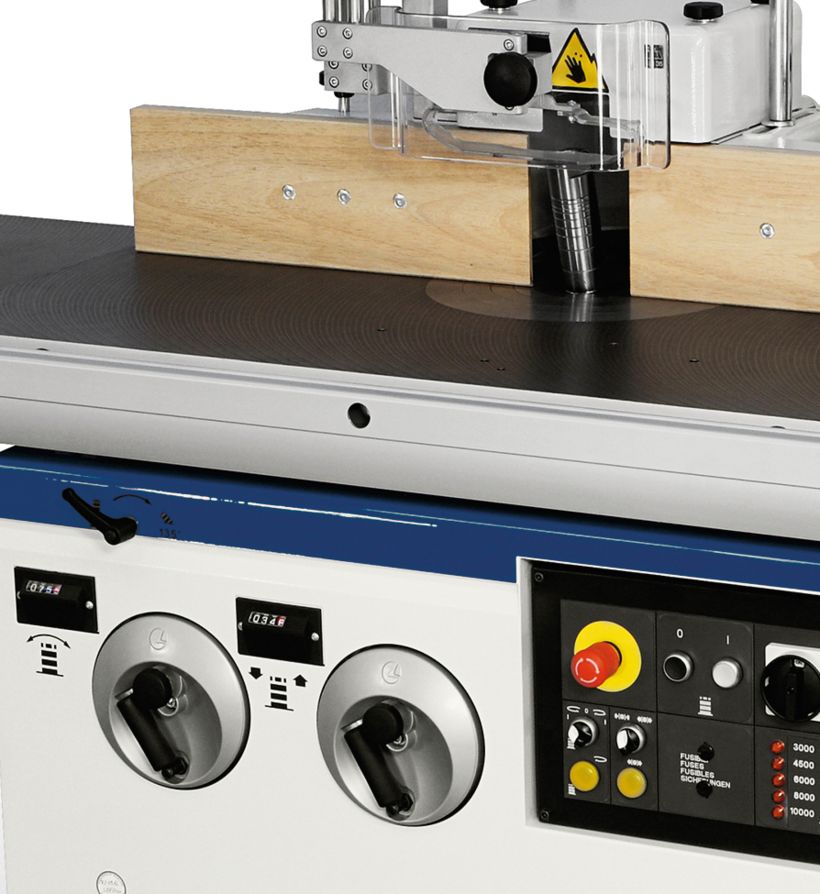

The hand wheels sit on the front face of the machine and carry mechanical decimal readouts, and the two aluminum fence tables adjust mechanically with connecting bars between them. SCM also offers a shaper fence with mechanical programming and digital readouts, which it says positions the two tables to a tenth of a millimeter and removes the need for a test run. That programming fence is an option, though, rather than part of the configuration we quote here.
- Five spindle speeds: 3,000 / 4,500 / 6,000 / 7,000 / 10,000 rpm
- 1 1/4 inch MK4 interchangeable spindle with 180 mm (7 in) of working length
- 53 mm (2 in) spindle base projection above the table, with the interchangeable spindle fitted
Motor, Table and Extraction
- 1,200 x 810 mm (47.2 x 31.9 in) worktable
- 11 HP (8 kW) three-phase motor on 220 V, 60 Hz, drawing 26 A
- 1,570 lb machine weight
- 900 CFM (1,550 m3/h) of extraction, through a 120 mm spindle hood and two 80 mm base outlets
At 1,570 lb, the TI 120 weighs about 500 lb more than the fixed-spindle SCM Nova TF 110, which comes in at 1,074 lb.
Specifications
| Type | Spindle shaper, tilting spindle |
|---|---|
| Spindle tilt | ±45° |
| Spindle diameter | 1 1/4 in, MK4 interchangeable |
| Spindle speeds | 5 speeds: 3,000 / 4,500 / 6,000 / 7,000 / 10,000 rpm |
| Working spindle length | 180 mm (7 in) |
| Spindle base projection above table | 53 mm (2 in), with interchangeable spindle |
| Max profiling tool diameter | 250 mm (9.8 in) |
| Max tool retractable under worktable | 320 × 60 mm (12.6 × 2.3 in) |
| Worktable | 1,200 × 810 mm (47.2 × 31.9 in) |
| Main motor | 11 HP (8 kW), three-phase |
| Electrical | 220 V, 60 Hz, 26 A |
| Fence | Aluminum tables, mechanical adjustment |
| Extraction required | 900 CFM (1,550 m3/h) |
| Exhaust outlets | 120 mm spindle hood; 2 × 80 mm machine base |
| Weight | 1,570 lb |
| Product line | SCM Class |
Contact 360 Degree Machinery
360 Degree Machinery is an authorized SCM dealer. Call 630-229-6705 or request a quote online. Tell us whether your profile work needs a tilting spindle or a fixed-spindle machine like the SCM Nova TF 110, and we will point you to the right one. Installation fees may apply.
