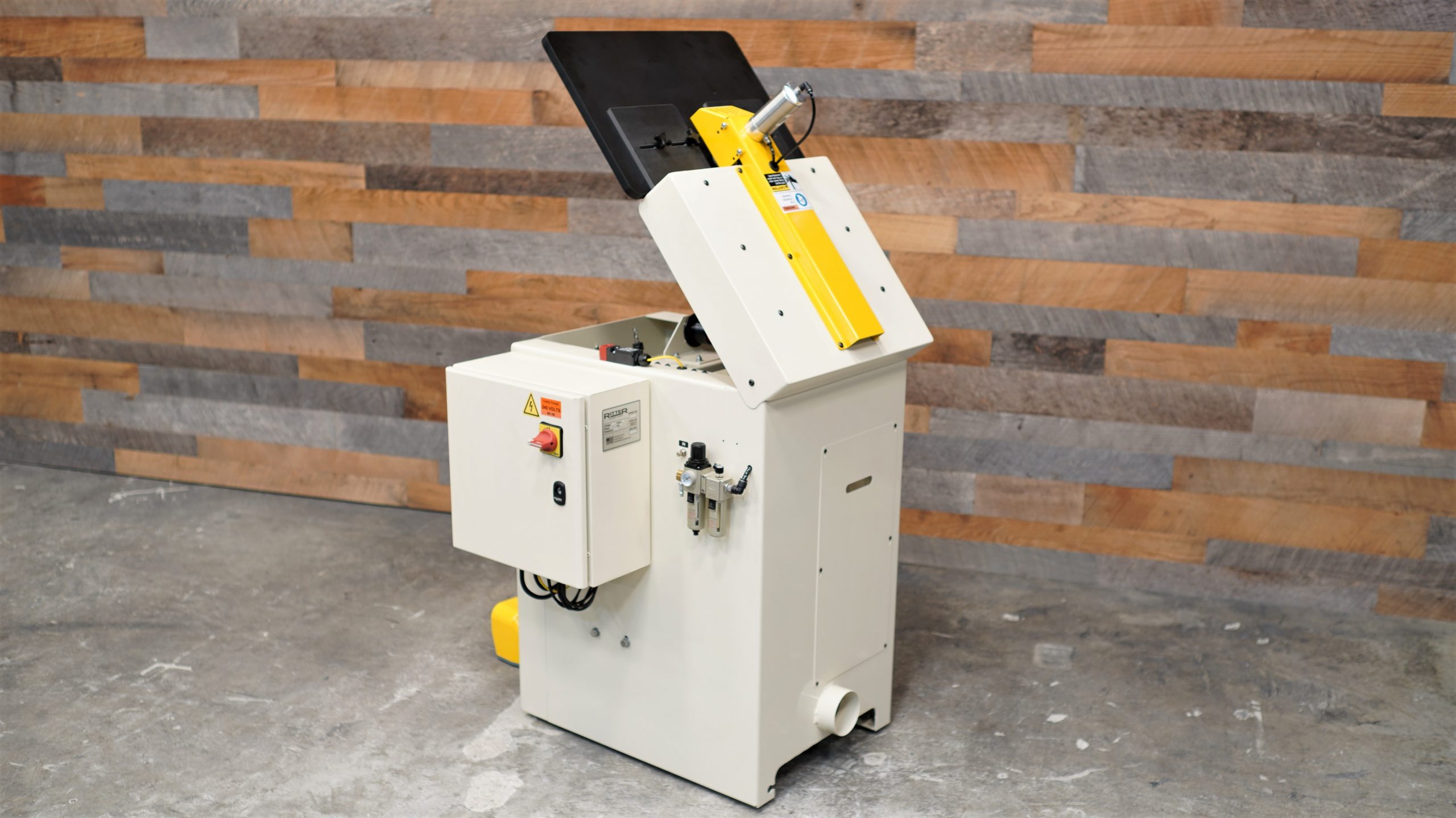

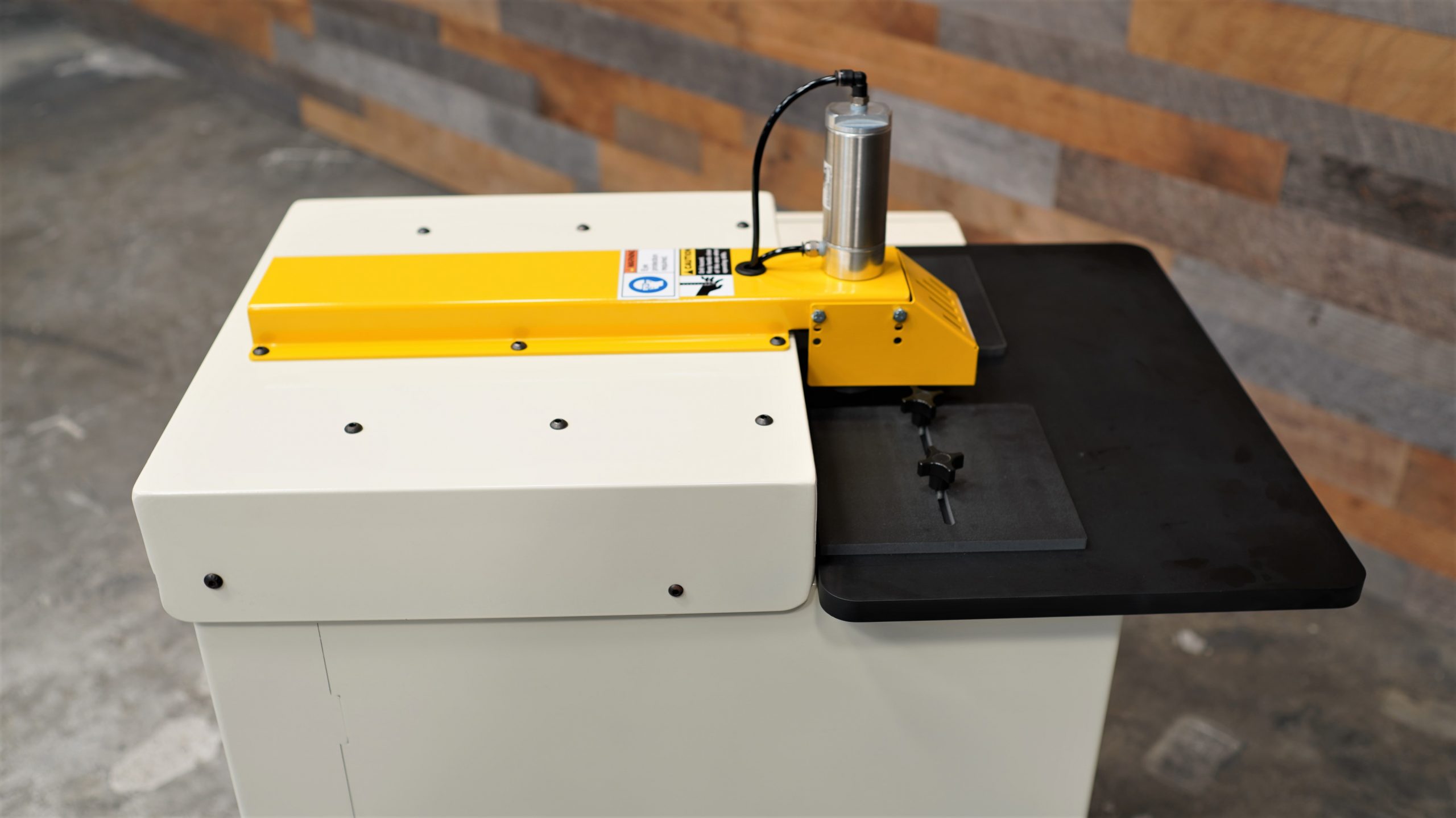

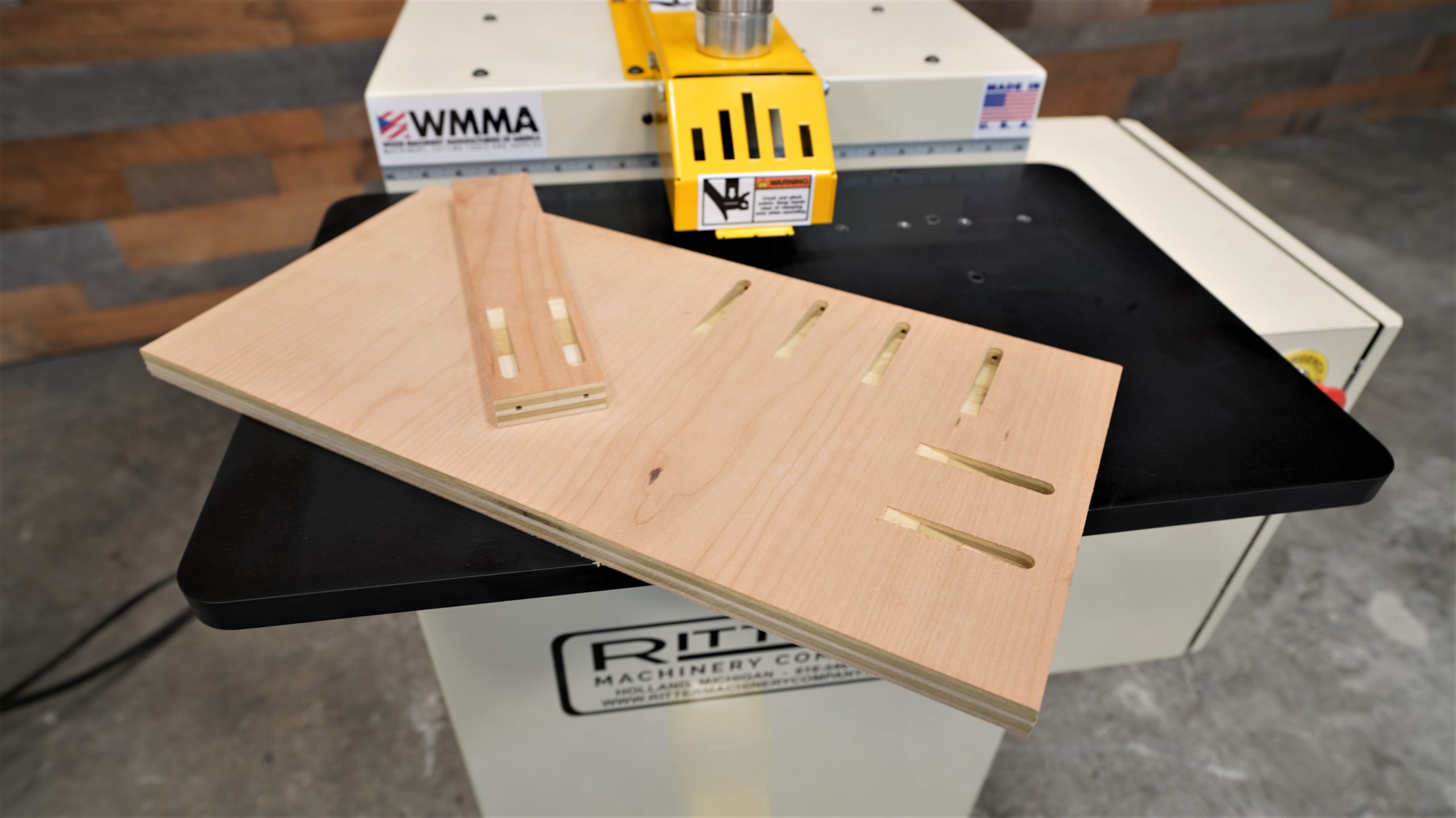

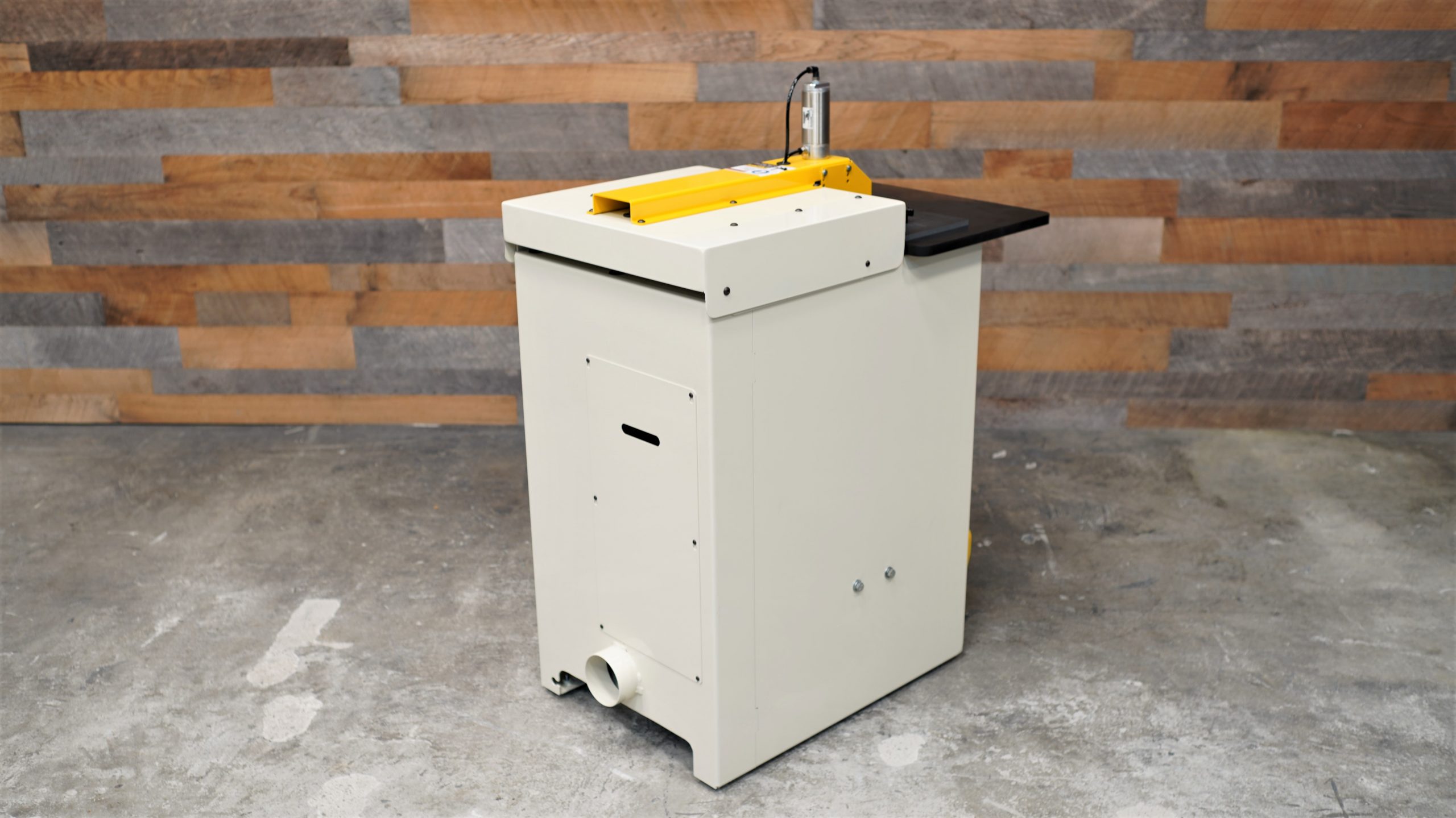

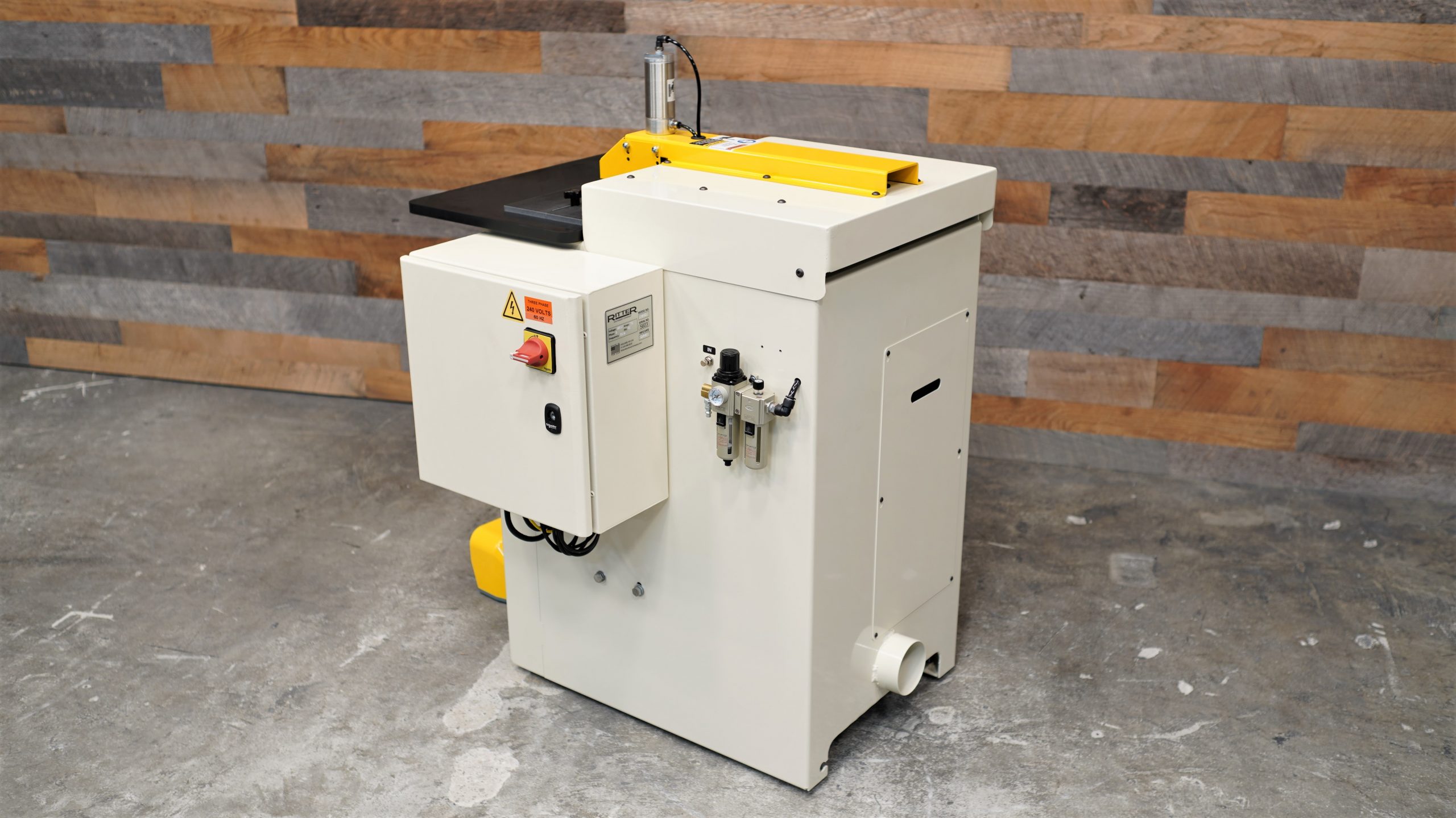

Ritter R2063 6° Low Angle Pocket Screw Machine
Ritter R2063 6° Low Angle Pocket Screw Machine
$8,690.00 – $9,690.00Price range: $8,690.00 through $9,690.00
Request a call back

Ritter R2063 6° Low Angle Pocket Screw Machine

Ritter R2063 6° Low Angle Pocket Screw Machine

Price range: $8,690.00 through $9,690.00

Categories , , , , Tags , Brand

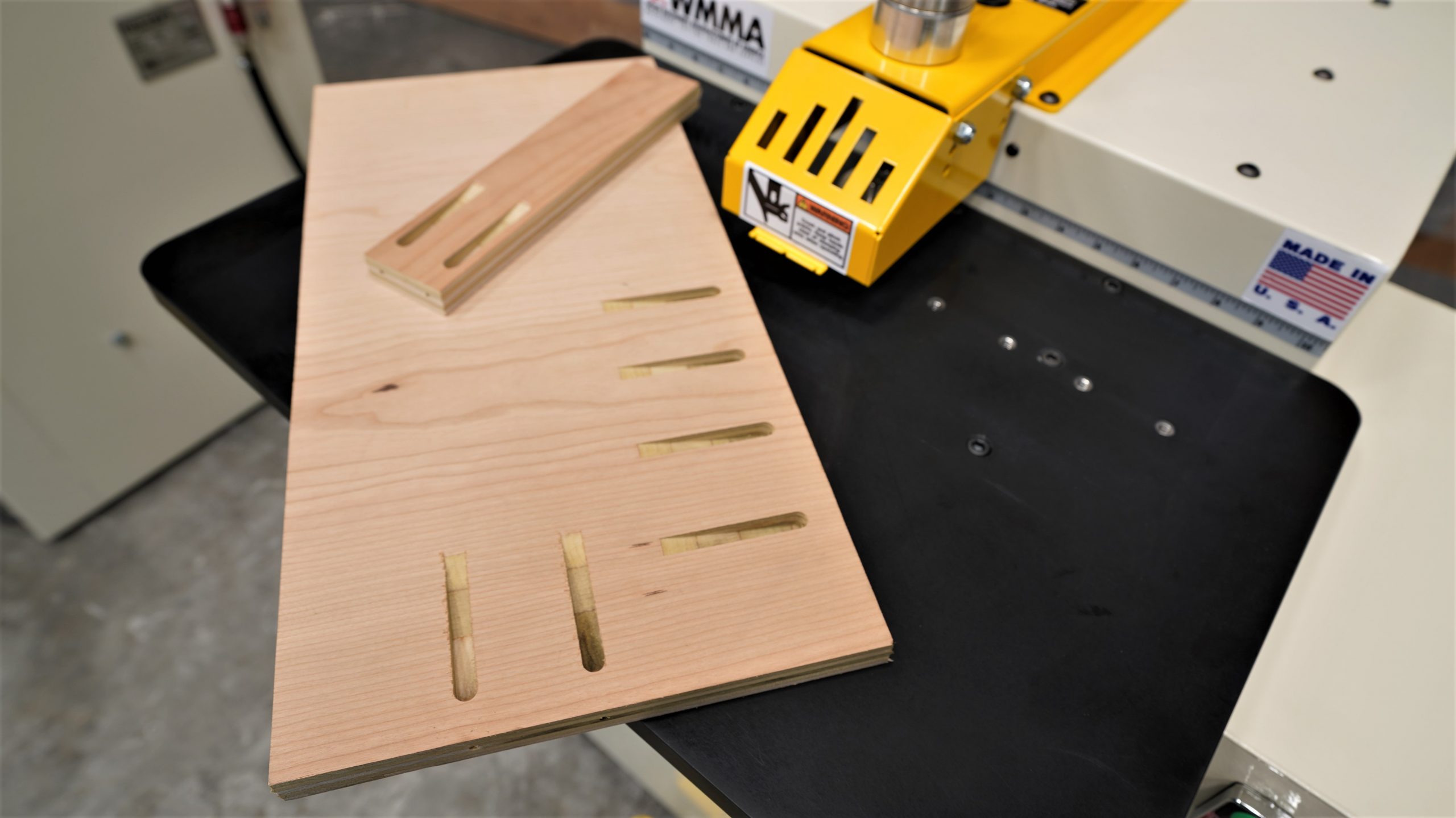

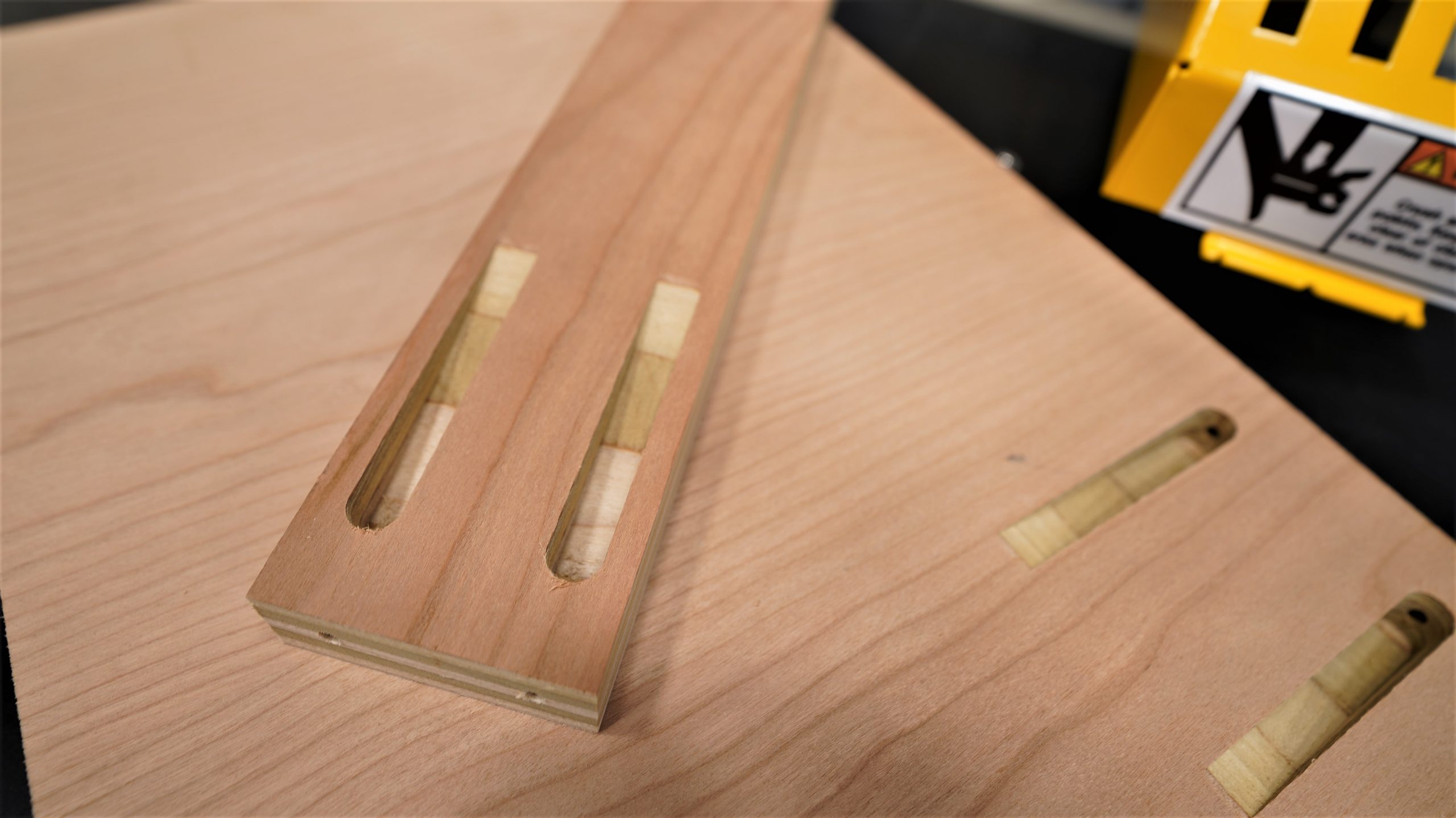

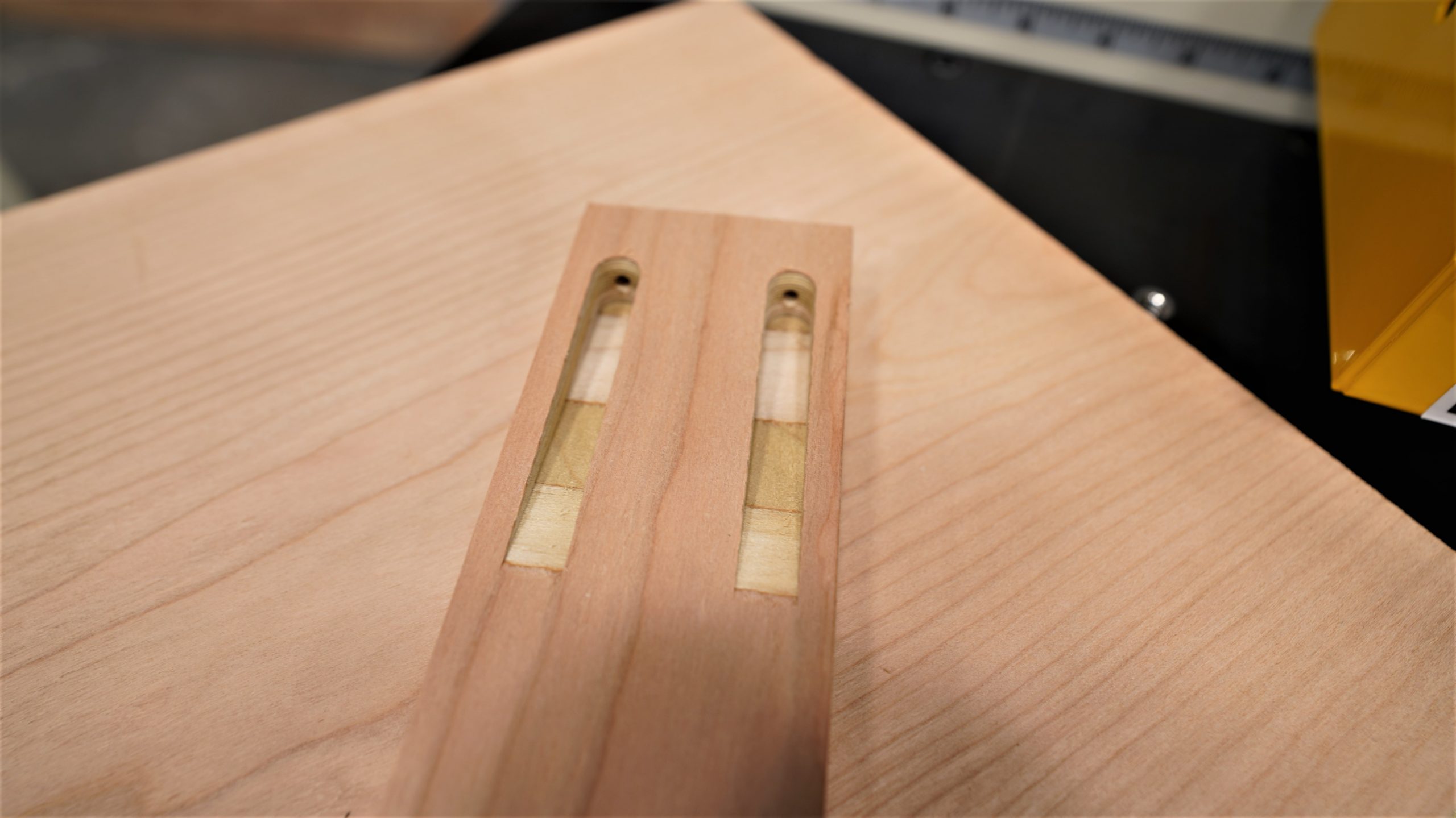

This is the NEWEST Pocket Screw machine from Ritter, released in 2021. In our opinion, it is the best machine out there. Remember, unlike drill tubs, these machines route the low-angle pocket. The low-angle pocket allows for a stronger joint, while routing the pocket means fewer split parts, especially in knotty species of wood. These are also the heaviest-built pocket screw machines on the market. Built right here in the USA.

Add to Quote Request

Standard Features:

  • 6° Low angle
  • PLC controlled cycle
  • Foot pedal operated
  • Adjustable Material Stops
  • Up to 2″ thick material
  • Cycle Time: 1.75 – 2 Sec
  • Tooling Included



Technical Data and Specifications:

  • Router Bit: 3/8” Solid Carbide, Rough Mill
  • Drill Bit: 9/64” Brad and Spur TiN-Coated Bit
  • Router: 24,000 RPM, 8 A, 2 HP
  • Drill: 22,000 RPM, 0.9 HP, 5.5 CFM (Intermittent)
  • Electrical: 230V, 3Ø, 10A
  • Air: 5.5 CFM at 80 – 100 PSI
  • Work height: 36″
  • Footprint: 27.75″ x 20.5″
  • Table Area: 15.75″ x 23.75″
  • Dust Port: 4″



Shipping Weight: 300 LBS
Shipping Dimensions: 38″ x 25″



Additional options for this machine include:

  • 48″ Wide Table
  • R2061 – 1-Phase 120 Volt



The R2061 is used for routing a single pocket hole for cabinet face frame assembly. It is part of the R200 assembly system that includes the R200E/A and is sold separately.

Need 1 Phase 120 Volt? Check Out the R2061
