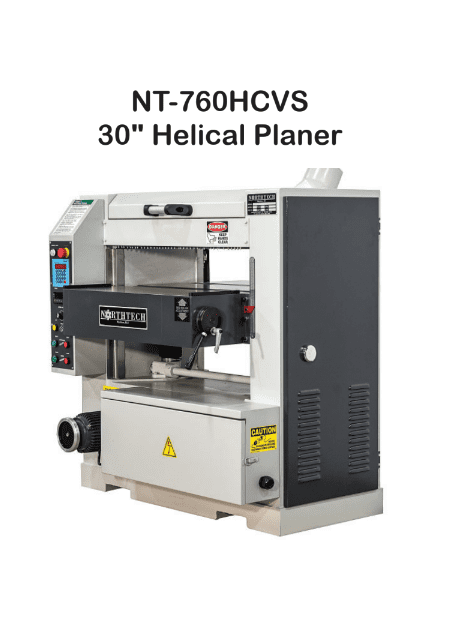

Northtech NT-760HCVS 30″ Single Head Finish Planer (w/ Helical Cutter head Head)

Northtech NT-760HCVS 30″ Single Head Finish Planer (w/ Helical Cutter head Head)

Categories , , , Tag Brand:

This Northtech NT-760HCVS series single-surface planer opens wide to accept material up to 8″ (H) by 30″ (W). A soft-start 25 HP motor drives the 4″ helical cutter head with six (6) rows of two-sided inserts. The cutter head is dynamically balanced to ensure a quieter operation and smoother cuts. Feed rates from 5 to 70 FPM are precisely controlled through a variable frequency drive. Digital displays for both the feed-rate and cutter height allow quick set-up and accurate adjustment.

NT-760HCVS 30″ Single Head Finish Planer
• Cutter head motor: 25HP 3PH 230V/460V Dual Voltage
• 2HP motor with variable feed control
• Table elevation motor: 1HP
• Cutter head: Solid steel (6) Rows of 15x15x2.5 (4) sided carbide insert cutters
• Cutter head diameter: 98mm (4″)
• Table area: 40″ x 30″
• Feed rollers: 75mm (3″), corrugated sectional rollers for varying part thickness
• Range of feed speed: 0-90 FPM
• Maximum depth of cut: 8mm (5/16″)
• Product thickness range: 6mm – 203mm (1/4″ – 8″)
• Maximum width of stock: 760mm (30″)
• (1) 6″ dust ports requiring 980 CFM at points of extraction
• (2) Adjustable bed rollers
• Auxiliary Rear E-Stop for added safety
• DP-525 Automatic table positioning
• Helical cutter head provides high chip removal rate and low noise
• Packaging machine weight: 2,445lbs
• Packing dimensions: (L) 54″ x (W) 48″ x 56(H)
• (1) Tool box
• Warranty is one year parts
• All machines are tested stateside prior to shipment providing trouble free start up.



Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.

***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.

Applies to lower 40 of the contiguous states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage Machines nor JLT Machinery or other machines listed as not free shipping.

Financing & Leasing Options for Your Convenience!

360 Degree Machinery offers financing solutions with competitive rates, flexible terms, and a simple application. Take the hassle out of machinery purchases. Click Here to learn more now!

NT-760HCVS 30″ Single Head Finish Planer
• Cutter head motor: 25HP 3PH 230V/460V Dual Voltage
• 2HP motor with variable feed control
• Table elevation motor: 1HP
• Cutter head: Solid steel (6) Rows of 15x15x2.5 (4) sided carbide insert cutters
• Cutter head diameter: 98mm (4″)
• Table area: 40″ x 30″
• Feed rollers: 75mm (3″), corrugated sectional rollers for varying part thickness
• Range of feed speed: 0-90 FPM
• Maximum depth of cut: 8mm (5/16″)
• Product thickness range: 6mm – 203mm (1/4″ – 8″)
• Maximum width of stock: 760mm (30″)
• (1) 6″ dust ports requiring 980 CFM at points of extraction
• (2) Adjustable bed rollers
• Auxiliary Rear E-Stop for added safety
• DP-525 Automatic table positioning
• Helical cutter head provides high chip removal rate and low noise
• Packaging machine weight: 2,445lbs
• Packing dimensions: (L) 54″ x (W) 48″ x 56(H)
• (1) Tool box
• Warranty is one year parts
• All machines are tested stateside prior to shipment providing trouble free start up.
