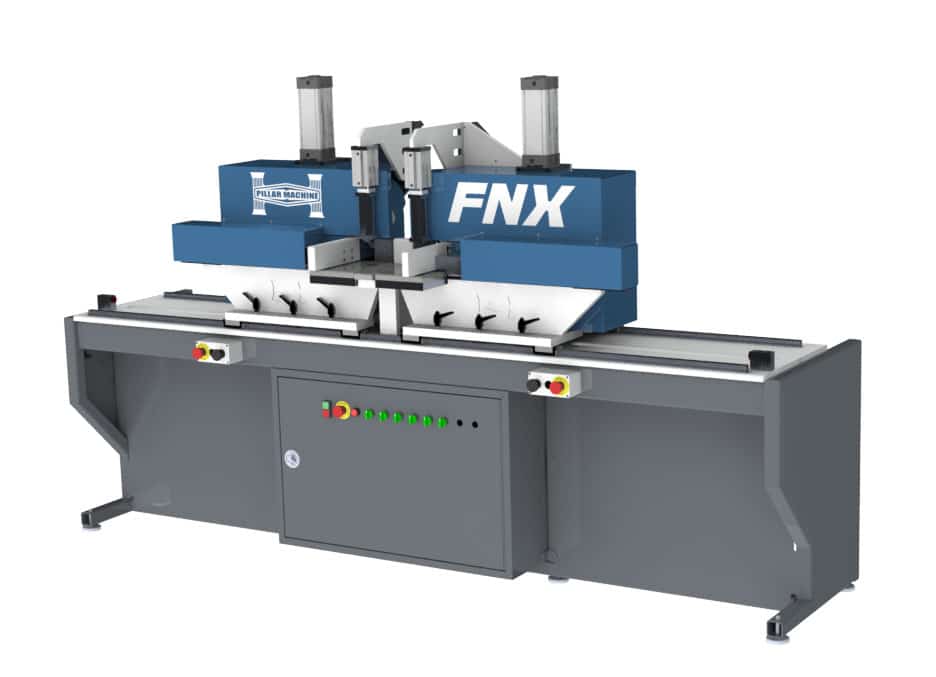

Pillar FNX: Floor Notching Machine for Cabinet Boxes
Maximize your cabinet production with the Pillar FNX, a custom CNC machine designed to notch cabinet floor corners with precision and speed. Engineered for woodworking shops, this machine features two notching stations that cut ¼” x 1” notches on both sides simultaneously, streamlining high-volume production. Its manual width adjustment ensures a perfect fit for each part, while stackable capability handles up to 2.5″ thick material stacks for unmatched efficiency. With a focus on safety and simplicity, the Pillar FNX is the ideal solution for cabinetmakers seeking to enhance output and quality.
Standout Features and Advantages
- Dual Notching Stations: Cuts ¼” x 1” notches on both cabinet floor corners at once, boosting throughput and reducing cycle times.

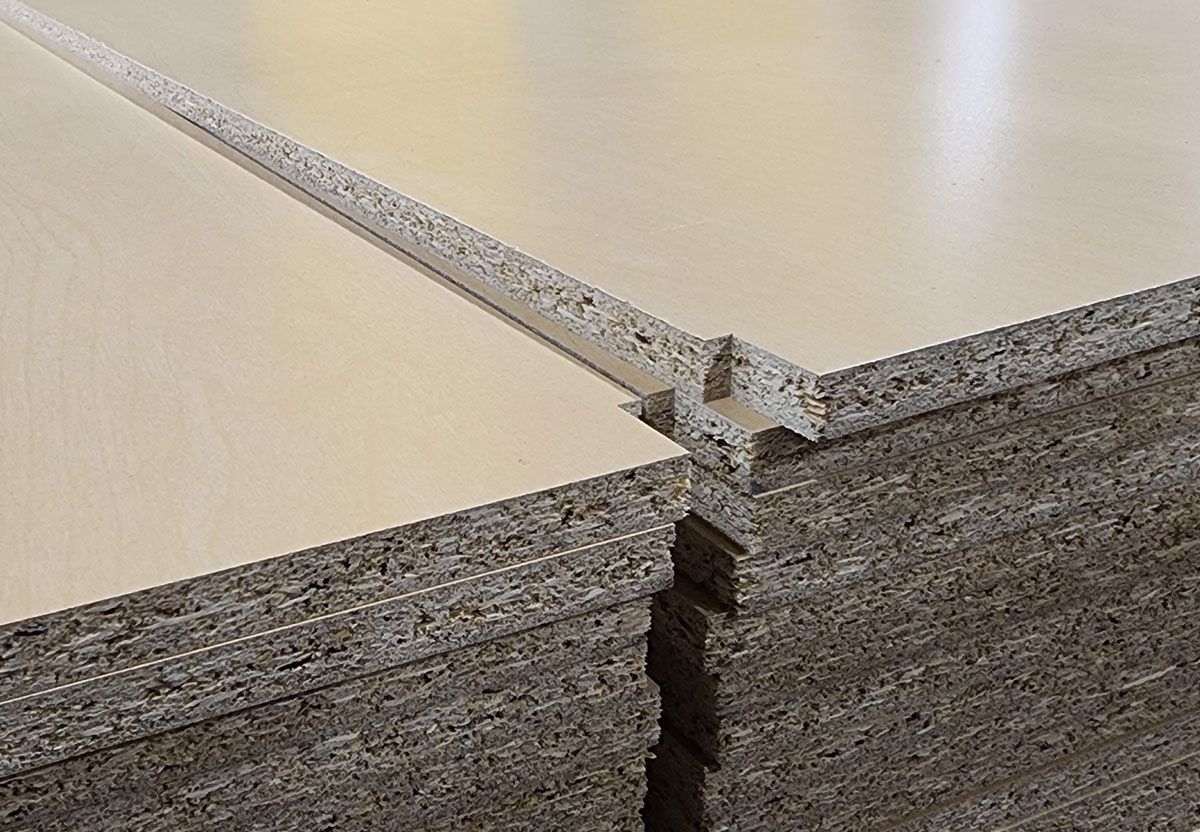

- Stackable Efficiency: Processes stacks up to 2.5″ thick (e.g., five ½” parts), maximizing output without additional labor.

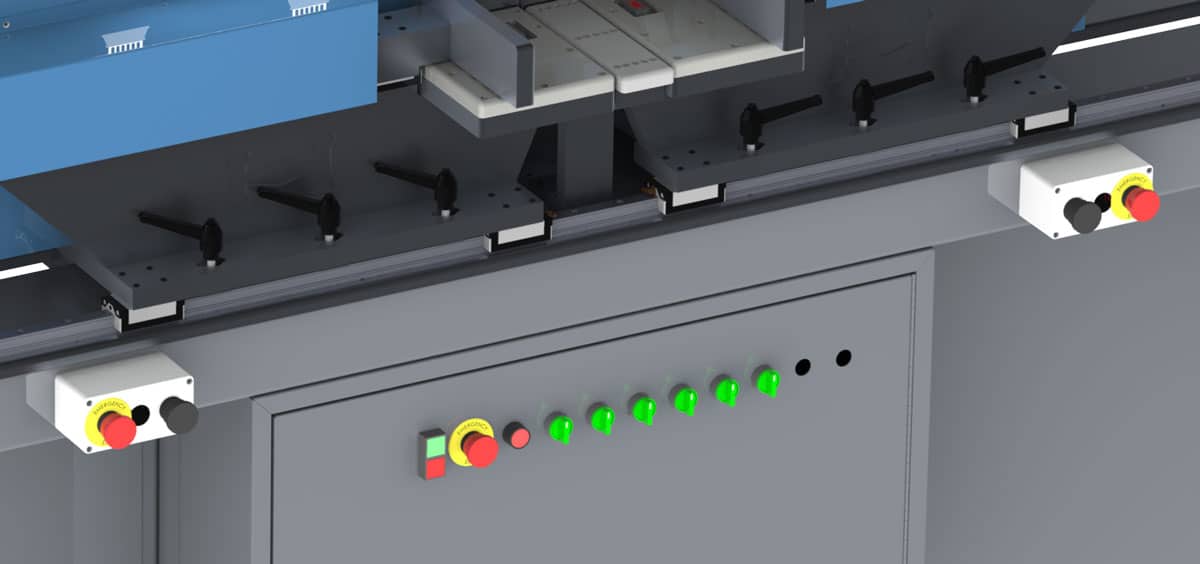

- Safe Operation: Hands-off design with PLC controls and manual start/stop ensures operator safety during high-speed notching.

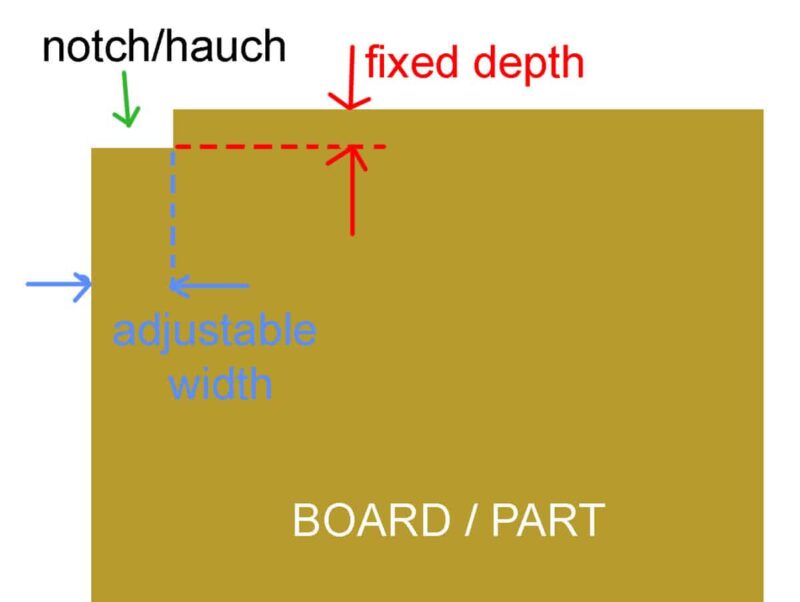

- Flexible Adjustments: Manual width setting locks notching heads to match unnotched parts, accommodating depths from 6” to unlimited.
- Simple PLC Controls: Programmable Logic Controller offers intuitive operation, minimizing training time for all skill levels.
- Rugged Build: Custom-engineered with a welded frame for durability in demanding shop environments.
Technical Breakdown
| Feature | Specification |
|---|---|
| Machine Type | Custom CNC floor notching machine |
| Notching Stations | 2 (simultaneous corner notching) |
| Notch Size | ¼” x 1” per side |
| Material Depth | Min: 6”; Max: Unlimited |
| Material Width | Min: 13”; Max: 60” |
| Material Thickness | Min: ½”; Max: 2.5” (stackable) |
| Controls | PLC with manual start/stop and pressure controls |
| Electrical | 3-phase, 208-230V, 60 cycles, 20 amps |
| Compressed Air | 90 PSI at 10 CFM |
| Dust Collection | 2 x 4″ ports, 696 CFM total |
About Pillar Machine
Pillar Machine is based in Salt Lake City, Utah and builds all of its equipment in the USA. Machines come with a one-year warranty and free online training direct from the factory.
