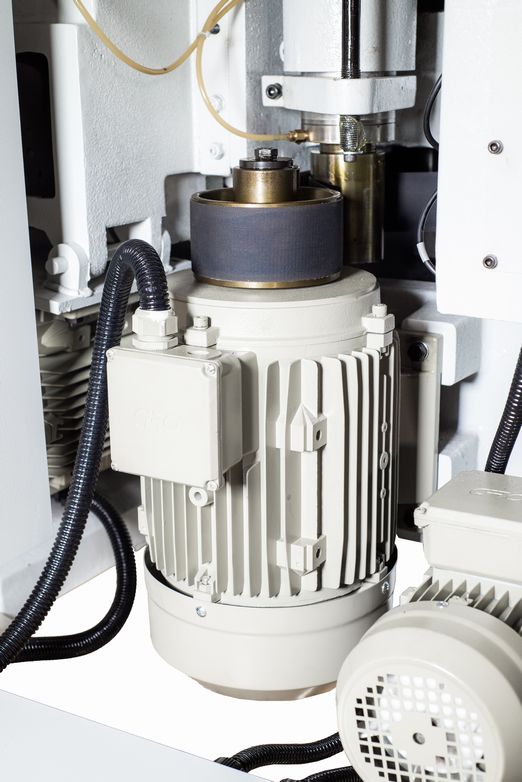

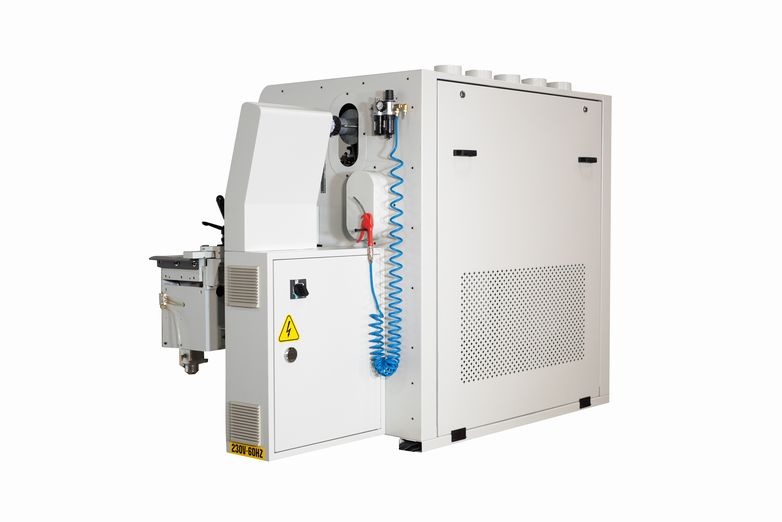

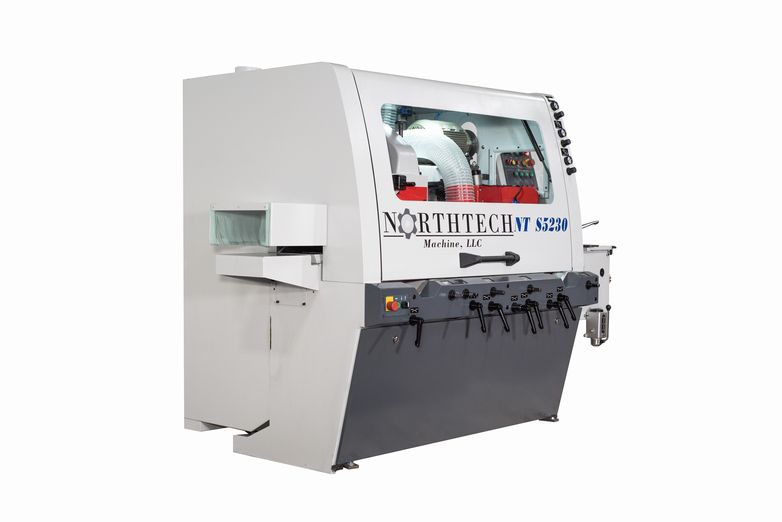

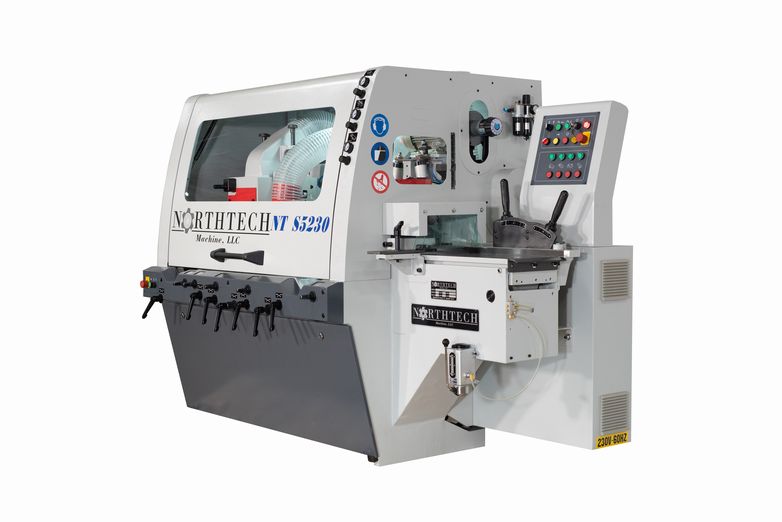

Spindle Arrangement
- 1st – Bottom horizontal: 7.5 HP
- 2nd & 3rd Left/Right vertical: 15 HP
- 4th – Top horizontal: 7.5 HP
- 5th – Bottom horizontal: 7.5 HP
- Spindle speed: 6000 RPM
- Spindle diameter: 1-13/16″
Feed System
- Feeding motor: 3HP
- Elevation motor: 1/3HP
- Feeding speed: 20-75 FPM
Product Dimensions
- Width: 10mm – 230mm (3/8″ – 9″)
- Thickness: 7mm – 125mm (1/4″ – 5″)
Features:
- Infeed table length: 51″
- Hard chrome plated table
- Incorporated bed roller
- (3) 4 Wing 5″ x 9″, corrugated knife stock moulder heads for 1-13/16″ (Included)
- (2) 4 Wing 5″ x 4″, corrugated knife stock moulder heads for 1-13/16″ (Included)
- Net Weight: 5,550 lbs.
- Gross Weight: 5,850 lbs.
- Machine Dimensions: (L) 102″ x (W) 53″ x (H) 68″
- Packing Dimensions: (L) 92″ x (W) 56″ x (H) 78″
- Warranty is one-year parts
- All machines tested stateside at Northtech prior to shipment providing trouble-free start-up.
Specifications:
- Machine Hp. = 41 Hp.
- Voltage/ Freq. = 230460 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 100/50 Amps
- Spindle Arrang. = Bottom R L Top Bottom
- 1st Spindle = 7.5 HP, 6,000RPM, 1-13/16″
- 2nd Spindle = 15 HP (Shared) 6,000RPM, 1-13/16″
- 3rd Spindle = 15 HP (Shared) 6,000RPM, 1-13/16″
- 4th Spindle = 7.5 HP, 6,000RPM, 1-13/16″
- 5th Spindle = 7.5 HP, 6,000RPM, 1-13/16″
- Spindle Diam. = 1-13/16”
- Spindle RPM = 6000 Rpm
- Under Nut Cap. = 10-1/4” Horizontal 6” Vertic
- Feed Hp. = 3 Hp.
- Feed System = Knurled / Urethane Rollers

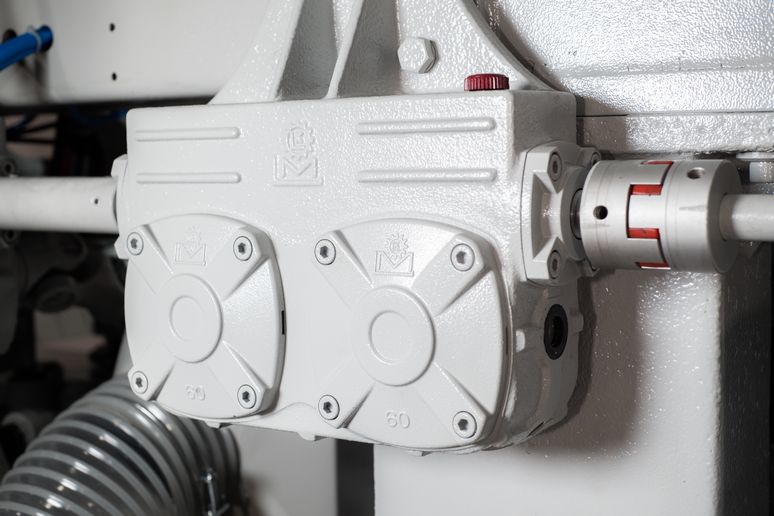

- Drive System = Cardan Shaft Drive System
- Feed Speed = 20- 80 Fpm
- Variable Speed = Variable Speed Pulley
- Reverse Feed = Reversible Feed
- Elevation Hp. = 1/2 Hp.

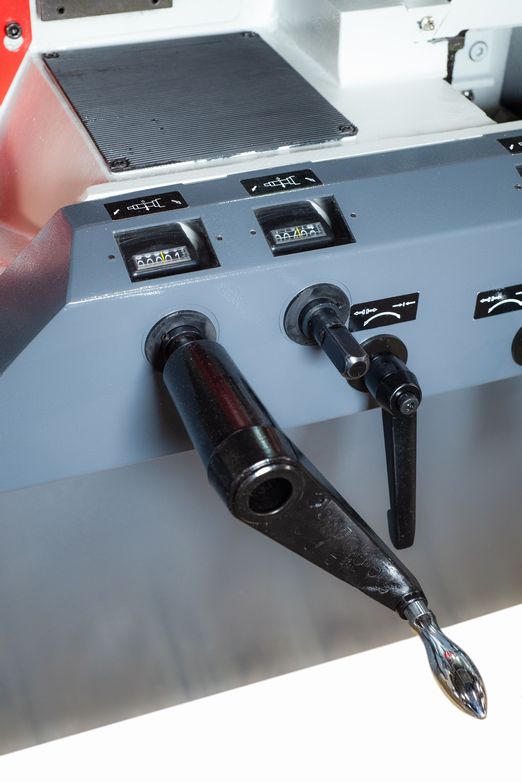

- Elevation Style = Up/Down Switch
- Elevation Sys. = Jack Screw / Gib System
- Total Hp. = 41 Hp.

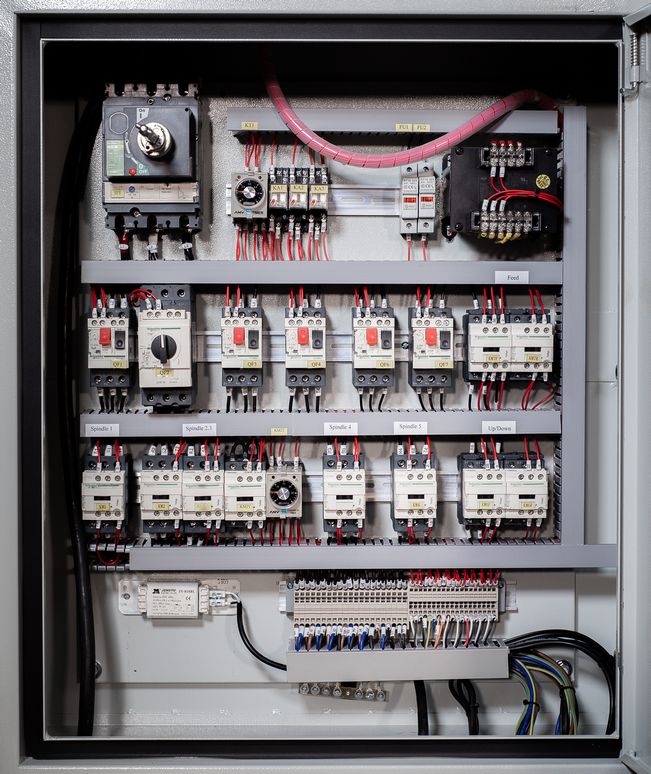

- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 110 Volt
- Assisted Start = Wye-Delta 15 Hp Heads
- Pass-Line = 34-3/4”
- Min. Length = 22”
- Min. Width = 3/8”
- Max. Width = 9”
- Min. Thickness = 1/4”
- Max. Thickness = 5”
- Dust Collection = (5) 5” @ 3405 CFM Total

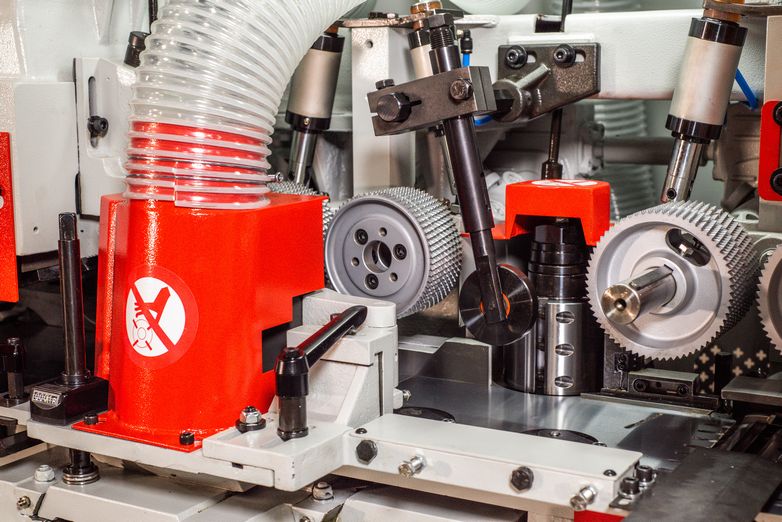

- Powered Rollers = (5) Top, (1) Bottom
- Idle Rollers = (1) Idle Roller
- Hold Down Style = Pressure Shoes/Rubber Rollers
- Recommended CFM = 3/8” Supply Line @ 90 Psi
- Emergency Stop = (2) Push Button

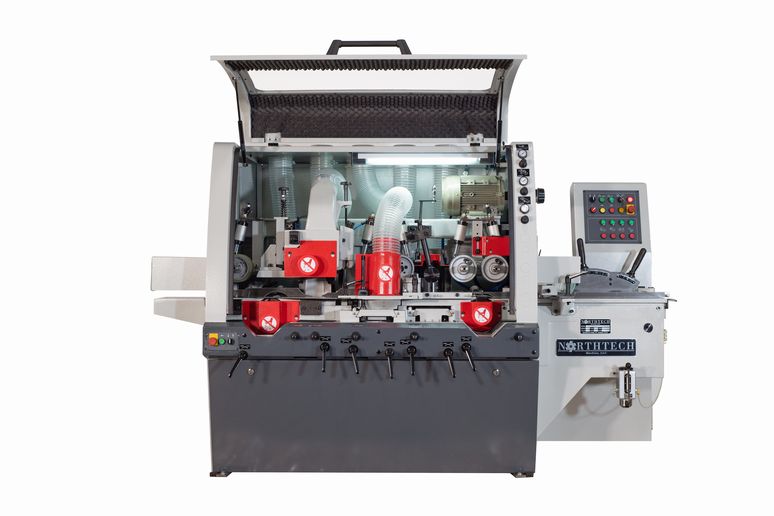

- Guarding = Full Enclosure
- Grease Manifold = Remote Grease Manifold
- Oiler = Manual Oiler

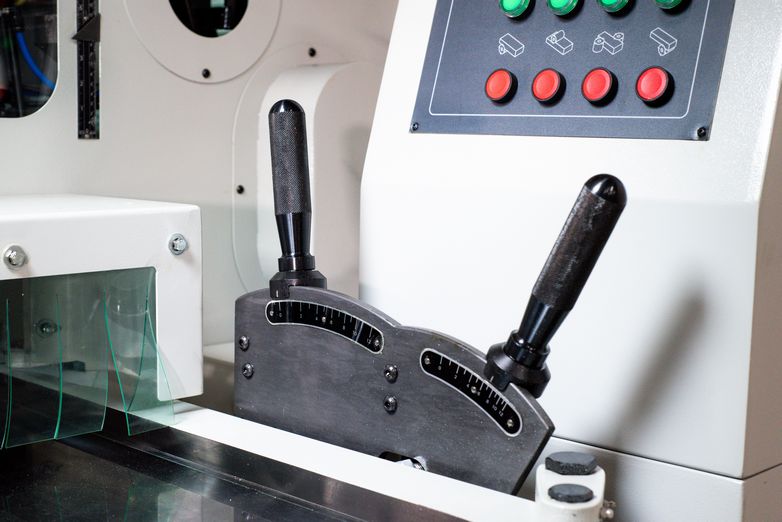

- Fence Type = Adjustable
- Fence Dims. = 1” x 40-1/2”
- Frame Const. = Cast/Steel Construction
- Table Const. = Cast Iron
- Outfeed Table = 11-1/4” x 11-1/4”
- Chrome Bed = .004” Chrome Plated Bed
- Noise Bed Fing. = 1st Head
- Decible Rating = 83 dB
- Net Weight = 5550 Lbs.
- Gross Weight = 5850 Lbs.
- Machine Dims. = 105” x 53” x 68”
- Packaging Dims = 92” x 56” x 76”
