Spindle Arrangement
- 1st: Bottom horizontal: 10HP, 6,000RPM, 1-13/16″ spindle
- 2nd: Right vertical: 10HP, 6,000RPM, 1-13/16″ spindle
- 3rd: Left vertical: 10HP, 6,000RPM, 1-13/16″ spindle
- 4th: Top horizontal: 15HP, 6,000RPM, 1-13/16″ spindle
- 5th: Top horizontal: 15HP, 6,000RPM, 1-13/16″ spindle
- 6th: Bottom horizontal: 15HP, 6,000RPM, 1-13/16″ spindle
Feed System
- Feeding motor: 7-1/2 HP with inverter
- Elevation motor: 1/2 HP
- Feeding speed: 20 – 115 FPM
Product Dimensions Using Full Tool Range
- Width: 10mm – 230mm (3/8″ – 9″)
- Thickness: 7mm – 160mm (3/8″ – 7″)
- Minimum length: 300mm (12″)
Features:

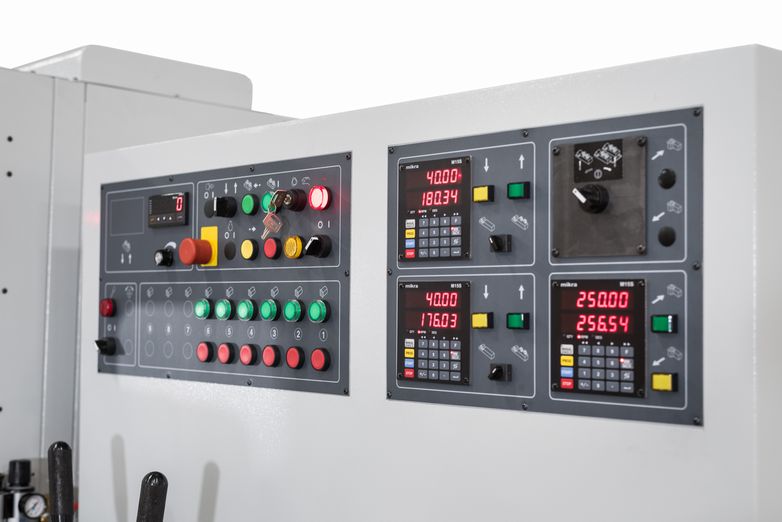

- (3) Spindle positioning through individual digital controllers
- Infeed table length: 1300mm (51″)
- Table is hard chrome plated
- (3) Powered bed rollers

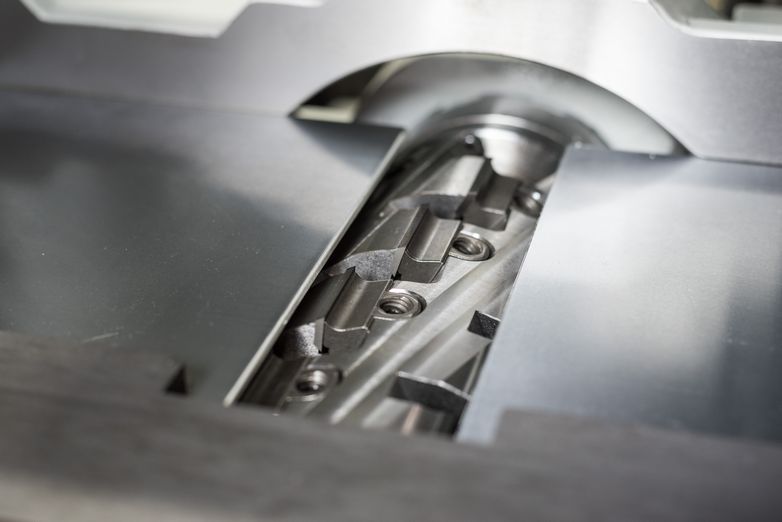

- (1 set) Moulder heads (Included)
- Horizontal: (4) 5″ x 9″; 4 wing, 1-13/16″ heads
- Vertical: (2) 5″ x 4″; 4 wing, 1-13/16″ heads
- Dust collection: (6) 125mm (5″) dust ports requiring 681 CFM @ each point of extraction
- Net weight: 9,039 lbs.
- Gross weight: 10,362 lbs.
- Machine dimensions: (L) 158″ x (W) 79″ x (H) 74″
- Packing dimensions: (L) 163″ x (W) 85″ x (H) 85″
- (1) Toolbox
- Warranty is one-year parts
- All machines are tested at the factory before shipment to ensure trouble-free start-up.
Specifications:
- Machine Hp. = 88 Hp.
- Voltage/ Freq. = 230/460 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 250/125 Amps
- Spindle Arrangement = Bottom Right Left Top Top Bottom
- 1st Spindle = 10HP, 6,000 RPM, 1-13/16″
- 2nd Spindle = 10HP, 6,000 RPM, 1-13/16″
- 3rd Spindle = 10HP, 6,000 RPM, 1-13/16″
- 4th Spindle = 15HP, 6,000 RPM, 1-13/16”
- 5th Spindle = 15HP, 6,000 RPM, 1-13/16”
- 6th Spindle = 15HP, 6,000 RPM, 1-13/16” spindle
- Spindle Diam. = 1-13/16”
- Spindle RPM = 6000 Rpm
- Under Nut Cap. = 9-1/2” Horizontal 6” Vertica
- Feed Hp. = 7.5 Hp.
- Feed System = Knurled / Urethane Rollers
- Drive System = Cardan Shaft Drive System
- Feed Speed = 20 – 115 FPM
- Variable Speed = Inverter Controlled
- Reverse Feed = Reversible Feed
- Elevation Hp. = 1/2 Hp.
- Elevation Style = Up/Down Switch
- Elevation Sys. = Jack Screw / Gib System
- Total Hp. = 83 Hp.
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 110 Volt
- Assisted Start = Wye-Delta 15 Hp Heads
- Programmable = Spindle 3, 4, 5
- Pass-Line = 35-1/2”
- Min. Length = 12”
- Min. Width = 3/8”
- Max. Width = 9”
- Min. Thickness = 3/8”
- Max. Thickness = 7”
- Dust Collection = (6) 5” @ 5886 CFM
- Digital Display = Spindles 3, 4, 5
- Powered Rollers = 9 Top 3 Bottom Powered Rollers
- Hold Down Style = Pressure Shoes/Rubber Rollers
- Recommended CFM = 3/8” Supply Line @ 90 Psi
- Emergency Stop = (2) Push Button
- Guarding = Full Enclosure
- Grease Manifold = Remote Grease Manifold
- Oiler = Auto Oiler
- Low Oil Warning = Low Oil Shut-off
- Fence Type = Adjustable Fence
- Fence Dims. = 1” x 55-1/2”
- Frame Const. = Cast/Steel Construction
- Noise Bed Fing. = 1st Head
- Decible Rating = 69 dB
- Net Weight = 9039 Lbs.
- Gross Weight = 10362 Lbs.
- Machine Dims. = 158” x 79” x 74”
- Packaging Dims = 163” x 85” x 85”
