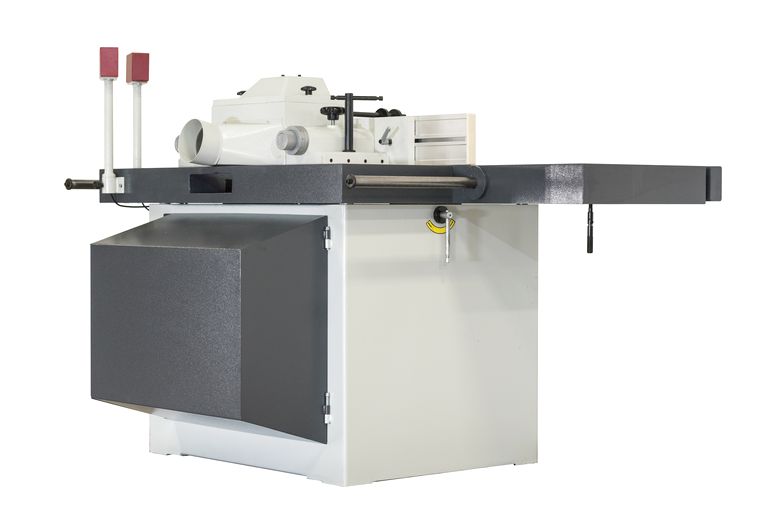

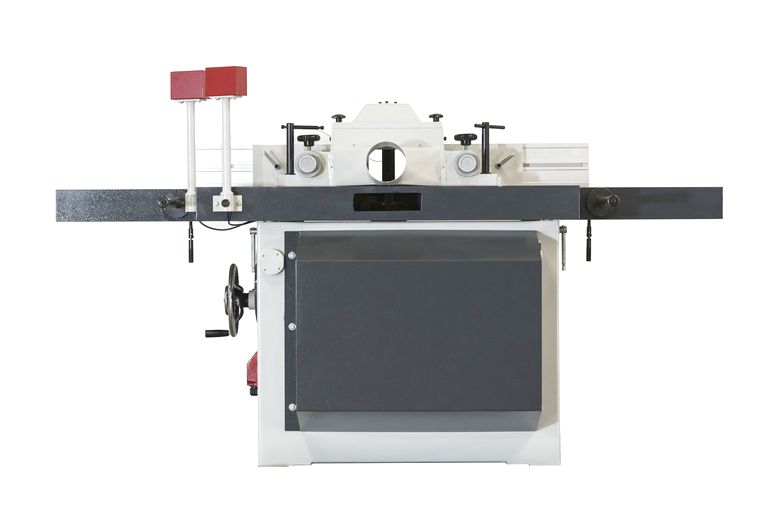

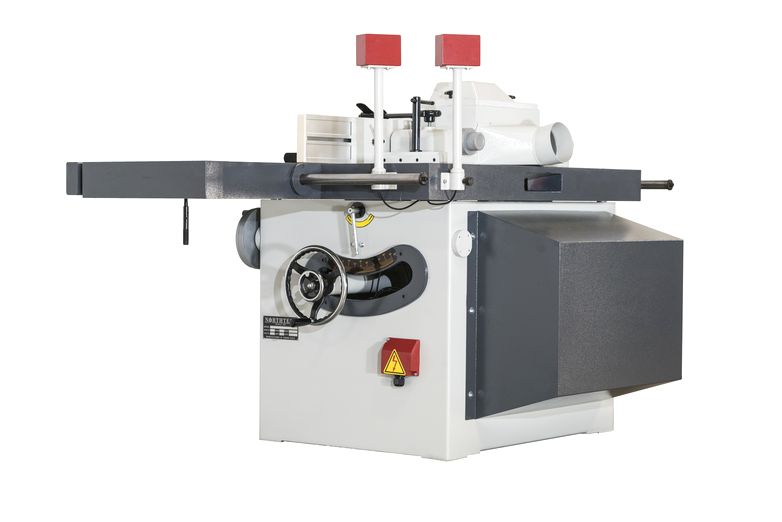

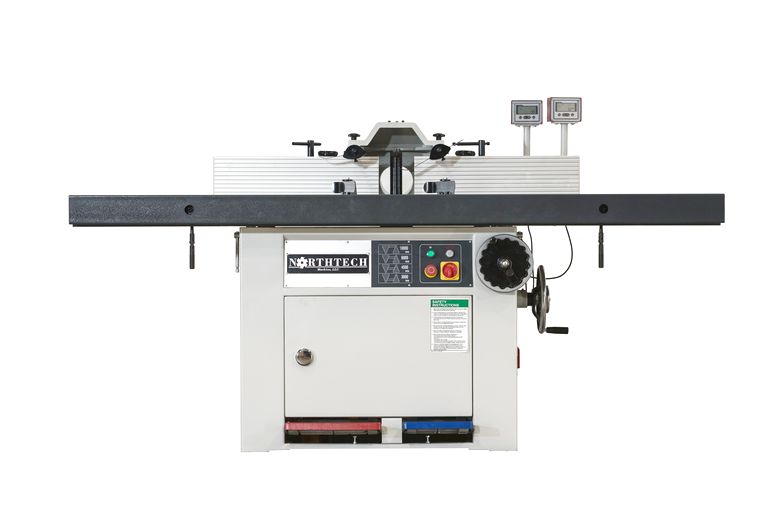

Northtech NT 735LT 10 HP Spindle Shaper

Northtech NT 735LT 10 HP Spindle Shaper

Categories , , , Tag Brand:

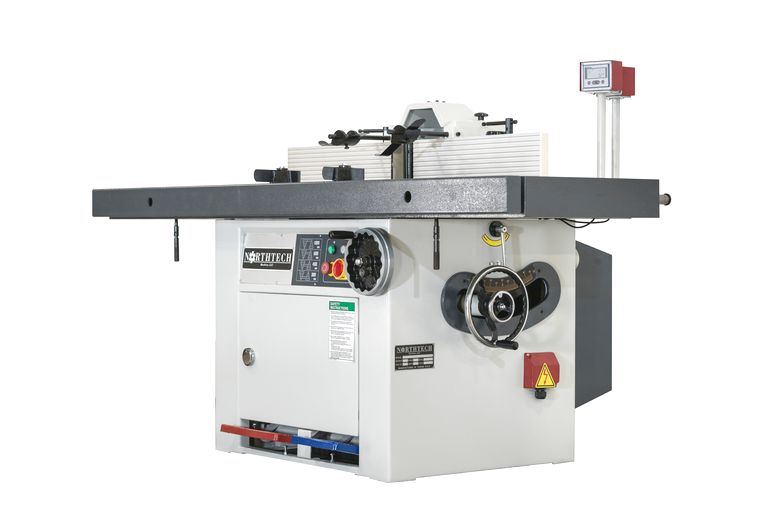

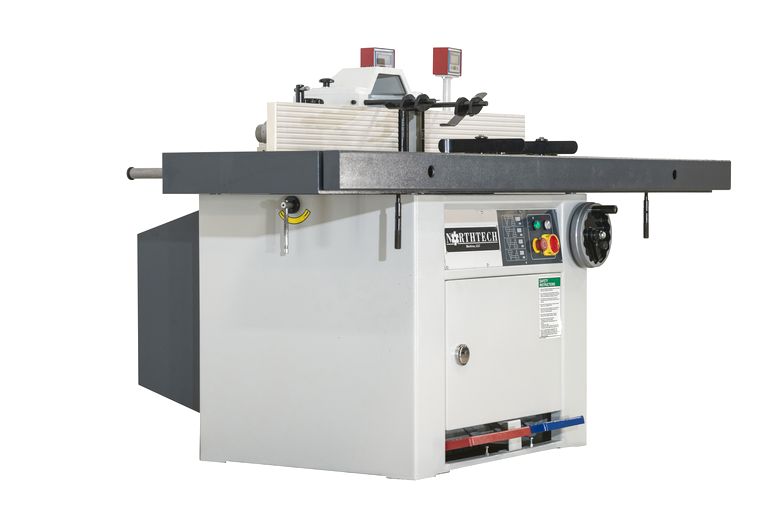

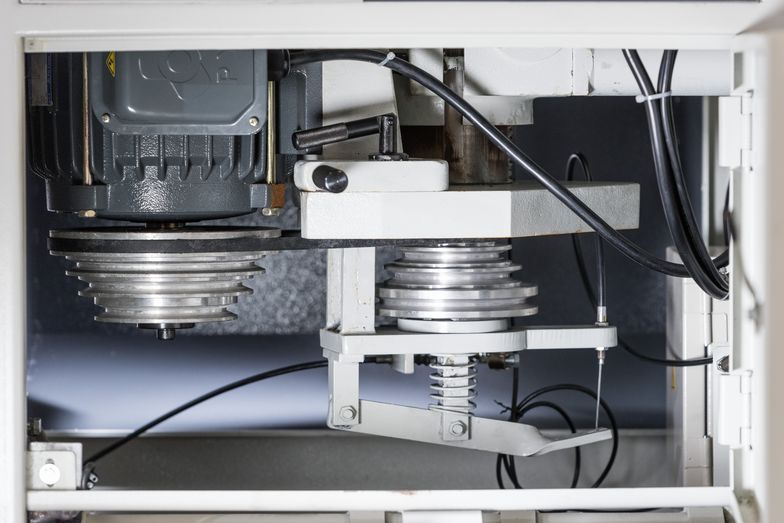

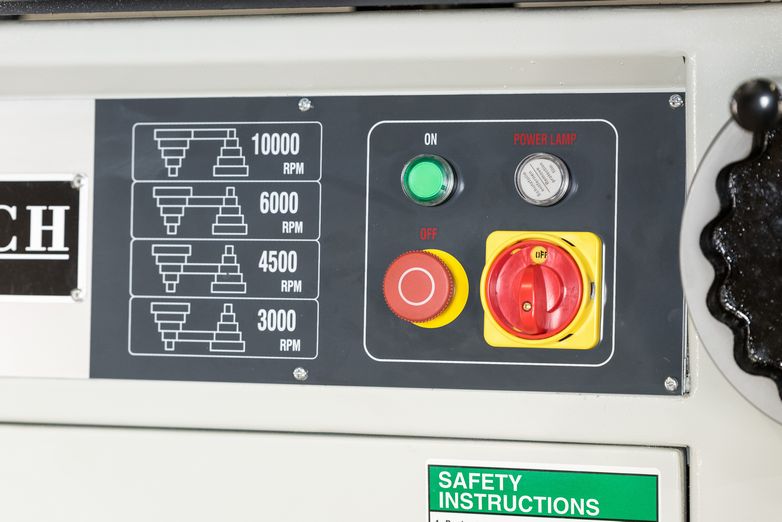

The Northtech NT 735LT series single-phase spindle shaper has an impressive list of features and options. The standard machine gets a reversible 10 HP motor with belt-adjustable speeds of 3,000, 4,500, 6,000, and 10,000 RPM. The standard 1-1/4″ spindle with 6″ under the nut has 6″ of manually-adjusted vertical travel. Brake and spindle lock pedals, dust/safety hood, and micro-adjustable fences are also included.

Options include:

  • Tilting Spindle / Sliding Table
    • Tilting spindle assembly (-5 / + 45 Degrees)

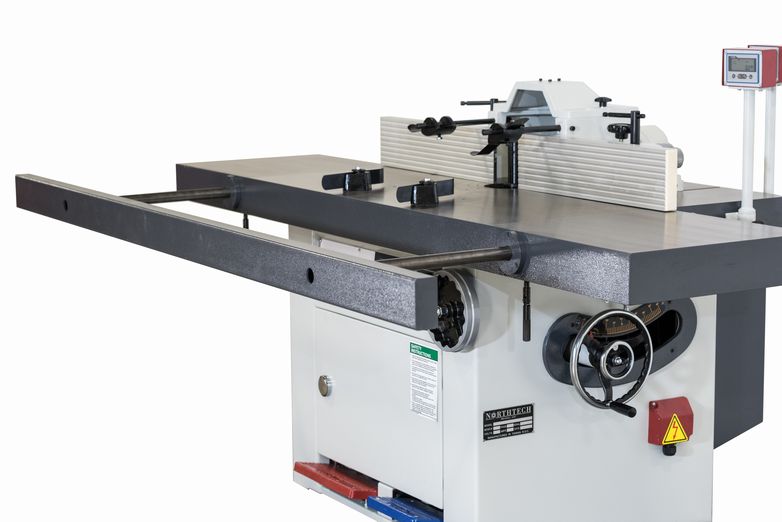

    • Sliding table with 8 rollers bearings
  • 15 HP Motor
  • Voltage change to 460 volt
  • M-10 digital LED readout of spindle height (installed)
  • DP-727 digital electronic set works with power raise and lower plus has 99 position memory/recall

*Additional options available on the MK5 package:

  • Optional 7” under nut spindle with spacers and nut
  • Optional 3/4”, 1”, 1-1/4”, 40mm spindle with spacer nut
Add to Quote Request

Features:

  • (1) Toolbox
  • Warranty is one-year parts
  • All machines are tested stateside before shipment to ensure trouble-free start-up.

Specifications:

  • Reverse Motor = Reversible
  • Machine Hp. = 10 hp.
  • Voltage/ Freq. = 230/460 Volt 60Hz
  • Phase = 3 Phase
  • Amp Requirement = 25/12.5 Amps

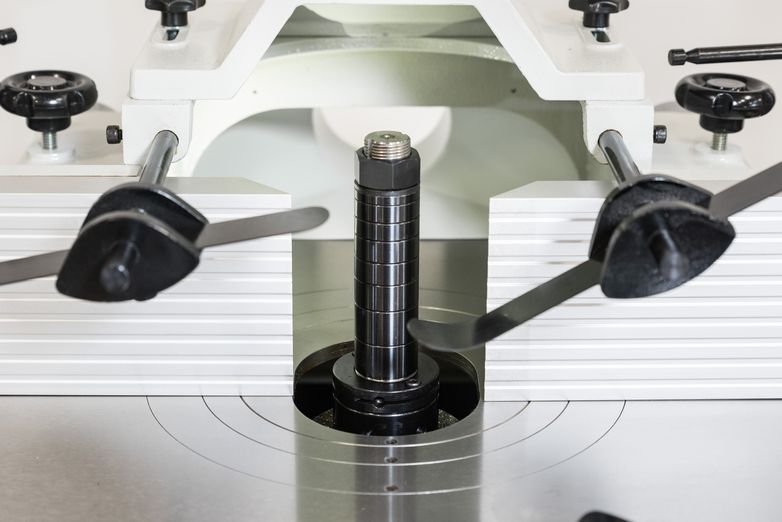

  • Spindle Diam. = 1-1/4”
  • Spindle RPM = 2875 – 9500 Rpm
  • Under Nut Cap. = 6”

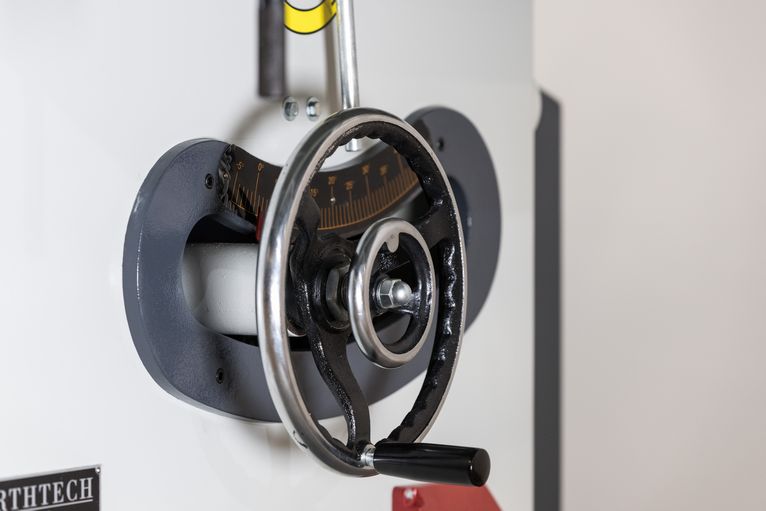

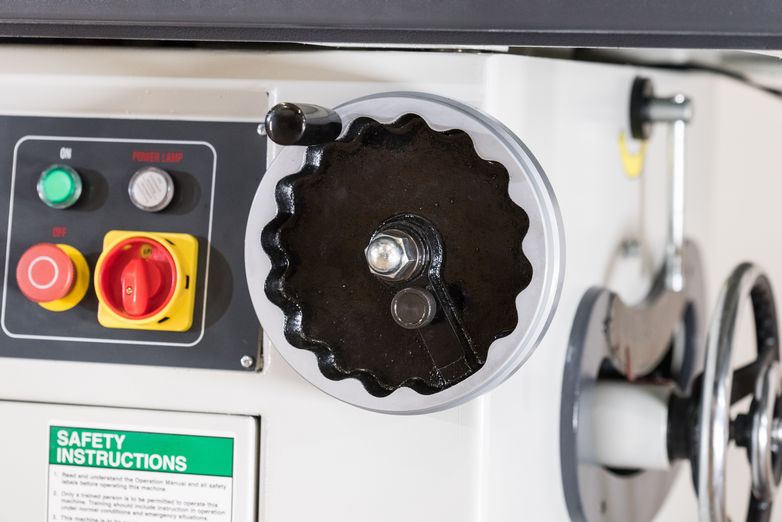

  • Elevation Style = Manual Wheel Adjustment
  • Elevation Sys. = Jack Screw / Quill Housing
  • Electronics = UL Approved Components
  • Dual Voltage = 230/460 Volt
  • Control Voltage = 110 Volt
  • Pass-Line = 35”
  • Vertical Travel = 6”
  • Dust Collection = (1) 5” @ 681 CFM
  • Emergency Stop = (1) Push Putton (2) Bars

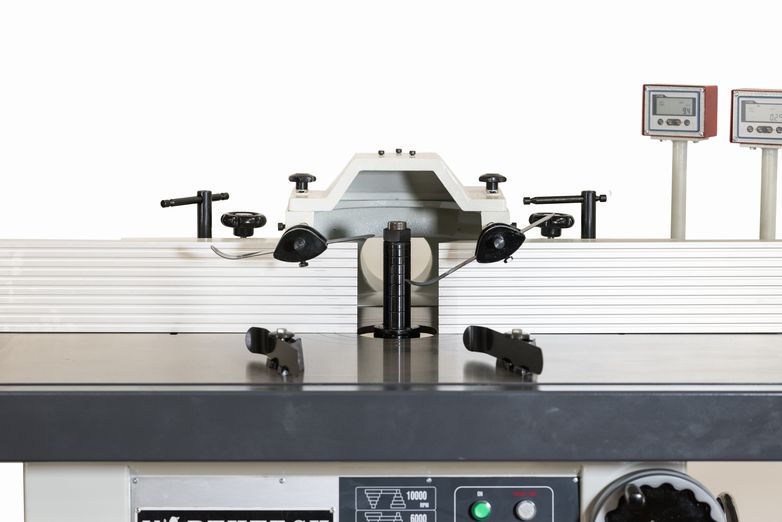

  • Fence Type = Micro Adjustment Fence
  • Fence Dims. = (2) 6” x 23-3/4”
  • Micro Fence = Micro-Adjustable
  • Tiltable = -5 / +45 Degrees

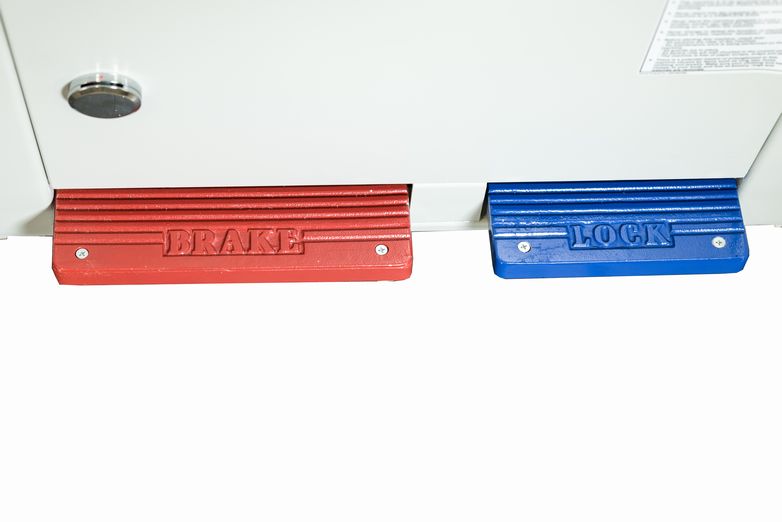

  • Brake System = Foot Pedal Brake
  • Frame Const. = 1/4” Steel Construction
  • Worktable Dims. = 36” x 47-3/4”
  • Table Const. = Cast Iron
  • Infeed Table = 20”
  • Outfeed Table = 20”

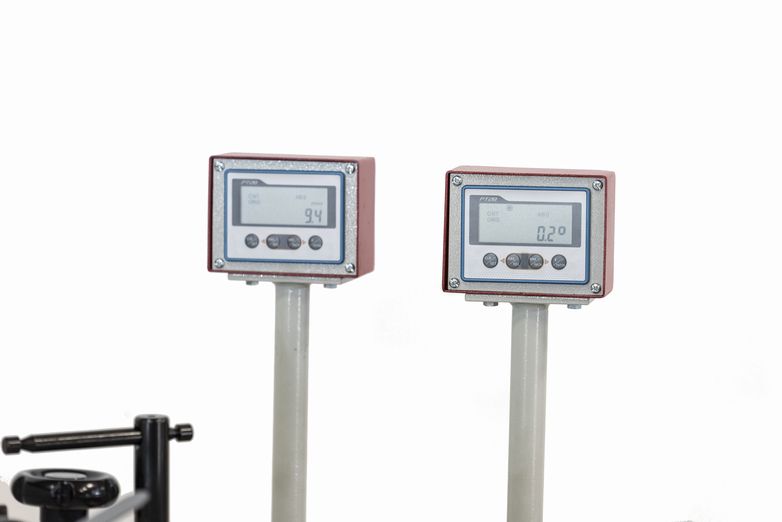

  • Measure Meth. = PT28 Digital Readout
  • Decible Rating = 73 Db
  • Net Weight = 1770 Lbs
  • Gross Weight = 1955 Lbs.
  • Machine Dims. = 88” x 48” x 50”
  • Packaging Dims = 91” x 55” x 53”
