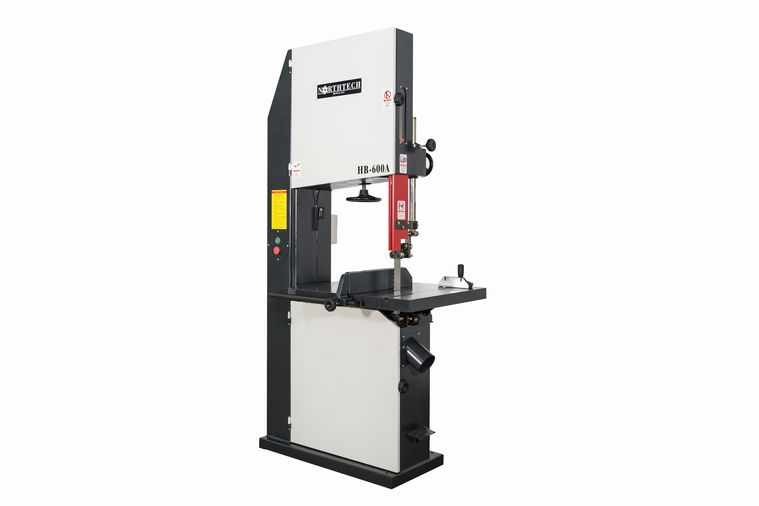

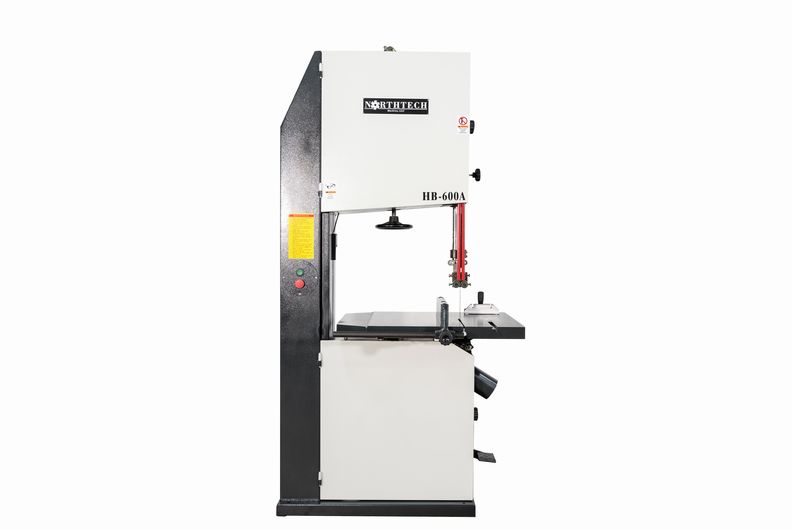

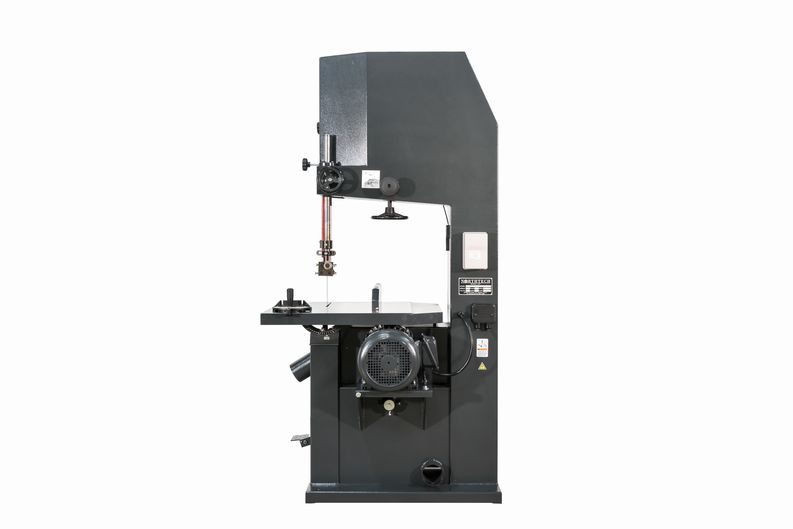

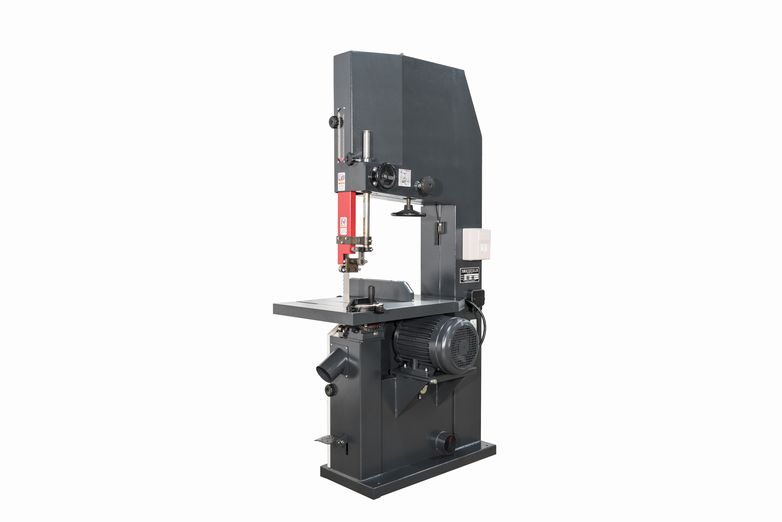

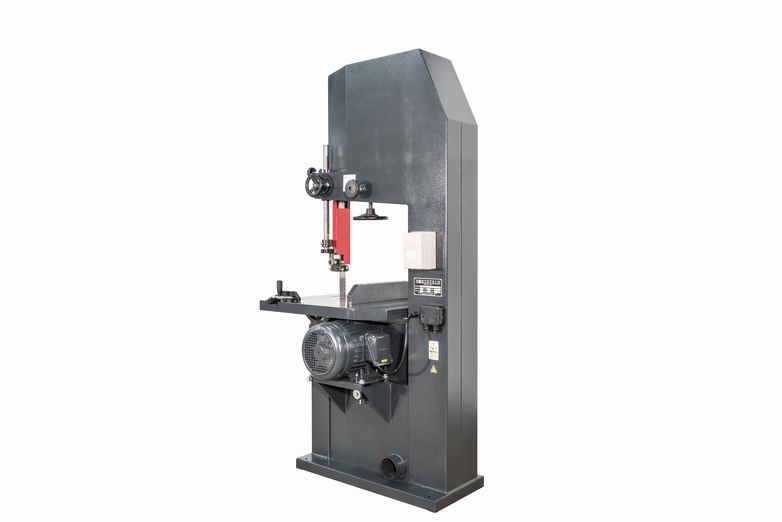

Northtech NT 600A Vertical Band Saw

Northtech NT 600A Vertical Band Saw

Categories , , , , Tag Brand

The Northtech NT 600A Vertical Bandsaw has a 7.5 HP motor, 2” x 208″ blade, and a maximum cut thickness of 13-12″. The 23-3/4” x 26” cast iron worktable is tiltable up to 60 degrees and features a 3-3/4” x 18” fence. The bandsaw also features sturdy steel construction and a foot-brake to promptly bring the blade to a safe stop.

Add to Quote Request

Specifications:

  • Main Motor Hp. = 7.5 hp.
  • Voltage/ Freq. = 230/460 Volt 60Hz
  • Phase = 3 Phase
  • Amp Requirement = 18.4/9.2 Amps
  • Total Hp. = 7.5 Hp.
  • Electronics = CE Approved Components
  • Dual Voltage = 230/460 Volt
  • Control Voltage = 230 Volt
  • Pass-Line = 34”
  • Max. Width = 22-7/8” W/O Fence
  • Max. Thickness = 13-1/2”
  • Able Cut Angle = 60 Degree Table Tilt
  • Blade Size = 2” x 208”
  • No. of Teeth = 236
  • Tooth Spacing = 3/4”
  • Blade Kerf = .032”
  • Blade Speed = 5150 FPM
  • Cleaning System = Brush on Wheel
  • Tracking Style = Manual Adjustment
  • Tension Style = Manual Adjustment
  • Dust Collection = (2) 4” @ 900 CFM
  • Arbor Diameter = 30mm
  • Fence Type = Adjustable Fence
  • Fence Dims. = 3-3/4” x 18”
  • Tiltable = 45 Degrees
  • Blade Guide = Bearing Blade Guide
  • Wheel Dims. = 2” x 24”
  • Wheel Cnstr. = Steel Construction

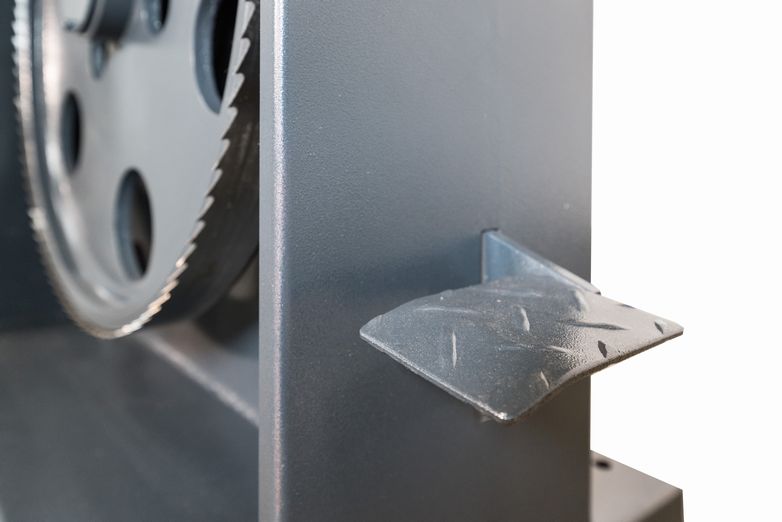

  • Brake System = Foot Pedal Brake
  • Frame Const. = Steel Construction
  • Worktable Dims. = 23-3/4” x 26”
  • Table Const. = Cast Iron
  • Decible Rating = 75 dB
  • Net Weight = 825 Lbs.
  • Gross Weight = 950Lbs.
  • Machine Dims. = 42” x 34” x 81”
  • Packaging Dims = 29” x 85” x 44”
