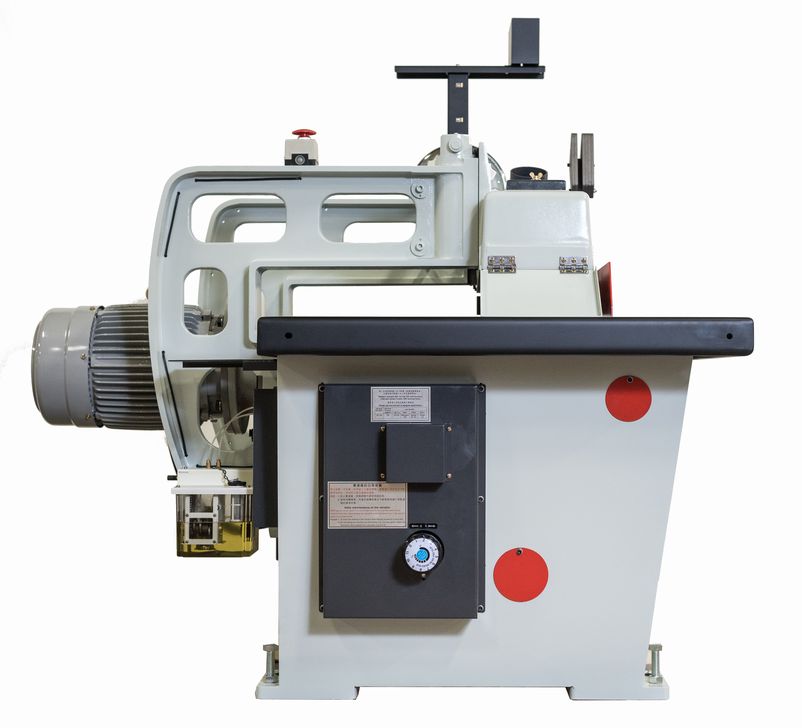

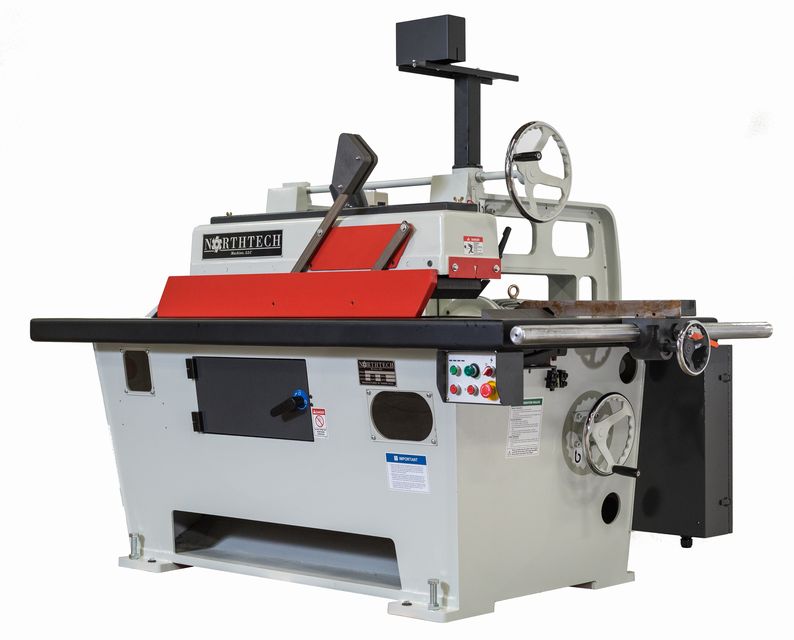

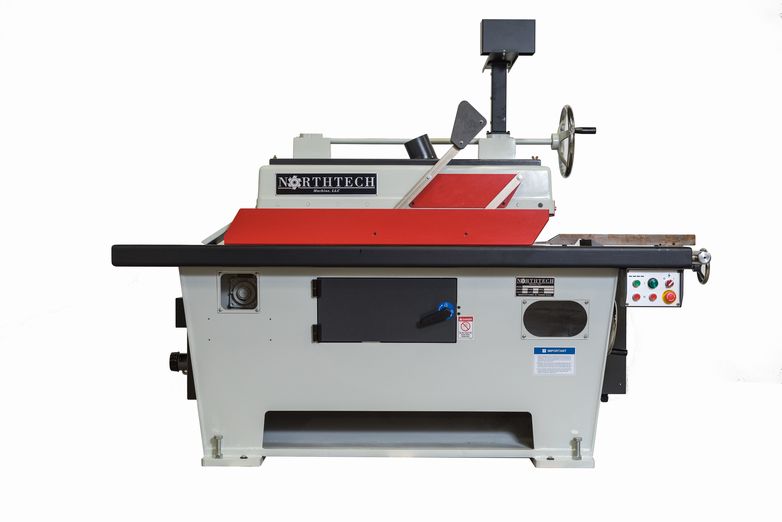

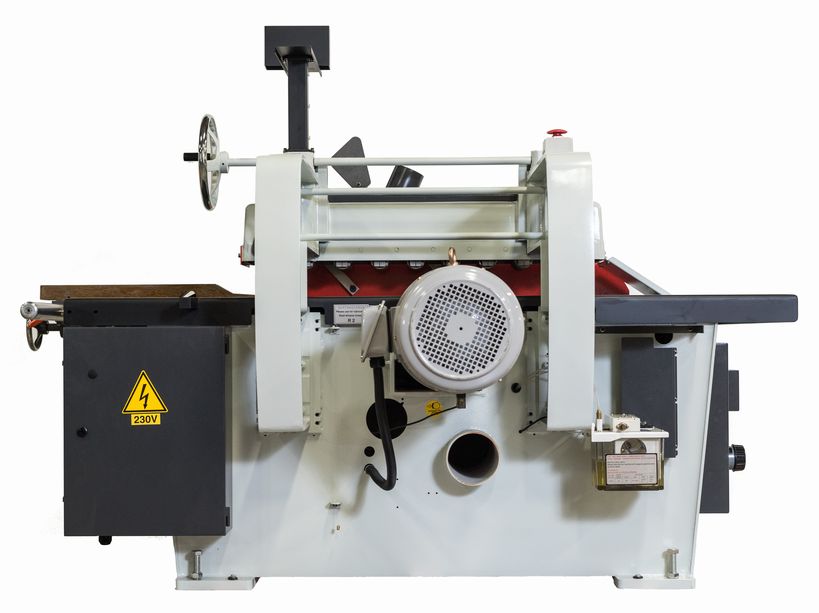

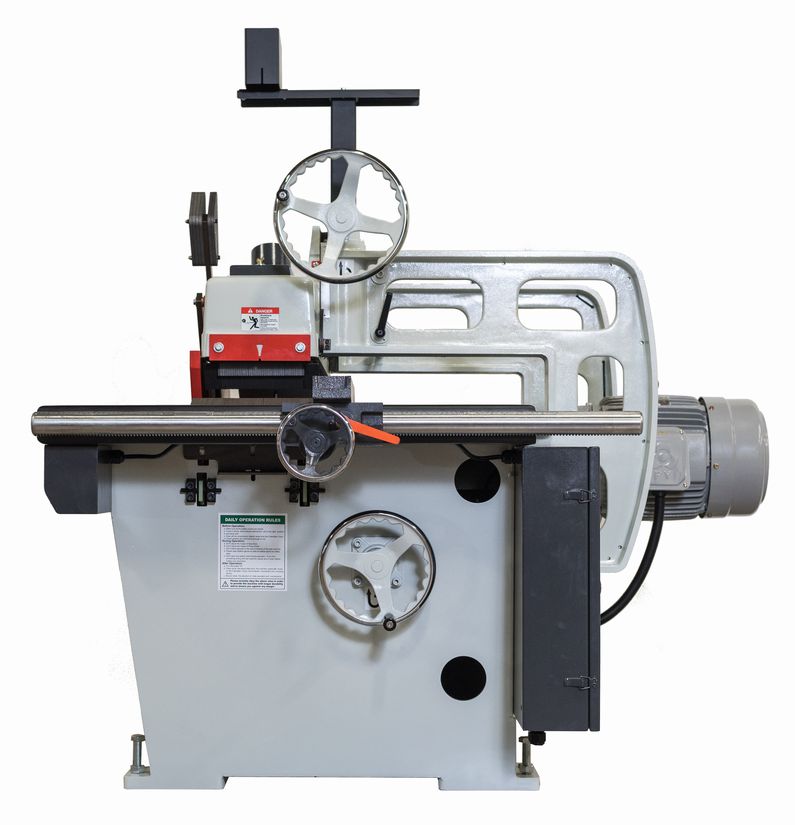

Northtech NT-SLR-18SC Precision 18″ Straight Line Rip Saw ( 5″ Depth of Cut)

Northtech NT-SLR-18SC Precision 18″ Straight Line Rip Saw ( 5″ Depth of Cut)

Categories , , , Tag Brand:

With it’s main 20 hp motor and a 18″ blade you will be able to achieve a max. depth of cut of 5” with an 18” Blade. Chain and Race equipped with “True Track” for glue line accuracy. This is the newest generation of straight line cutting machines and affordably priced. The 3HP variable feed will allow speeds from 50′ – 190′ / minute.





Add to Quote Request
NT-SLR-18SC Precision Straight Line Rip Saw
FEED SYSTEM
•  Saw motor:  20HP, 3PH 230460V
•  Feed: 1.5HP variable from 50′ – 190′ / minute
PRODUCT DIMENSIONS
•  Min. thickness:  3/16″
•  Max depth of cut:  5″ with 18” Blade
•  Max depth of cut:  4″ with 16” Blade
•  Max depth of cut:  3″ with 14” Blade
•  Max. width of stock:  (Blade to column arms) 26-1/4″
FEATURES
•  “True Track” Chain and Race
•  Table size  83” x 40”
•  Machine frame is constructed of a 1″ thick base plate
•  Solid steel frame with 1″ thick column arms.
•  Safety door switch with pneumatic motor brake.
•  2″ arbor and large support bearings.
•  Glue line guarantee on 4/4 stock is 14′ – 16′ at 50 FPM.
•  All motors and electricals are UL-rated.
•  Industrial fence with cam lock quick release on rack and pinion glide.

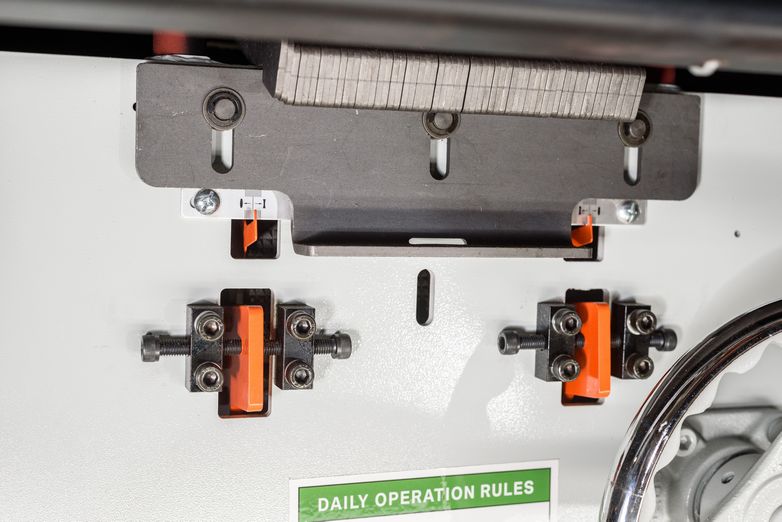

•  Two rows of heavy-duty kickback fingers.
•  (8) large pressure rollers for optimum glue line ripping.

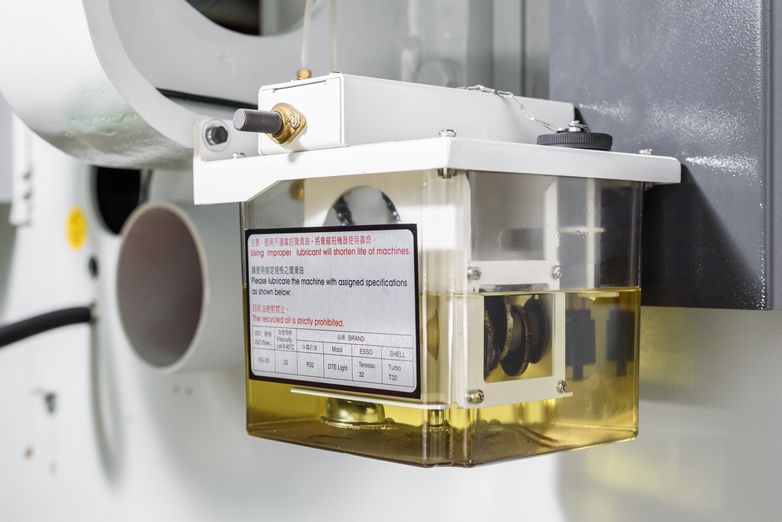

•  An automatic mechanical oiling system with low oil level feed shutoff.

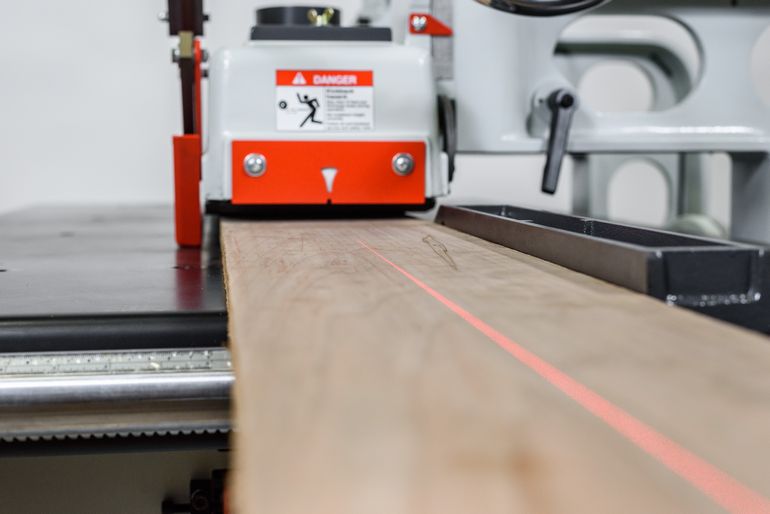

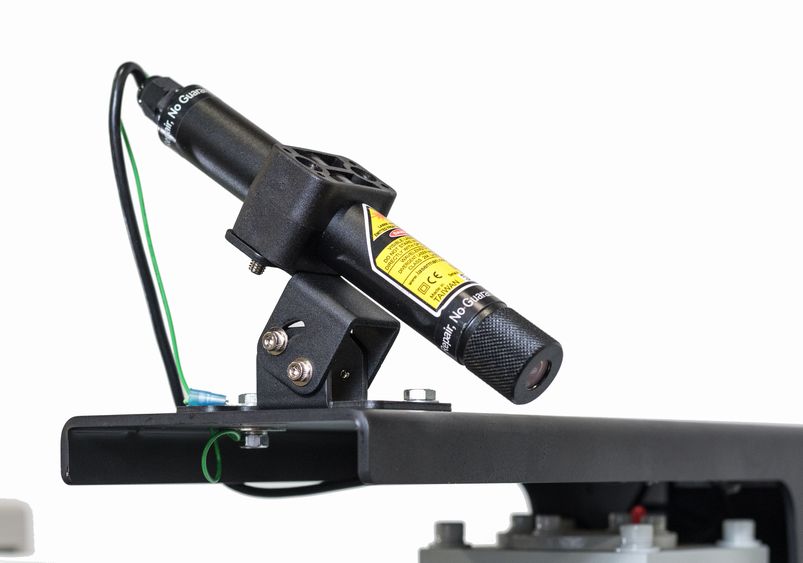

•  A 100mw laser light and mounting bracket are included.
•  (1) Toolbox
•  Amperage requirements:  20HP + 1.5HP 230V / 460V:  54.3A / 27A.
•  Dust requirements: (1) 4″ dust port requiring 450 CFM (1) 6″ dust port requiring 1,000 CFM
•  Weight:  3455 lbs.
•  Machine dimensions:  (L) 90″ x (W) 67″ x (H) 68″
•  Warranty is one-year parts
•  All machines are tested stateside prior to shipment providing trouble-free start-up. F.O.B. Borden, IN
  • Main Motor Hp. = 20 hp.
  • Voltage/ Freq. = 230/460 Volt 60Hz
  • Phase = 3 Phase
  • Amp Requirement = 55/28 Amps
  • Feed Hp. = 3 Hp.
  • Feed System = 4” Split Chain with True Trac
  • Drive System = Belt
  • Feed Speed = 50 – 190 FPM
  • Variable Speed = Mechanical
  • Elevation Style = Manual Wheel Adjustment
  • Elevation Sys. = Jack Screw / Linear Guides
  • Total Hp. = 23 Hp.
  • Electronics = CE Approved Components
  • Dual Voltage = 230/460 Volt
  • Control Voltage = 110 Volt
  • Pass-Line = 32-3/4”
  • Throat Capacity = 26-1/4”
  • Min. Length = 16″ Kickback to First Roller
  • Min. Width = 1″
  • Min. Thickness = 3/16″
  • Max. Thickness = 5”
  • Glue Line Rip = 14′ – 16′ 4/4 stock @ 50 FPM
  • Arbor Rpm = 3550 Rpm
  • Blade Size = 14” Tungsten Carbide Tipped
  • No. of Teeth = 70 Tooth
  • Tooth Spacing = 5/8 In.
  • Blade Kerf = .197 In.
  • Tracking Style = “True Track” System
  • Dust Collection = 1417 Total CFM
  • Dust Port Out = 4” Top 6” Bottom
  • Chain Adj. = True Track Adjustable Chain
  • Hold Down Style = 8 Spring Loaded Hold Downs
  • Kickback Finger = (85) Bottom (40) Top
  • Emergency Stop = Push Button
  • Rear E Stop = Push Button
  • Safety Feature = Door Switch / Motor Brake
  • Guarding = High Visibility Guarding
  • Oiler = Automatic Mechanical Oiler
  • Low Oil Warning = Low Oil Shut-off
  • Fence Type = Industrial Cam Lock Quick Rel
  • Fence Dims. = 1-3/4” x 27-3/4”

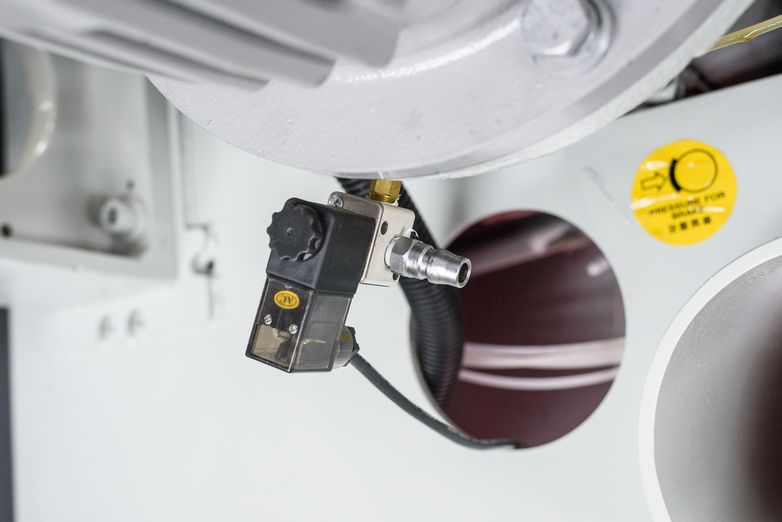

  • Brake System = Air Brake on Motor
  • Frame Const. = 1″ Base 1/2″ Cabinet 3/4″ Arms
  • Worktable Dims. = 83″ x 40″ x 3.5″ Table
  • Table Const. = Steel
  • Laser = 100mw Laser Light & Mount Bracket
  • Decible Rating = 84 dB
  • Net Weight = 3455 Lbs.
  • Gross Weight = 3675 Lbs.
  • Machine Dims. = 90″ x 67″ x 68″
  • Packaging Dims = 91” x 72” x 78”
