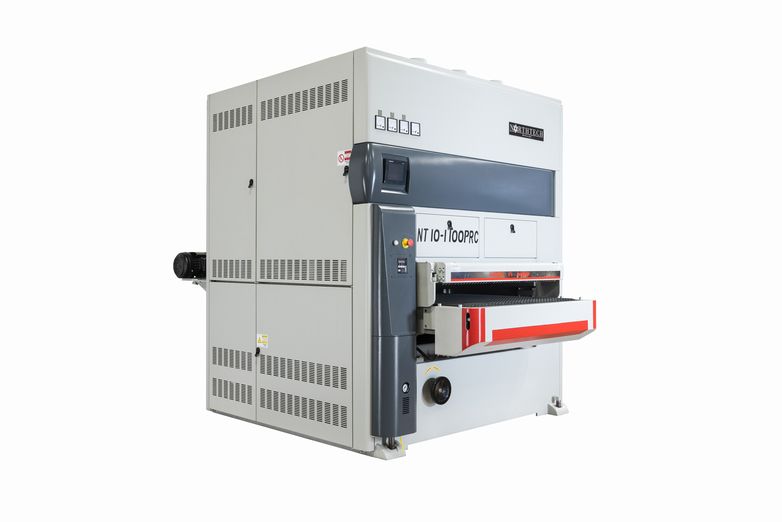

Northtech NT 10‑1100PRP Planer Sander (3 Head/Next Gen Helical)

Northtech NT 10‑1100PRP Planer Sander (3 Head/Next Gen Helical)

Categories , , , , Tags , Brand:

This machine features a 7″ Next Generation 6 row helical head up front, 10″ drum in the middle, and a combination head in the rear. This machine also has the power required to power thru material with it’s 40/40/30 hp motors it will give you a smooth finish even at higher feed speeds.

***This machine is also available in other working widths.

Add to Quote Request
NT 10-1100PRP
•  Working Width:  43″
•  Planing Heads:  (1)   *  7″ (6) row helical 30 x 12x 1.5 mm insert cutter head
•  Sanding Heads:  (2)   *  (1) 10″ 70 durometer spiral fluted contact drum   *  (1) 3-1/4” Pad
•  Sanding Belt Length:  103″
•  Main Spindle Motor:  40HP/40HP/30HP
•  Feed Motor:  5HP with Inverter
•  Table Movement Motor (PLC Touch Screen):  1HP
•  Brush Roller:  (1) 1HP
•  Configuration:  Planer Head-Rubber Roller-Pad
•  Size Of Sanding Belt:  43″ x 103″
•  Feed Speed:  15 – 60 FPM
•  Conveyor Speed Display:  PLC Touch Screen
•  Table Height 37″ / Table Lift 4.75″ by PLC Touch Screen
•  (2) Oscillating Full Coverage Air Cleaners
•  HZ & Voltage:  60HZ / 460V, 3PH
•  Gross weight: 14000 lbs.
•  Packing dimensions:  115″ x 79″ x 99″
  • Machine Hp. = 117 hp.
  • Voltage/ Freq. = 460 Volt 60Hz
  • Phase = 3 Phase
  • Amp Requirement = 136 Amps
  • Configuration = Planer, Roller, Pad
  • 1st Head = 40Hp. 7” Spiral Helical Head
  • 2nd Head = 40 Hp. 10” Spiral Fluted Rubb
  • 3rd Head = 30 Hp. 3-1/4” Pad
  • Brush Motor Hp. = 1 Hp.
  • Feed Hp. = 5 Hp.
  • Feed System = 43” Rubber Feed Mat
  • Drive System = Gear Box Inverter Controlled
  • Feed Speed = 15 – 60 FPM
  • Variable Speed = Inverter Controlled
  • Elevation Hp. = 1 Hp.
  • Elevation Sys. = (4) Post Jack Screw
  • Elevation Style = Auto Touch Screen Control
  • Total Hp. = 117 Hp.
  • Electronics = CE Approved Components
  • Dual Voltage = 230/460 Volt
  • Control Voltage = 230 Volt
  • Programmable = Elevation
  • Touch Screen = 8” Digital Touch Screen
  • Min. Length = 20”
  • Max. Width = 43”
  • Min. Thickness = .372”
  • Max. Thickness = 4-3/4”
  • Tooling = 30 x 12 x 1.5 mm
  • Head Type = Dynamically Balanced Helical Head
  • Cutter Head Dim = 7” x 44-1/4”
  • Cut Head Matl. = Alloy Steel
  • Rows of Cutters = 6 Rows
  • No. of Inserts = 264
  • Insert Size = 30 x 12 x 1.5 mm
  • Sandpaper Size = 43” x 103”
  • Platen Specs. = 4” x 44-1/2” with 8” Graphi
  • 1st Belt Speed = 5000 FPM
  • 2nd Belt Speed = 2700 FPM
  • Oscillation Sty = Pneumatic Controlled
  • Oscillation Rte = 20 Cycles/Minute
  • Oscillation Trv = 1/2”
  • Cleaning System = Oscillating Jet Blow Off
  • Tracking Style = Pneumatic Dust Proof Eye
  • Tension Style = Pneumatic
  • Dust Collection = (13) 5” @ 8853 CFM
  • Dust Port Out = 5”
  • Digital Display = Touch Screen 8”
  • Conveyor = Seamless
  • Idle Rollers = (12) Hold Down Rollers
  • Pressure Shoes = 9” 12” 10” 5-1/2” x 48”
  • Hold Down Style = Spring Loaded Pressure Shoes
  • Kickback Finger = (45) 1/4” Fingers
  • Emergency Stop = (1) Push Putton (2) Bars
  • Brake System = (3) Pneumatic Dual Caliper Dis
  • Frame Const. = 1” Steel Construction
  • Decible Rating = 78 dB
  • Net Weight = 13228
  • Gross Weight = 14000
  • Machine Dims. = 104” x 74” x 92”
  • Packaging Dims = 115” x 79” x 99”
