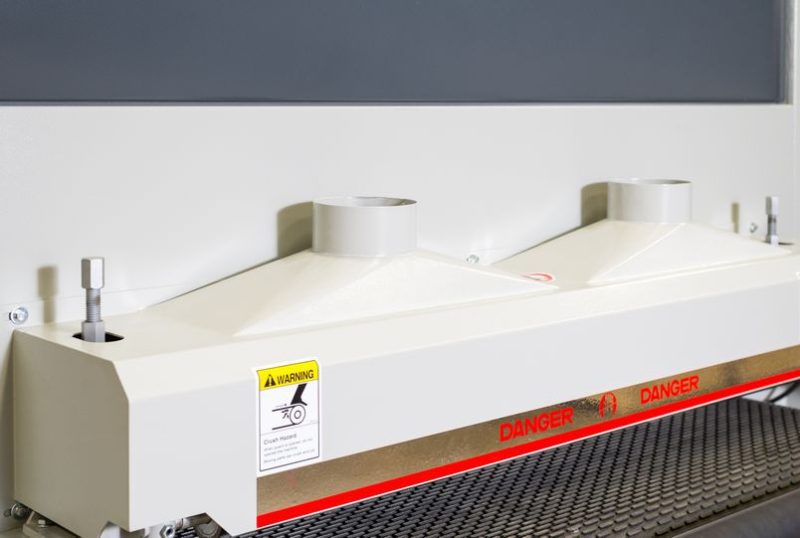

Northtech NT 12-1300RRP Three-Head 51″ Wide Belt Sander
Features
- Working Width: 51″
- Sanding Heads: (3)
- (1) 12″ 70 durometer spiral fluted roller
- (1) 12″ 65 durometer spiral fluted roller
- (1) 3-1/4” Pad
- Main Spindle Motor: 40HP / 40HP / 30HP
- Feed Motor: 5HP with Inverter
- Table Elevation Motor (PLC Touch Screen): 1HP
- Configuration: Rubber Roller-Rubber Roller-Pad
- Size Of Sanding Belt: 53″ x 103″
- Feed Speed: 15 ~ 60 FPM via inverter
- Table Height: 37″
- Table Lift: 4.75″ by PLC Touch Screen
- Belt Cleaner: (3) Full Coverage Oscillating Cleaners
- (1) Brush Roller, 1HP
- Voltage: 230V / 460V, 3-Phase
- Weight Net / Gross: 15,875 lbs. / 16,500 lbs.
- Dimensions: 102″L x 86″W x 93″H
- Warranty is one-year parts.
- All machines tested stateside, ensuring trouble-free start-up.
Specifications
- Machine Hp. = 117 hp.
- Voltage/ Freq. = 230/460 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 274/137 Amps
- Configuration = Roller, Roller, Pad
- 1st Head = 40 Hp. 12” Spiral Fluted 70 D
- 2nd Head = 40 Hp. 12” Spiral Fluted 65 D
- 3rd Head = 30 Hp. 3-1/4” Pad
- Brush Motor Hp. = 1 Hp.
- Feed Hp. = 5 Hp.
- Feed System = 53” Rubber Feed Mat
- Drive System = Gear Box Inverter Controlled
- Feed Speed = 15 – 60 FPM
- Variable Speed = Inverter Controlled
- Elevation Hp. = 1 Hp.
- Elevation Sys. = (4) Post Jack Screw
- Elevation Style = Auto Touch Screen Control
- Total Hp. = 117 Hp.
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 230 Volt
- Programmable = Elevation
- Touch Screen = 8” Digital Touch Screen
- Min. Length = 20”
- Max. Width = 52”
- Min. Thickness = 1/4”
- Max. Thickness = 4-3/4”
- No. of Heads = 3
- Sandpaper Size = 53” x 103”
- Platen Specs. = 4” x 54” with 8” Graphite
- 1st Belt Speed = 5000 FPM
- 2nd Belt Speed = 5000 FPM
- 3rd Belt Speed = 3000 FPM
- Oscillation Sty = Pneumatic Controlled
- Oscillation Rte = 20 Cycles/Minute
- Oscillation Trv = 1/2”
- Cleaning System = Oscillating Jet Blow Off
- Tracking Style = Pneumatic Dust Proof Eye
- Tension Style = Pneumatic
- Dust Collection = (14) 5” @ 9534 CFM
- Dust Port Out = 5”
- Digital Display = Touch Screen 8”
- Conveyor = Seamless
- Powered Rollers = (12) Hold Down Rollers
- Idle Rollers = (12) Hold Down Rollers
- Pressure Shoes = (3) Sets
- Hold Down Style = Spring Loaded Pressure Shoes
- Recommended CFM = 570 nl/min
- Emergency Stop = (1) Push Putton (2) Bars
- Brake System = (3) Pneumatic Dual Caliper Dis
- Frame Const. = 1” Steel Construction
- Measure Meth. = Digital
- Decible Rating = 79 dB
- Net Weight = 15,875 Lbs.
- Gross Weight = 16,500 Lbs.
- Machine Dims. = 110” x 67” x 73”
- Packaging Dims = 120” x 91” x 94”
