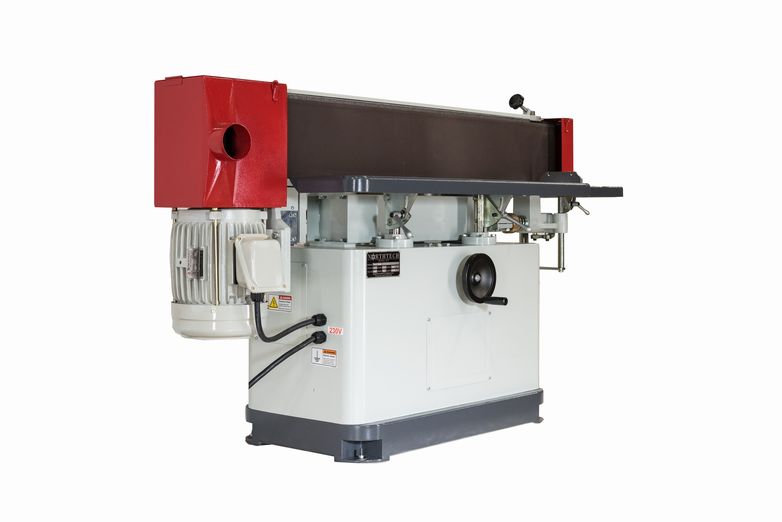

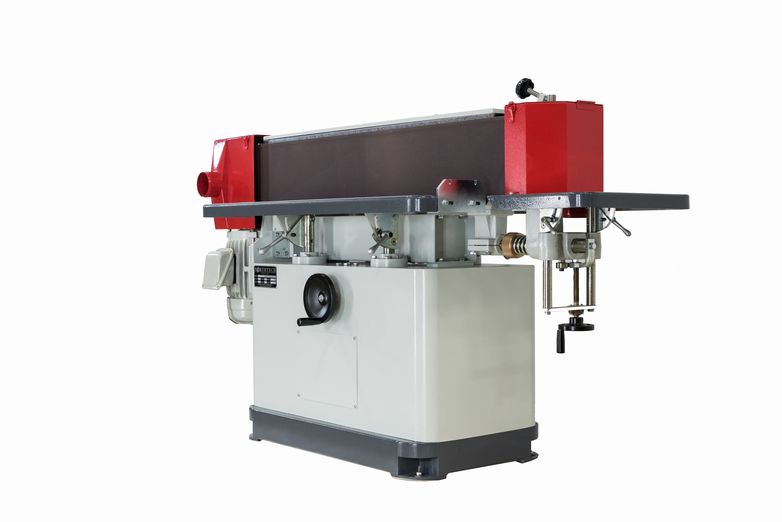

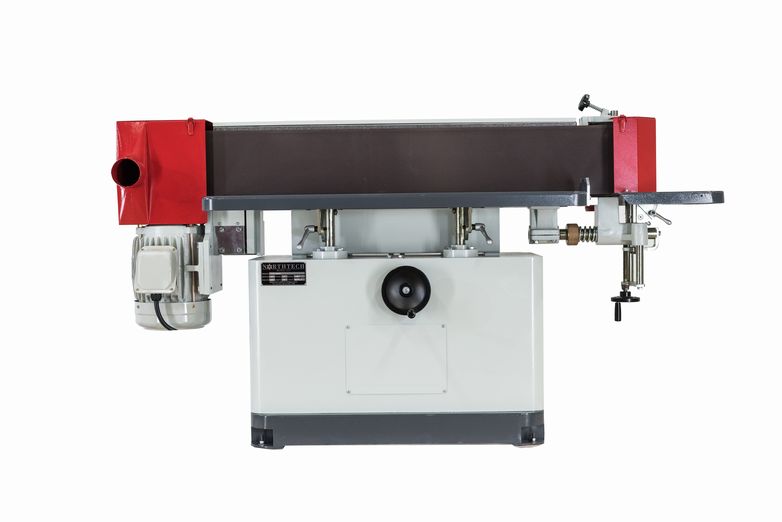

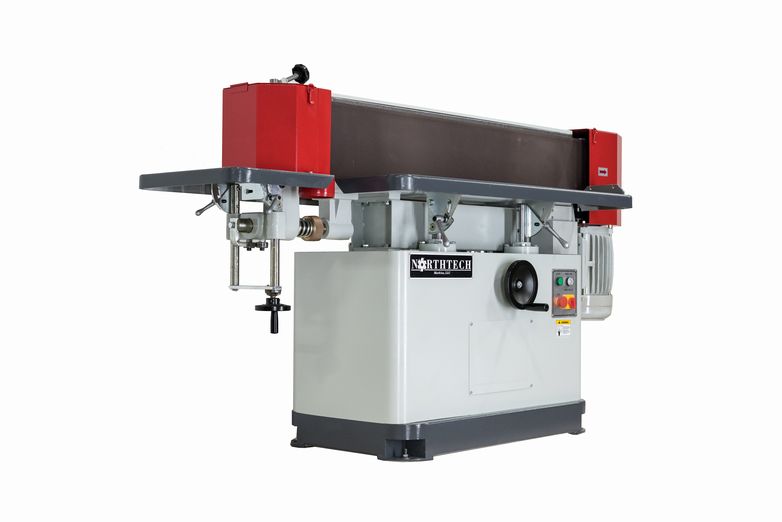

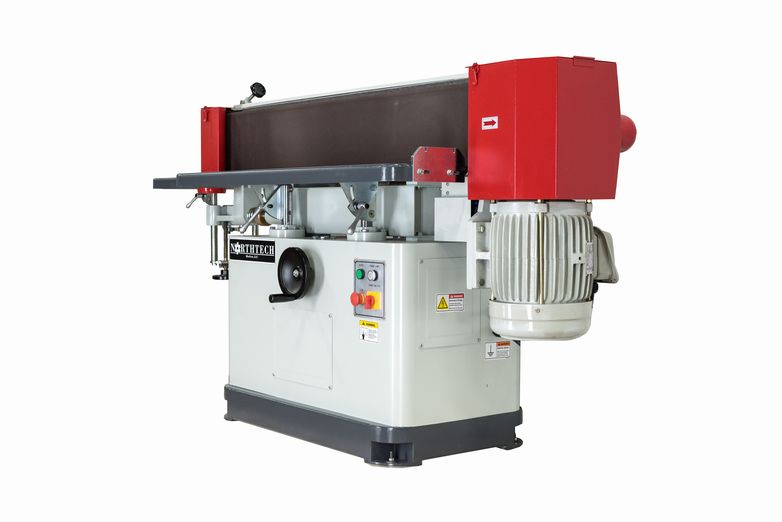

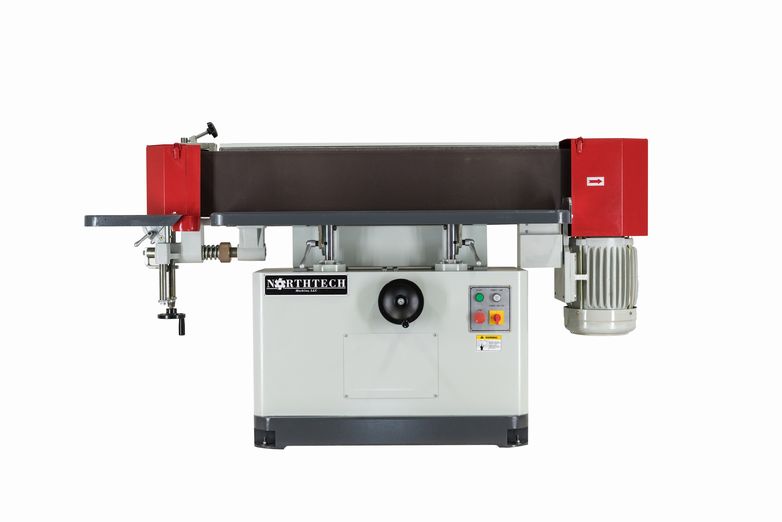

NT ES948DE-732 Edge Sander
- 7.5HP main motor; 3PH, 230V/460V Dual Voltage
- 12mm (1/2″) oscillating stroke
- Drive wheel: 7″ x 9-5/8″

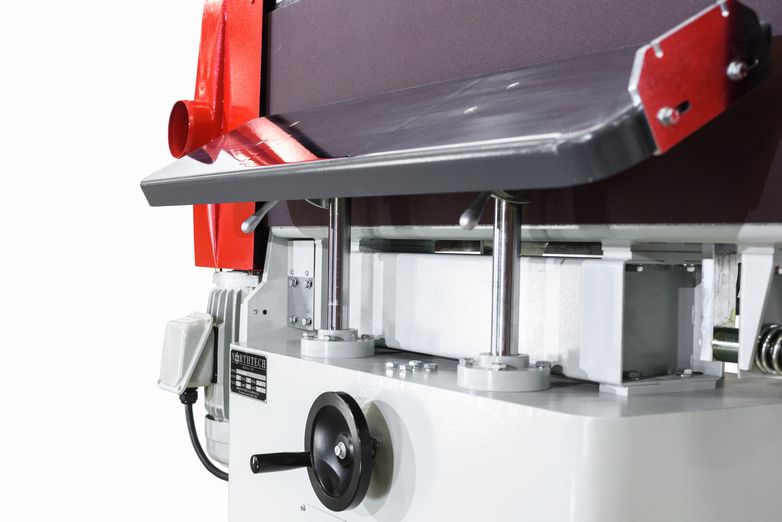

- Easy elevation control through manual worm gear

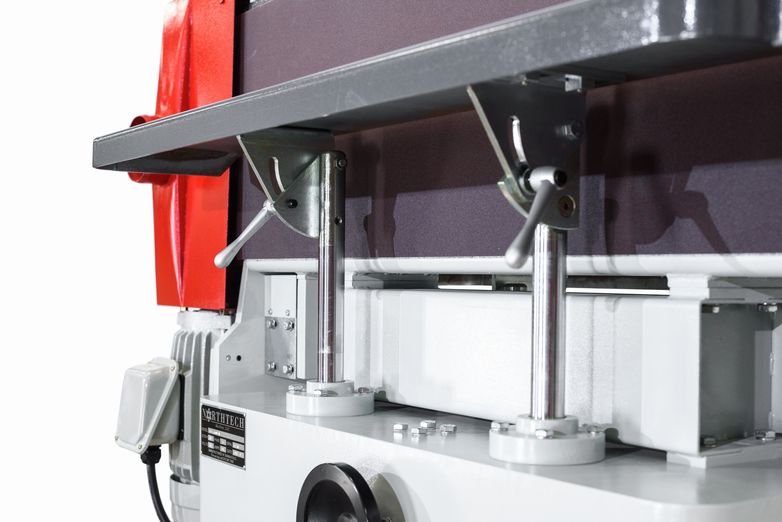

- Side table dimensions: (2) 10-1/2″ x 48″
- Side table tilt 0° – 45°

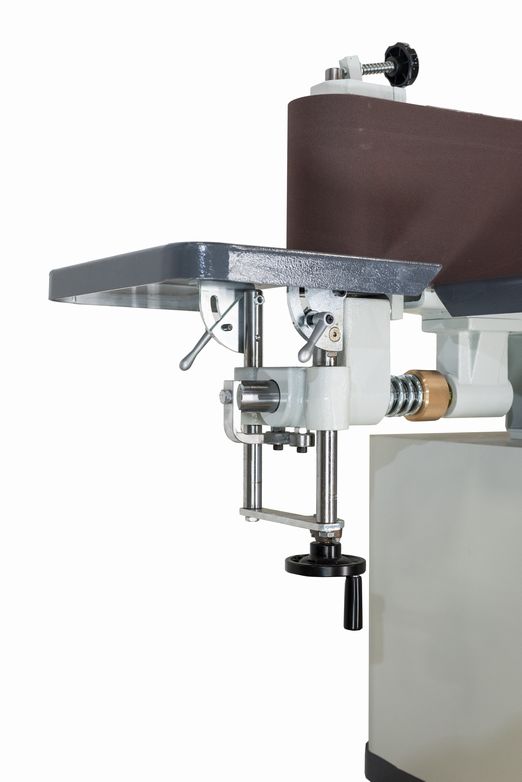

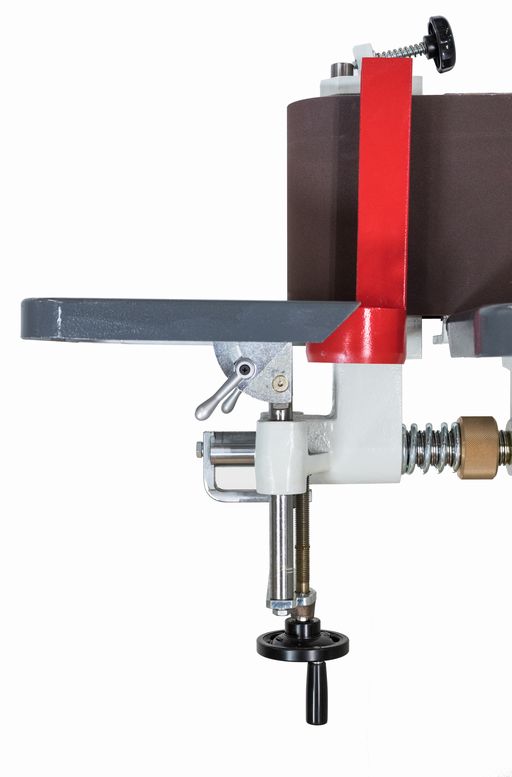

- End table dimensions: (1) 13-3/4″ x 17-3/4″

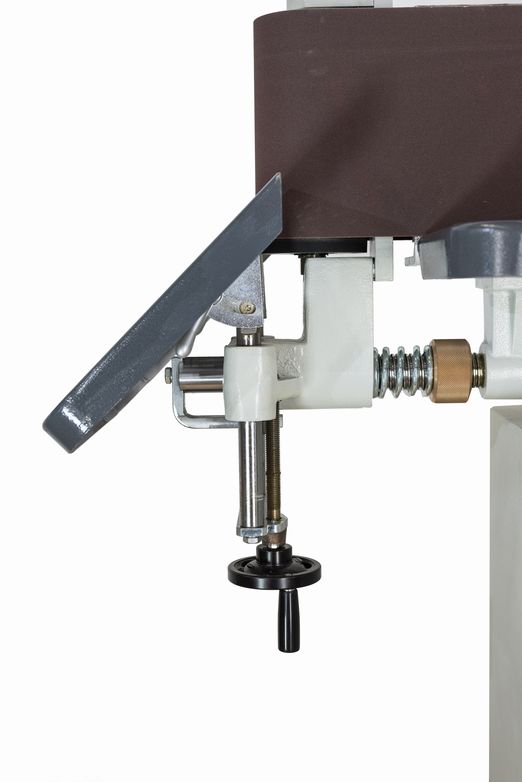

- End table tilt: 0° – 45°
- Sanding belt size: 9″ x 142″ (Included)
- Sanding belt speed: 3200 FPM
- Platen size: (2) 10″ x 48″
- Dust ports: (2) 4″ requiring 400 CFM @ points of extraction
- Easy jig fences are standard for squaring accuracy and part stability
- Machine Dimensions: 79″ x 29″ x 32″
- Packaging Dimensions: 83″ x 34″ x 53″
- Net weight: 915 lbs
- Gross weight: 1,105 lbs
- (1) Toolbox
- Warranty is one-year parts
- All machines are tested stateside prior to shipment providing trouble-free start-up.
-
- Direct Drive = Motor to 7” x 9-5/8” Pulley
- Machine Hp. = 7.5 hp.
- Voltage/ Freq. = 230 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 22 Amps
- Elevation Sys. = (2) Post Jack Screw
- Elevation Style = Manual Wheel Adjustment
- Total Hp. = 7.5 Hp.
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 24 Volt Control Voltage
- Pass-Line = 32”
- Max. Length = 48”
- Max. Thickness = 9”
- Sandpaper Size = 9” x 142”
- Platen Specs. = 9” x 48”
- 1st Belt Speed = 3300 FPM
- Oscillation Sty = Gear Box with Cam
- Oscillation Rte = 30 Cycles/Minute
- Oscillation Trv = 3/8”

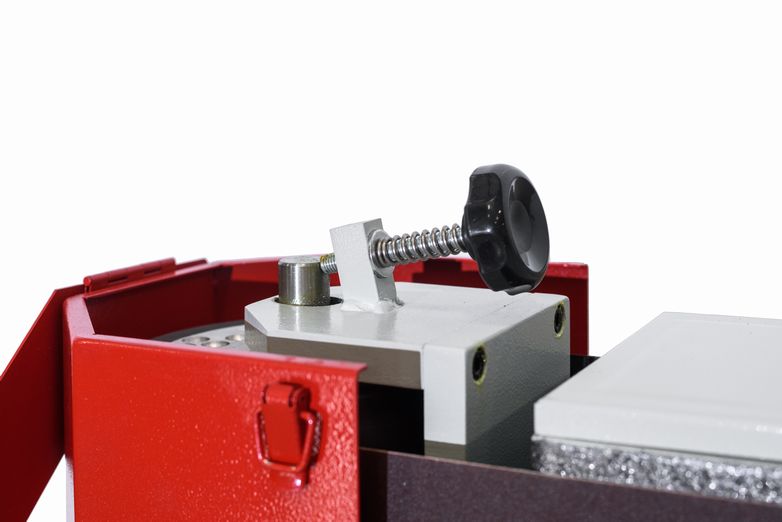

- Tracking Style = Manual Adjustment
- Tension Style = Manual Adjustment
- Vertical Travel = 5-3/4” Table Adjustment
- Dust Collection = (2) 4” @ 900 CFM

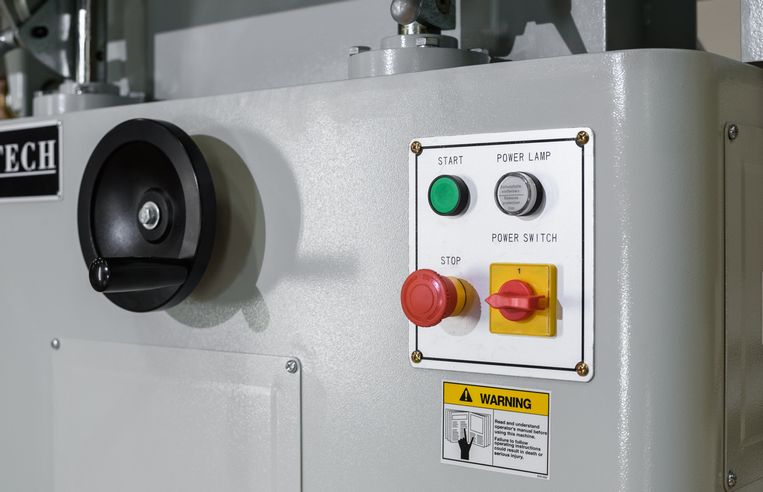

- Emergency Stop = Push Button
- Guarding = High Visibility Guarding
- Fence Type = Jig Fence
- Tiltable = 45 Degrees
- Frame Const. = 1/4” Steel Construction
- End Table Dims. = 13-3/4” x 17-3/4”
- Worktable Dims. = 10-1/2” x 59-1/2”
- Table Const. = Steel
- Decible Rating = 72 dB
- Net Weight = 910 Lbs.
- Gross Weight = 1104 Lbs.
- Machine Dims. = 79” x 29” x 32”
- Packaging Dims = 82” x 34” x 53”
