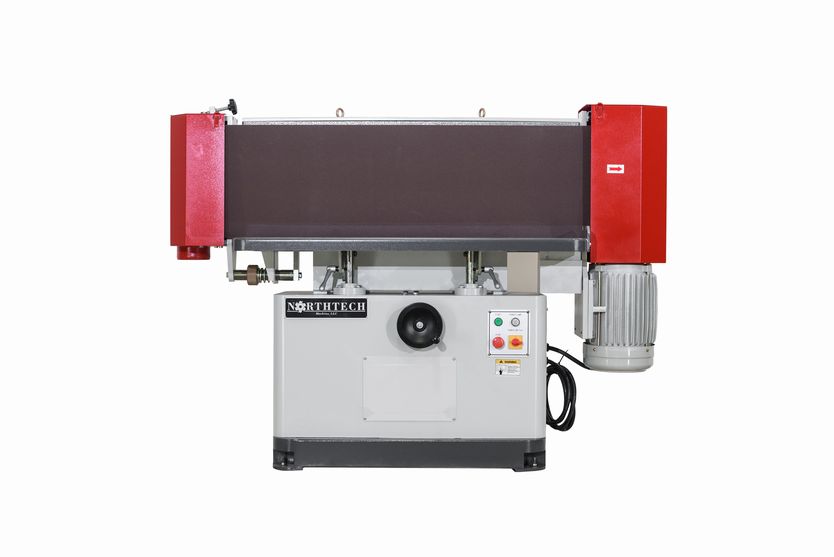

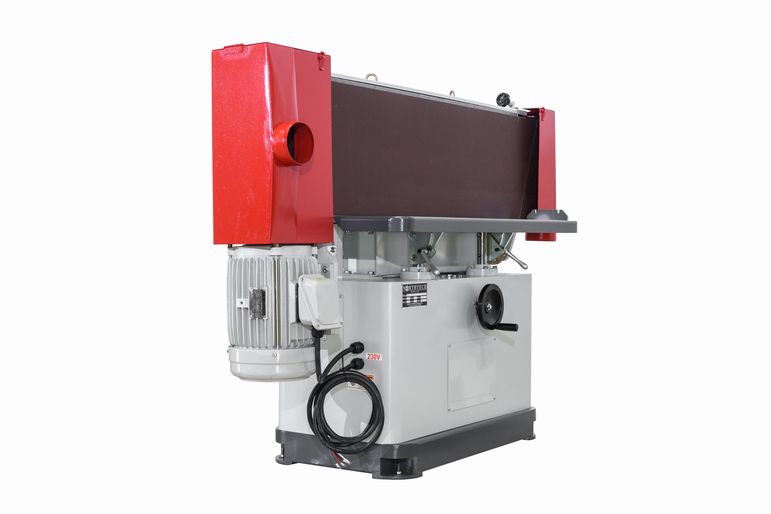

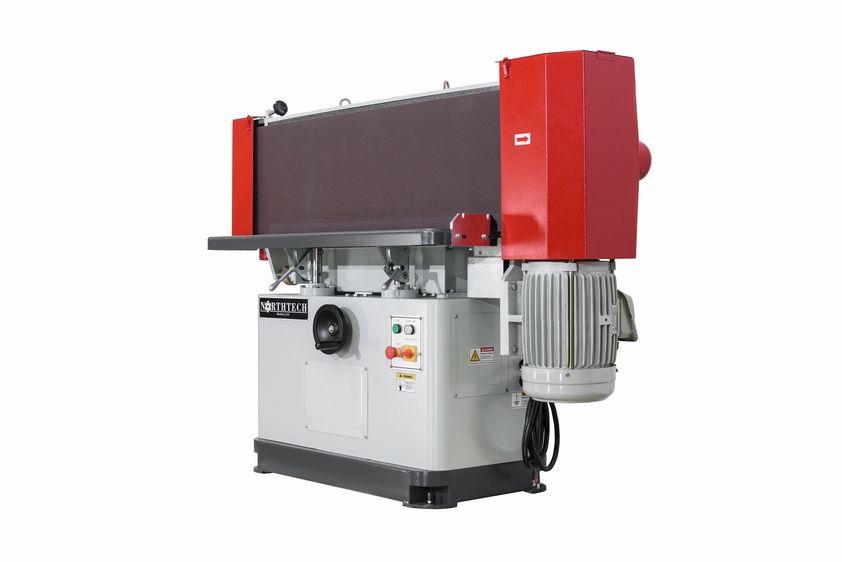

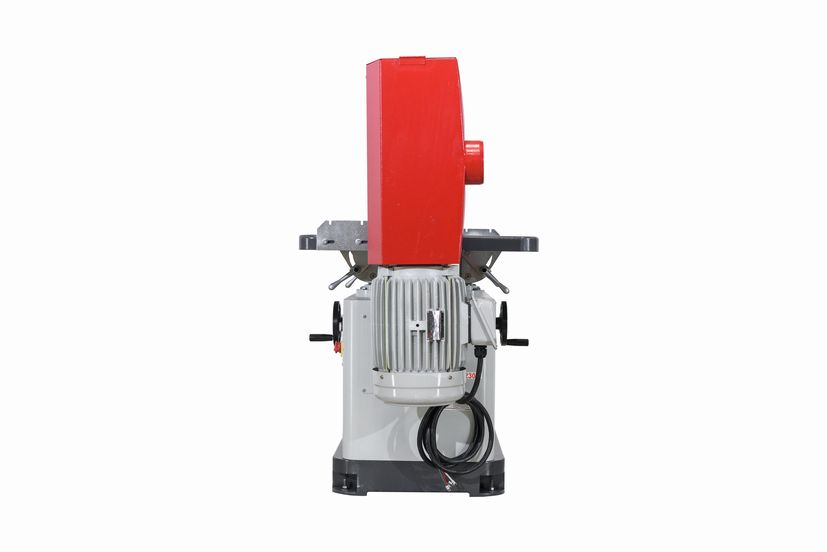

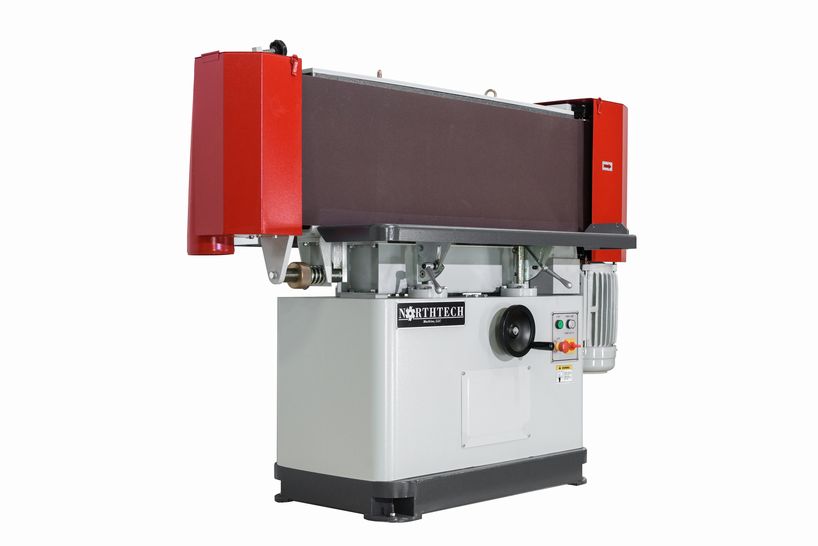

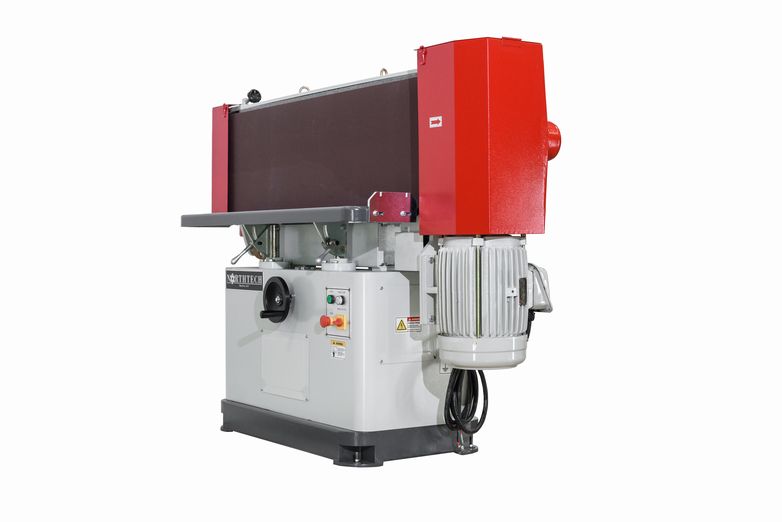

NT ES1648D Drawer Box Edge Sander
- 10HP main motor; 3PH, 230V/460V Dual Voltage
- (1/2″) oscillating stroke
- Drive wheel: 7″ x 17″
- Dual steel tables for two operators
- Easy elevation control through the manual worm gear
- Side table dimensions: (2) 10-1/2″ x 48″
- Sanding belt size: 16″ x 143″ (Included)

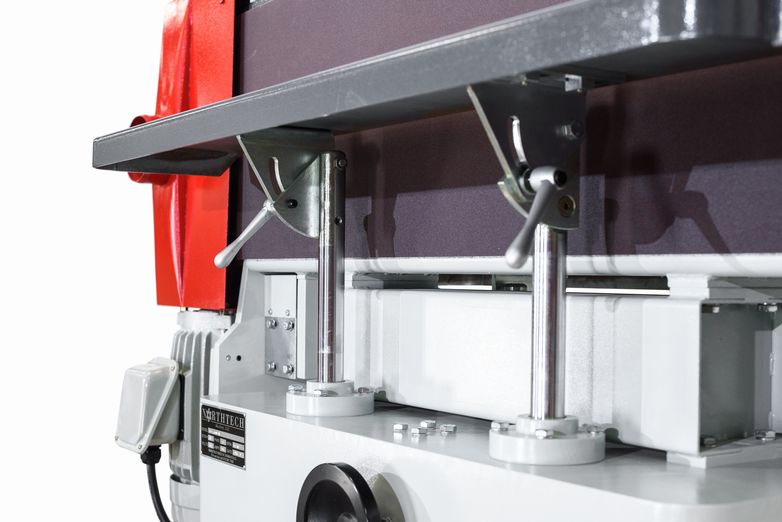

- Side table tilt: 0° – 45°
- Sanding belt speed: 970 m/min (3,300 FPM)

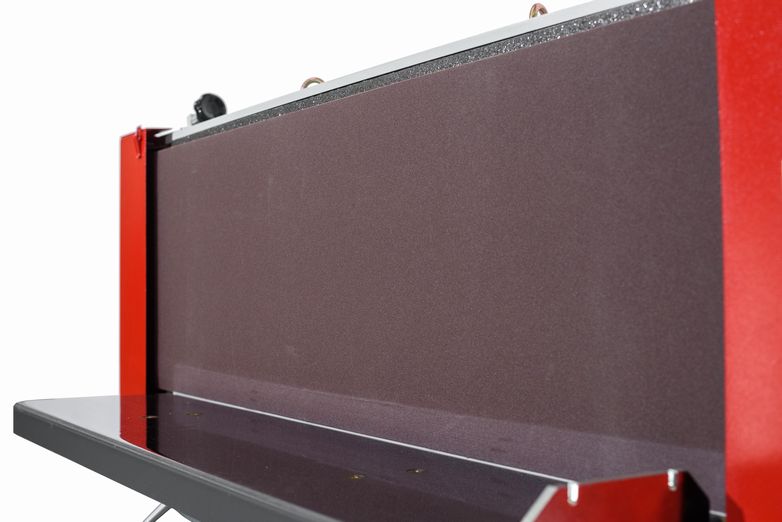

- Platen size: (2) 16.5″ x 48″
- Dust Ports: (2) 4″ requiring 900 CFM @ point of extraction
- Easy jig fences are standard for squaring accuracy and part stability
- Machine Dimensions: 72″ x 29″ x 53″
- Packaging Dimensions: 75″ x 33″ x 59″
- Net weight: 1,181 lbs
- Gross weight: 1,253 lbs
- (1) Toolbox
- Warranty is one-year parts
- All machines are tested stateside prior to shipment providing trouble-free start-up.
- Direct Drive = Motor to 7” x 16-3/4” Pulley
- Machine Hp. = 10 hp.
- Voltage/ Freq. = 230 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 30 Amp s
- Elevation Sys. = (2) Post Jack Screw
- Elevation Style = Manual Wheel Adjustment
- Total Hp. = 10 Hp.
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 24 Volt Control Voltage
- Pass-Line = 32”
- Max. Length = 48”
- Max. Thickness = 16”
- Sandpaper Size = 16” x 143”
- Platen Specs. = 16-1/2” x 48”
- 1st Belt Speed = 3300 FPM
- Oscillation Sty = Gear Box with Cam
- Oscillation Rte = 30 Cycles/Minute
- Oscillation Trv = 3/8”
- Tracking Style = Manual Adjustment
- Tension Style = Manual Adjustment
- Vertical Travel = 7-1/4” Table Travel
- Dust Collection = (2) 5” @ 1362 CFM
- Dust Port Out = (2) 5” Outlets

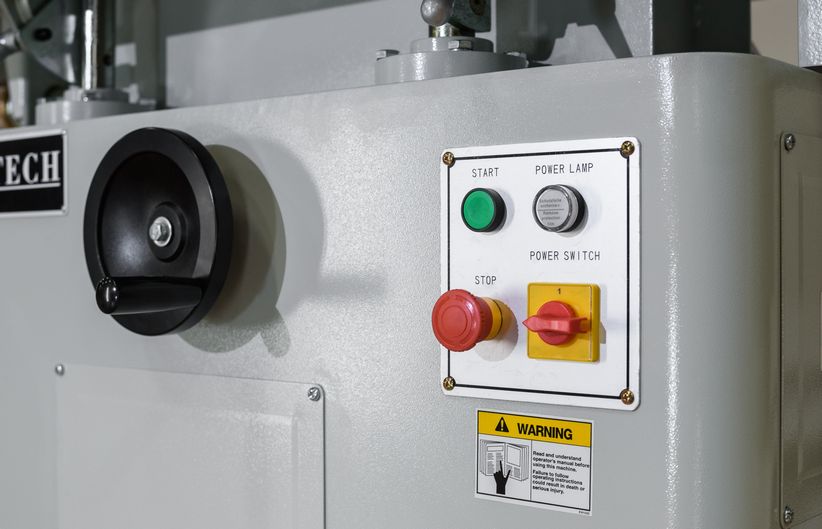

- Emergency Stop = Push Button
- Guarding = High Visibility Guarding
- Fence Type = Jig Fence
- Tiltable = 45 Degrees
- Frame Const. = 1/4” Steel Construction
- Side Table Dim. = 10-1/2” x 48”
- Table Const. = Steel
- Decible Rating = 80 dB
- Net Weight = 1181 Lbs.
- Gross Weight = 1253 Lbs.
- Machine Dims. = 72” x 29” x 53”
- Packaging Dims = 76” x 34” x 59”
