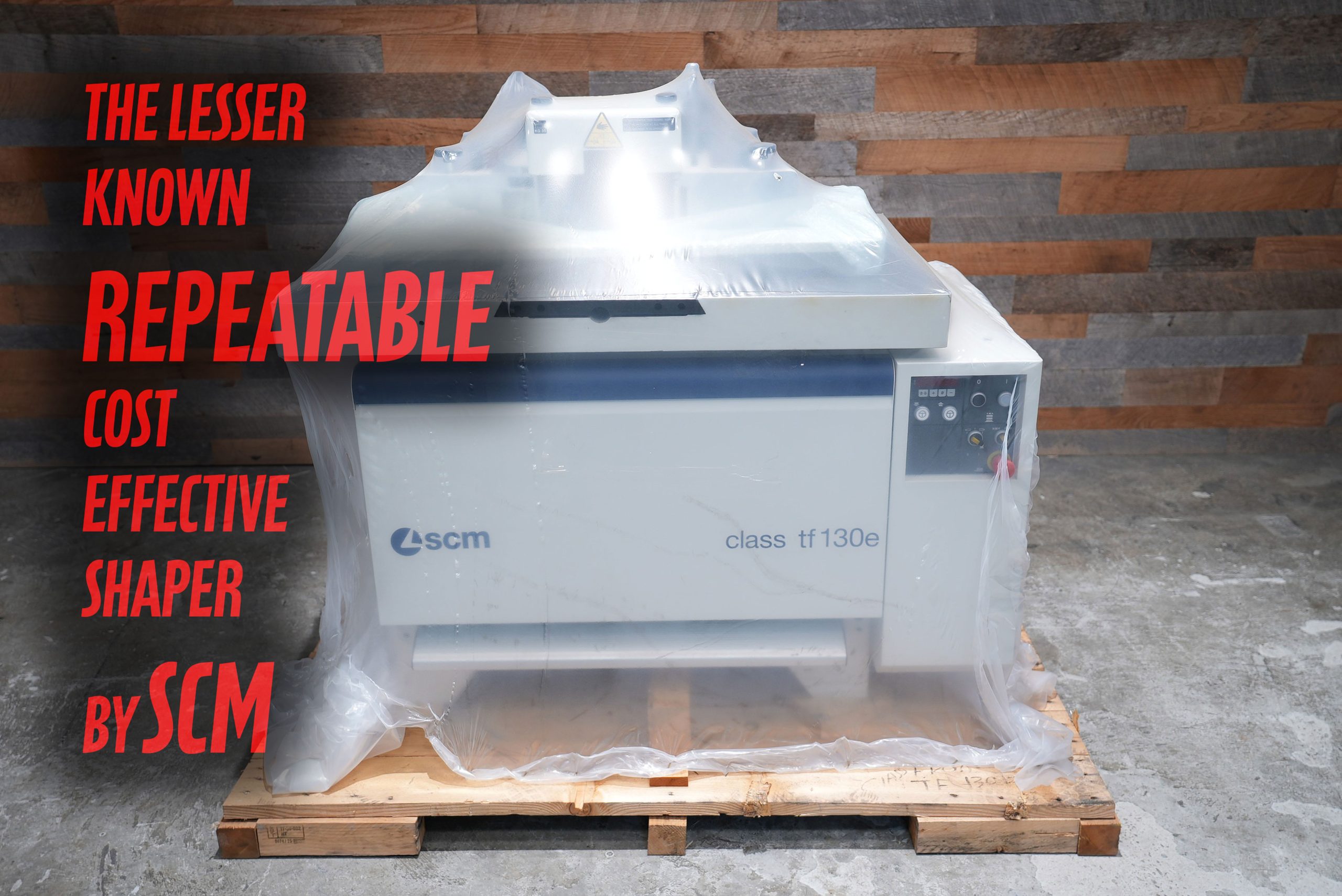

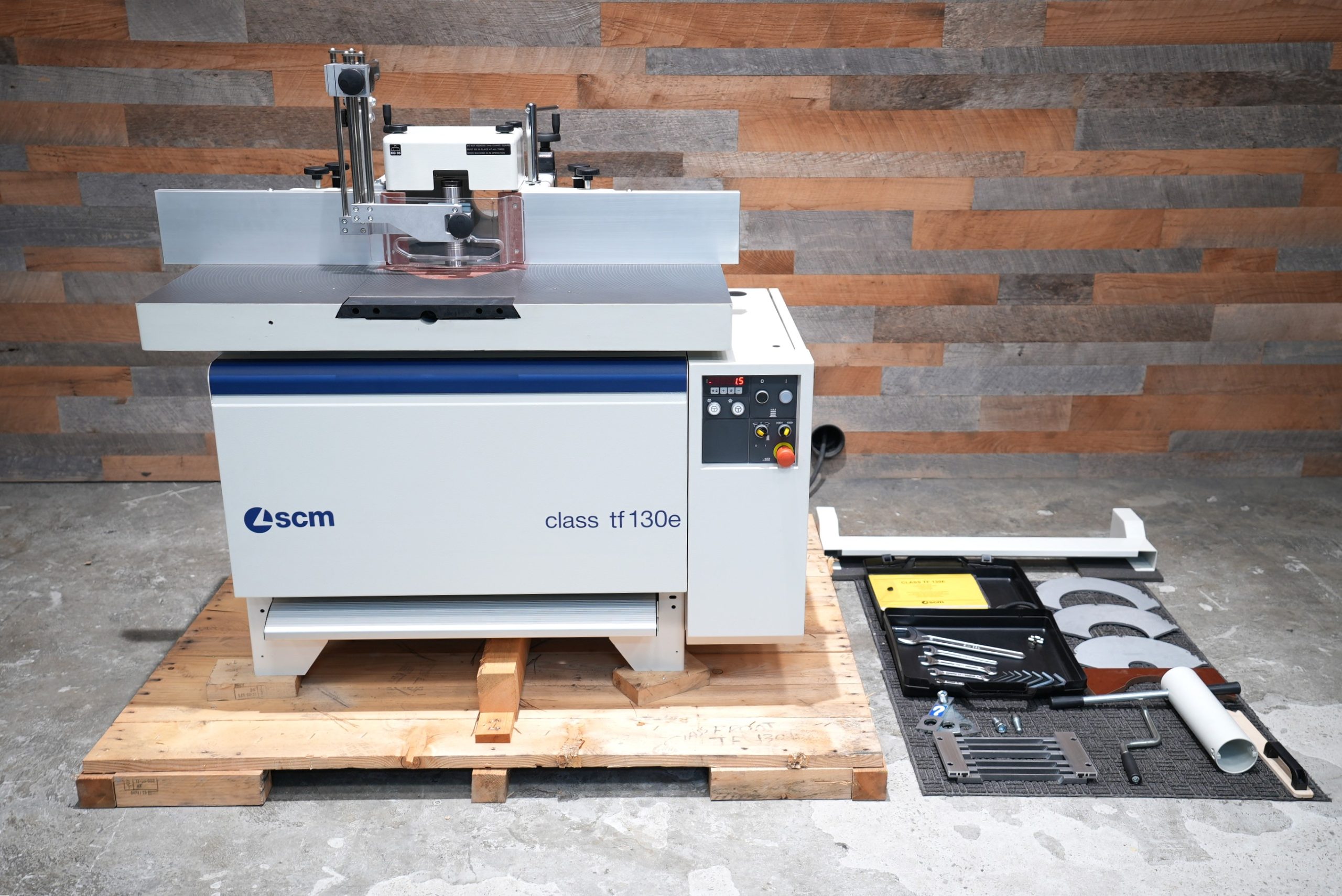

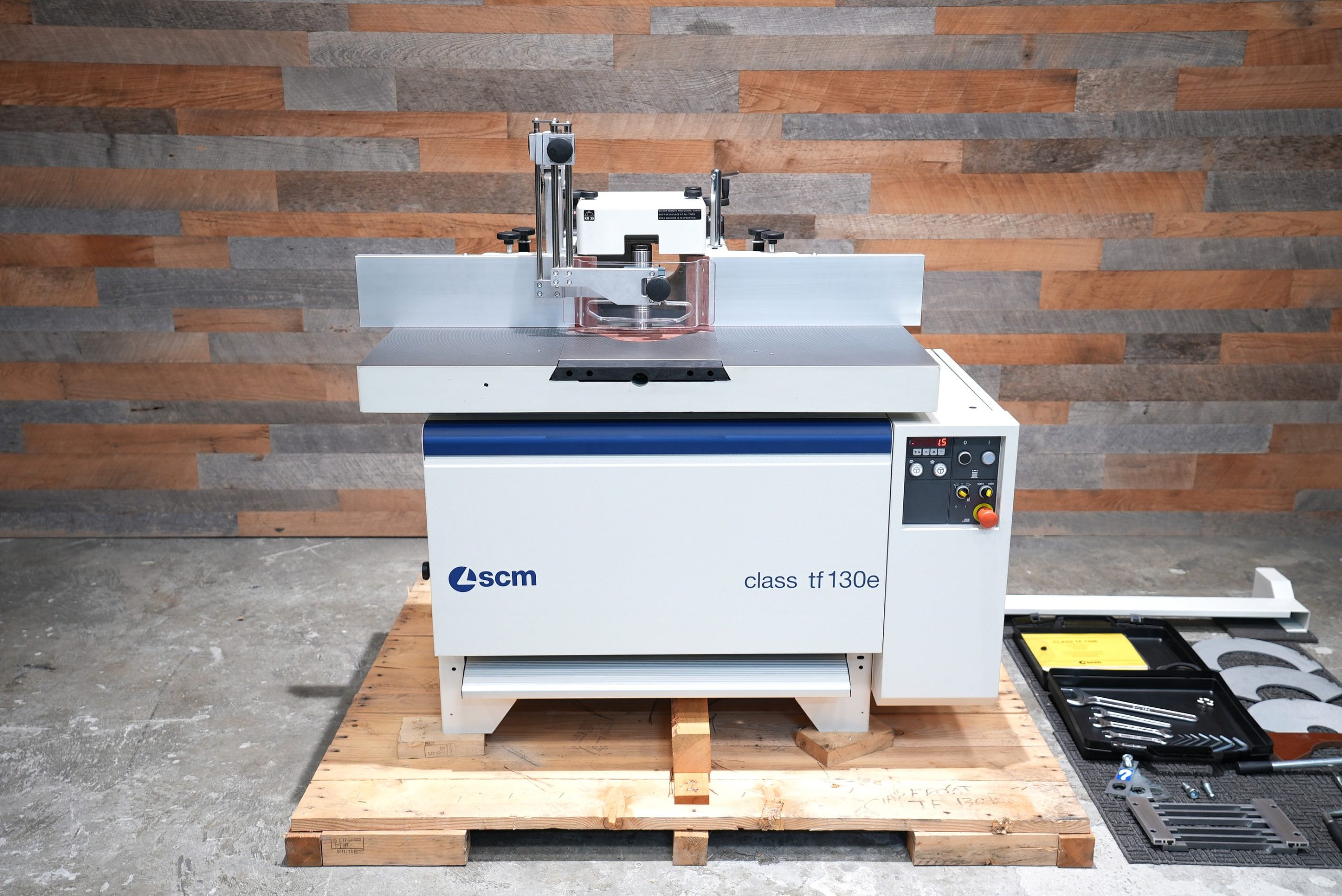

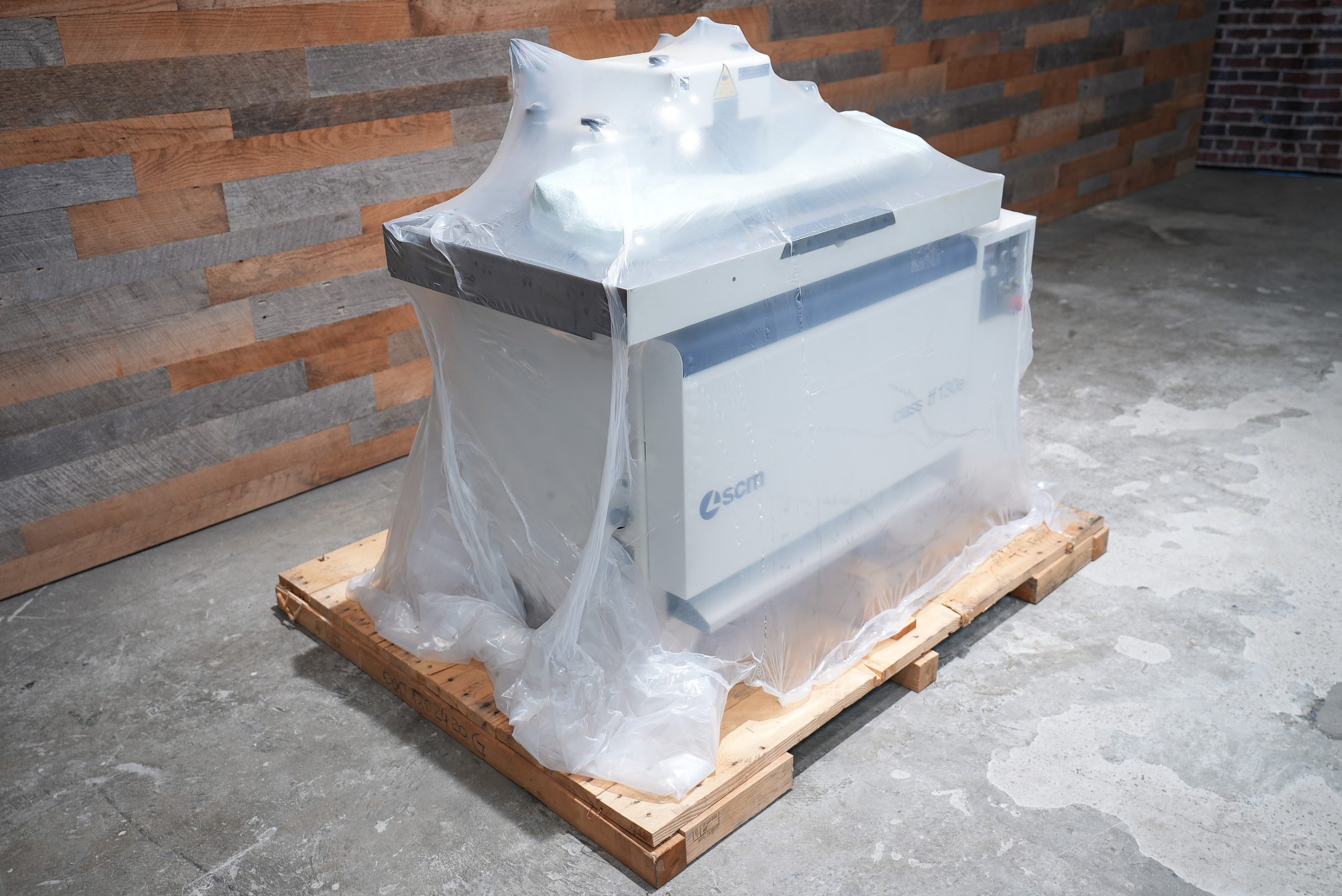

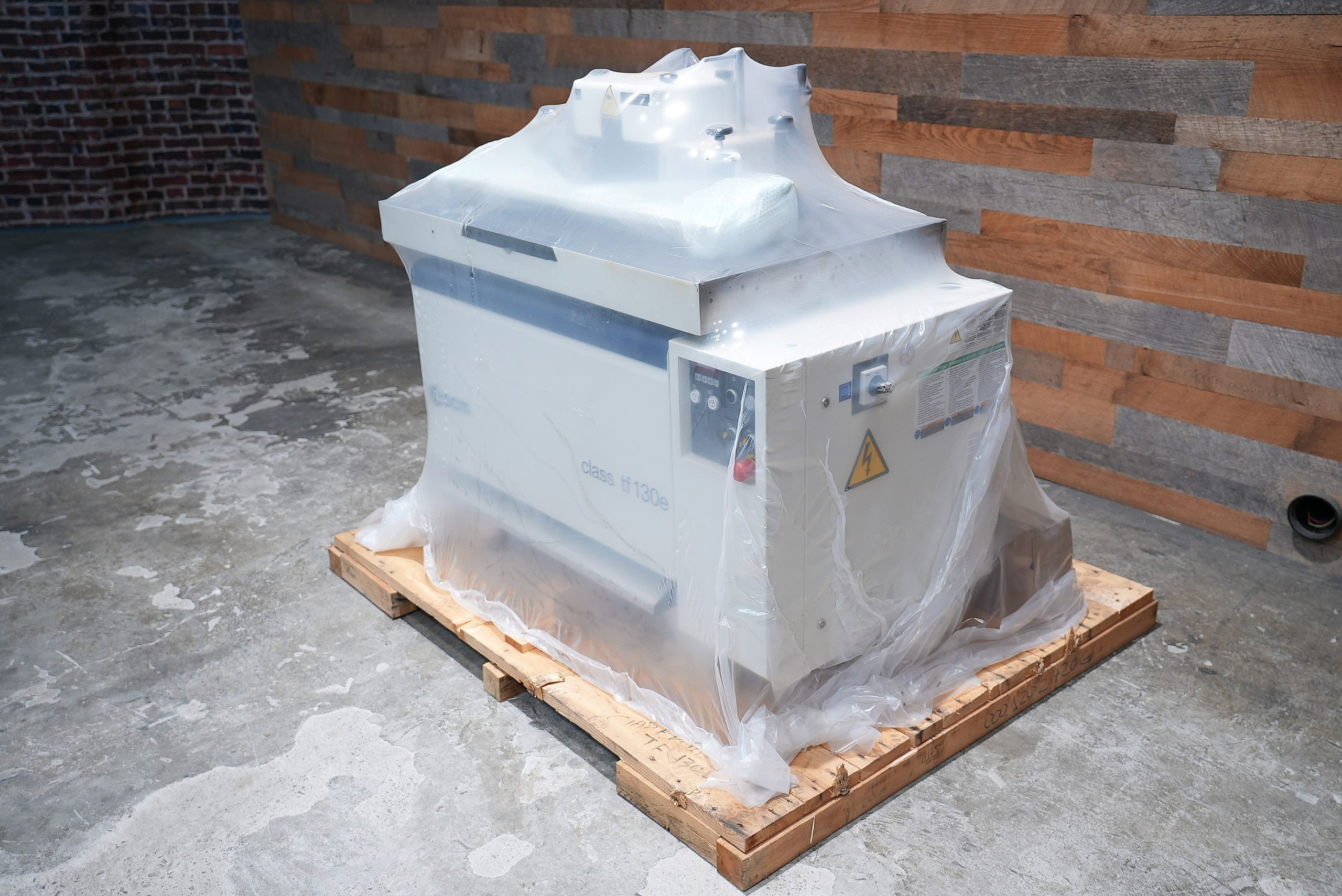

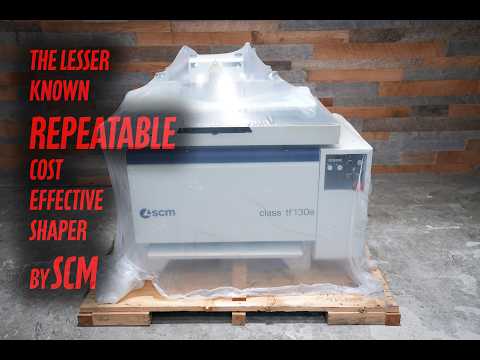

NEW SCM Class TF 130E Spindle Shaper W/Motorized Elevation – Save $1,500 + FREE SHIPPING
NEW SCM Class TF 130E Spindle Shaper W/Motorized Elevation – Save $1,500 + FREE SHIPPING
$18,977.50 Original price was: $18,977.50.$17,477.50Current price is: $17,477.50.
Categories Certified Pre-Owned Machinery, Jointers, New Machines, SCM, Shapers, Uncategorized
Tags Free Shipping*, Jointers
Brands SCM, SCM minimax

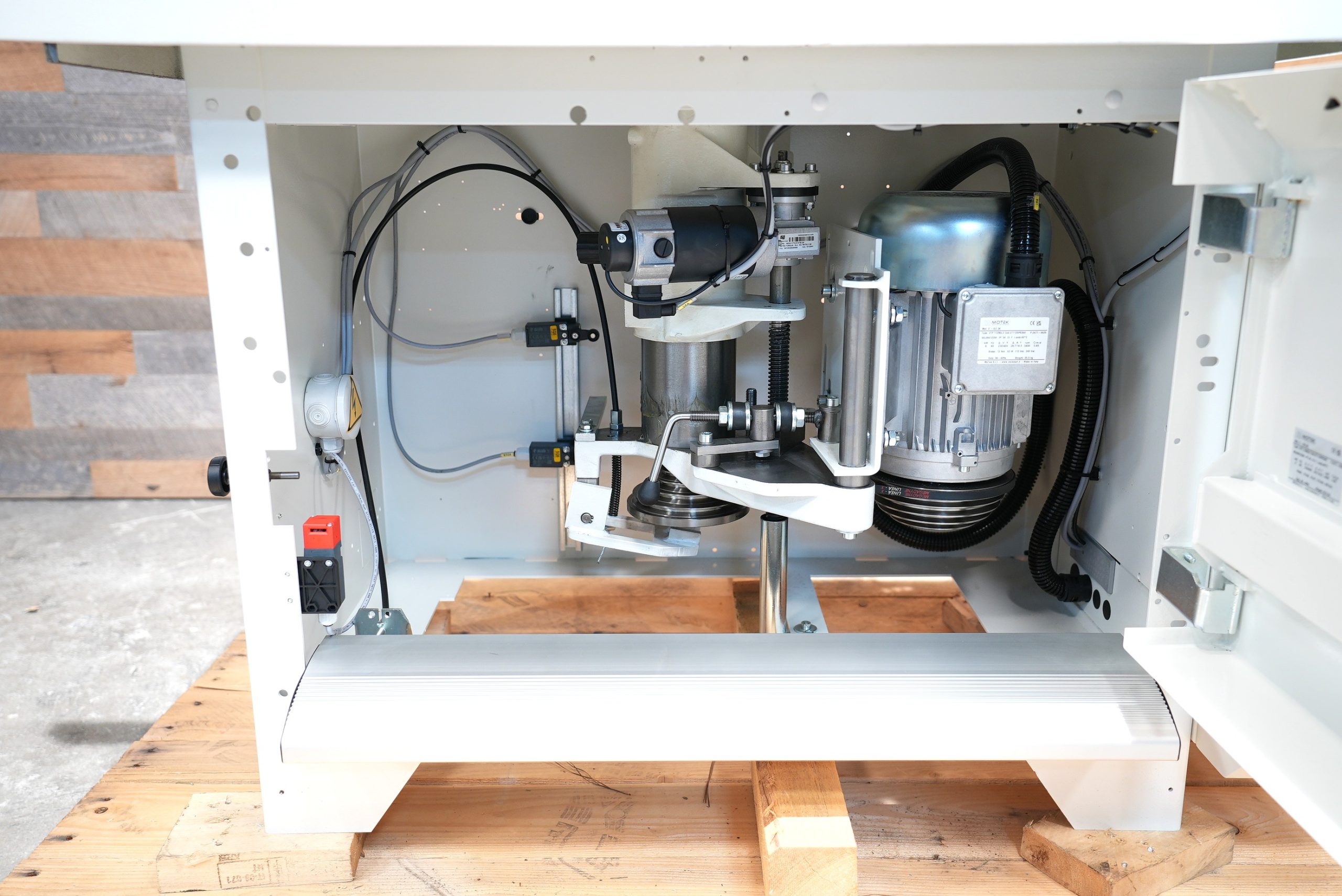

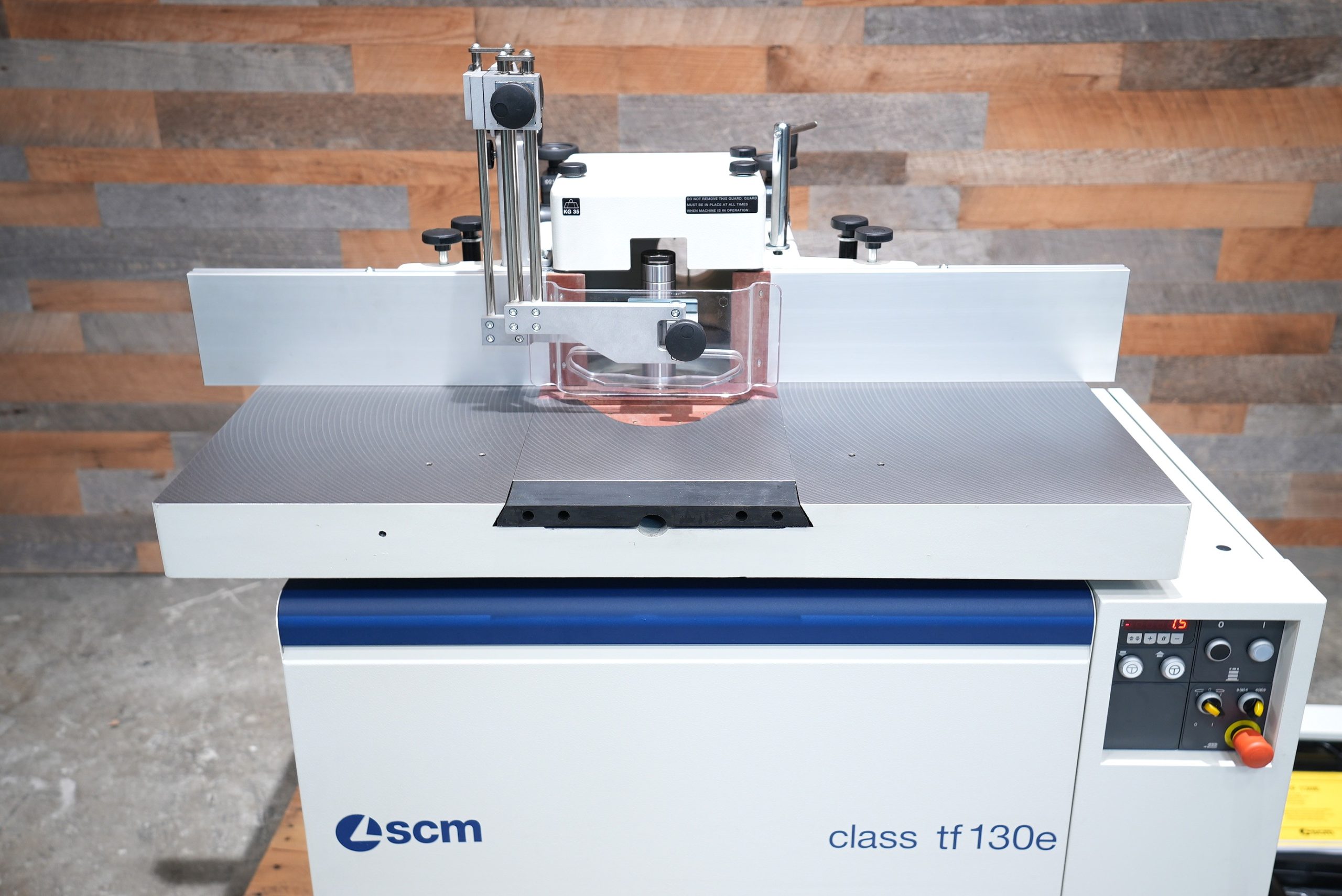

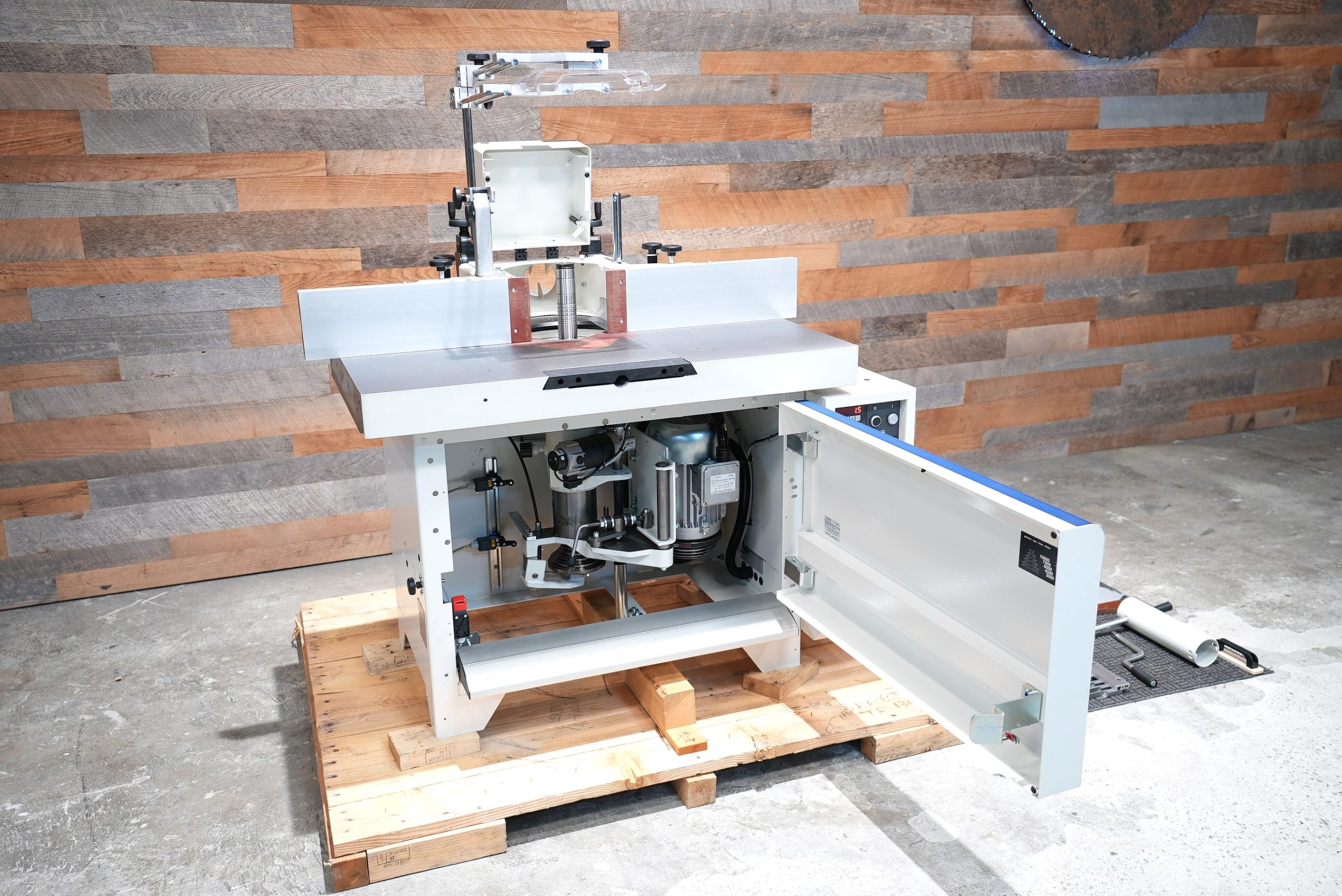

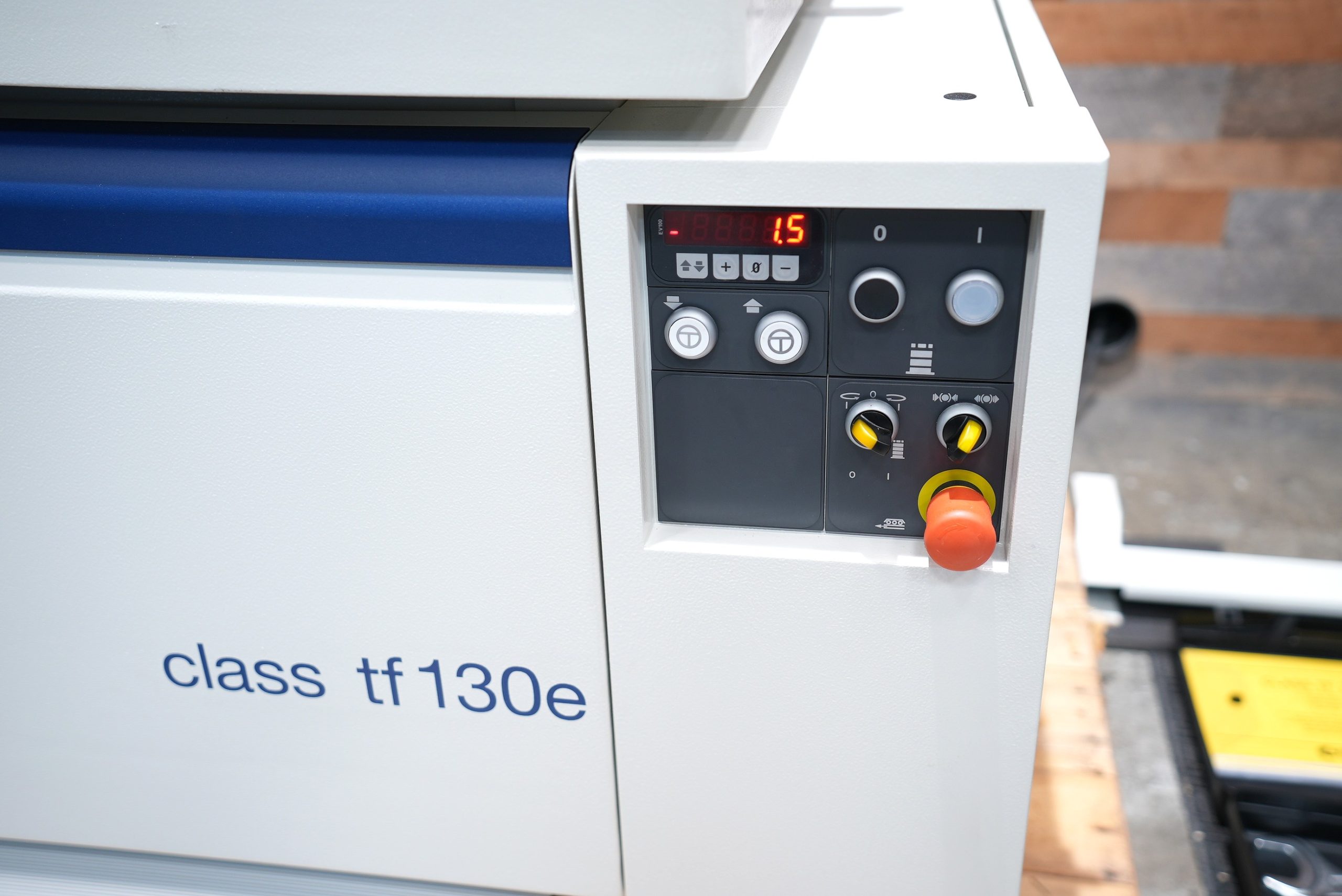

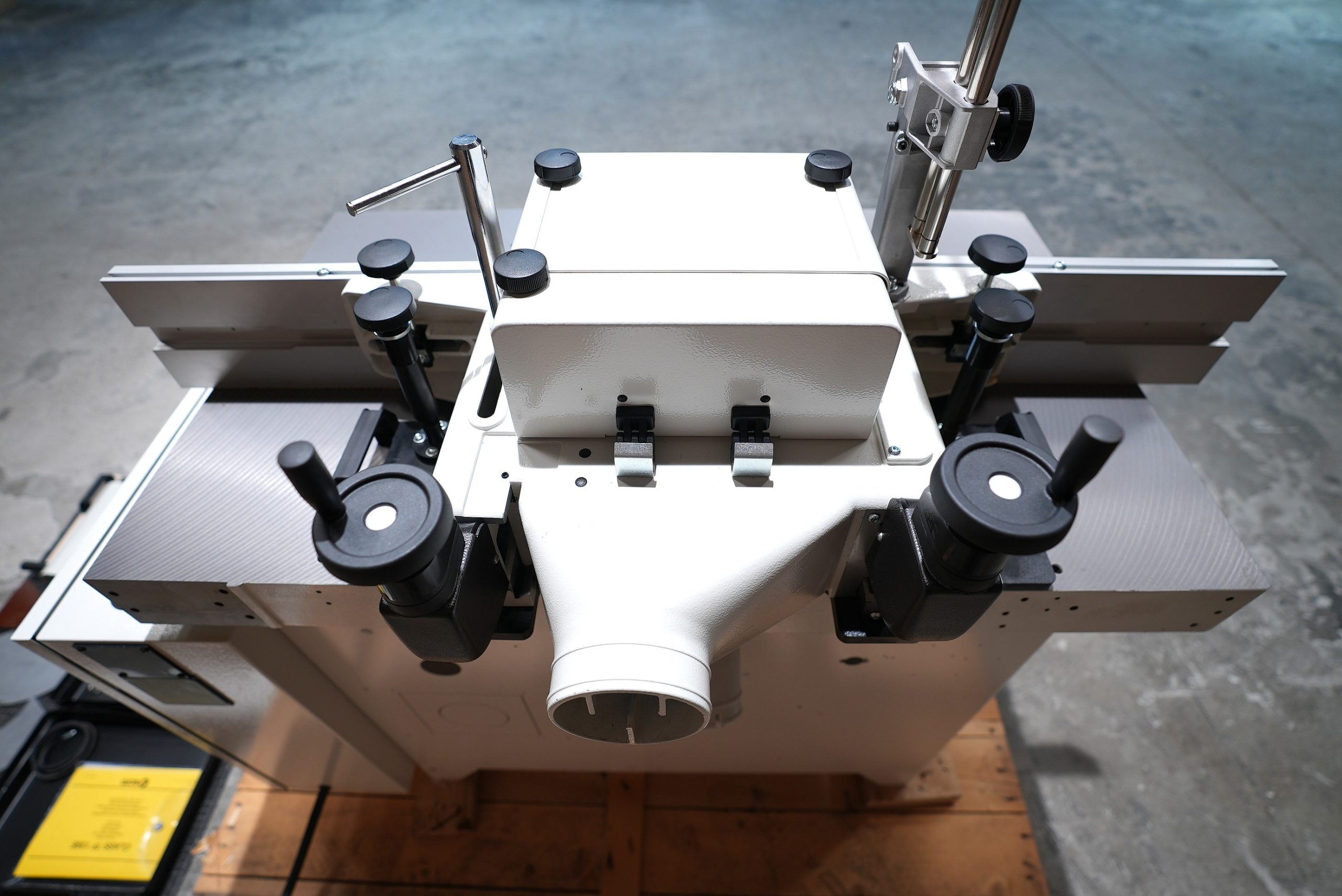

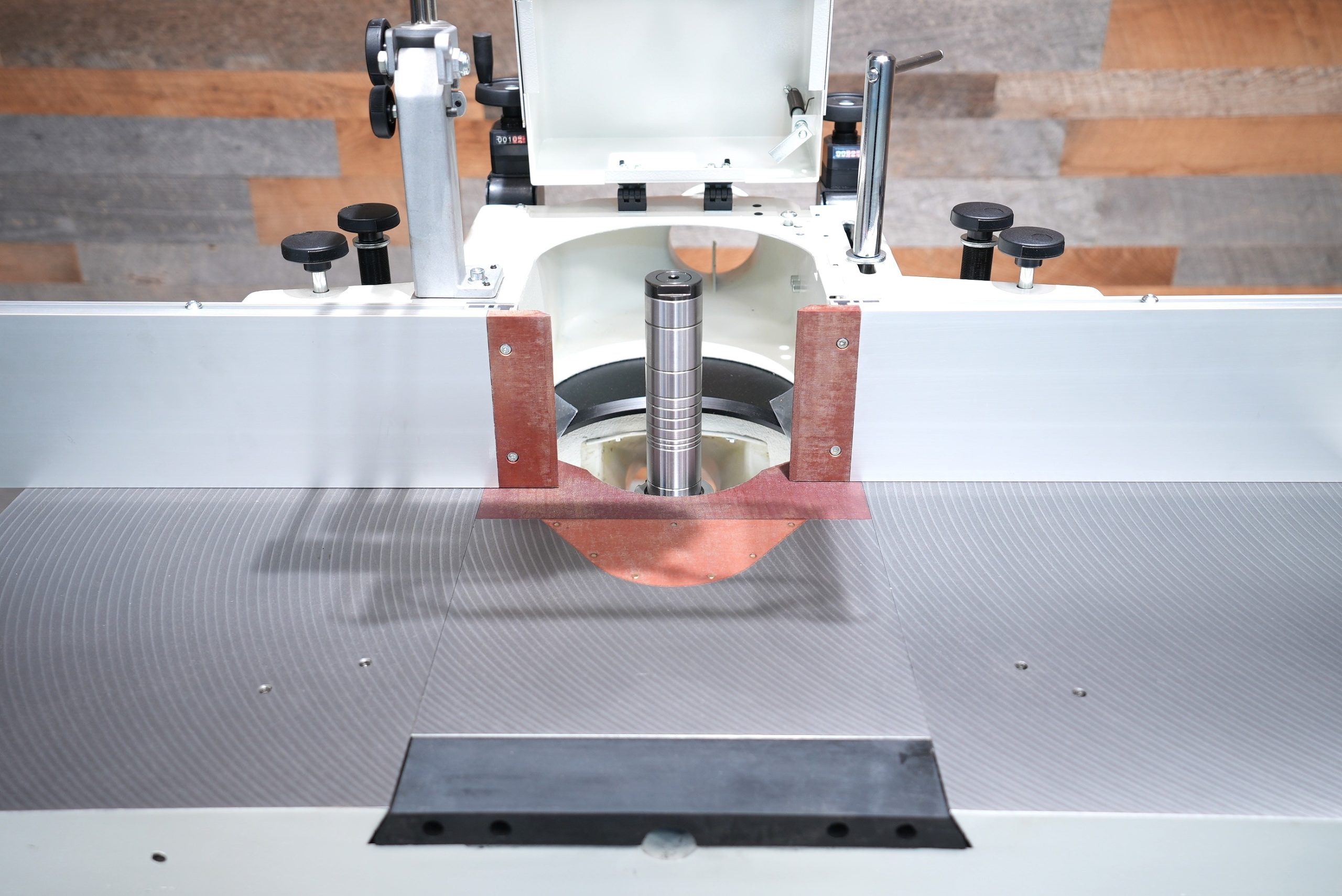

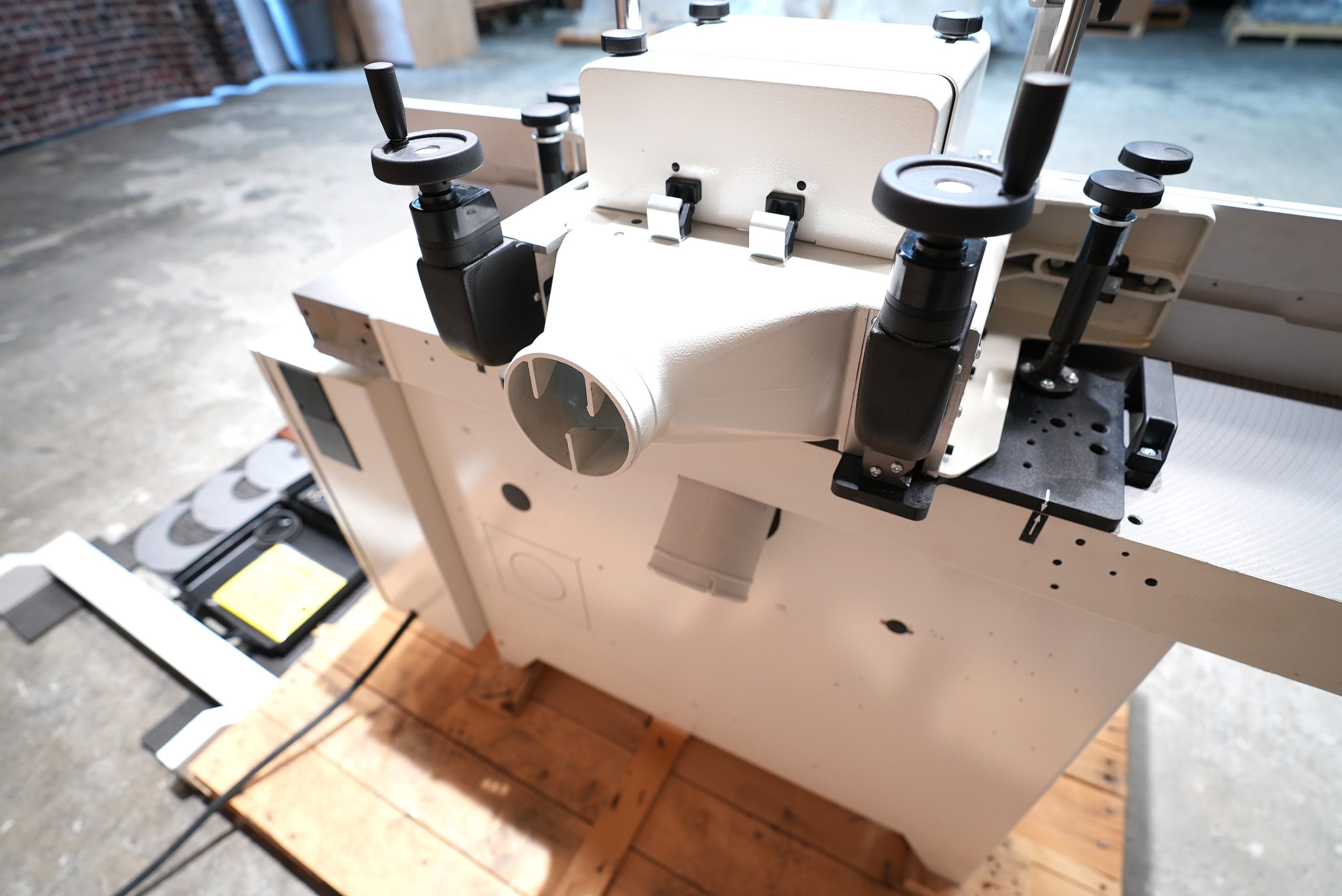

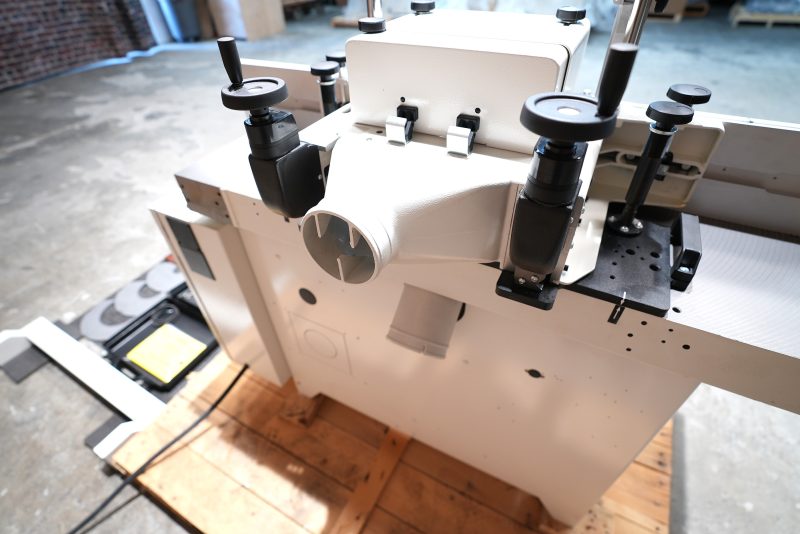

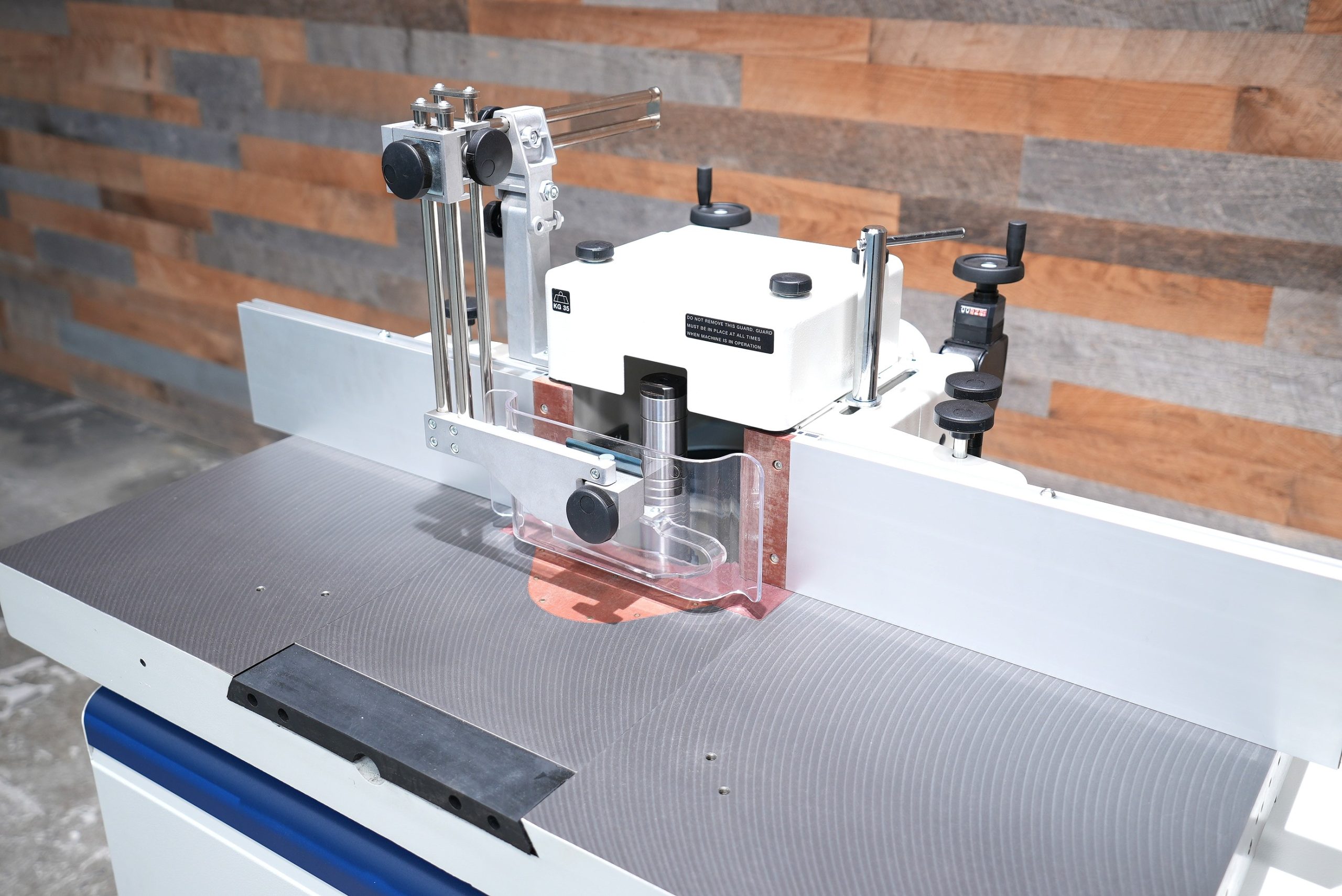

What is even better than a NEW SCM Class TF 130E Spindle Shaper? $1,500 OFF PLUS FREE shipping! If you follow us you will know that we highly regard the the SCM Class tf 130. Building on the 130 platform this Class tf 130 “e” adds motorized elevation of the spindle with steps of 1/10th of a mm. This allows accurate repeatability. Spinning tooling is the easy part. Accurate adjustment of the spindle and fence have become way more a necessity. This 130e addresses both issues. One with powered elevation of the spindle and the second with micro adjustable fences with numeric read outs. Furthermore the fence can be removed in under a minute, but can be returned to it’s exact position in the same time as well as it has a fixed set point on the table. Powering the 7″ capacity 1-1/4″spinde is an 11 hp motor. All this for well under $20,000. Who is this shaper for? Buyers who need repeatability, but don’t want to spend nearly 40K for a NC controlled Taiwanese machine or 50K-100K+ for a European one. At first glance the 130e seems simple……..it’s simplicity is what makes it so effective and powerful over the long haul especially considering it’s price point!
Specs & Features
Motor power: 11hp (8 kW)
Work table dimensions: 47.19″ x 28.69″ (1,200 x 730mm)

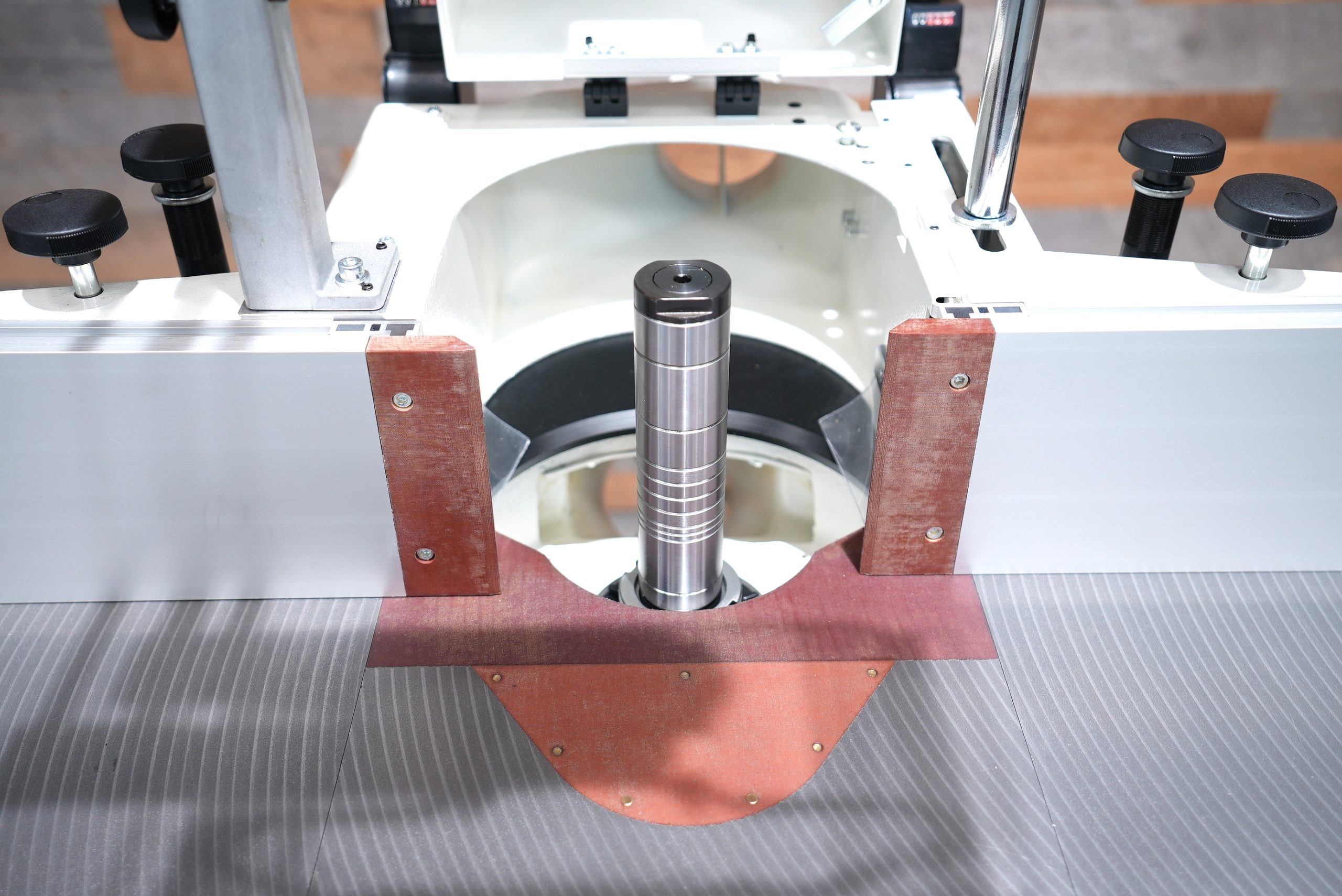

Working length of spindle: 7″ (180mm)
Spindle base projection: 3.56″ (92mm)
Max. tool dia. retractable (under table): 11.75″ x 3.31″ (300 x 85mm)
Dust port dia.: 4.69″ (120mm)
Spindle Speeds – 3,000/4,500/6,000/7,000/10,000
Table Inserts (3): 70/150/210 mm
*Electrical requirements: 220V, 3-phase, 25 A
