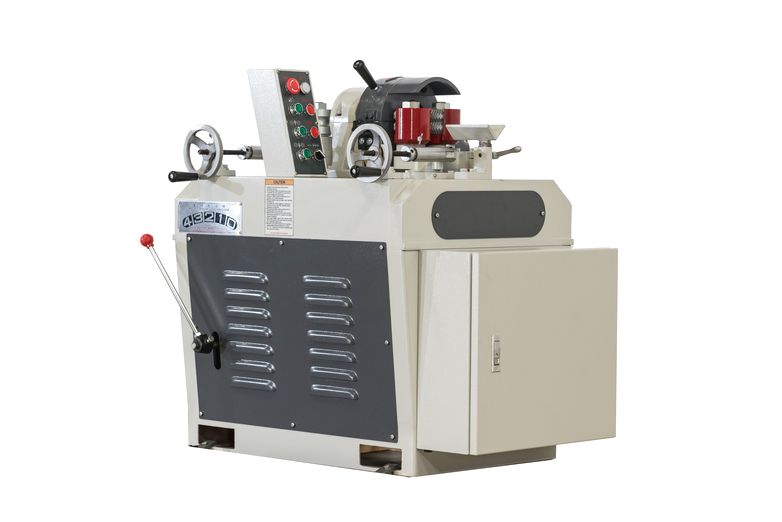

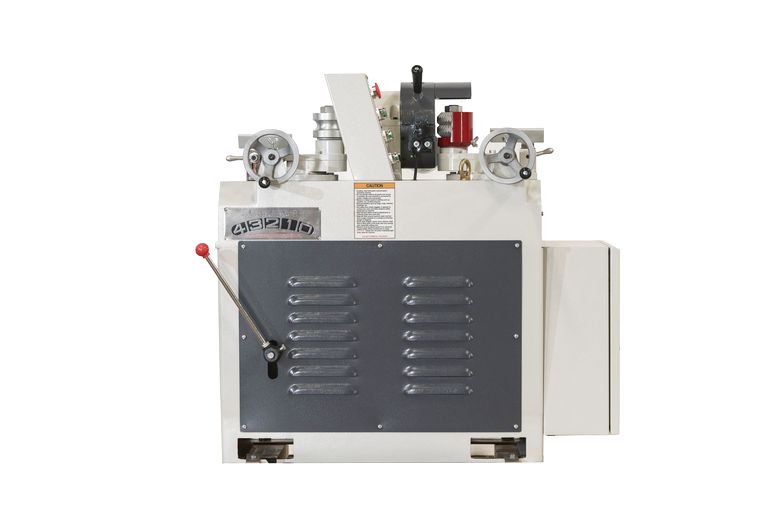

Northtech NT 60RM Round Rod Milling Machine

Northtech NT 60RM Round Rod Milling Machine

Categories Misc, New Machines, Northtech Machine, Northtech Profilers, Shapers Tags Profile, Round Rod Milling Machines, Shapers Brand: Northtech Machine

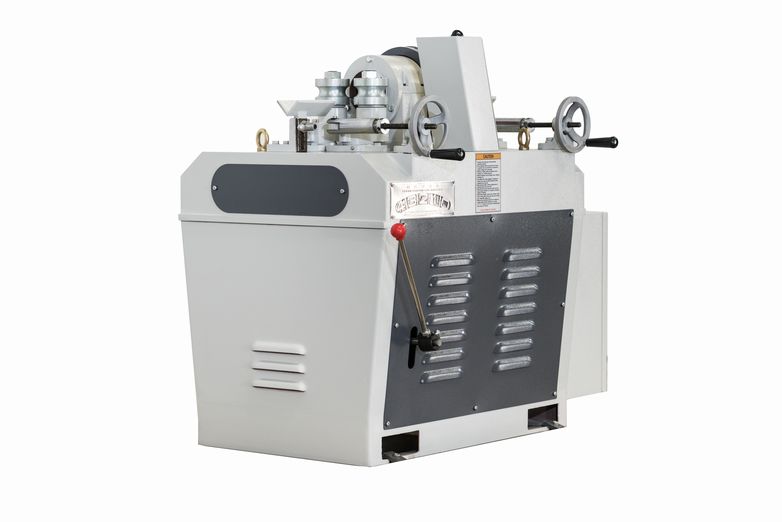

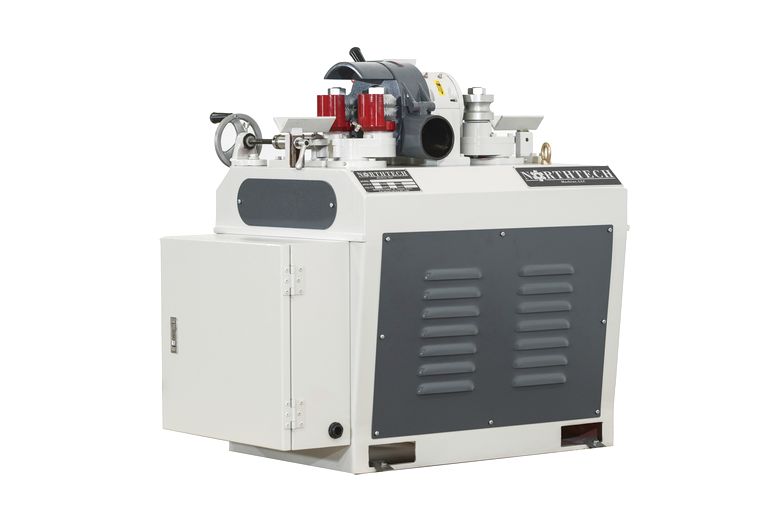

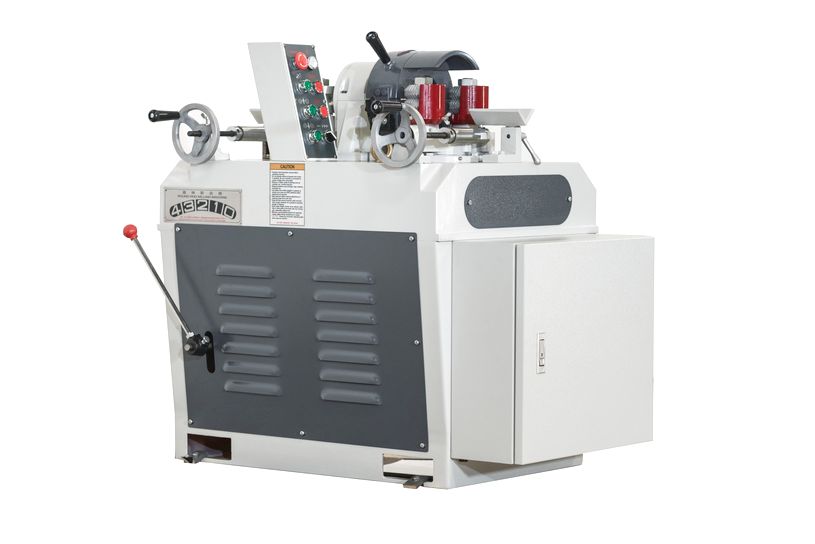

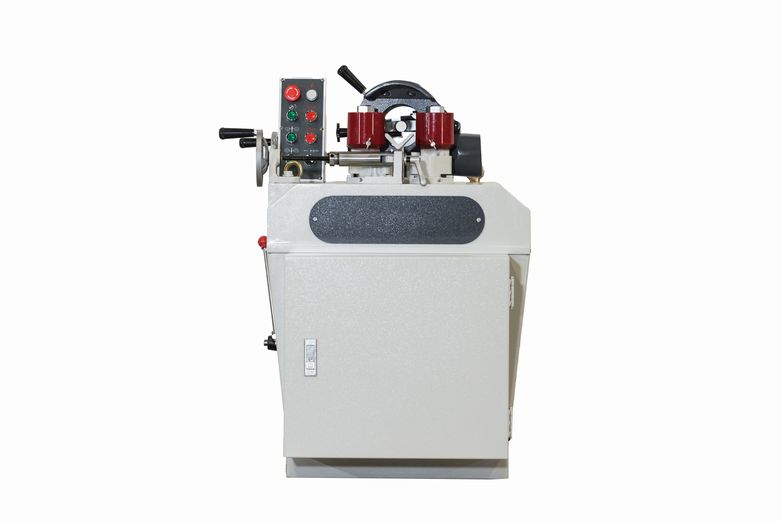

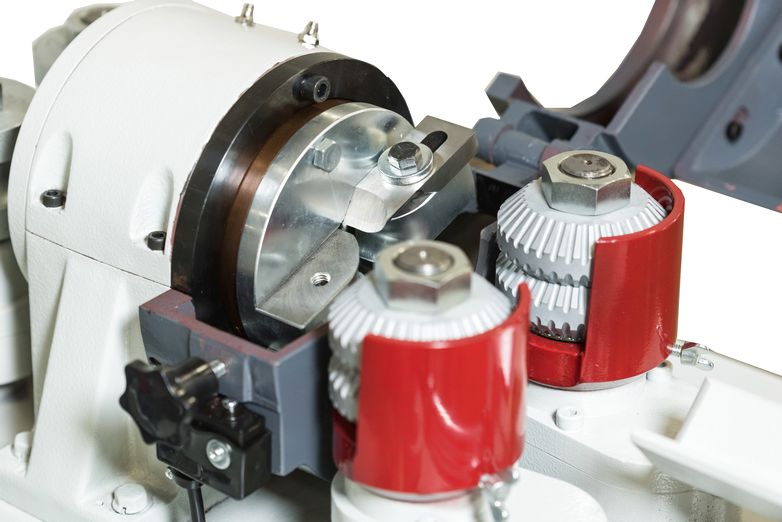

Northtech NT 60RM-532 (6825 RPM) Round Rod Milling Machine does just what the name suggests! This modest workhorse quickly and easily mills perfectly round rods up to 2″ in diameter from square stock with minimal operator effort. The single head with two (2) rows of cutters is driven by a 5 HP reversible 3-phase electric motor to efficiently and effectively accomplish high production rates. The material of any length, 13″ and up, is smoothly fed through the mill by two infeed and two outfeed gear-driven rollers linked to a 2 HP reversible motor. The rollers can be manually adjusted among four (4) speeds between 32 and 51 FPM to ensure smooth results across many species of stock.

Add to Quote Request

Specs & Features

Specifications:

Main Motor Hp. = 5 hp.
Reverse Motor = Reversible
Machine Hp. = 7.5 hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 22/11 Amps
Configuration = Single Head
Cutterhead RPM = 6825 RPM
1st Head = 3/8” – 2-1/2” Cutter Heads
Feed Hp. = 2 Hp.

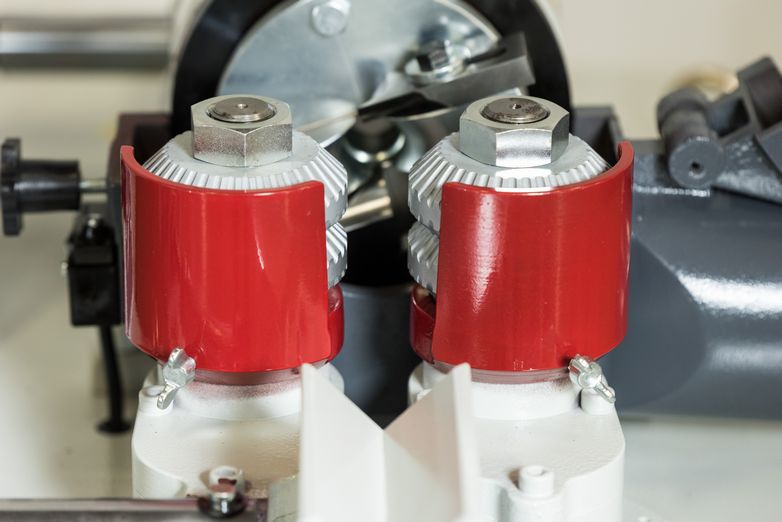

Feed System = 2 Infeed 2 Outfeed Rollers

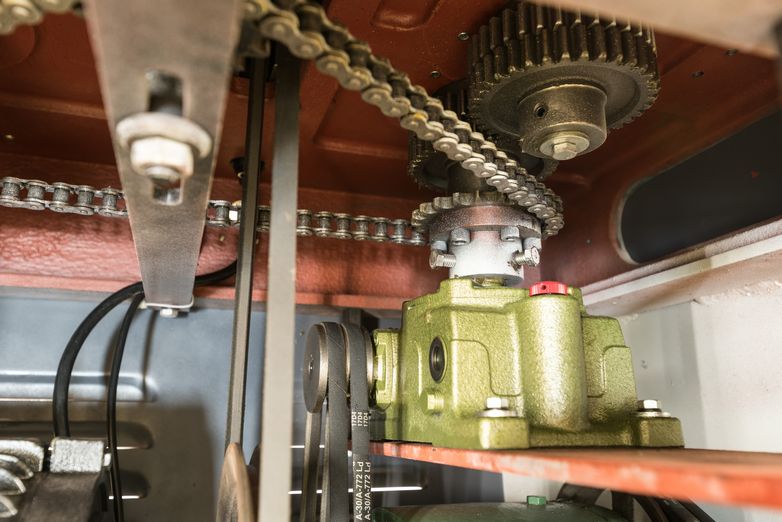

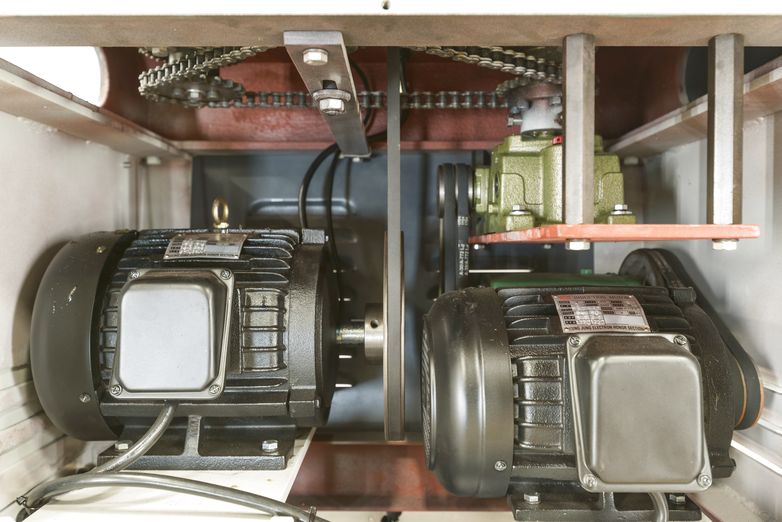

Drive System = Gearbox and Chain Driven
Feed Speed = 30 – 100 FPM

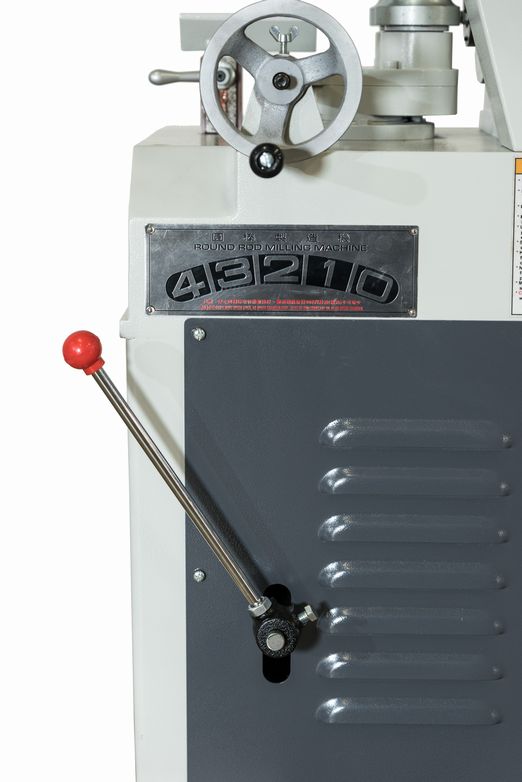

Variable Speed = 4 Speed Manual Adjustment
Reverse Feed = Reversible Feed

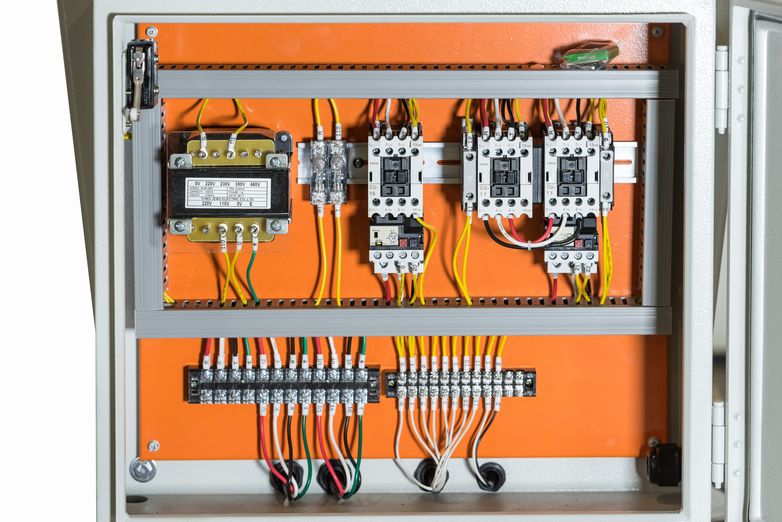

Electronics = UL Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 110 Volt

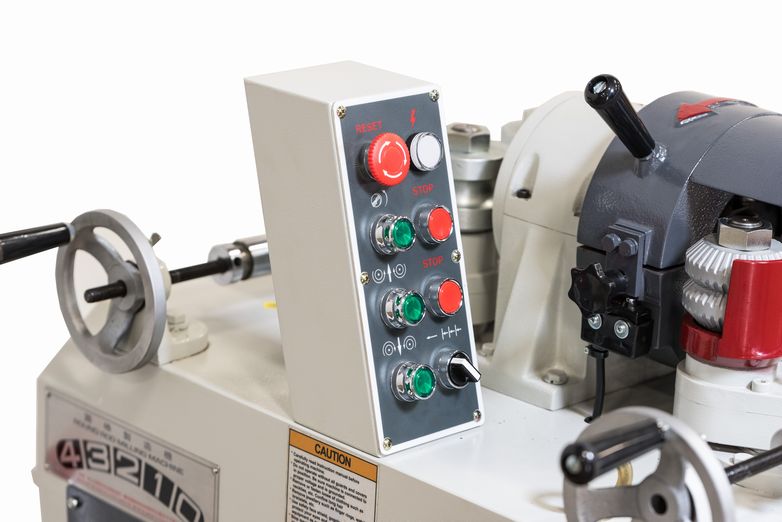

Operator Panel = Fixed
Pass-Line = 38”
Min. Length = 13” Single Feed
Max. Diameter = 2”
Min. Diameter = 3/8”
Tooling = 12mm/18mm HSS Tipped Blade
Rows of Cutters = 2 Cutters
Dust Collection = (1) 4” @ 450 CFM
Powered Rollers = (4) Powered Rollers
Emergency Stop = Push Button
Guarding = Full Enclosure
Frame Const. = 1/2” Steel Construction
Decible Rating = 86 dB
Net Weight = 825 Lbs.
Gross Weight = 928 Lbs.
Machine Dims. = 24” x 38 x 38”
Packaging Dims = 32” x 46” x 46”
