Larick 700 Series Feed‑Through Profile/Brush Sander
Larick 700 Series Feed‑Through Profile/Brush Sander

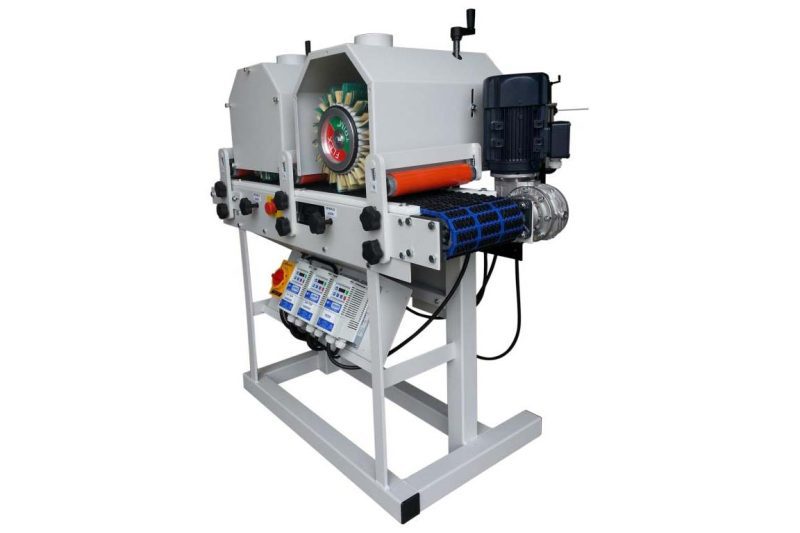

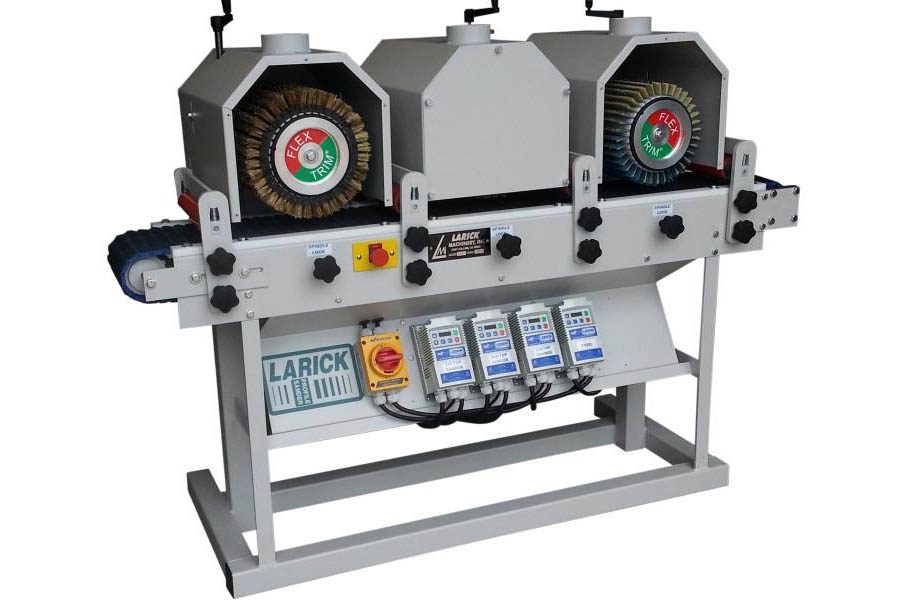

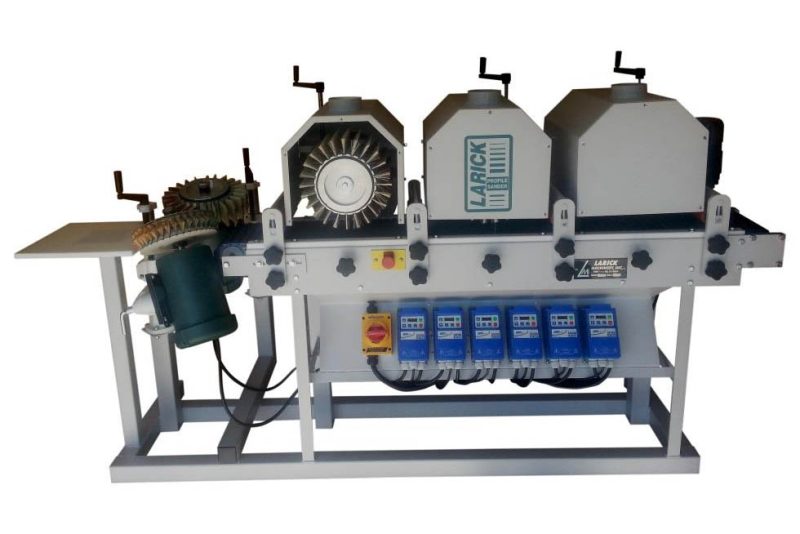

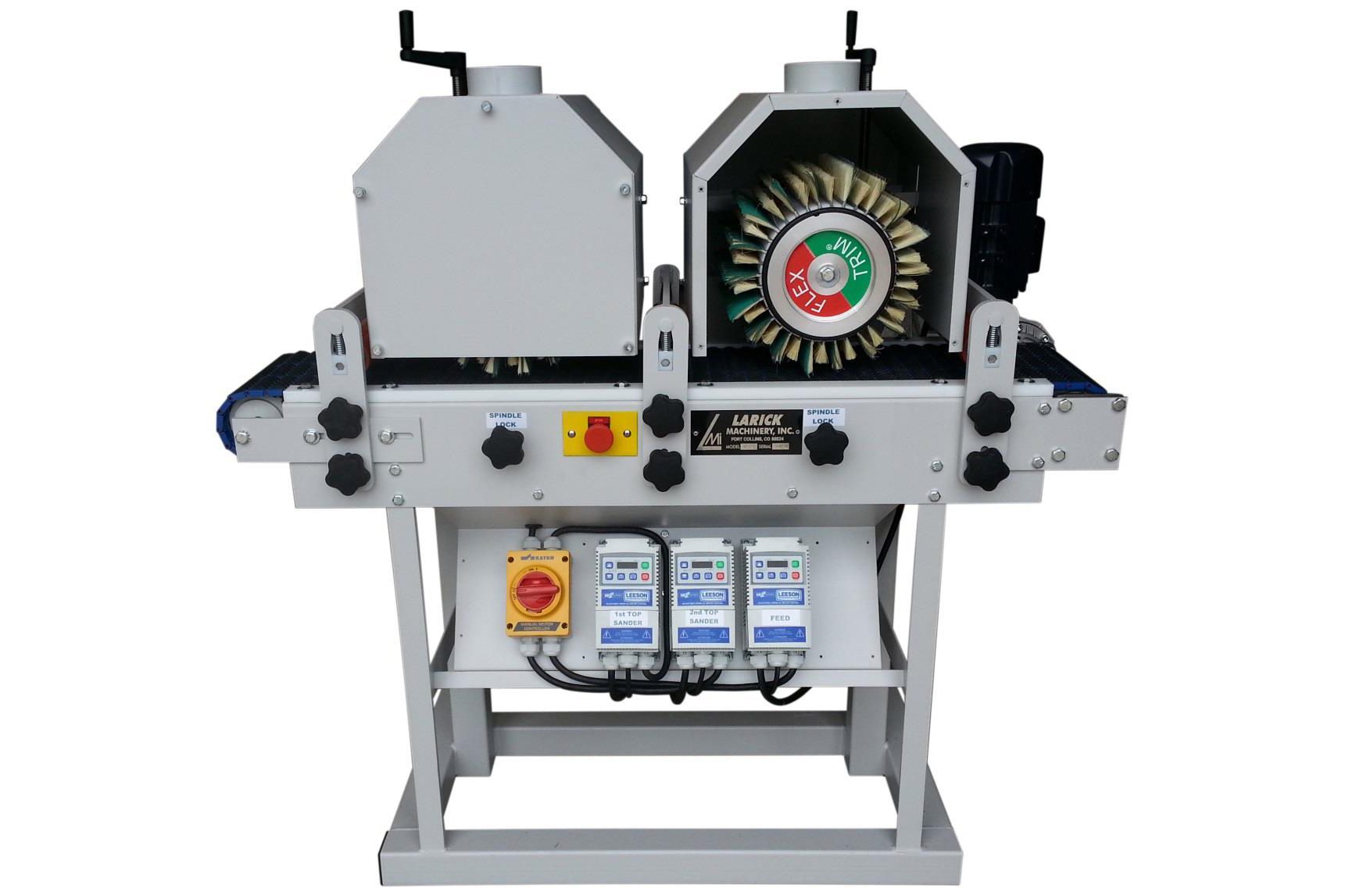

Larick 700 Profile Sander
The versatile 700 Series customizable feed-through profile sander by Larick is perfect for distressing, polishing, denibbing, and sealer sanding wood, metal, or plastic. A variable speed conveyor runs under the top sanders to ensure precise and consistent results. This feed-through brush/profile sander can also be custom configured to your specific needs with 2, 3, or 4 top sanding spindles and with or without universal side sanding stations. You can also choose between a 9- or 15-inch conveyor width.
Specs & Features
Features:
| 2, 3, or 4 Top Heads |
| Optional Side Sanding Heads |
| Standard Conveyor Width is 9″ – Increase to 15″ w/ Available Wide Conveyor Option |
| Brush-type Sanding Wheels, Wire Brushes, or Inflatable Drums Can Be Used |
| Larick’s Compact Design Minimizes Floor Space Requirements |
| Durable and Dependable, Like All Larick Products |
Specifications:
Motors: |
1 HP / 6-Pole / Three-Phase | |
| *Higher HP Options Are Available! Contact Us Today! —————–> | [ENQUIRY_BUTTON_DYNAMIC] | |
Voltage: |
208-240v / Single-Phase (Split-Phase) / 50-60hz | |
| 208-240v / Three-Phase / 50-60hz | ||
| 400-480v / Three-Phase / 50-60hz | ||
Variable Speed: |
AC Inverter 150-600 rpm | |
Arbor: |
1.25″ Dia. by 11″ Long | |
Vertical Travel: |
6″ | |
Conveyor Width: |
9″ | |
| 15″ (*Optional) | ||
Conveyor Height: |
36″ | |
Machine Length: |
47″ (w/ 2 Top Heads Only) | |
| *Add 17” Per Additional Top Head | ||
| *Add 26” For Side Heads Option | ||
Machine Width: |
33″ (w/ 9″ Conveyor) | |
| 39″ (w/ 15″ Conveyor) | ||
Air Pressure Required: |
None | |
Dust Collection Ports: |
4″ On Each Top Head |
