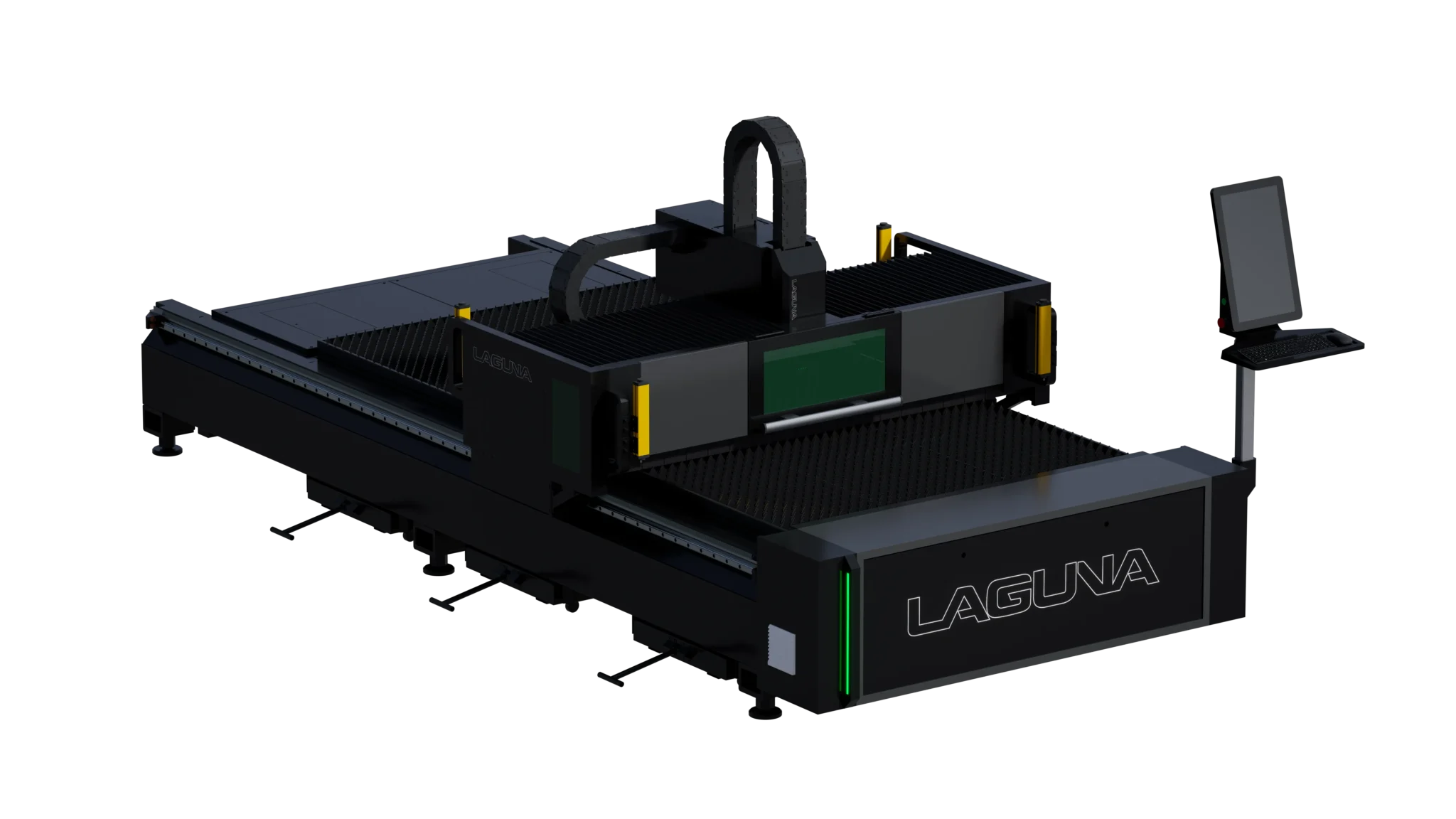

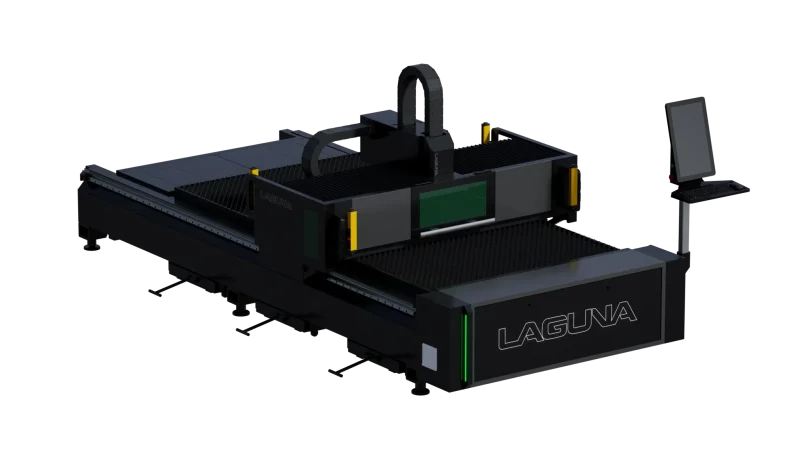

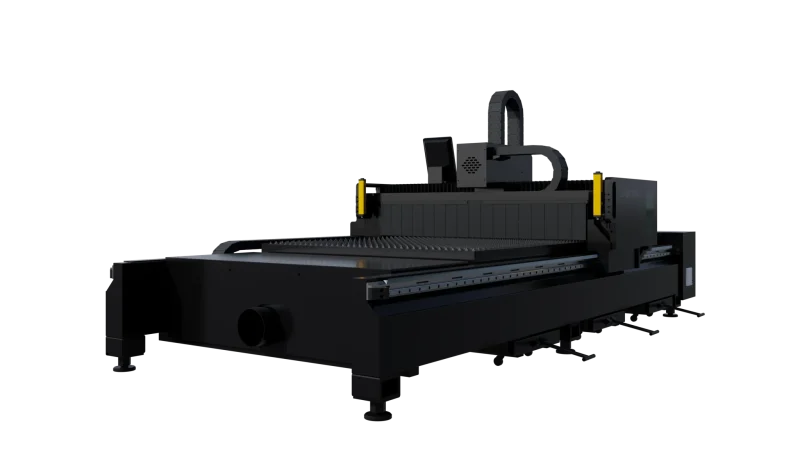

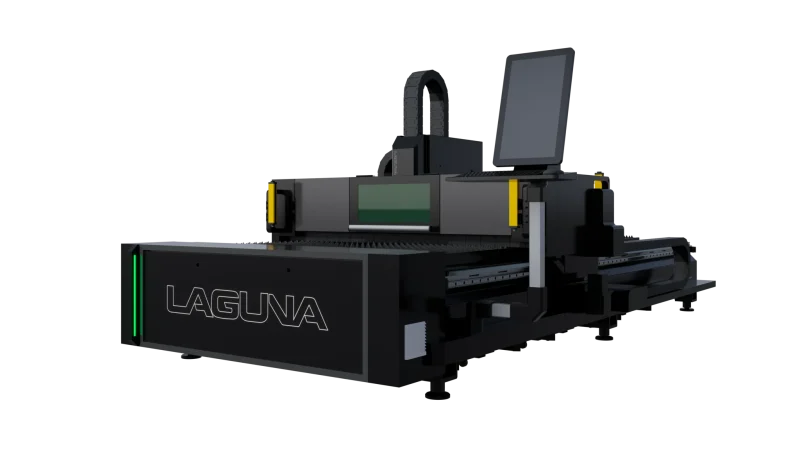

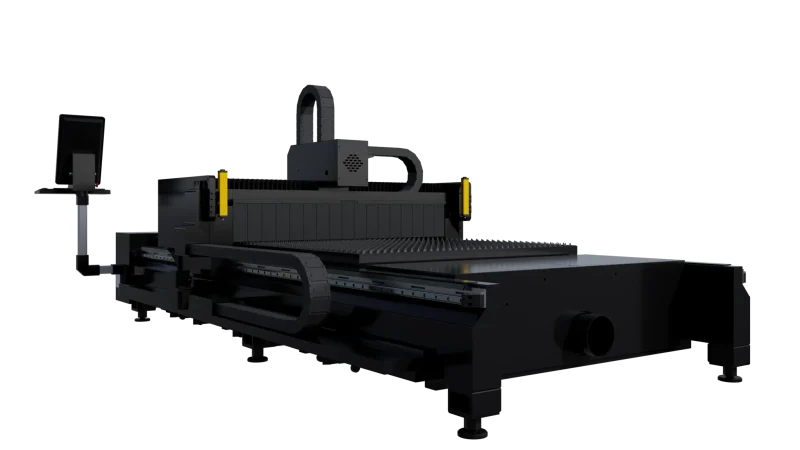

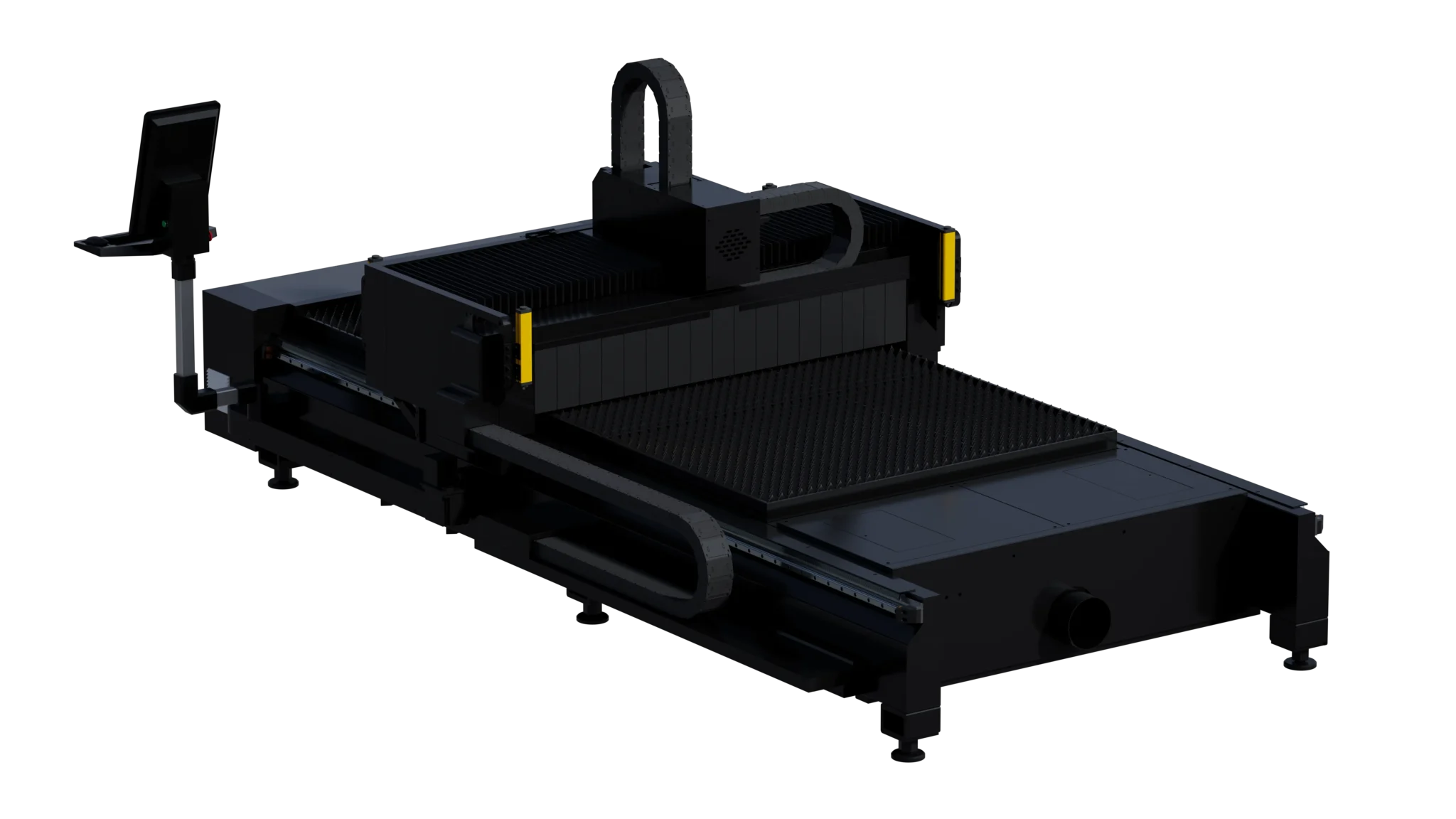

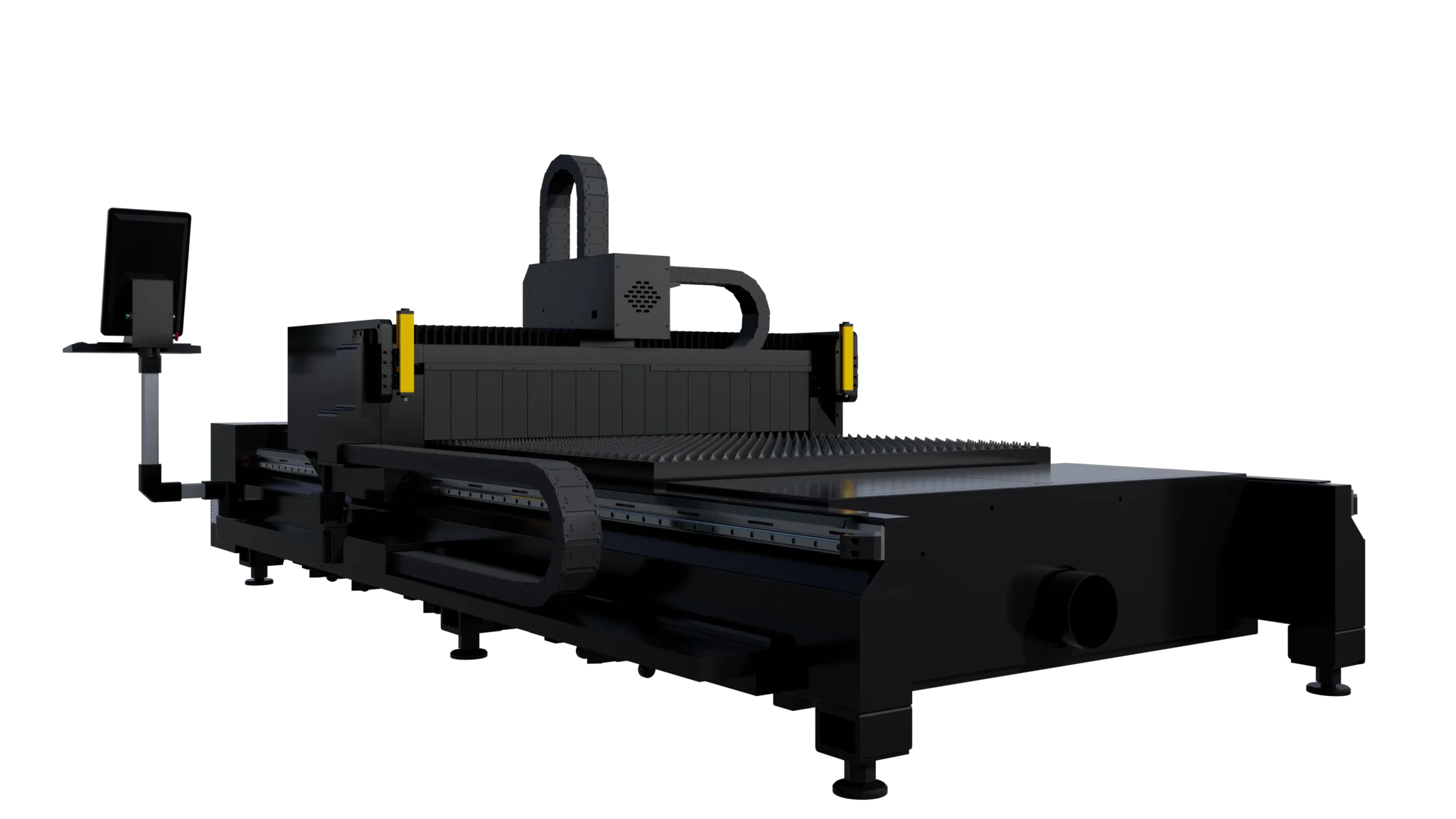

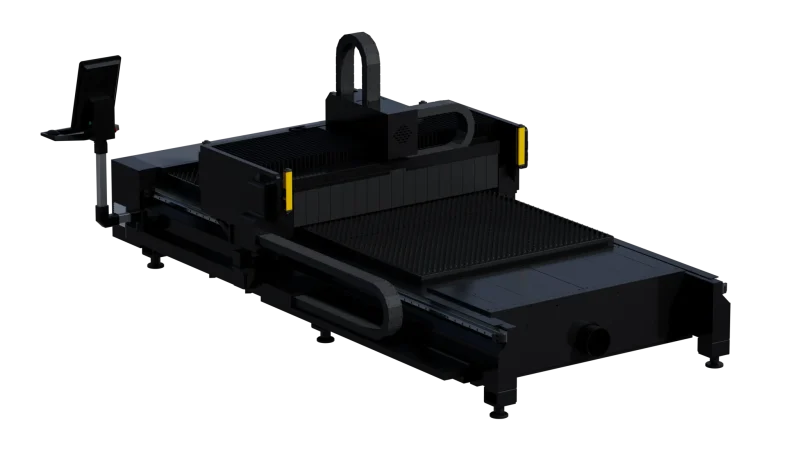

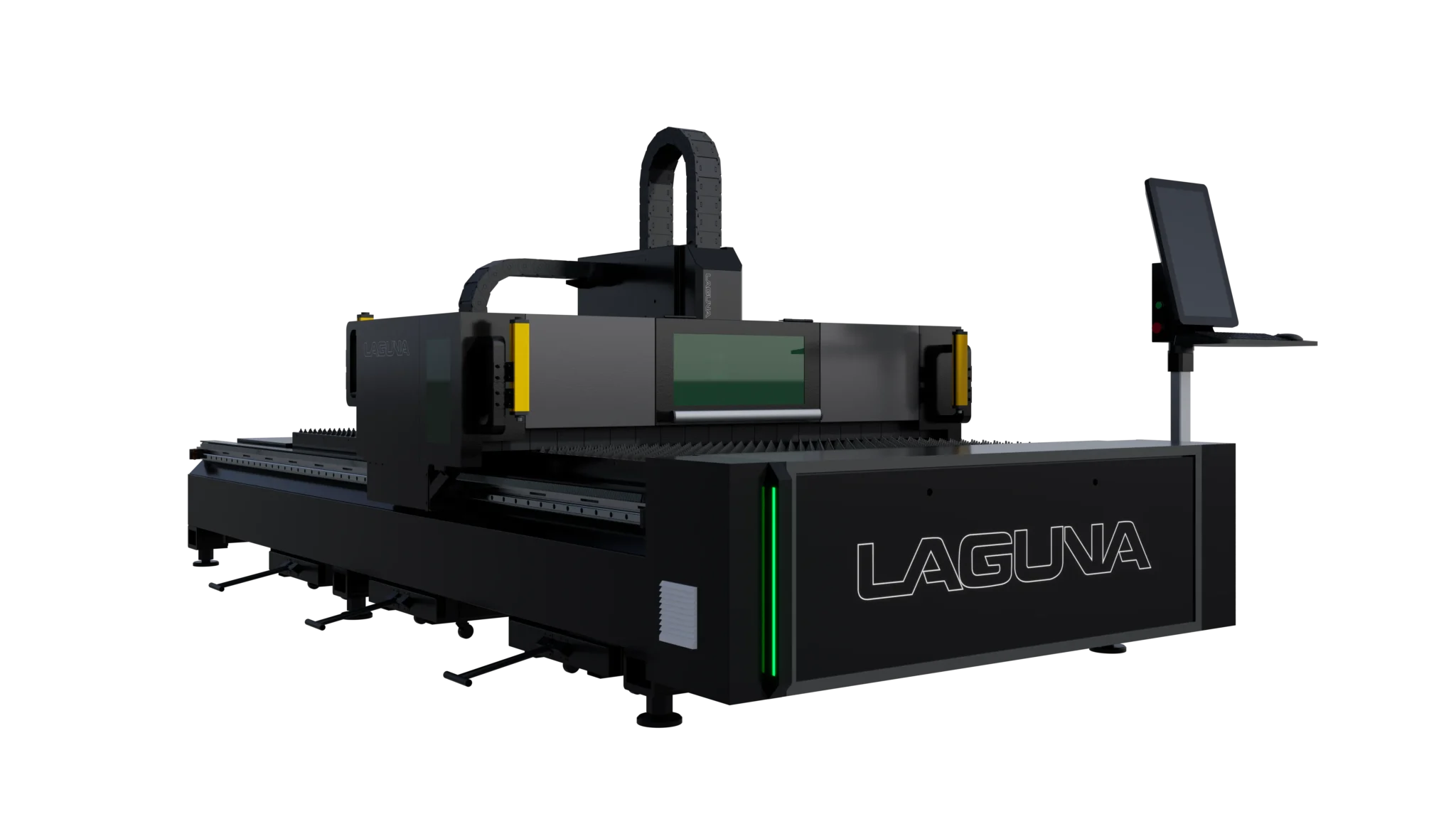

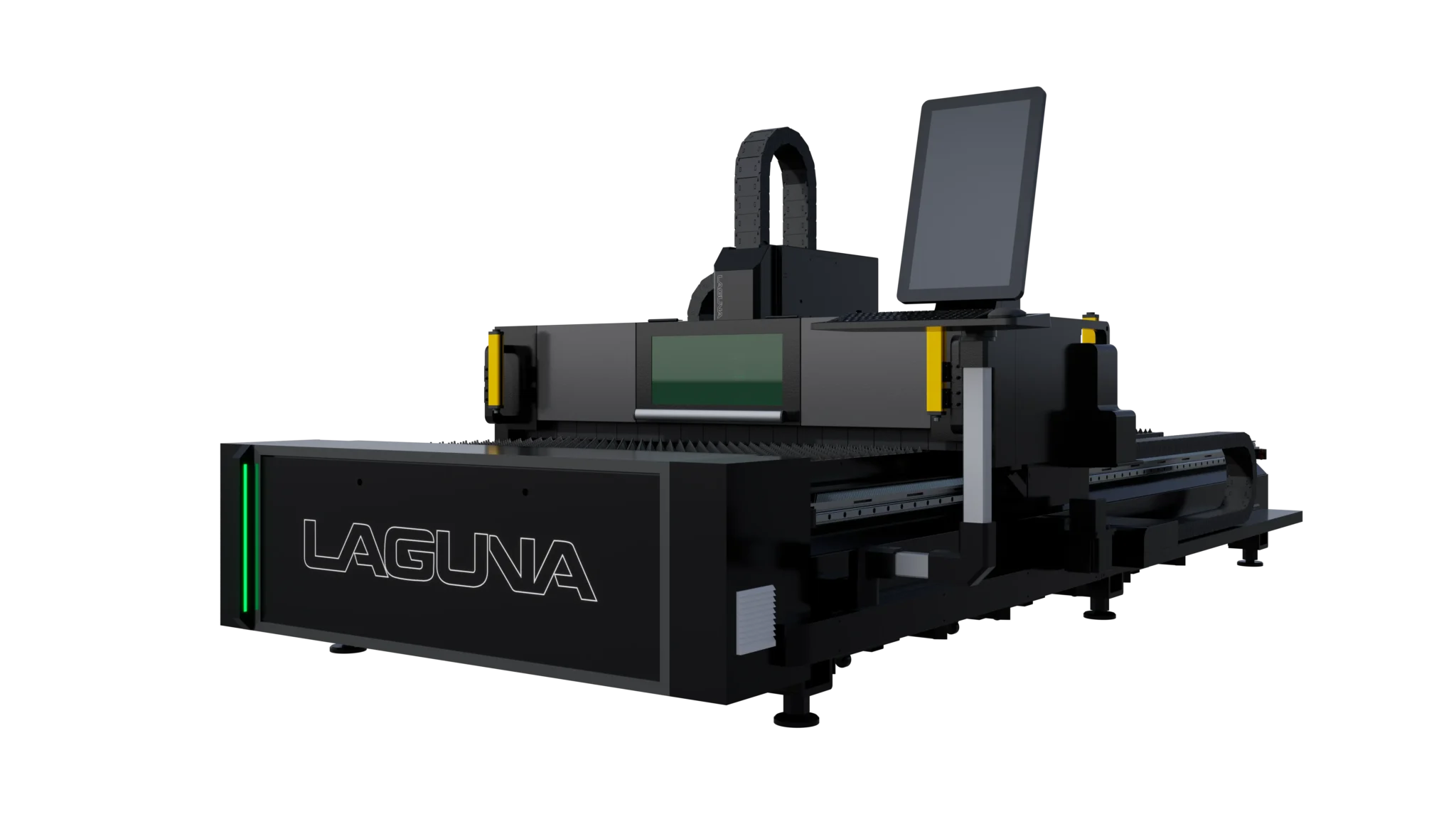

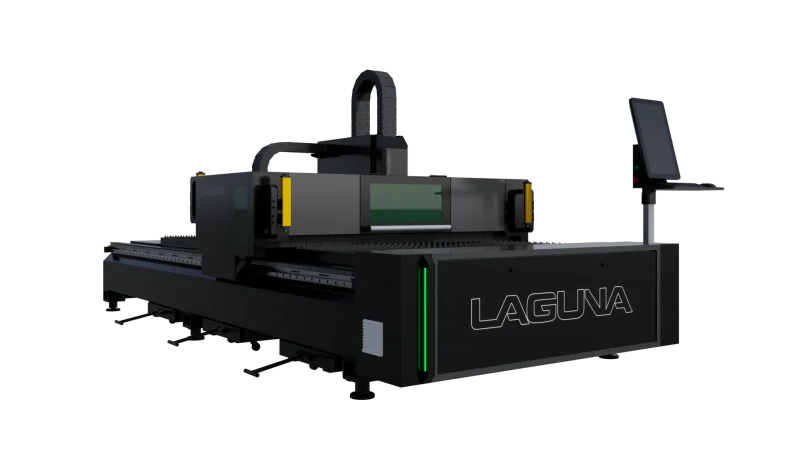

Laguna SmartShop® FC-H Fiber Laser Overview
Open fiber lasers are fast to load and easy to reach into, but the exposed beam is a safety concern. The FC-H answers that with an enclosed gantry and a protective hood around the laser head, so a shop keeps open-table workflow while gaining the operator protection of a CDRH-compliant machine. It is the compact, safety-focused option in Laguna’s fiber laser line. The sections below cover the safety design, the cutting head and power, and the build. 360 Degree Machinery is an authorized Laguna distributor.
Open Access with Enclosed-Gantry Safety

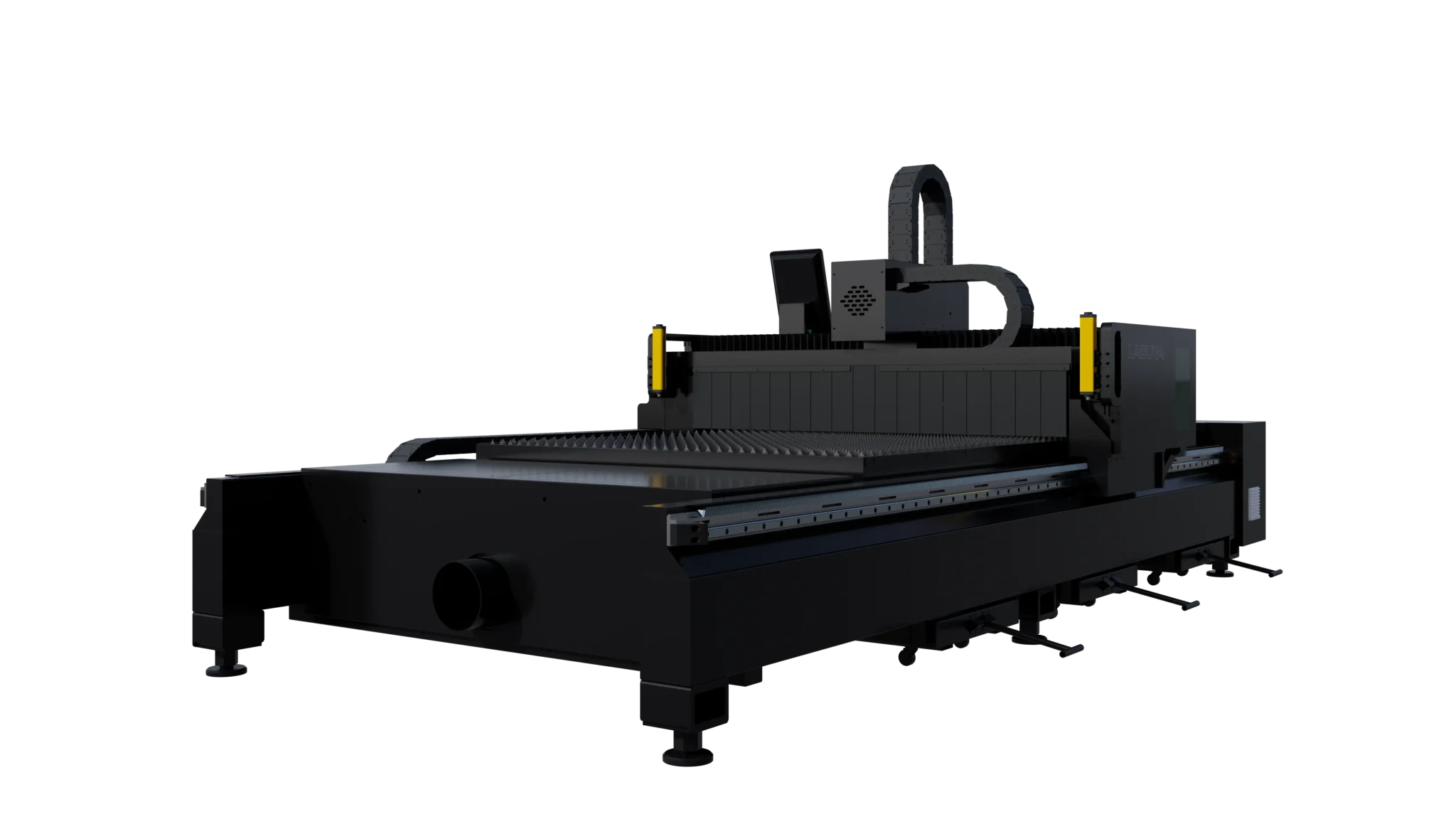

Rather than wrap the whole machine in a cabinet, the FC-H encloses the gantry and hoods the cutting head, which keeps the laser shielded while leaving the 5×10 table open and easy to load. The design is CDRH compliant, and blow-suction fume extraction uses positive airflow to pull smoke and fine particulate away from the cut more effectively than suction alone.
BOCI Cutting Head and Power
The FC-H carries optical power up to 6kW and a BOCI intelligent cutting head with built-in diagnostics. Automatic height control, automatic edge finding, and software-controlled focal adjustment keep the cut accurate from part to part, and an industrial chiller cools the laser source and optics for steady output through a shift.
Drive and Build
Yaskawa servos drive the axes through a rack-and-pinion system on a heat-treated, stress-relieved frame, with a programmable central oiling system keeping the bearings lubricated. The machine is Wi-Fi capable, the optical power supply is Bluetooth capable, and it handles nesting and batch production. Comprehensive Laguna Care maintenance packages are available.
Specifications
| Machine Type | Compact open-format fiber laser (sheet metal) |
|---|---|
| Working Area | 5′ x 10′ |
| Laser Power | Up to 6kW |
| Safety | Enclosed gantry + protective hood around cutting head; CDRH compliant |
| Fume Extraction | Blow-suction, positive flow |
| Cutting Head | BOCI intelligent, with diagnostics, automatic height control + edge finding, software-controlled focal adjustment |
| Drive System | Rack and pinion |
| Servos | Yaskawa |
| Cooling | Industrial chiller (laser source + optics) |
| Lubrication | Programmable central oiling |
| Frame | Heat-treated, stress-relieved |
| Connectivity | Wi-Fi capable; Bluetooth optical supply |
| Production | Nesting and batch |
| Maintenance | Laguna Care packages available |
