Laguna SmartShop® FC-E Fiber Laser Overview

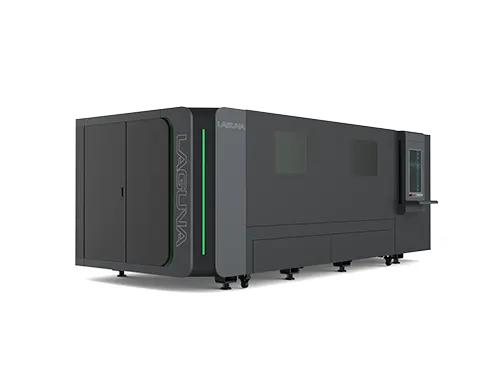

A first fiber laser has to fit the shop it goes into, both the floor space and the budget. The FC-E is Laguna’s entry into production fiber cutting: a fully enclosed cabinet with a motorized slide-out table and automatic doors, built on a heat-treated steel frame with a BOCI closed-loop cutting head. The sections below cover the enclosed table, the power and cutting head, and the drive and cooling that keep it accurate. 360 Degree Machinery is an authorized Laguna distributor.
Enclosed Slide-Out Table

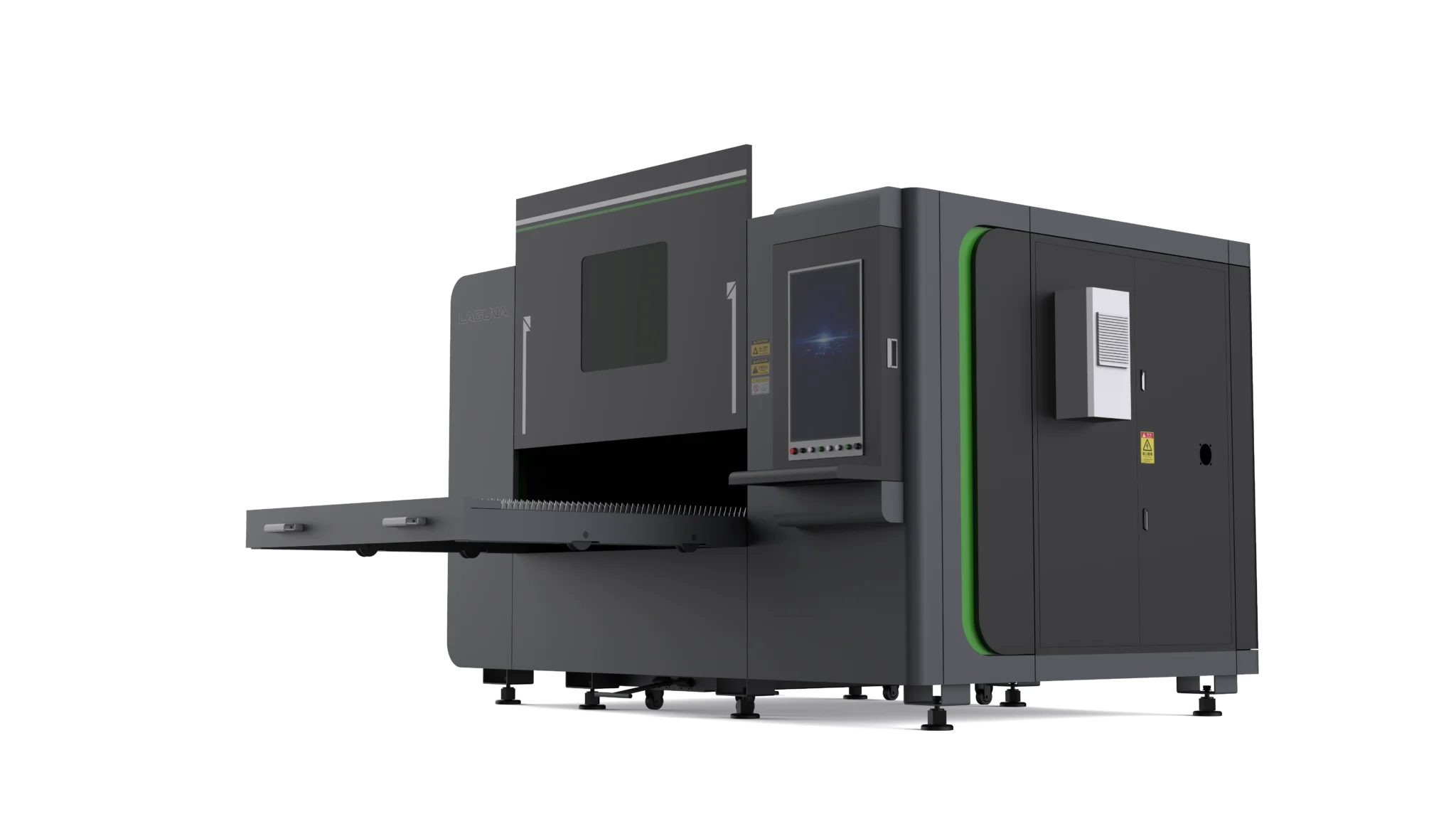

The FC-E runs a single work table that moves in and out on an industrial electric gear motor, behind electro-pneumatic doors that open and close automatically. The full enclosure keeps the operator clear of the beam while the slide-out table makes loading and unloading easy, which is a practical setup for a shop adding its first laser without a lot of floor space. Tables are available in 4×4 and 5×10.
Fiber Power and Cutting Head
The FC-E runs optical power up to 12kW, so you can size it to the metal and thickness you cut most. The BOCI closed-loop cutting head feeds real-time diagnostics back to the control software, with automatic height control, automatic edge finding, and software-controlled focal adjustment to keep cuts accurate from sheet to sheet. Several optical supplies are available, and the power supply is Bluetooth capable.
Drive, Cooling, and Connectivity
Yaskawa servos drive the axes through a helical rack-and-pinion system on a heat-treated, stress-relieved steel frame, and a central oiling system keeps the linear bearings lubricated on every axis. An industrial chiller cools the laser source and optics, the control cabinet is climate controlled, and the machine is Wi-Fi capable. It handles nesting and batch production out of the box.
Support and Maintenance
The FC-E comes standard with a 2-year warranty, and comprehensive Laguna Care maintenance packages are available to keep it in production.
Specifications
| Machine Type | Enclosed fiber laser cutter (sheet metal) |
|---|---|

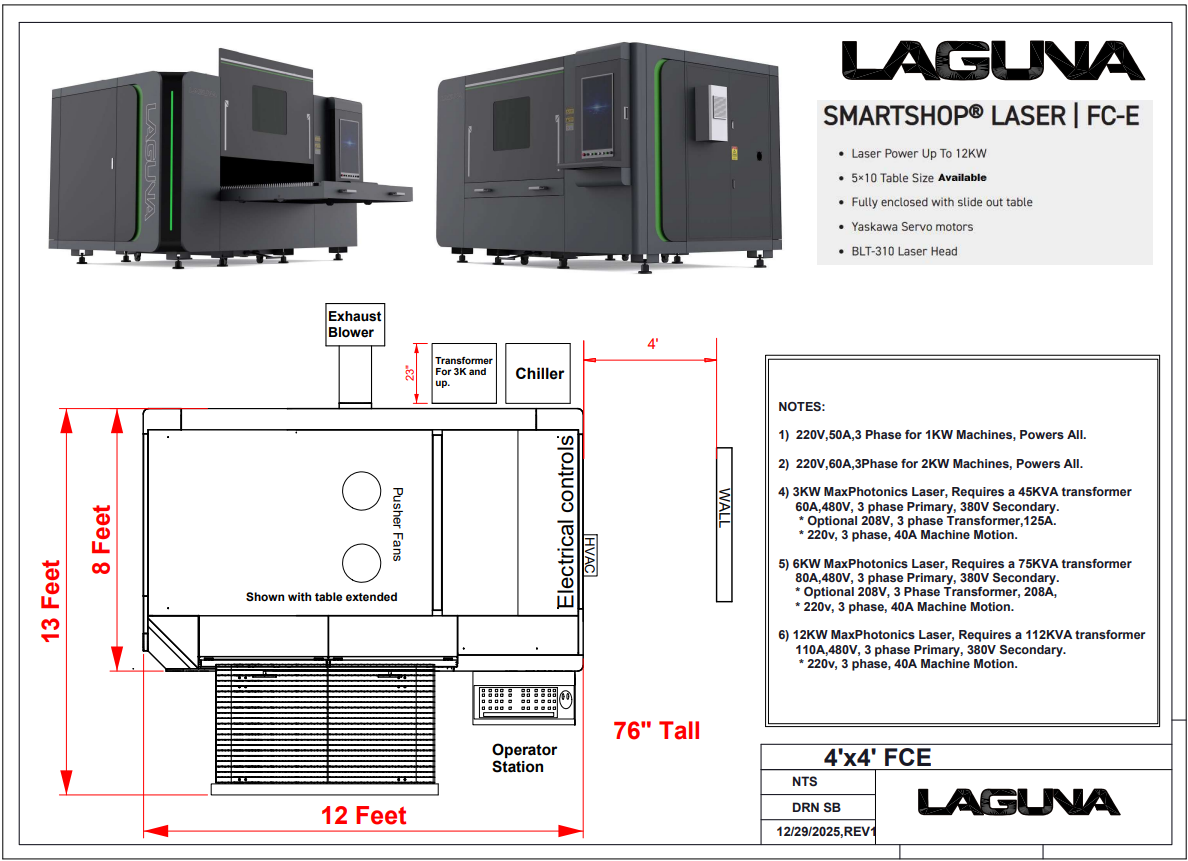

| Table Sizes | 4′ x 4′, 5′ x 10′ |
| Laser Power | Up to 12kW |
| Table System | Motorized slide-out work table (industrial electric gear motor) |
| Doors | Electro-pneumatic, automatic open/close |
| Enclosure | Full enclosure |
| Cutting Head | BOCI closed-loop, automatic height control + edge finding, software-controlled focal adjustment |
| Drive System | Helical rack and pinion, all axes |
| Servos | Yaskawa |
| Frame | Heat-treated, stress-relieved steel |
| Cooling | Industrial chiller (laser source + optics) |
| Lubrication | Central oiling, all axes |
| Connectivity | Wi-Fi capable; Bluetooth optical supply |
| Electrical Cabinet | Climate controlled |
| Production | Nesting and batch |
| Warranty | 2 years |
Contact 360 Degree Machinery
360 Degree Machinery is an authorized Laguna distributor. Call us at 630-229-6705 for current pricing, a recommendation, or to request a quote on the Laguna SmartShop FC-E fiber laser.
