Laguna SmartShop? 2 Pro CNC Router
Laguna SmartShop® 2 Pro CNC Router
$53,995.00 – $62,495.00Price range: $53,995.00 through $62,495.00
Request a call back

Laguna SmartShop® 2 Pro CNC Router

Laguna SmartShop® 2 Pro CNC Router

Price range: $53,995.00 through $62,495.00

Categories , , , , Tags , , , Brands ,

The award-winning Smartshop® 2 Pro has been the workhorse of the Laguna line of CNC machines. Designed to cut everything from wood to non-ferrous metals, the Smartshop® 2 Pro is dependable and built to last. Constructed with an all-steel frame featuring helical rack and pinion, the Smartshop® 2 Pro excels at giving the precision you need with a cut quality rivaling any machine on the market.

Machine Details:
  • 12HP HSD Spindle 5,000-24,000 RPM
  • Available In 4′ x 8′, 5′ x 10′, 5′ x 12′ Table Sizes
  • 8 Position ISO 30 Automatic Tool Changing System
  • Yaskawa AC Servos Drive Motors
  • Up To 1,800 IPM Rapid Speed
  • Planetary Gear Box Drive System
  • 12″ Z-Clearance
  • 13″ Z Travel
  • 6 Zone Vacuum Table
  • Syntec Industrial Control System
  • Helical Rack & Pinion X,Y Axis, Ball Screw Z Axis
  • Heavy-Duty One-Piece All-Steel Frame
Add to Quote Request
Smartshop Pro 2 Spindle

Spindle

The 12HP HSD CNC Spindle, the ultimate solution for precision machining. With its unparalleled power and speed, this spindle offers exceptional performance for a wide range of applications.



Smartshop Pro 2 Cab

Control

The Syntec CNC Control is a state-of-the-art control system designed for precision machining applications. With its advanced features and intuitive interface, the Syntec CNC Control provides unmatched accuracy, speed, and flexibility for a wide range of machining operations.



Smartshop Pro 2 2022 Gantry 1

Frame & Gantry

With dual support, direct drive, helical rack and pinion gantry system, and heavy-duty all tube welded steel frame, the SmartShop® 2 Pro is able to achieve a rapid travel of up to 1,800 in/min and a cutting speed up to 1,000 in/min. With a 12″ gantry clearance and 12″ of Z-travel, you’ll have enough room to cut just about anything.

Smartshop Pro 2 Vacuum Table

Table

Our vacuum table is designed to provide a strong, durable, and reliable work surface for all your CNC machining projects. The six separate vacuum zones insure that you’ll be able acheive maximum hold-down performance no matter your application

Smartshop Pro 2 2022 Popup Pins

Pop-Up Repositioning Pins

The Pop-up alignment pins are desgined to make your workflow smoother and more accurate by providing a reliable and repeatable method for aligning your materials on the router bed.

FREE SHIPPING DOES NOT APPLY TO PRE-OWNED MACHINERY

Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.

***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.

Applies to lower 36 of the contiguous states only. AZ, CA, CO, ID, MT, ND, NV, OR, SD, UT, WA, & WY do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage, Oliver, nor JLT Machinery or other machines listed as not free shipping.

PDFOwner's Manual

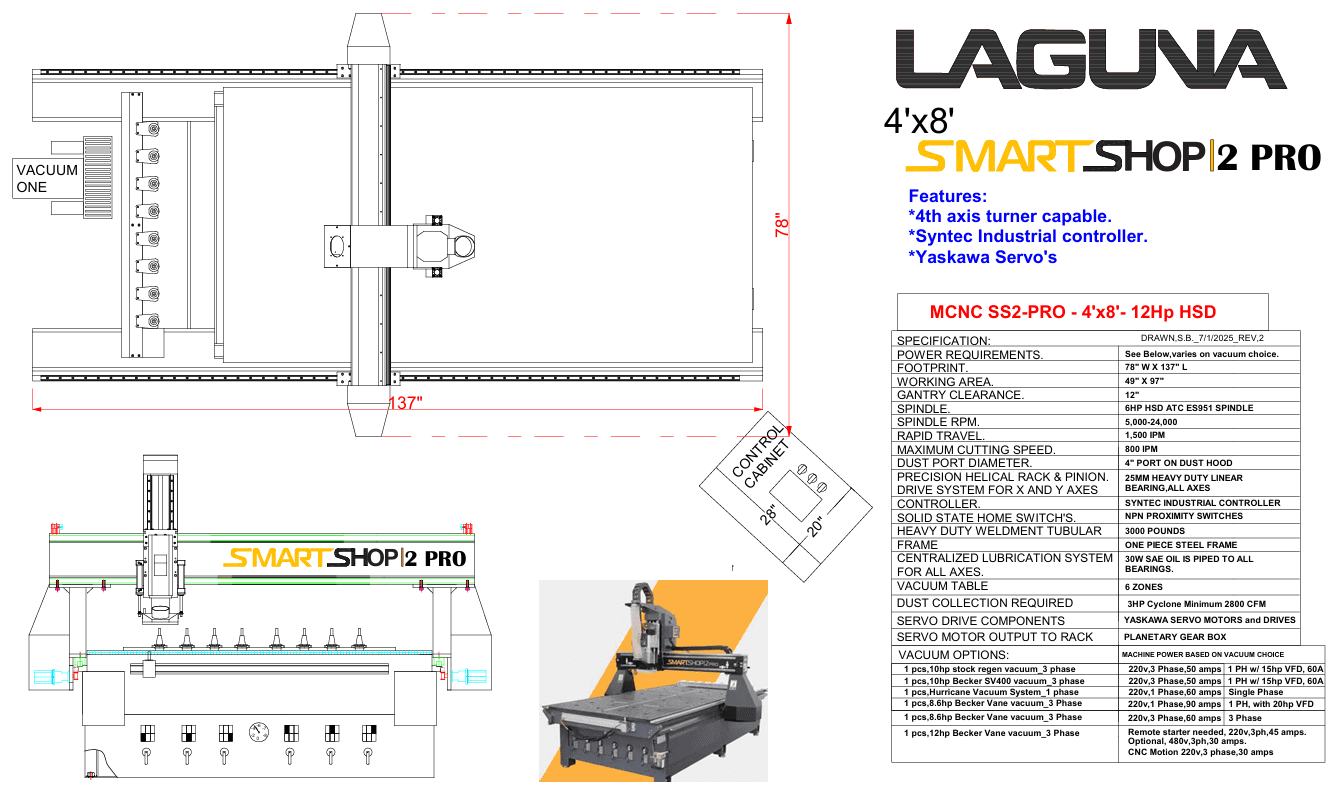

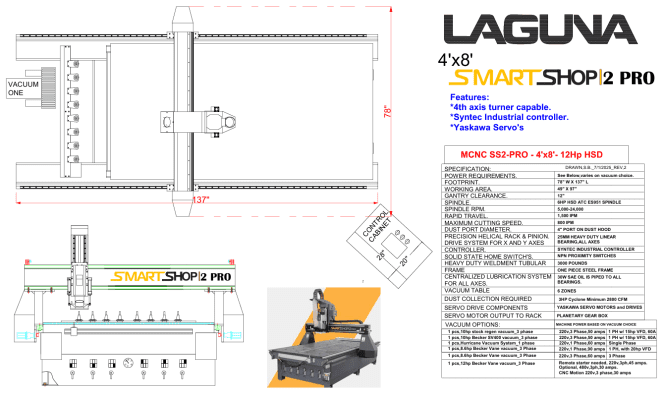

4′ x 8′ Footprint

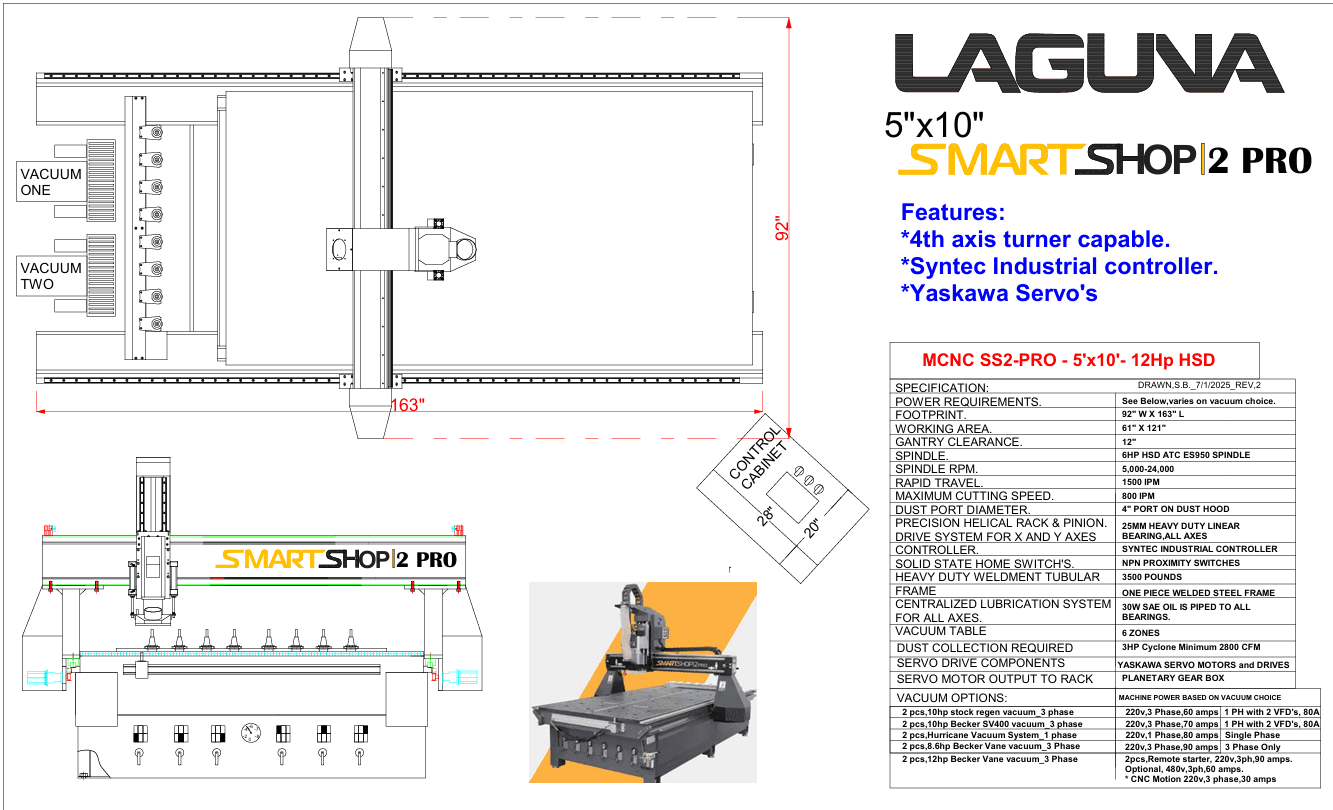

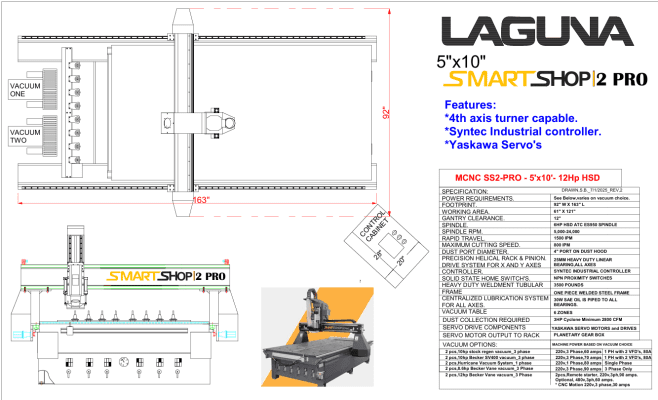

5′ x 10′ Footprint

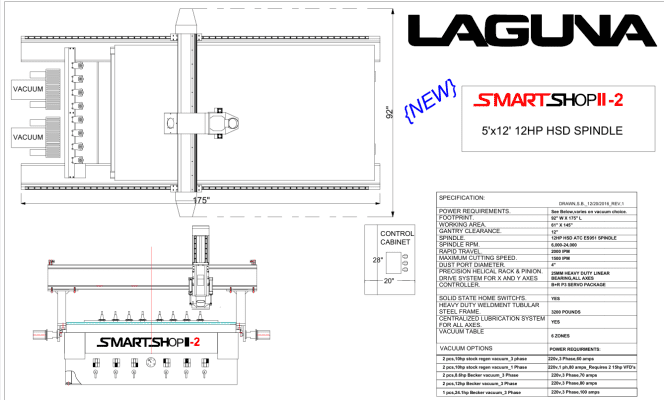

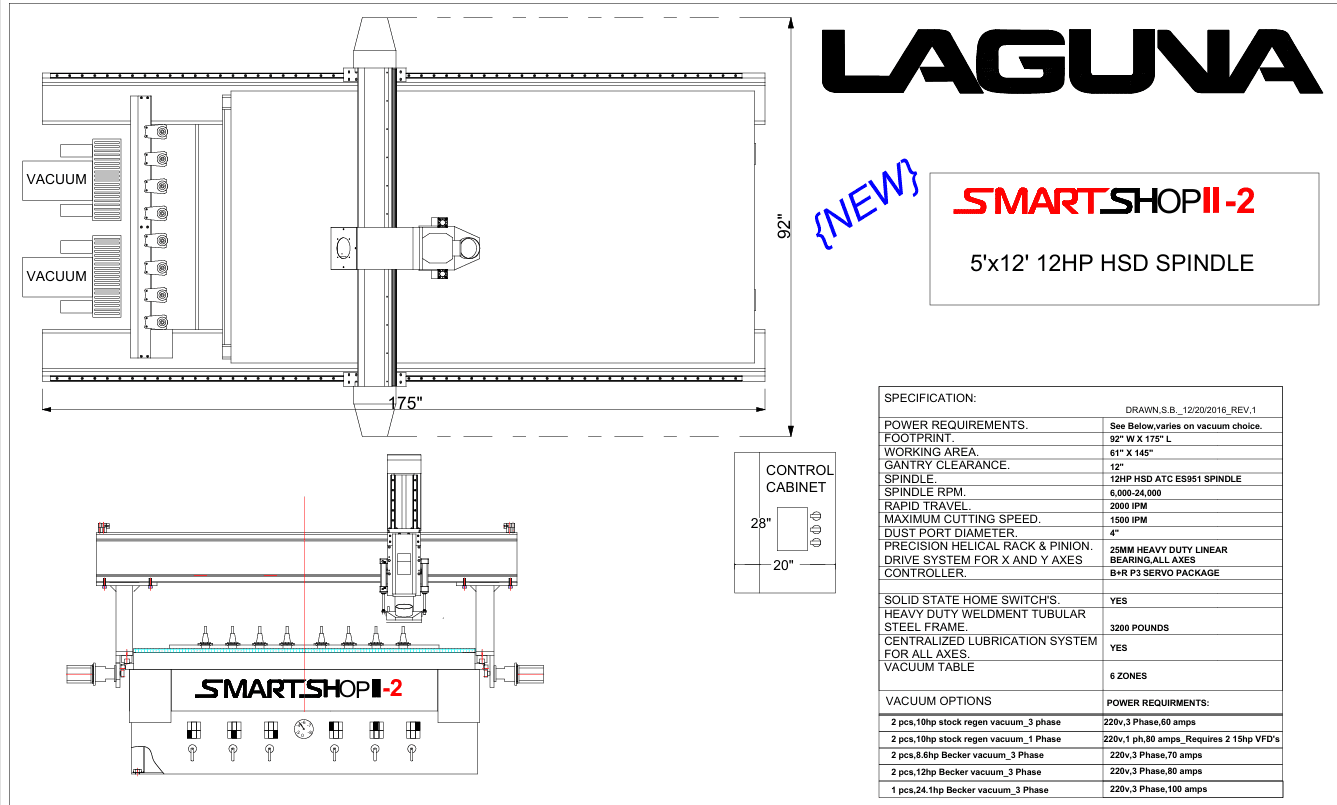

5′ x 12′ Footprint
