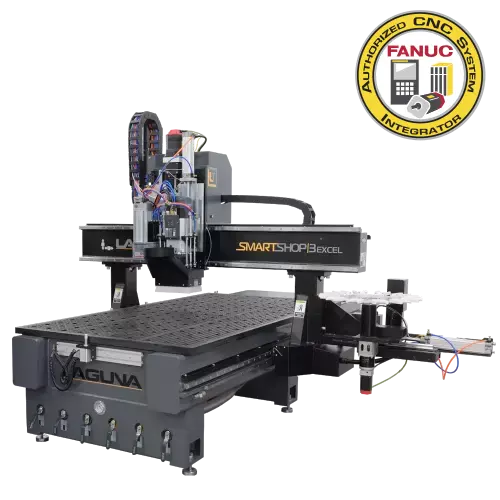

Laguna SmartShop® 3 Excel CNC Router

Laguna SmartShop® 3 Excel CNC Router

Price range: $78,995.00 through $106,995.00

Categories , , , , Tags , , , Brands ,

The pinnacle of speed and accuracy, the SmartShop® 3 Excel delivers the ultimate cutting power and flexibility. Designed for those customers needing maximum daily output and continuous operation, the Excel delivers performance and accuracy that no other machine can rival.

Utilizing industry-leading FANUC® controls, 1500-watt FANUC® servos combined with a heavy all-welded steel frame promotes faster feed rates, deeper cuts, better edge quality, and higher performance.

Machine Details:
  • 12HP HSD Spindle 5,000-24,000 RPM
  • Available In 4′ x 8′ & 5′ x 10′ Table Sizes
  • 5×5 HSD Boring Block (Optional)
  • FANUC® Oi-MF Control System
  • 1,500W FANUC® Servo Drive Motors
  • Up To 3,000 IPM Rapid Speed
  • 12 Position Servo Rotary Auto-Tool Changing System
  • 12″ Z-Clearance
  • 14″ Z Travel
  • 6 Zone Vacuum Table
  • Helical Rack & Pinion X,Y Axis, Ball Screw Z Axis
  • Heavy-Duty One-Piece All-Steel Frame
Add to Quote Request
Smartshop 3 Excel Spindle

Spindle

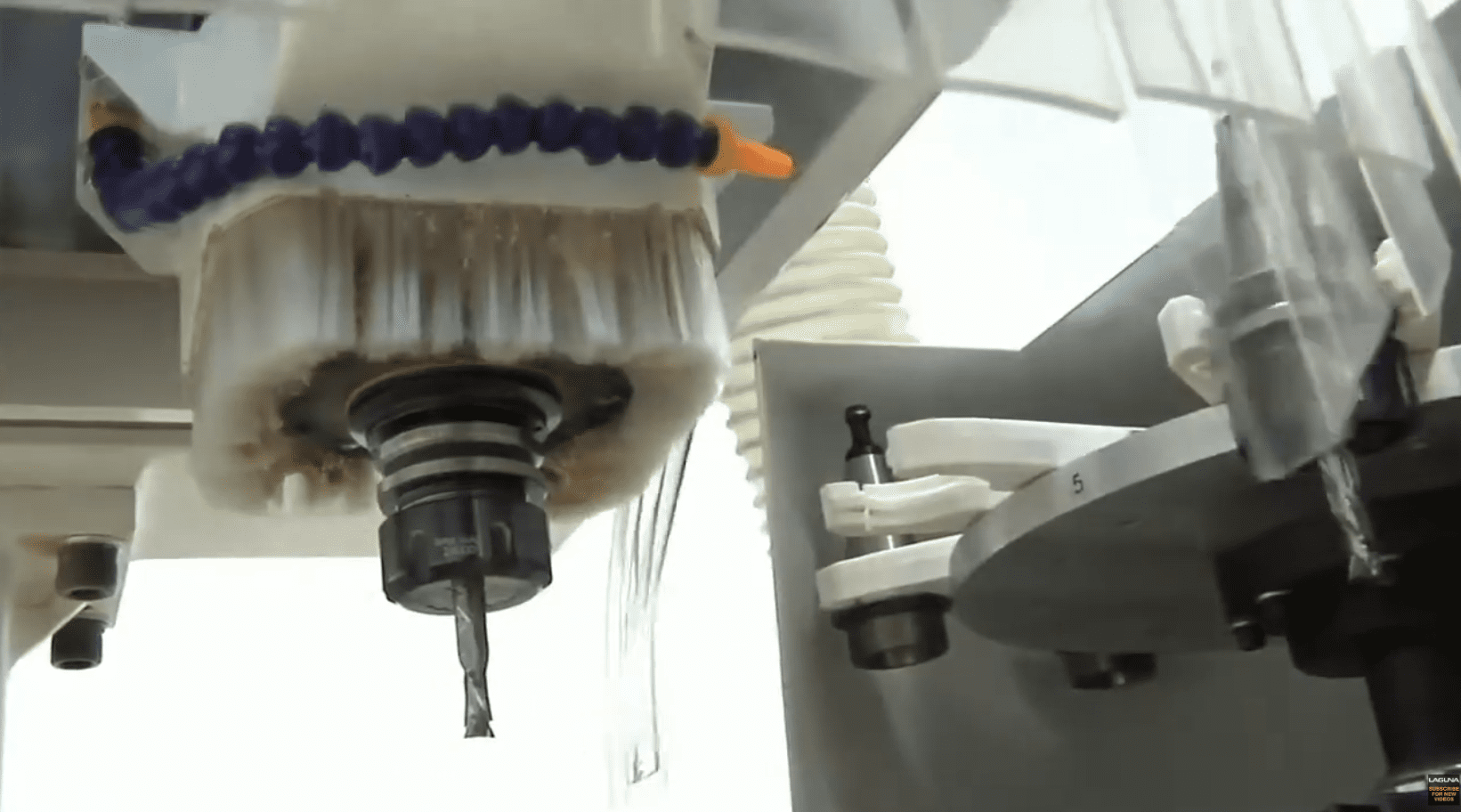

The 12HP HSD CNC Spindle, is the ultimate solution for precision machining. With its unparalleled power and speed, this spindle offers exceptional performance for a wide range of applications.



Smartshop 3 Excel Control

Control

A world leader in control systems, FANUC® partnered with LAGUNA to develop a CNC router that surpasses any in its price range. The precision of FANUC® servo motors and the reliability of FANUC® controls means you’ll get the same cut, again and again, without losing time.

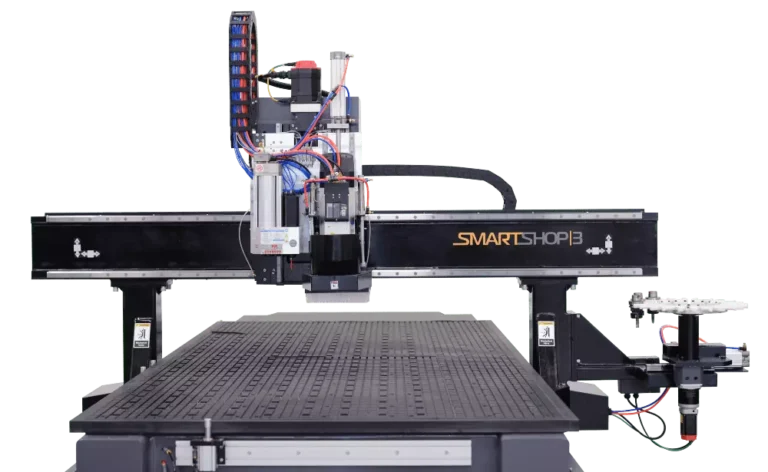

Smartshop 3 Excel 2022 Gantry 1

Frame & Gantry

With dual support, direct drive, helical rack and pinion gantry system, and heavy-duty all tube welded steel frame, the SmartShop® 3 Excel is able to achieve a rapid travel of up to 3,000 in/min and a cutting speed up to 1,600 in/min. With a 12″ gantry clearance and 12″ of Z-travel, you’ll have enough room to cut just about anything.

Smartshop 2 Elite Vacuum Table

Table

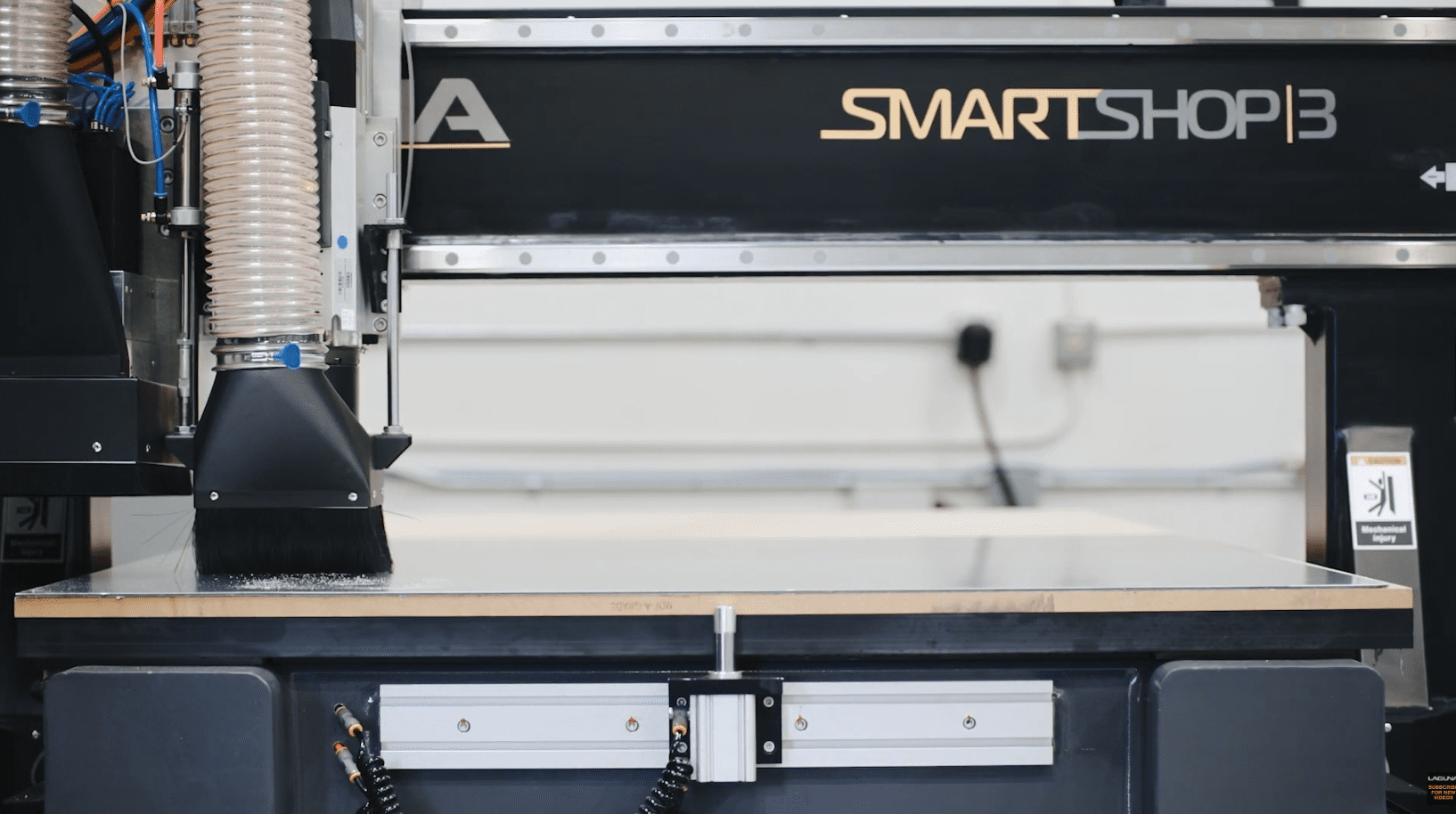

Our vacuum table is designed to provide a strong, durable, and reliable work surface for all your CNC machining projects. The six separate vacuum zones insure that you’ll be able achieve maximum hold-down performance no matter your application.

SS SUV Pop Up Pins

Pop-Up Repositioning Pins

The Pop-up alignment pins are desgined to make your workflow smoother and more accurate by providing a reliable and repeatable method for aligning your materials on the router bed.

SS2 Features 2

Pod Ready Phenolic Vacuum Table

The SmartShop III Excel table is pod-ready and designed for full compliance with the NEMI grid standard layout, allowing for compatibility with raising and vacuum fixture pod systems.

FREE SHIPPING DOES NOT APPLY TO PRE-OWNED MACHINERY

Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.

***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.

Applies to lower 36 of the contiguous states only. AZ, CA, CO, ID, MT, ND, NV, OR, SD, UT, WA, & WY do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage, Oliver, nor JLT Machinery or other machines listed as not free shipping.

PDFManual for the Smartshop 3 Excel

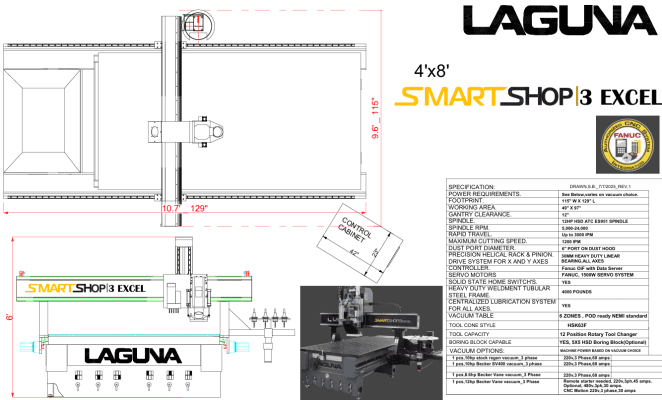

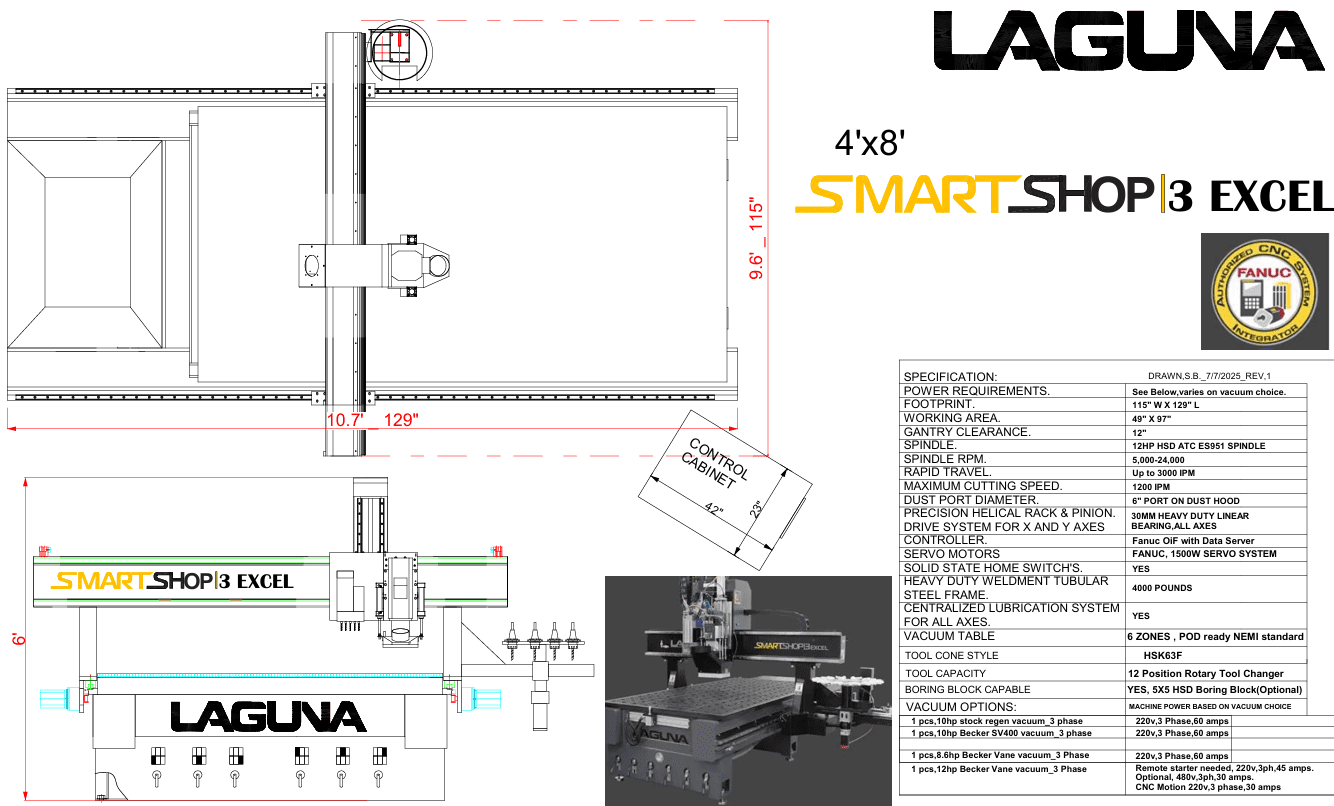

SS3 4′ x 8′

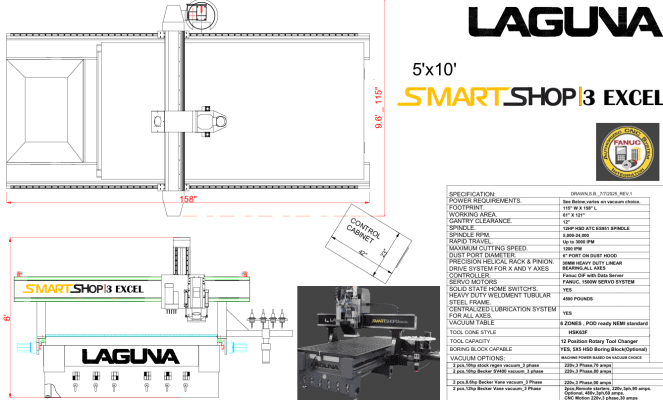

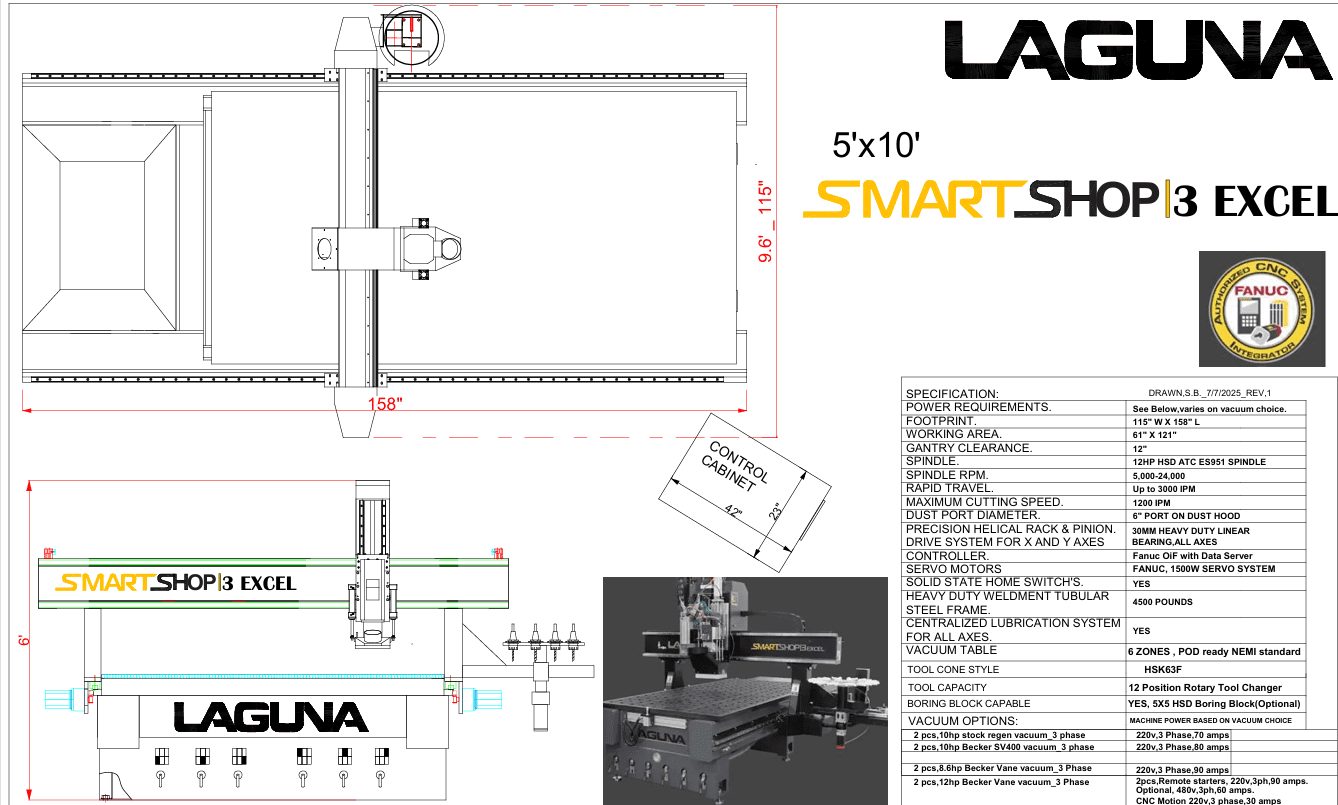

SS3 5′ x 10′

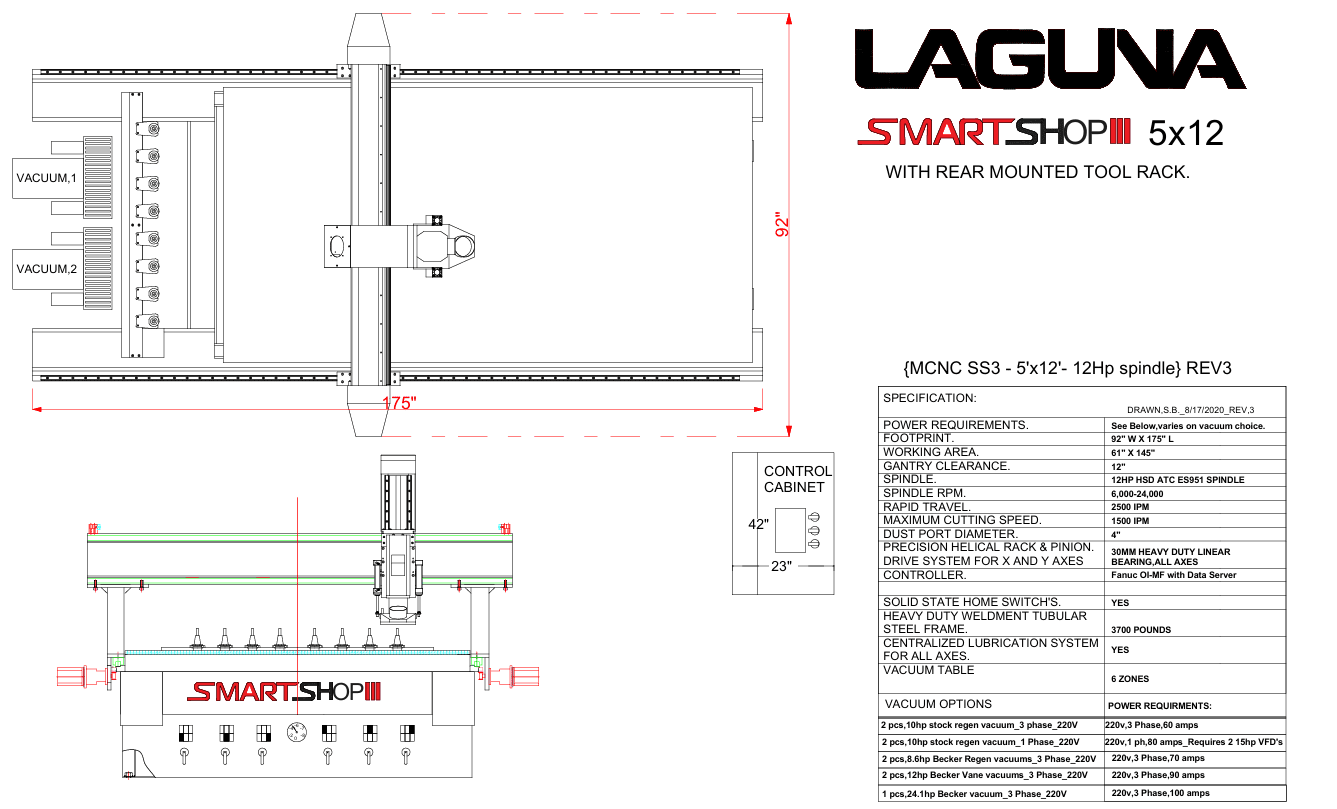

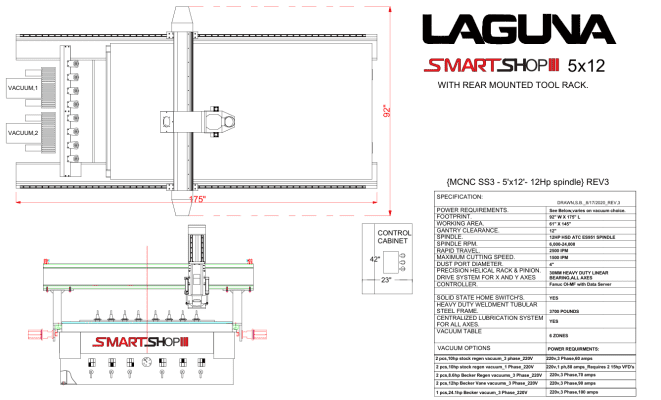

SS3 5′ x 12′

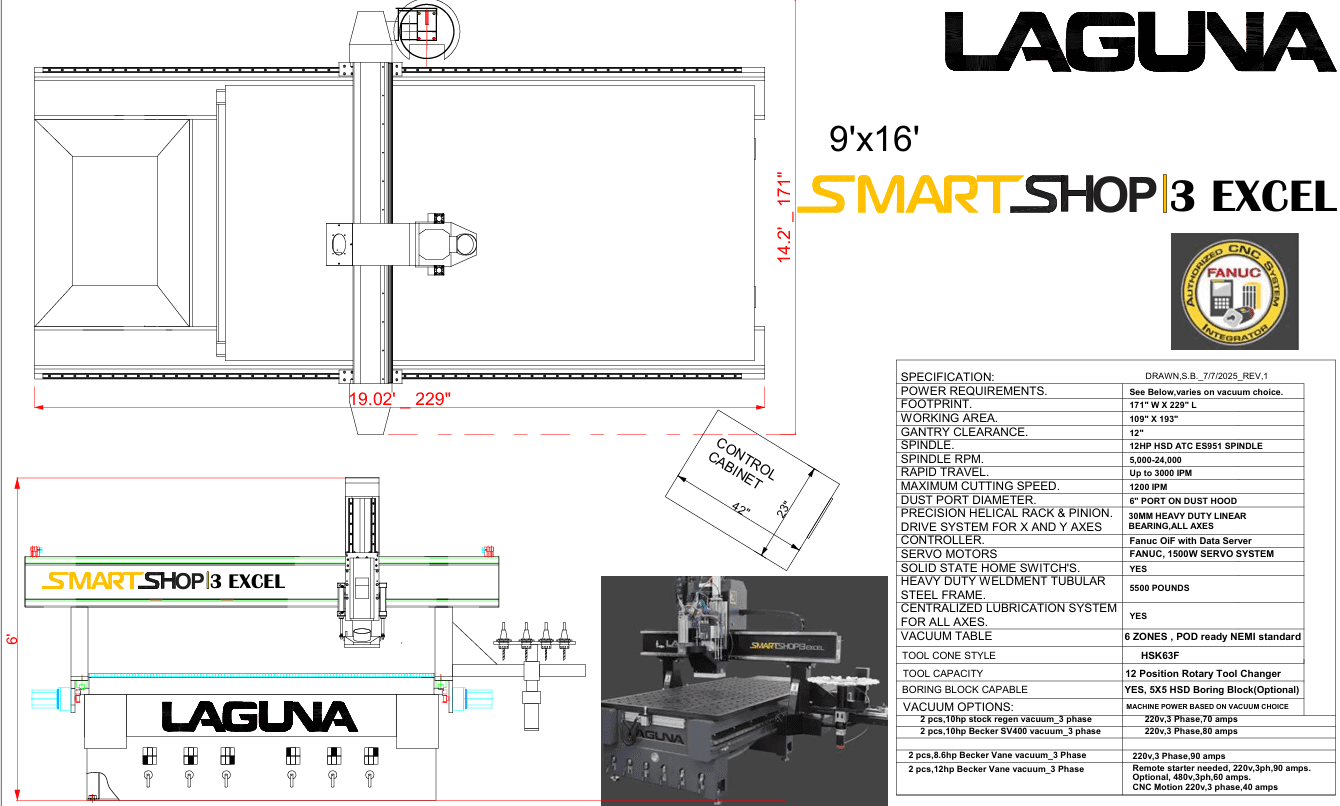

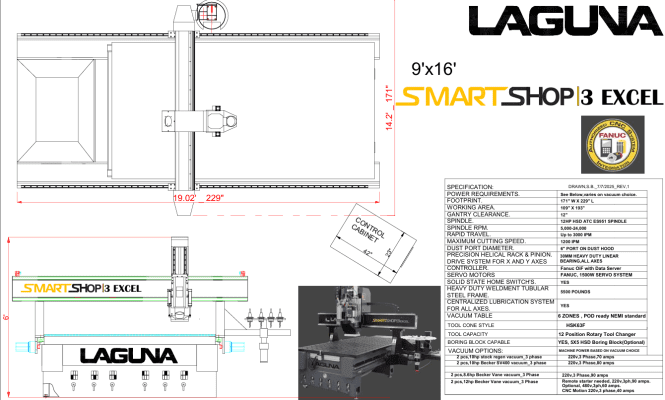

SS3 9′ x 16′

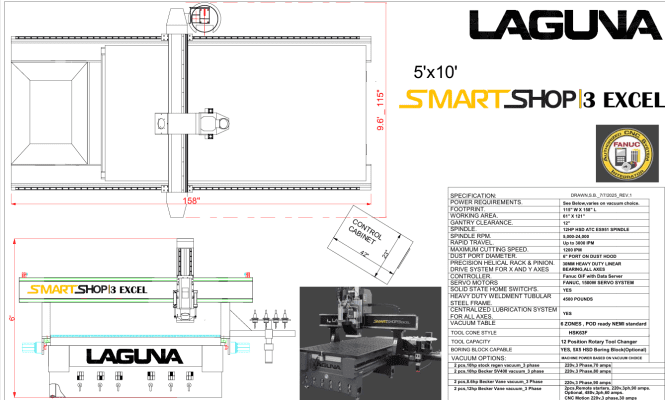

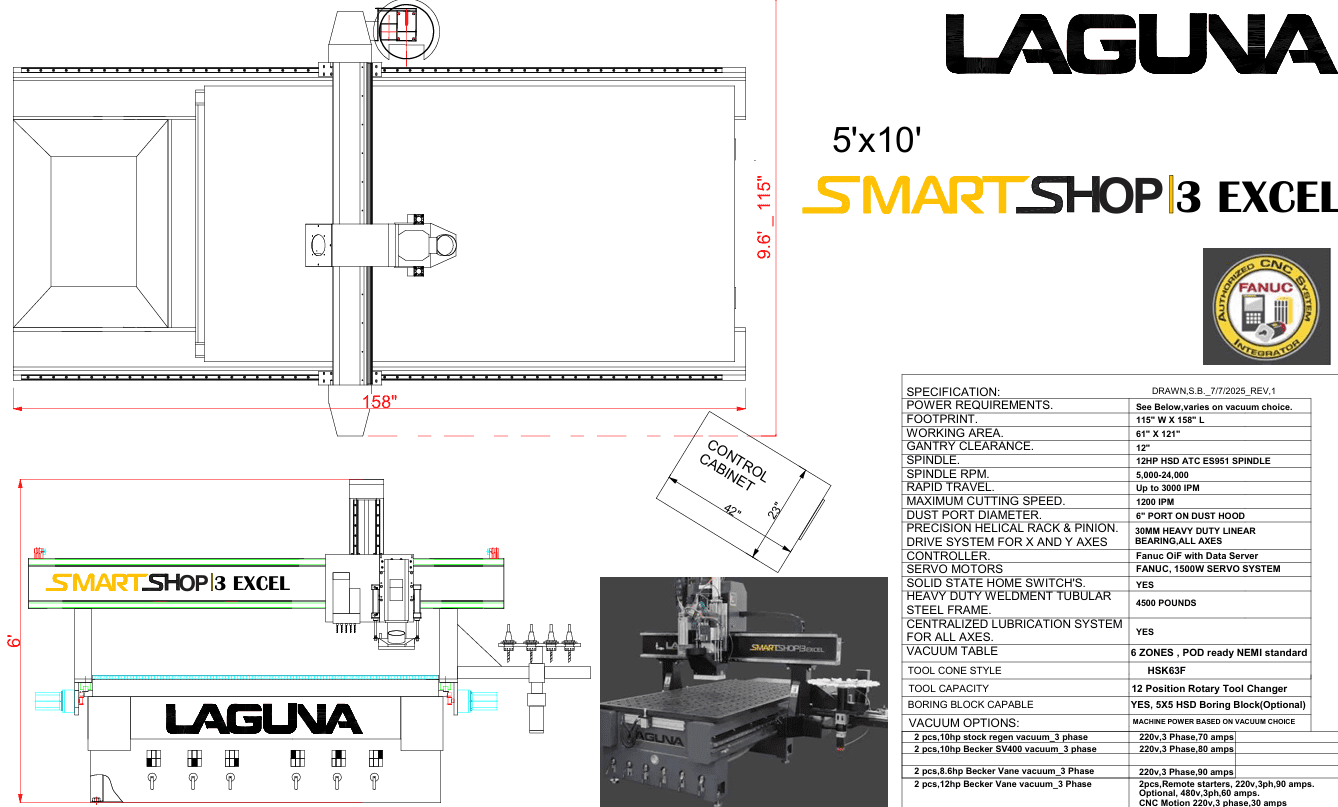

SS3 5′ x 10′ Spec Sheet
