Dake Elec-draulic II Presses

Dake Elec-draulic II Presses

Categories Dake Hydraulic Presses, Dake Industrial Machinery & Presses, Laguna Tools, Presses (Cold, Hot, & Rotary) Tags Metalworking, Presses Brand: Dake Industrial Machinery

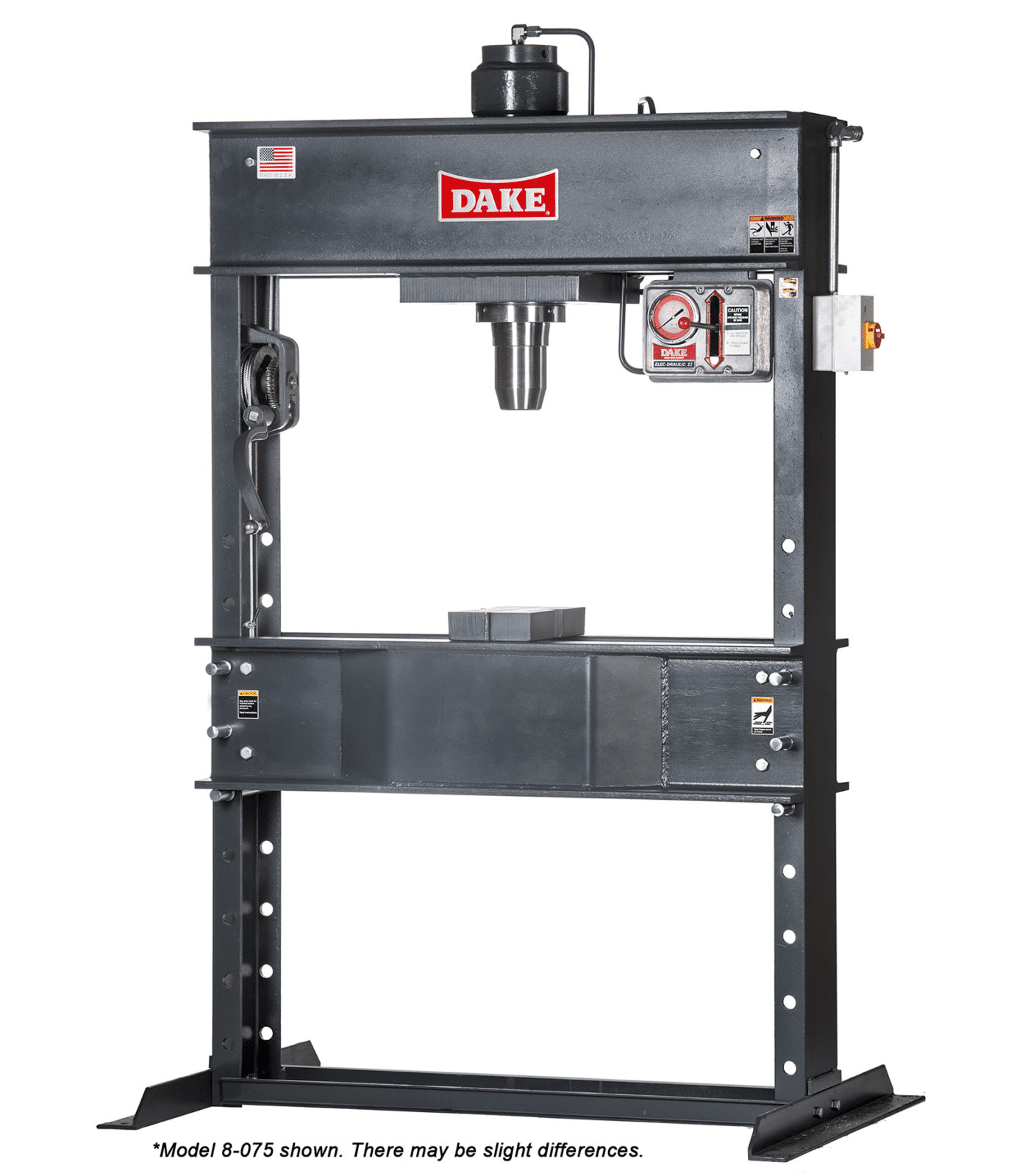

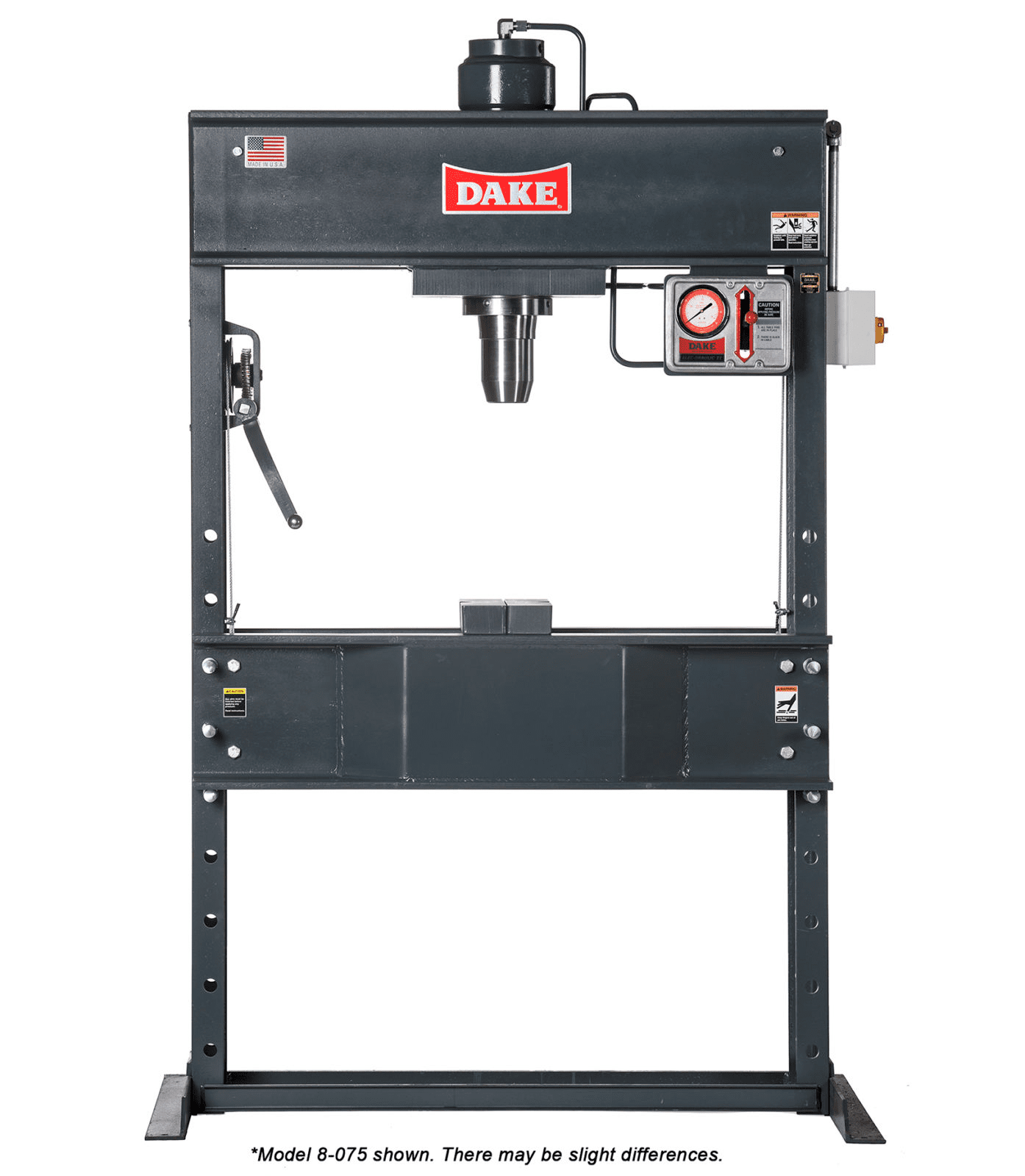

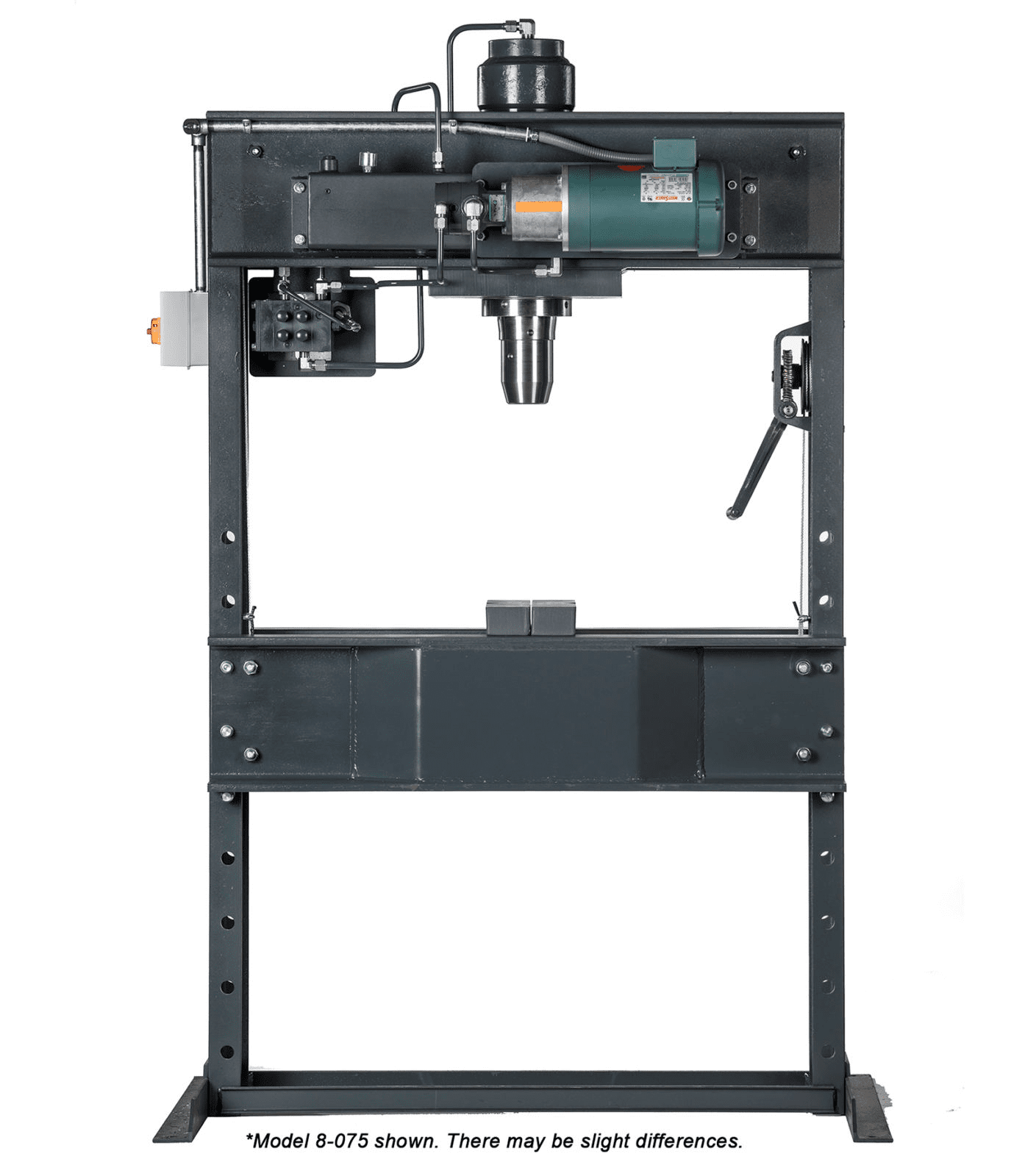

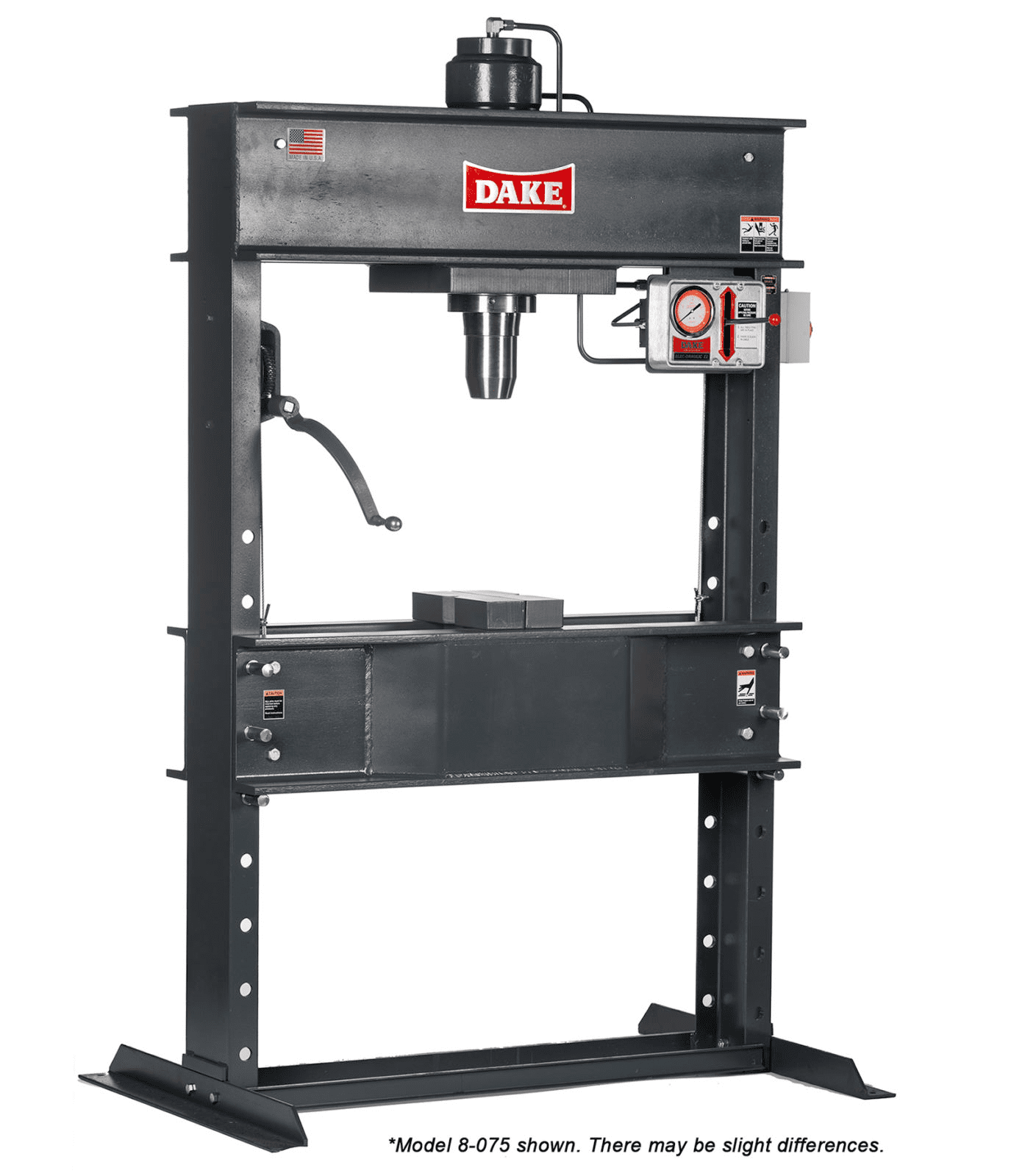

The 150 ton electric-hydraulic II dual acting press offers a ram pressing speed of 17 IPM, has a 10 horsepower motor, and is 95 inches tall. The dual acting ram allows for super-sensitive ram control with simple operation.

Add to Quote Request

Specs & Features

Model Number

Part Number

Capacity (tons)

Operation

Horsepower

Voltage

Width Between Uprights (in)

Width Between Table Channels (in)

Minimum Ram To Table (in)

Maximum Ram To Table (in)

Ram Travel (in)

Screw Travel (in)

Horizontal Workhead Travel (in)

Footprint (in)

Height (in)

Weight (lbs)

Base (in)

Ram Advance Speed

Pressing Speed (in/m)

RPM

Air Pressure

8-150

908150

150

Electric

10

220V/440V, 3-Phase

48

12-1/4

11-3/4

31-3/4

16

n/a

n/a

66 x 42

95

3,620

66 x 42

n/a

17

1,800

n/a

8-080

908080

75

Electric

10

220V/440V, 3-Phase

44

8-1/4

7-5/8

37-5/8

10

n/a

n/a

55-1/2 x 36

86

2,100

55-1/2 x 36

n/a

30

1,800

n/a

8-075

908075

75

Electric

2

220V/440V, 3-Phase

44

8-1/4

7-5/8

37-5/8

10

n/a

n/a

55-1/2 x 36

86

1.950

55-1/2 x 36

n/a

5

1,800

n/a

8-050

908050

50

Electric

2

220V/440V, 3-Phase

32-3/4

7-1/4

10-1/8

45-1/8

10

n/a

n/a

43-1/2 x 36

86

1,360

43-1/2 x 36

n/a

8

1,800

n/a

8-025

908025

25

Electric

2

220V/440V, 3-Phase

32-3/4

7-1/4

11-3/4

46-3/4

10

n/a

n/a

43-1/2 x 36

83

1,060

43-1/2 x 36

n/a

15

1,800

n/a

Shipping

Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.

***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.

Applies to lower 40 of the contiguous states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage, Oliver, nor JLT Machinery or other machines listed as not free shipping.

Literature, Manuals, and or Drawings
