Dake Dura-Press Single Phase Hydraulic Press
50 Ton – FORCE-50DA
909250
Features:
- Electric power unit has convenient single phase, 110 volt operation for greater portability.
- Lever control ram advance for easy operation.
- Double acting cylinder allows for convenient positioning of ram.
- Sturdy, welded channel iron frame for durability.
- Quiet, low pressure hydraulic components for greater efficiency and smooth pressing.
- One hand ram positioning with 4-way valve hydraulic control.
Model Force 50DA – 50 Ton Capacity

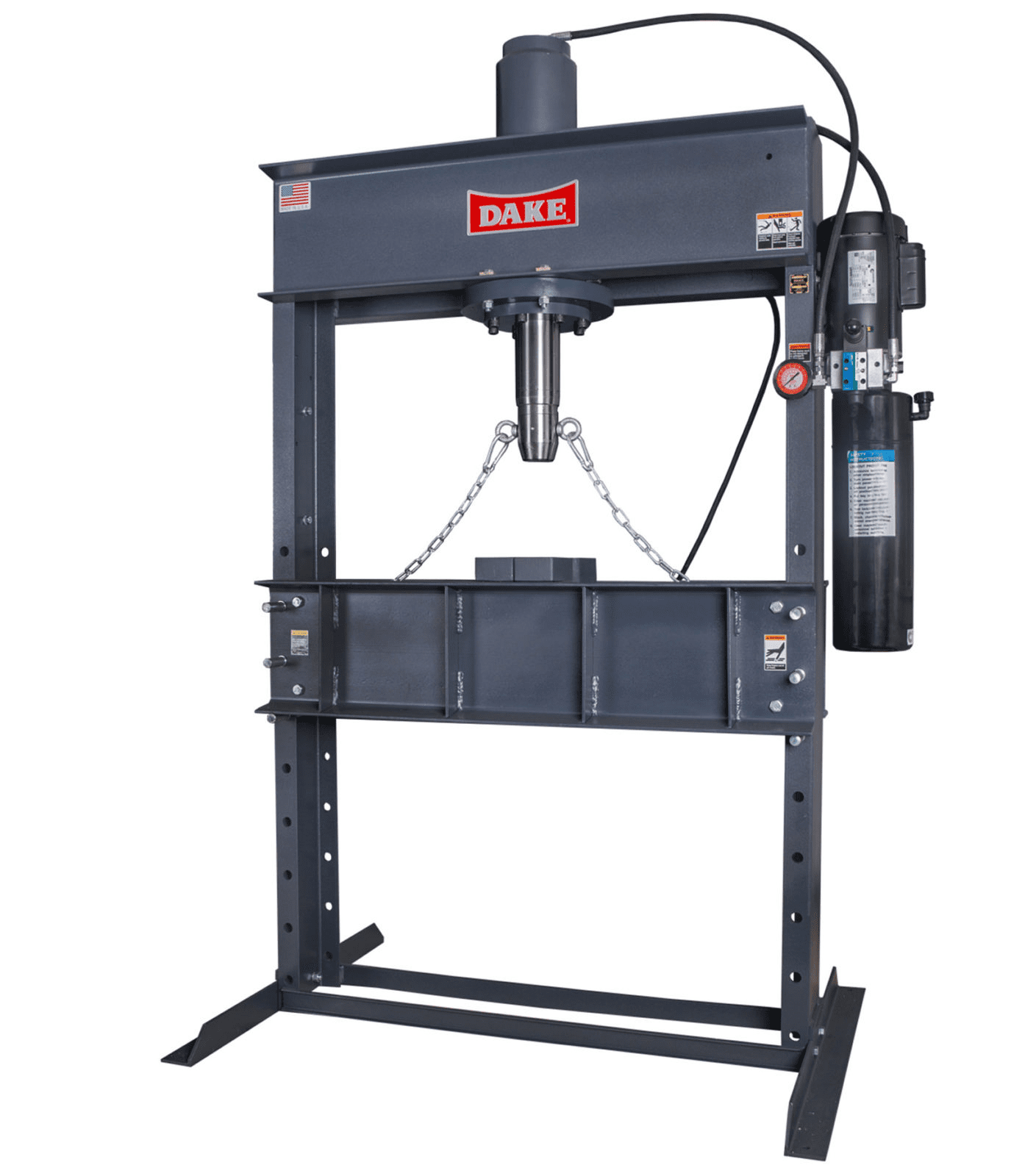

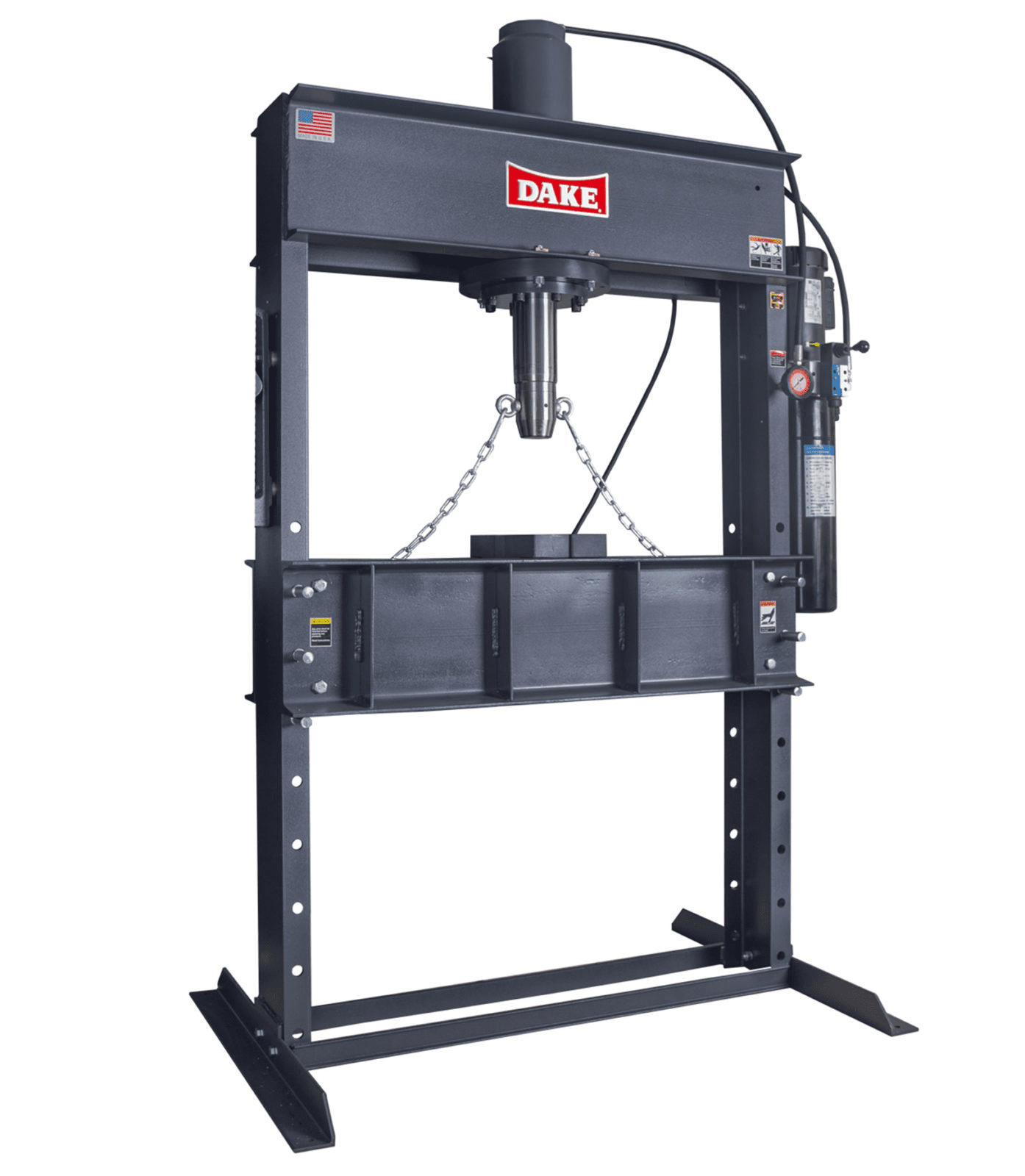

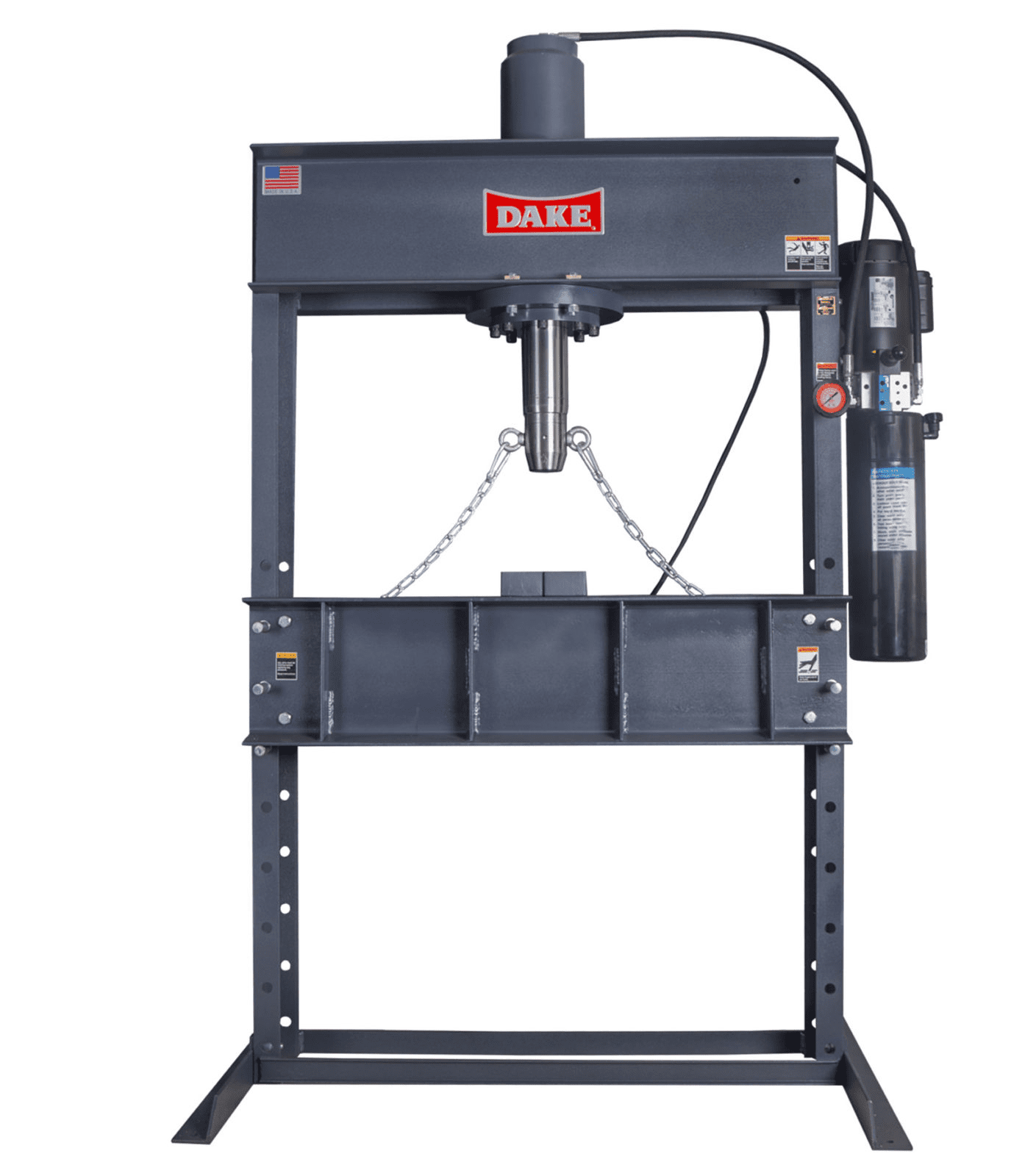

50 ton hydraulic dura-press powered by a single-phase, 110-volt motor for pressing and forming applications. The channel iron H-frame accepts large and bulky items, and the table height adjusts for proper positioning with the included lifting chain. The three-point lever provides single-handed control over ram movement. A double-acting cylinder moves the ram during the downstroke and the return, providing smooth movement in both directions and enabling precise positioning.

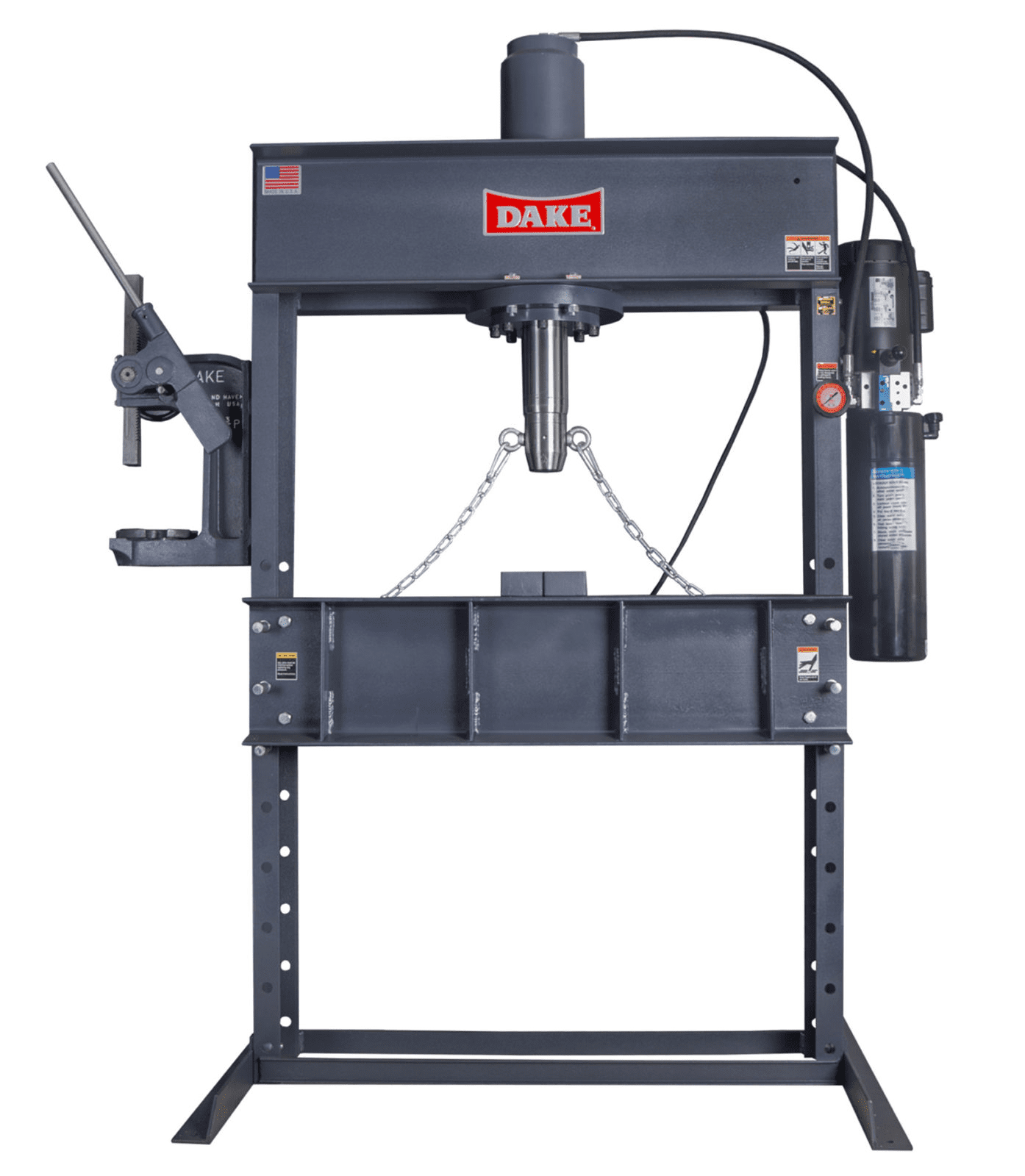

*SIDE MOUNT ARBOR PRESS NOT INCLUDED.
Model Options:
|
Standard Equipment:
|
Specifications:
| Model | FORCE 50DA |
| Part Number | 909250 |
| Capacity | 50 tons |
| Operation | Electric |
| Horsepower | 2 |
| Voltage | 110V/220V, Single Phase |
| Width between uprights | 44” |
| Width between table channels | 8-1/4” |
| Minimum ram to table | 10” |
| Maximum ram to table | 41-3/4” |
| Ram travel | 16” |
| Screw Travel | n/a |
| Horizontal workhead travel | Fixed |
| Footprint | 55” x 36″ |
| Height | 94” |
| Weight | 1,330 lbs |
| Base | 55” x 36″ |
| Ram advance speed | n/a |
| Pressing speed | 11 ipm |
| RPM | 3,450 |
| Air Pressure | n/a |
