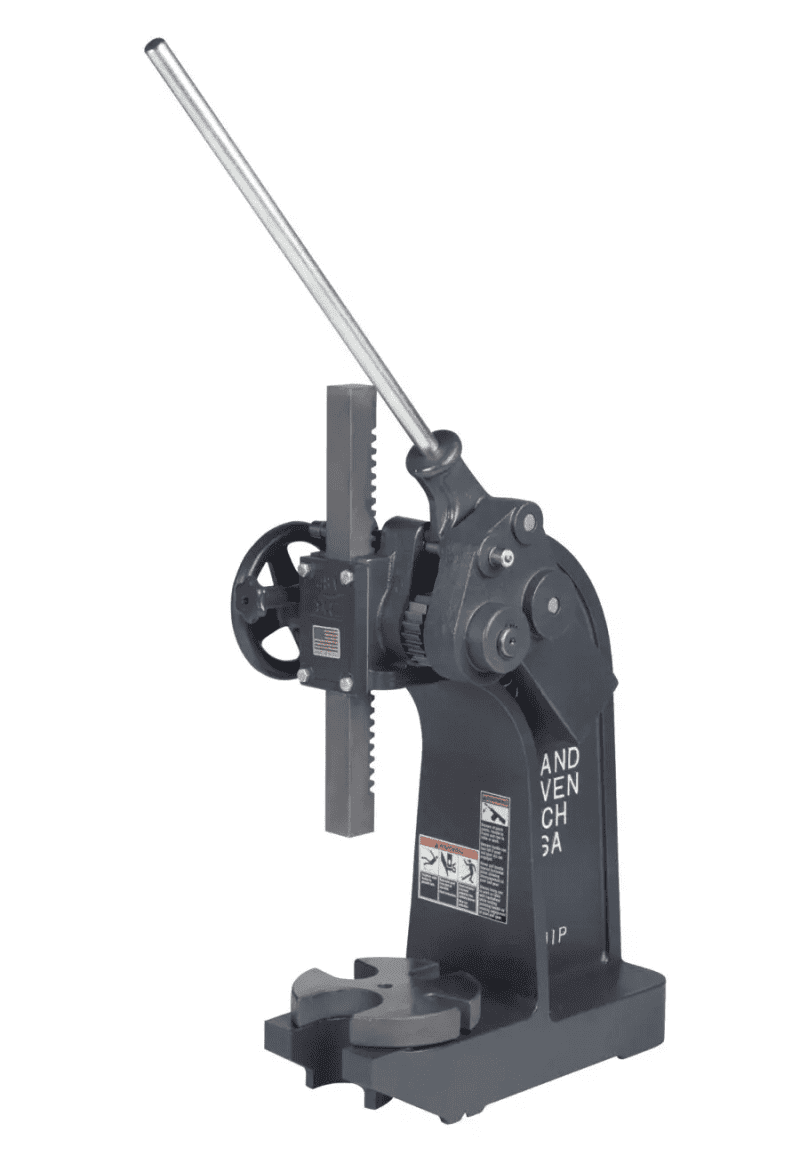

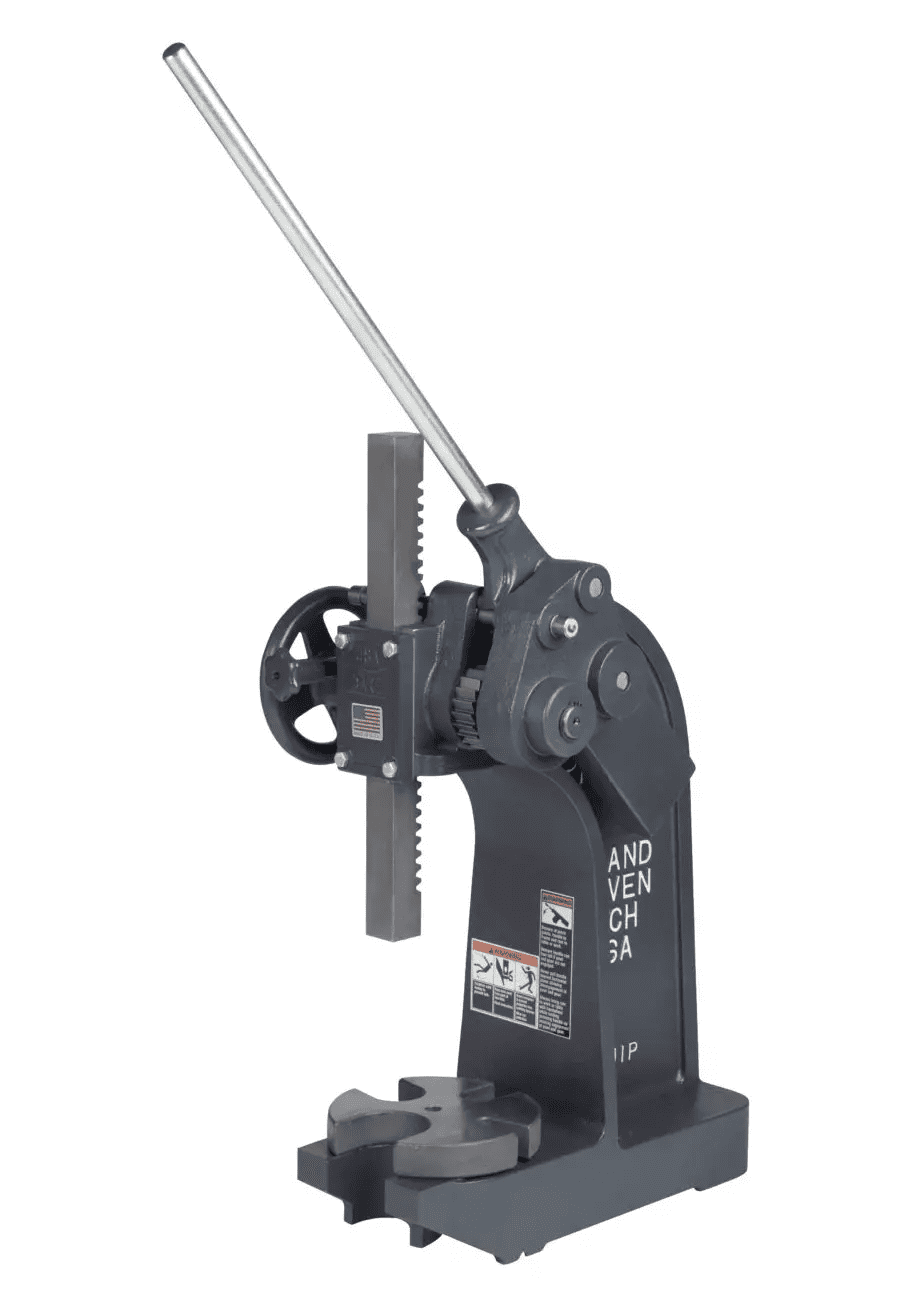

Dake Model 2 Compound-Leverage 6 Ton 7-¾” Throat Bench-Model Arbor Press 903004
Dake Model 2 Compound-Leverage 6 Ton 7-¾” Throat Bench-Model Arbor Press 903004
$2,995.00
This 6 ton compound leverage arbor press features a cast iron frame and incorporates a reinforced spine design which adds rigidity to the press body. The frame is machined for maximum stability and drilled to permit bench or pedestal mounting. A sliding pin easily converts the press from compound to single leverage. Table and slotted table plate are flat and parallel to provide accurate support.
- Leverage Ratio: 66:1
- Largest Arbor: 3”
- Max Ram to Table: 15”
- Min Ram to Table: 13¾”
Specs & Features
Description
This 6 ton compound leverage arbor press features a cast iron frame and incorporates a reinforced spine design which adds rigidity to the press body. The frame is machined for maximum stability and drilled to permit bench or pedestal mounting. A sliding pin easily converts the press from compound to single leverage. Table and slotted table plate and flat and parallel to provide accurate support.
Nobody in the industry offers a wider range of tonnage and sizes in arbor presses than Dake. They manufacture 17 different standard single leverage, ratchet leverage, and compound leverage arbor presses. For strength and durability, all frames are cast iron and incorporate a flanged spine design which adds rigidity to the press body. Arbor press bases are machined for maximum stability and drilled to permit side mount, bench, or pedestal mounting. Dake has been manufacturing their line of arbor presses since the 1940’s and are proud to say that you will find one of these machines in just about every job shop in the USA.
Features
- Compound leverage mechanism allows greater pressure application with minimum effort
- Sliding pin easily converts press from compound to single leverage
Standard Equipment
- Cast Iron Frame
- Handwheel
- Ram
- Notched Table Plate
- Counterweight
Specifications
- Capacity: 6 Tons
- Leverage Ratio: 66:1
- Ram Size: 1½” x 1½” x 19”
- Max Diameter Work: 15½”
- Throat: 7¾”
- Largest Arbor: 3”
- Max Ram to Table: 15”
- Min Ram to Table: 13¾”
- Base Length: 8¼”
- Base Width: 20”
- Height: 26”
- Weight: 260 lbs
Optional Add-Ons
- Pedestal (903002)
