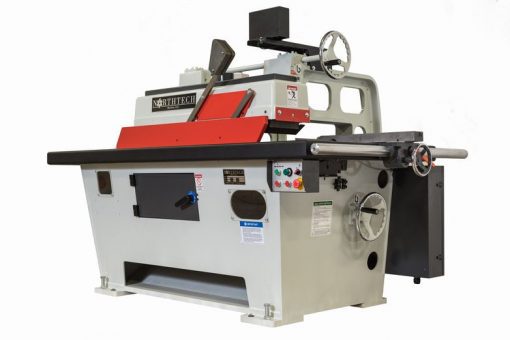

NT SLR-20SC PRECISION STRAIGHT LINE RIP SAW
FEED SYSTEM
- Saw motor: 25HP, 3PH 230/460V
- Feed: 3HP variable from 50′ – 190′ / minute
PRODUCT DIMENSIONS
- Min. thickness: 3/16″
- Max depth of cut: 5-15/16” with 20” Blade
- Max depth of cut: 4-15/16” with 18” Blade
- Max depth of cut: 3-15/16” with 16” Blade
- Max depth of cut: 2-15/16” with 14” Blade
- Max. width of stock: (Blade to column arms) 26-1/4″
FEATURES
- Chain and Race equipped with “True Track”
- Table size 40″ x 83″
- Machine frame is constructed of a 1″ thick base plate
- Solid steel frame with 1″ thick column arms.
- Safety door switch with pneumatic motor brake.
- 2″ arbor and large support bearings.
- Glue line guarantee on 4/4 stock is 14′ – 16′ at 50 FPM.
- All motors and electricals are UL rated.
- Industrial fence with cam lock quick release on rack and pinion glide.
- Two rows of heavy duty kickback fingers.
- (8) large pressure rollers for optimum glue line ripping.
- An automatic mechanical oiling system with low oil level feed shutoff.

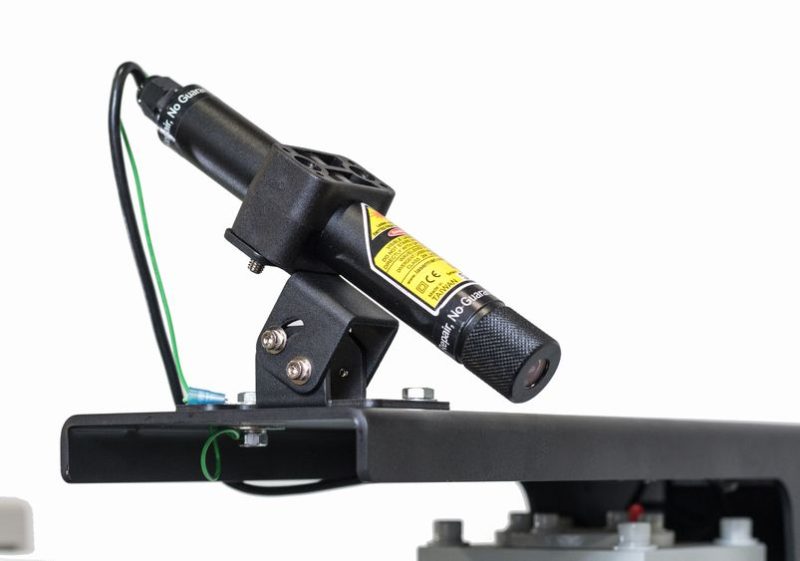

- A 100mw laser light and mounting bracket are included.
- (1) Tool box
- Amperage requirements: 25HP + 3HP 230V / 460V: 66A / 33A
- Dust collection requirements: (1) 4″ dust port requiring 450 CFM @ each point of extraction
(1) 6″ dust port requiring 981 CFM @ each point of extraction
- Weight: 4,090 lbs.
- Machine dimensions: (L) 92″ x (W) 67″ x (H) 60″
- Warranty is one-year parts
- All machines are tested stateside prior to shipment providing trouble-free start-up.
- Main Motor Hp. = 25 hp.
- Direct Drive = Direct Drive
- Voltage/ Freq. = 230/460 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 66/33 Amps
- Feed Hp. = 3 Hp.
- Feed System = 4” Split Chain with True Trac
- Drive System = Belt
- Feed Speed = 50 – 190 FPM
- Variable Speed = Mechanical
- Elevation Style = Manual Wheel Adjustment
- Elevation Sys. = Linear Gauge with Hand Wheel
- Total Hp. = 28 Hp.
- Electronics = UL Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 110 Volt
- Assisted Start = Wye Delta
- Pass-Line = 32-3/4”
- Throat Capacity = 26-1/4”
- Min. Length = 18-1/4”
- Min. Width = 1”
- Min. Thickness = 3/16″
- Max. Thickness = 5-15/16” W/ 20” Blade
- Glue Line Rip = 14′ – 16′ 4/4 stock @ 50 FPM
- Arbor Rpm = 3540 Rpm

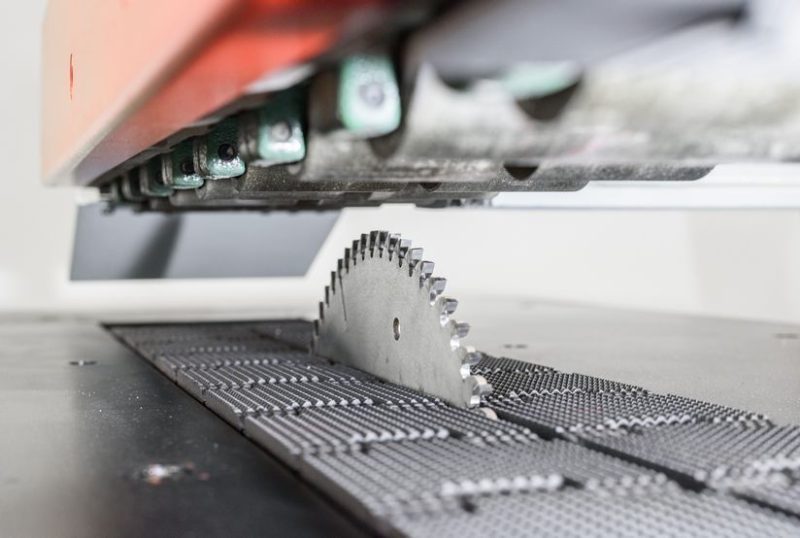

- Blade Size = 14” Tungsten Carbide Tipped
- No. of Teeth = 70 Tooth
- Tooth Spacing = 5/8 In.
- Blade Kerf = .197 In.
- Tracking Style = “True Track” System
- Tension Style = Gravity
- Vertical Travel = 3/16” – 5-3/4”
- Dust Collection = 4” Top 6” Bottom 1417 Total
- Dust Port Out = 4” Top 6” Bottom
- Arbor Diameter = 2″ Arbor
- Chain Adj. = True Track Adjustable Chain
- Idle Rollers = (8) Idle Rollers
- Hold Down Style = 8 Spring Loaded Hold Downs
- Kickback Finger = 86 Bottom / 34 Top Kickback Fi
- Recommended CFM = 1417 Total CFM
- Emergency Stop = Push Button
- Rear E Stop = Push Button
- Safety Feature = Door Switch / Motor Brake
- Guarding = High Visibility Guarding
- Oiler = Automatic Mechanical Oiler
- Low Oil Warning = Low Oil Shut-off
- Fence Type = Industrial Cam Lock Quick Rel
- Fence Dims. = 2” x 26-7/8”
- Brake System = Air Brake on Motor
- Frame Const. = 1″ Base 1/2″ Cabinet 3/4″ Arms
- Worktable Dims. = 40” x 83” x 33-1/2”
- Table Const. = Steel
- Laser = 100mw Laser Light & Mount Bracket
- Decible Rating = 82 dB
- Net Weight = 3872 Lbs.
- Gross Weight = 4090 Lbs.
- Machine Dims. = 92” x 67” x 60”
- Packaging Dims = 89” x 69” x 70”
