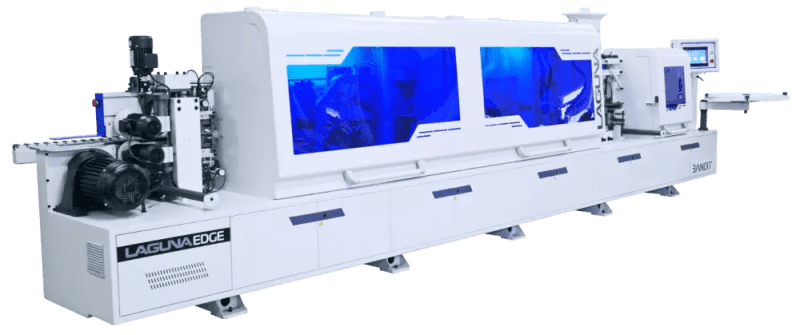

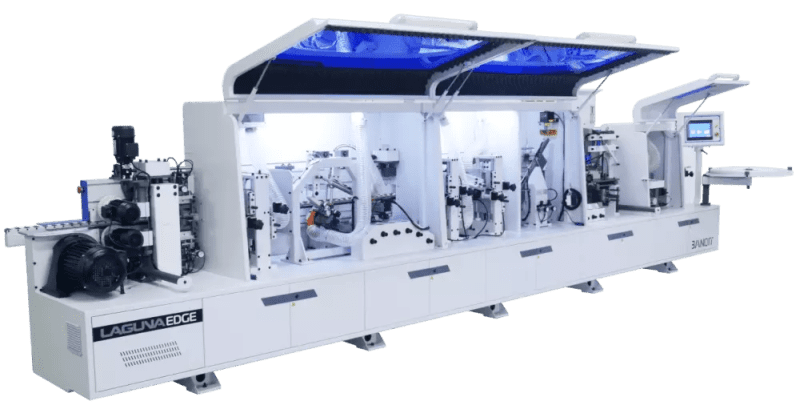

Laguna Tools Bandit 5 Edgebander

$59,999.00

The Bandit 5 is the flagship model of our Edgebander line. With the addition of Pre Milling and Corner Rounding, this machine has all the features you’ve come to expect from a Laguna Edgebander. The Bandit 5 can apply a perfect edge finish for you every time.

Features:

Pre-Mill
Corner Rounding
Dual Motor End Time
Top & Bottom Trim
Buffing & Scraping

Description

Model: MED52203

Feed Speed: 15-23m/min(49-76ft/min)

Edge Thickness: 0.4-3mm (1/64″ – 1/8″)

Panel Thickness: 10-60mm

Panel Length: >150mm

Working Pressure: 0.6mpa

Power Requirements: 220V-3PH-60HZ, 90amp Breaker

Total Power: 16.45kW (22HP)

Panel Width: >60mm

Dust Port Outer Diameter: 98mm (3.85″) x 5

CFM Requirement: 2000 CFM

Compressed Air Requirement: 90 PSI, 12 CFM

Minimum Panel Size (L x W): 300mm x 60mm (11-13/16″ x 2-3/8″) /
150mm x 150mm (5-29/32″ x 5-29/32″)
