ADVANTAGE
Impeccable finish

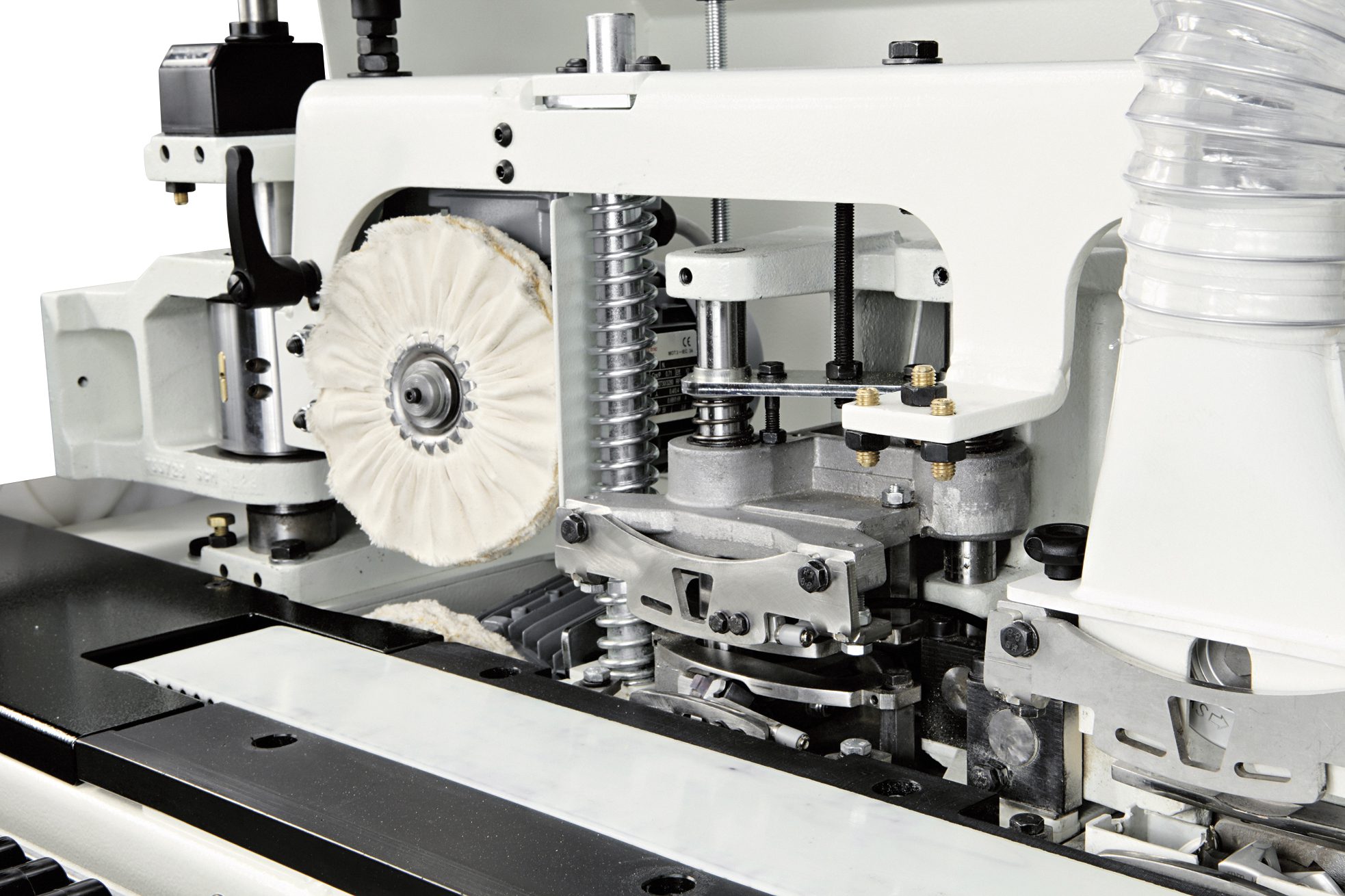

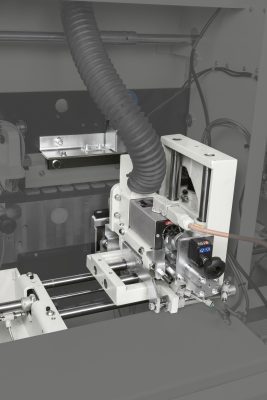

New rounding unit with rigid structure for a unique quality of work in its segment. The particularly affordable price distinguishes it as the most competitive edge bander with round on the market!
High productivity

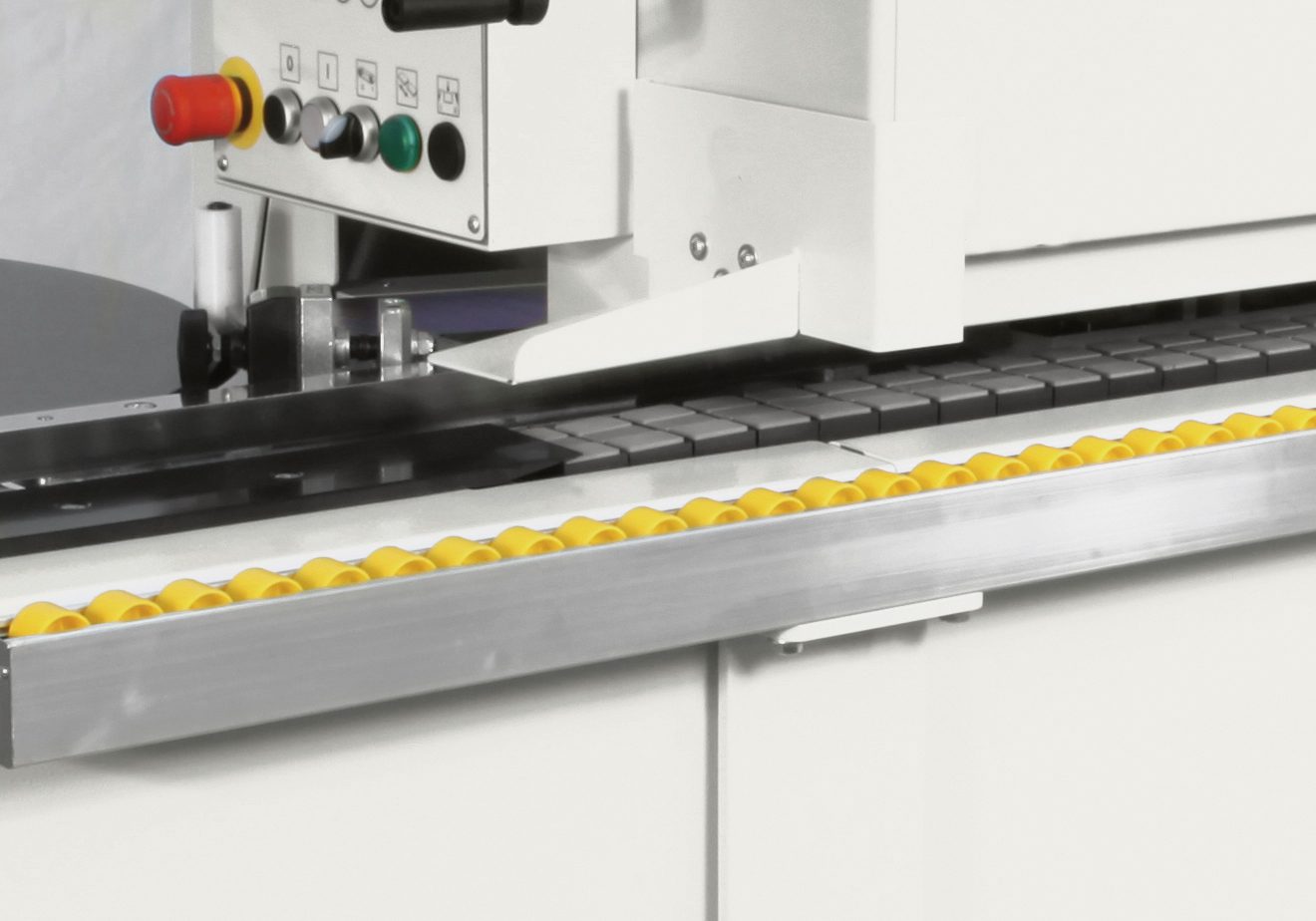

9 m/min panel feed speed with track movement for an increased productivity. Monitoring of the panel position by encoder for a total work cycle control.
Brillant idea

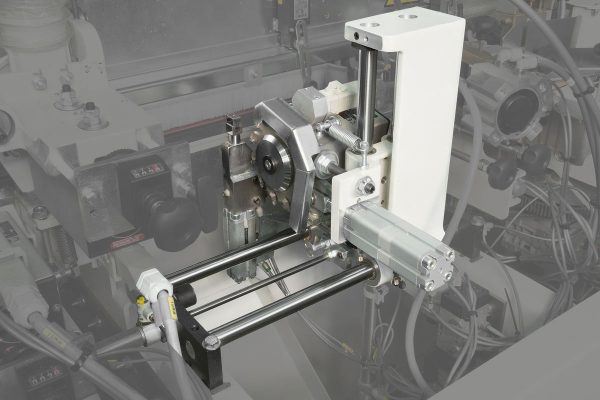

The end-cutting unit with “Radius” allows you to make a radius on the corners of the edged panel without the need of the operator to have to finish by hand at a later stage: brilliant idea to a finished product of high quality.
Technical data
| me 40 | ||
| Work table dimensions | mm | 3465 x 710 |
| Min. ÷ max. thickness of rolled edges | mm | 0,4 ÷ 3 |
| Max. thickness of edges in strips | mm | 5 |
| Min. ÷ max. panel height | mm | 8 ÷ 50 |
| Min. panel length/width | mm | 190/110 |
| Feed speed | m/min | 9 |
