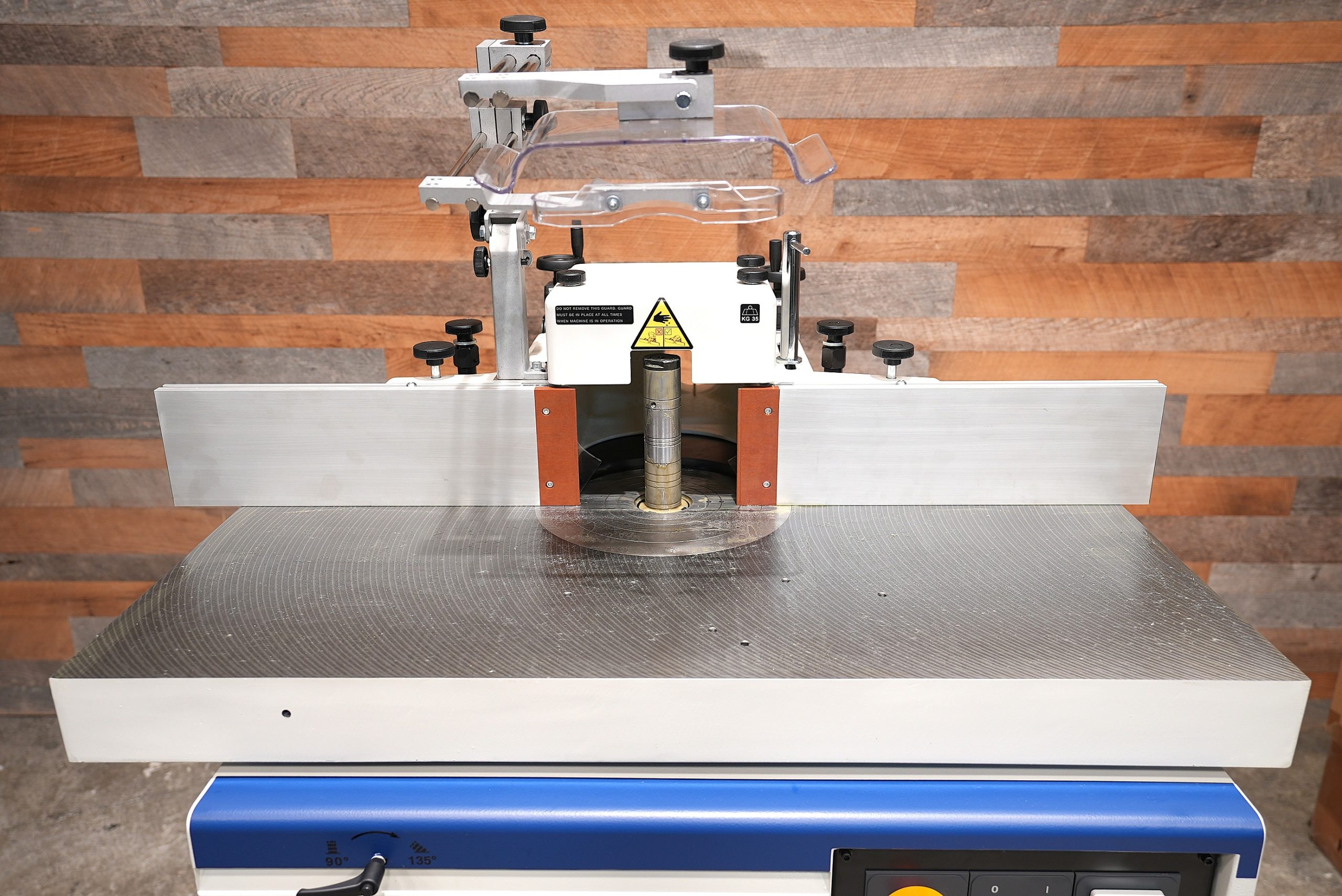

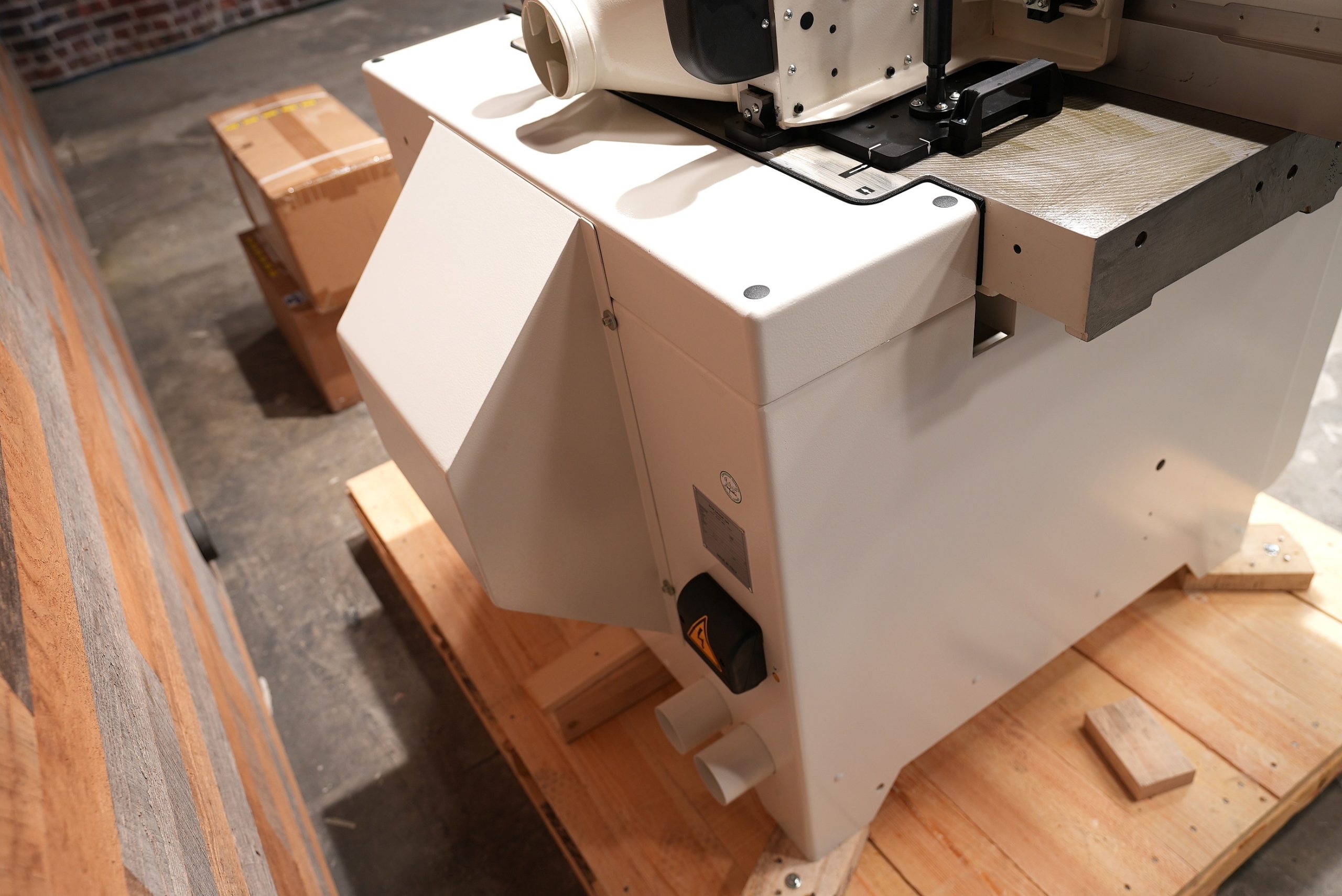

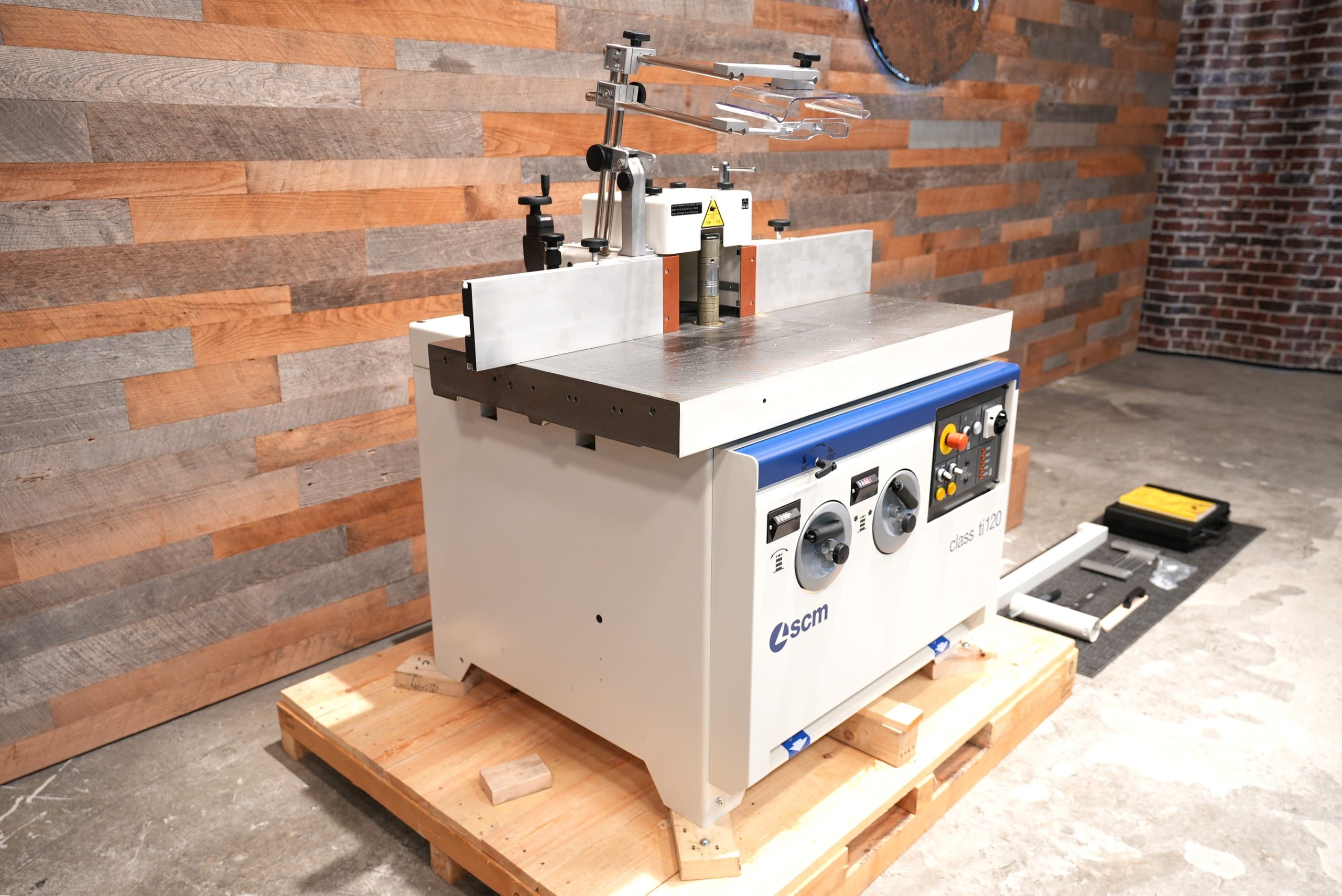

NEW SCM Class TI 120 Tilting Spindle Shaper + SCM Feed 48 – FREE SHIPPING

NEW SCM Class TI 120 Tilting Spindle Shaper + SCM Feed 48 – FREE SHIPPING

Original price was: $19,250.00.Current price is: $16,362.50.

Categories , , Tags , ,

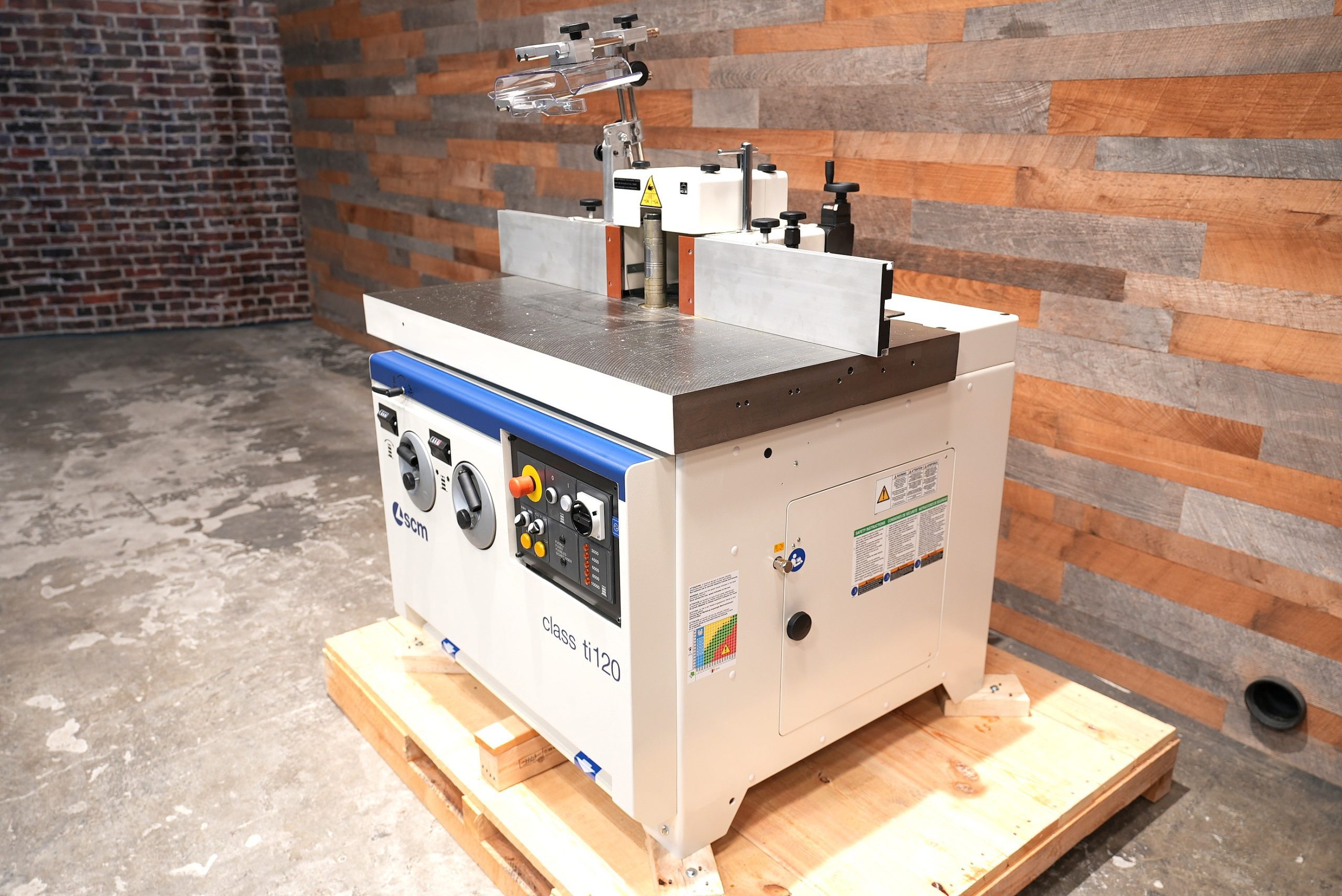

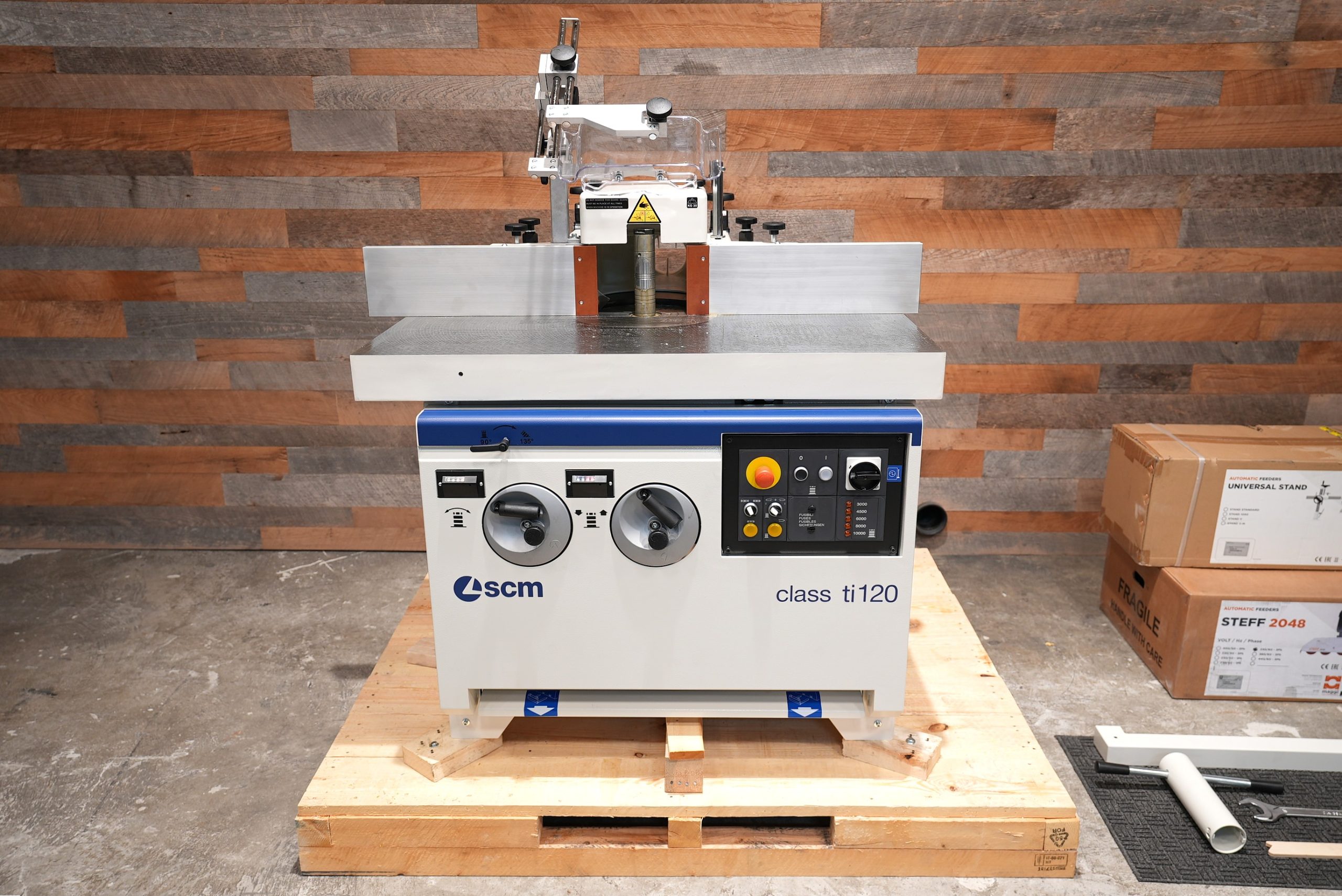

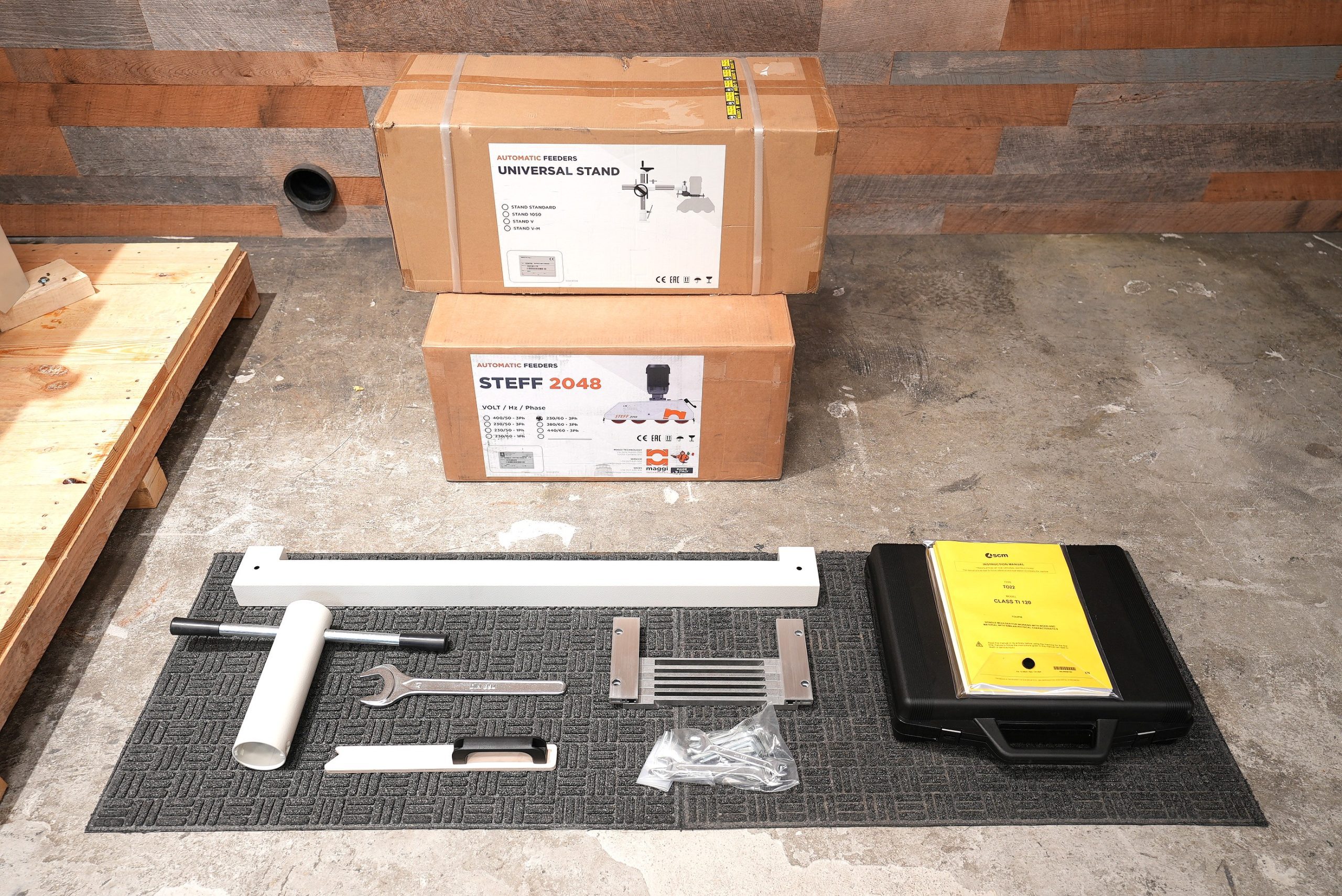

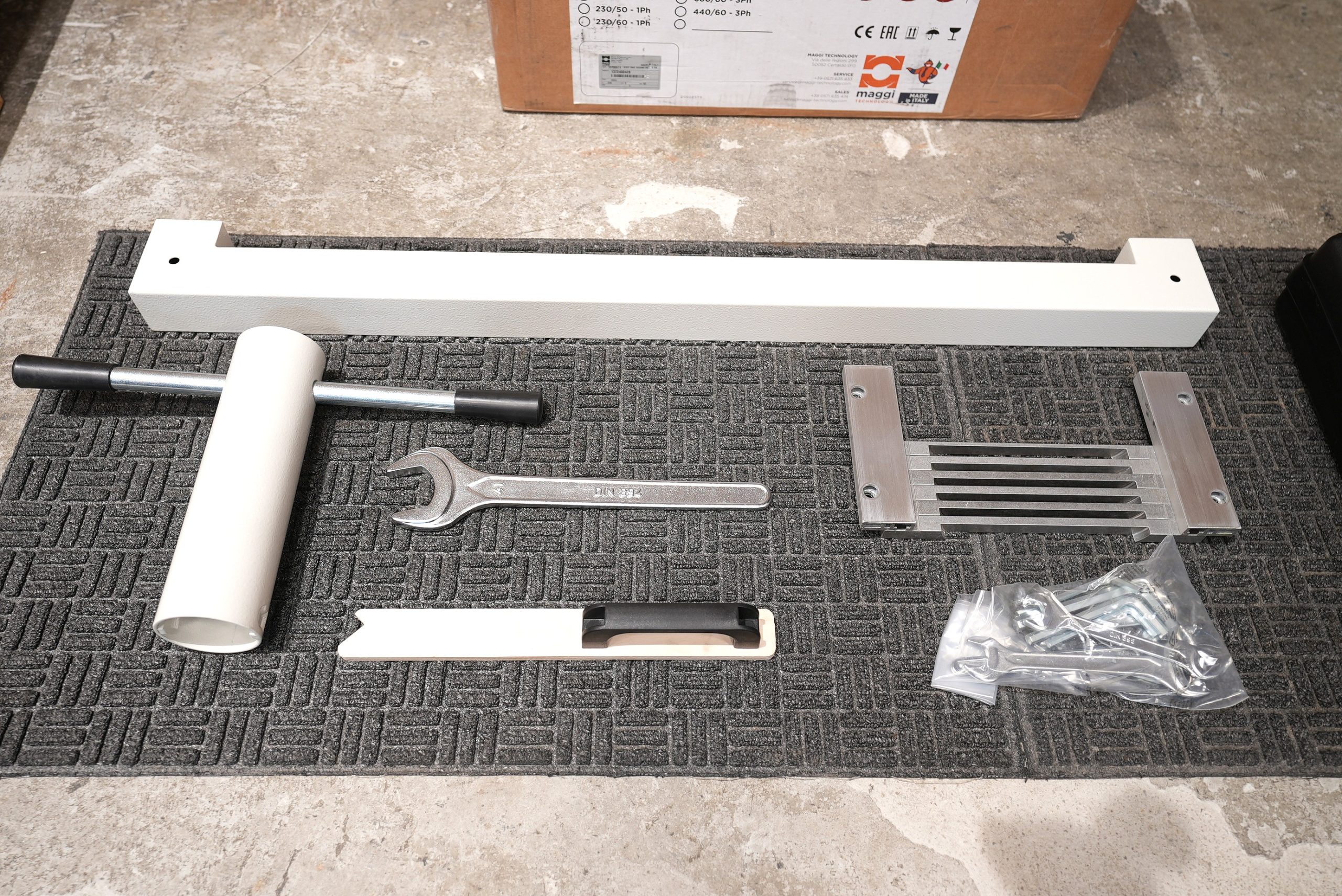

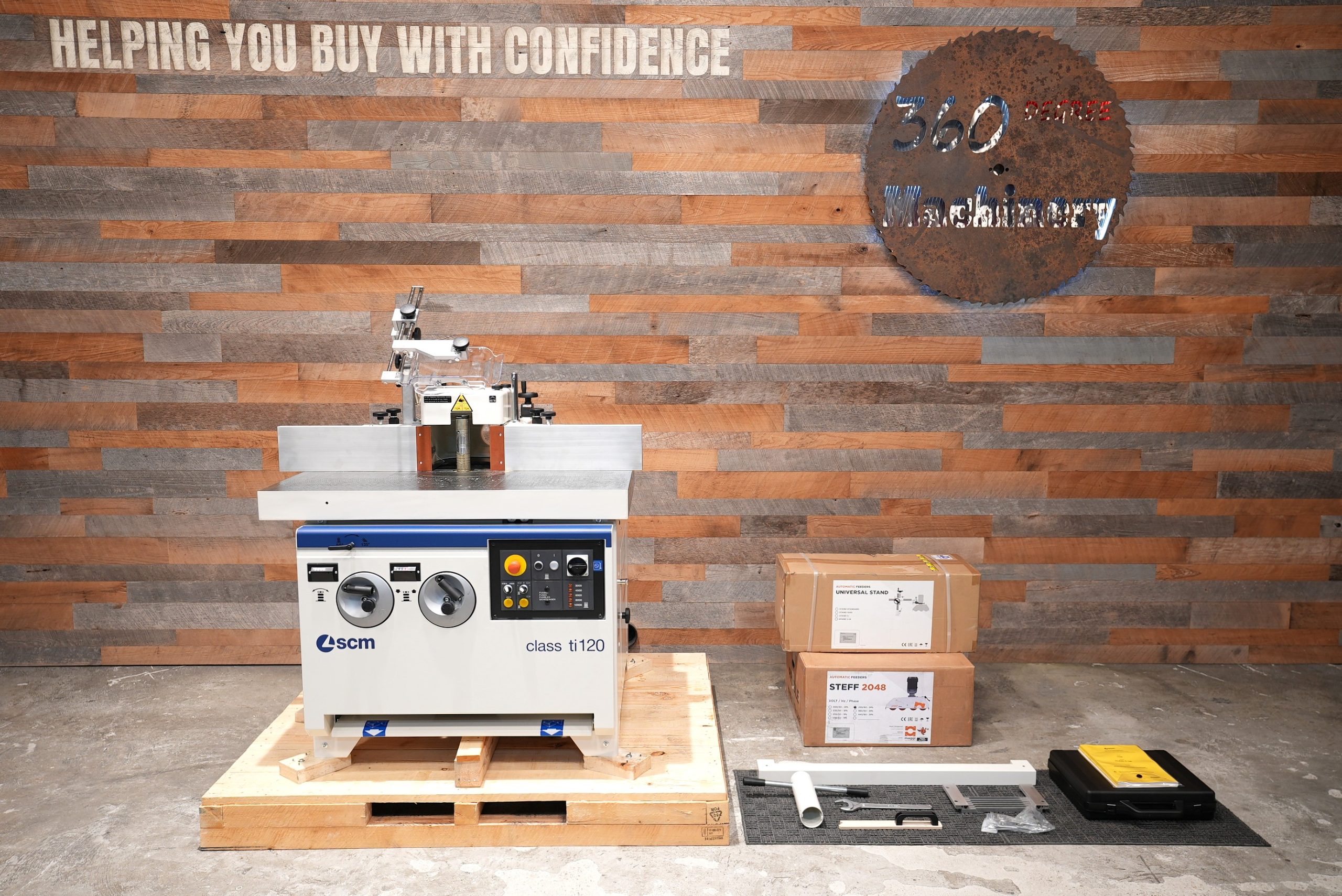

NEW SCM Class TI 120 Tilting Spindle Shaper + SCM Feed 48.  Still has it’s protective coating on it! Full factory warranty! All factory accessories & manuals present. Only (1) unit at this price!  (Machine is still sealed in factory Plastic/Non-plastic sealed Pictures and Video are of another machine so you know what you are getting)

Specs:
Table dimensions: 47.19″ x 31.87″ (1,200 x 810 mm)

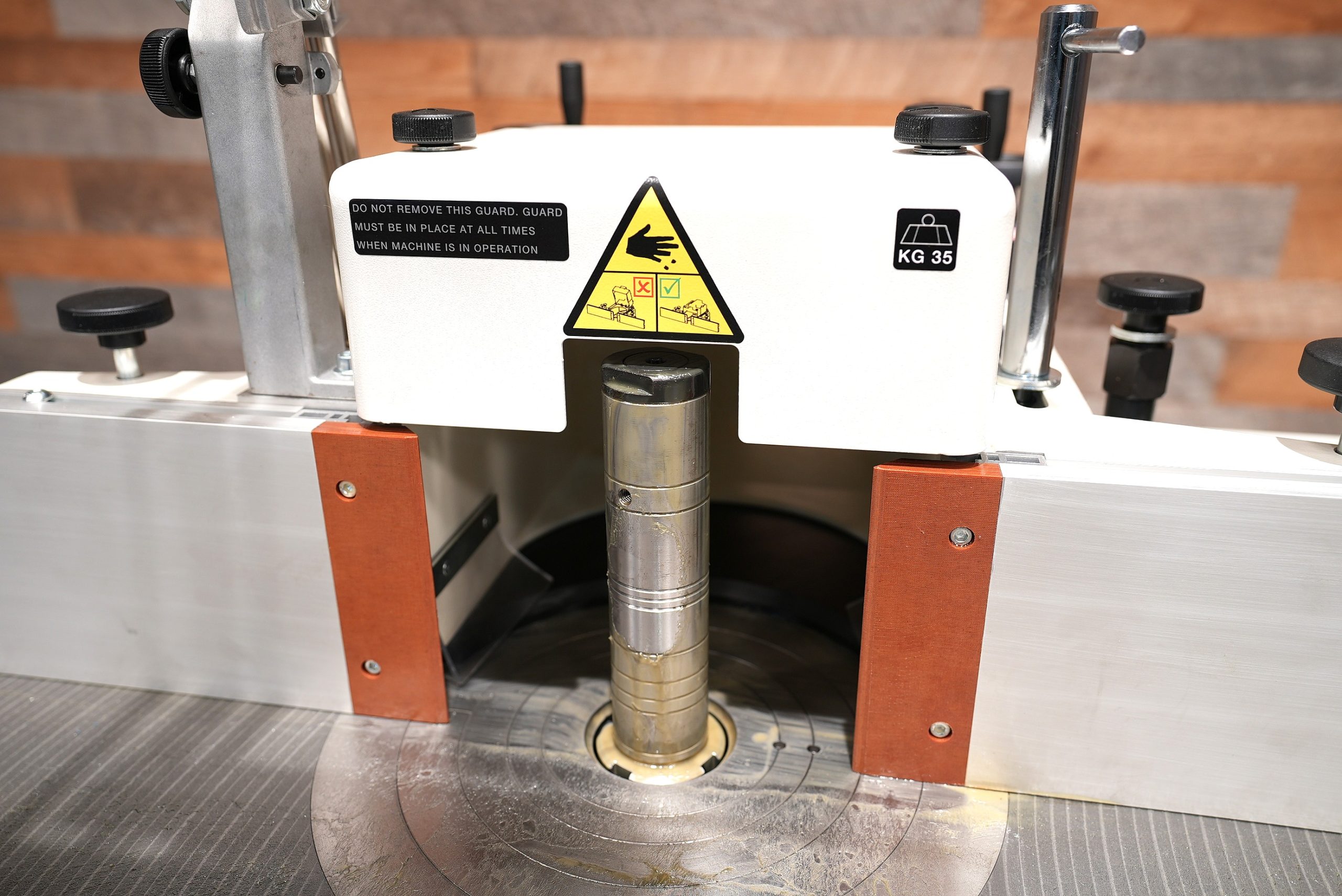

Spindle dia.: 1-1/4″
Max. useful spindle length: 7.06″ (180 mm)

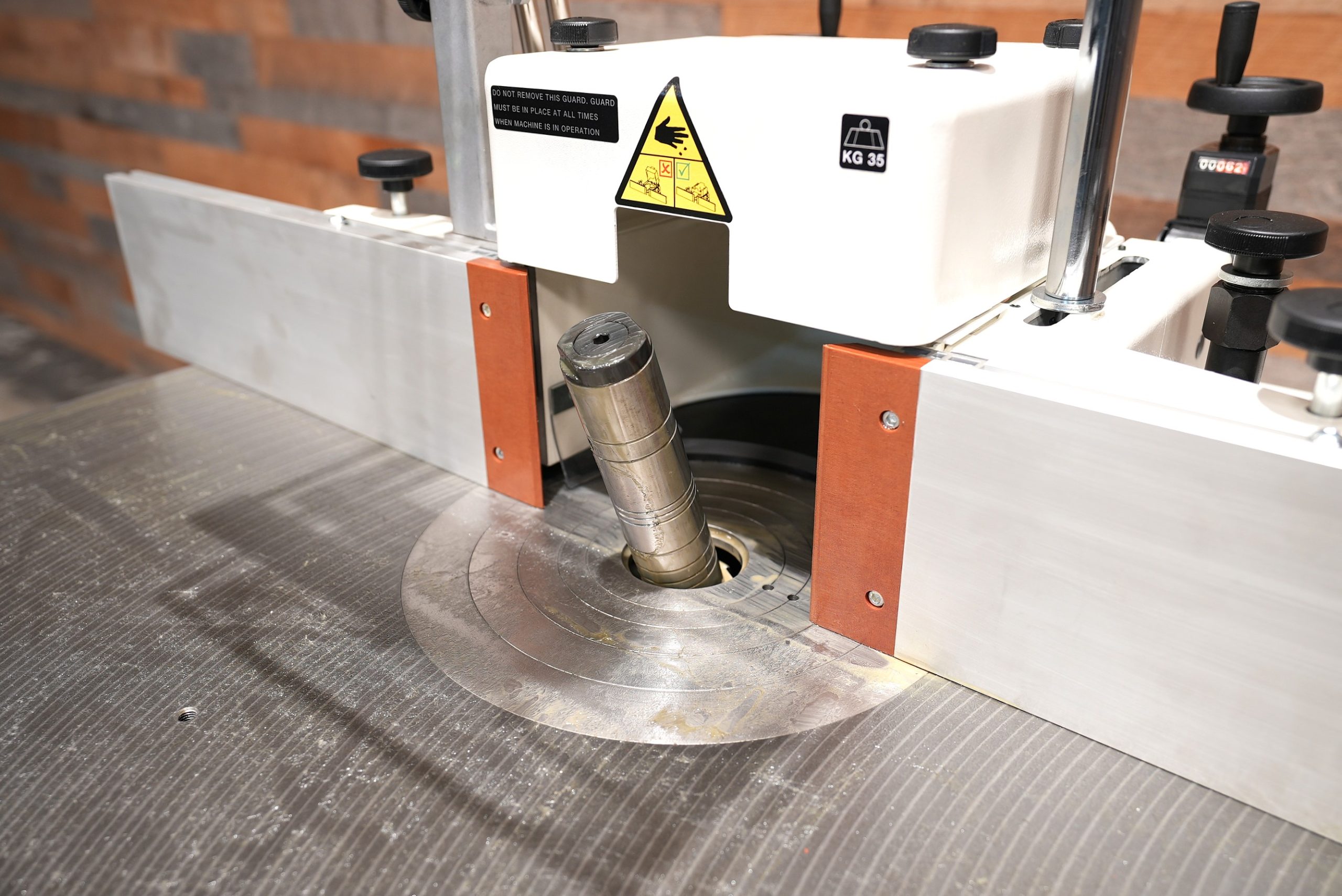

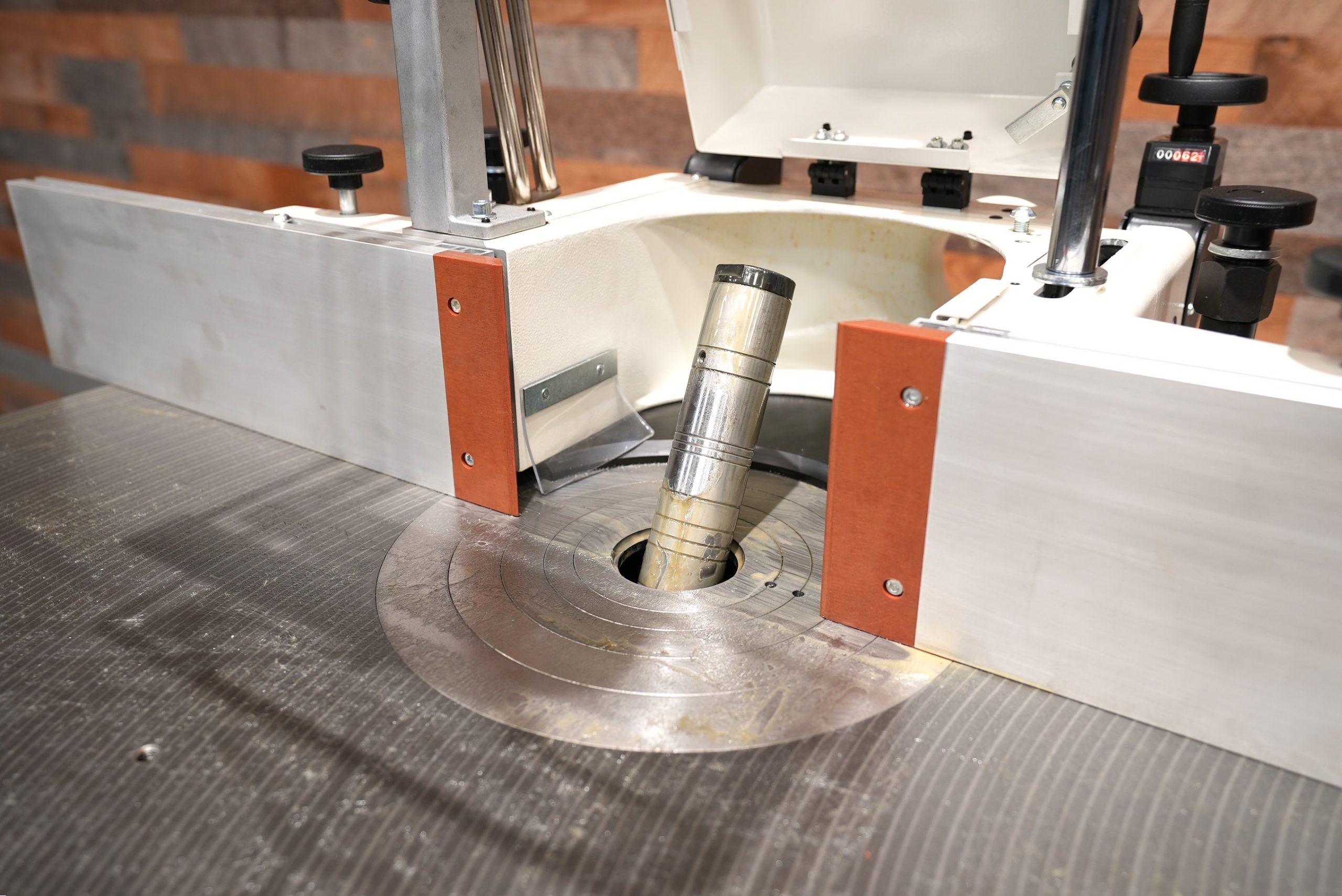

Tilt angle: 45° / +45°
No. 4 Morse Tape Spindle Mount: MK4
Max. tool dia. retractable under table: 12.56″ x 2.31″ (320 x 60 mm)
5 Spindle speeds (RPM): 3,000 / 4,500 / 6,000 / 7,000 / 10,000
Dust outlets dia. (hood): 4.69″ (120 mm)
Dust outlets dia. (base): 2x 3.12″ (80 mm)
Min. required dust collection: 900 CFM
Motor power: 11hp (8 kW)
Electrical requirements*: 220V, 60Hz, 3-phase, 26 A
Features:
  • Cast iron construction

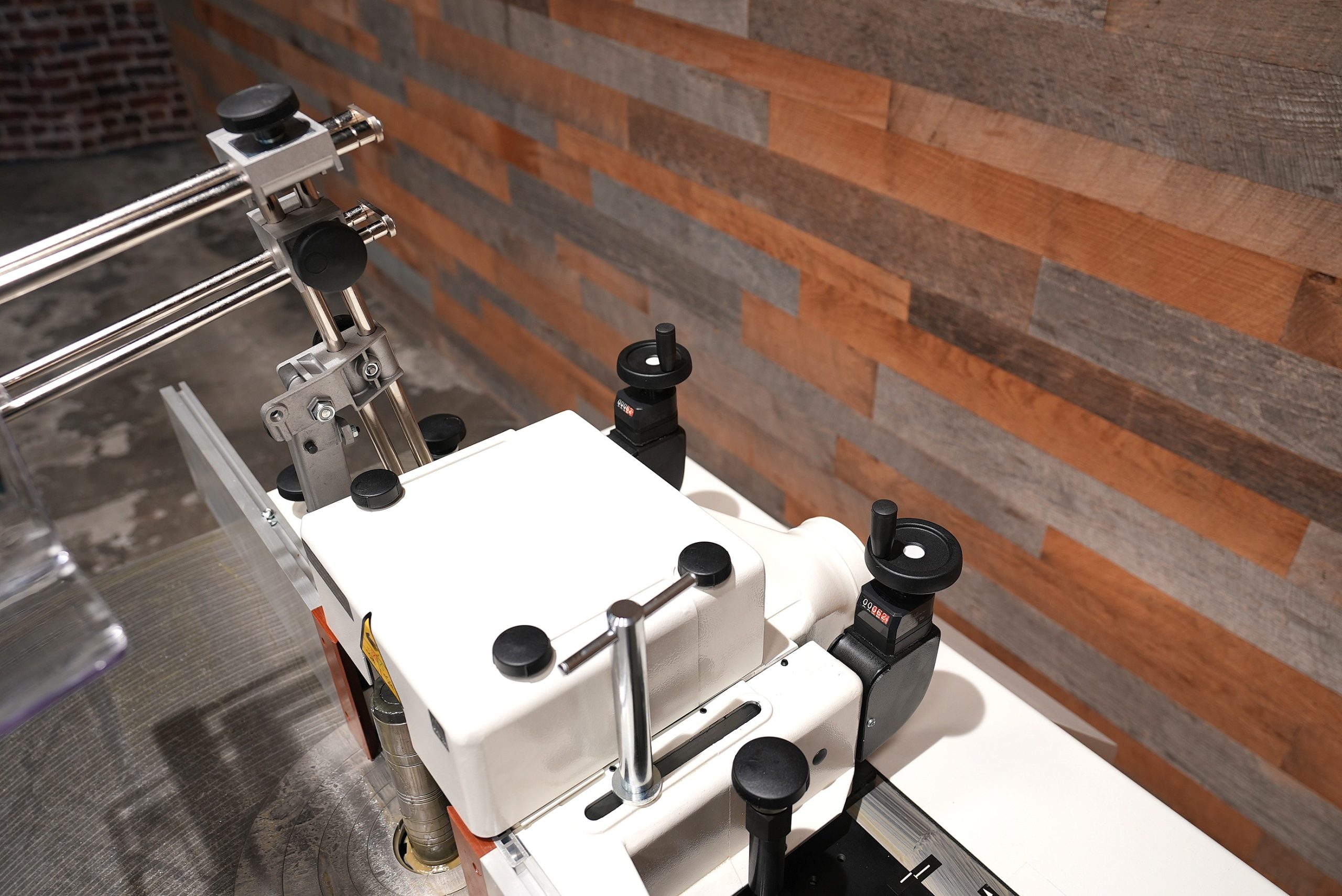

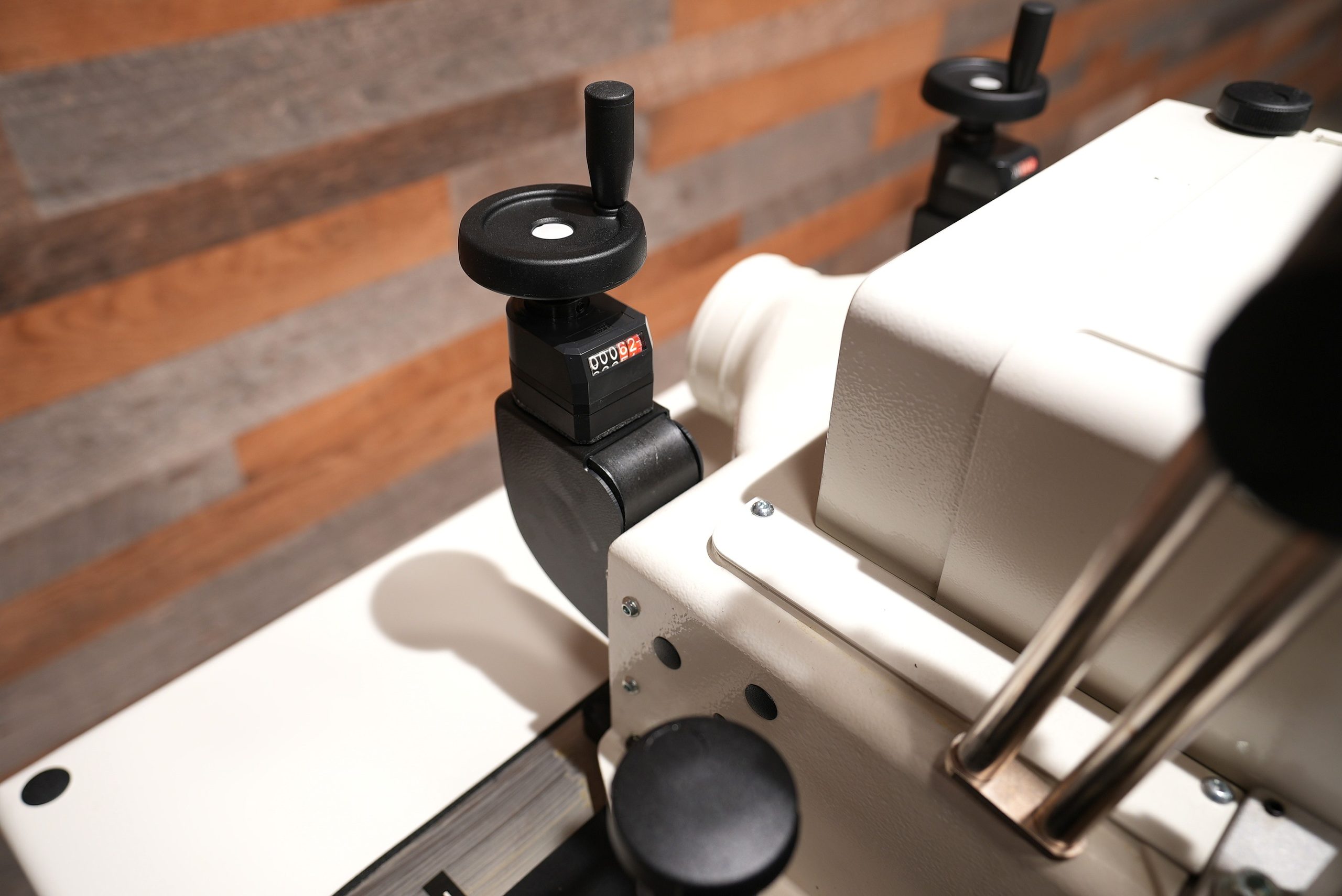

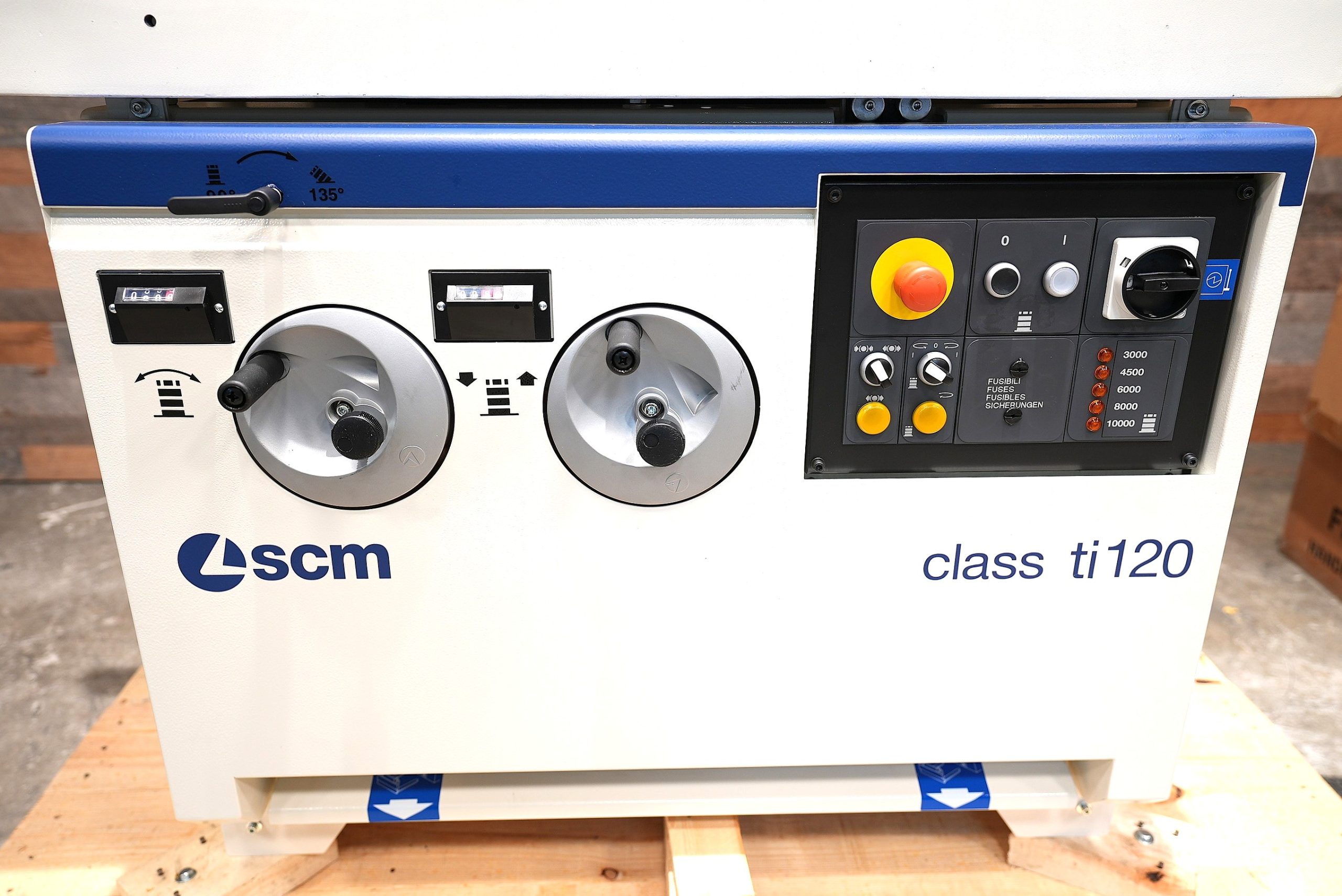

  • Front-handwheels with mechanical readouts for adjusting the spindle and fence positions
  • 5 spindle speeds
  • MK4 interchangeable spindle
  • Overload switch protection
  • Mechanical brake on the main motor

Specifications:

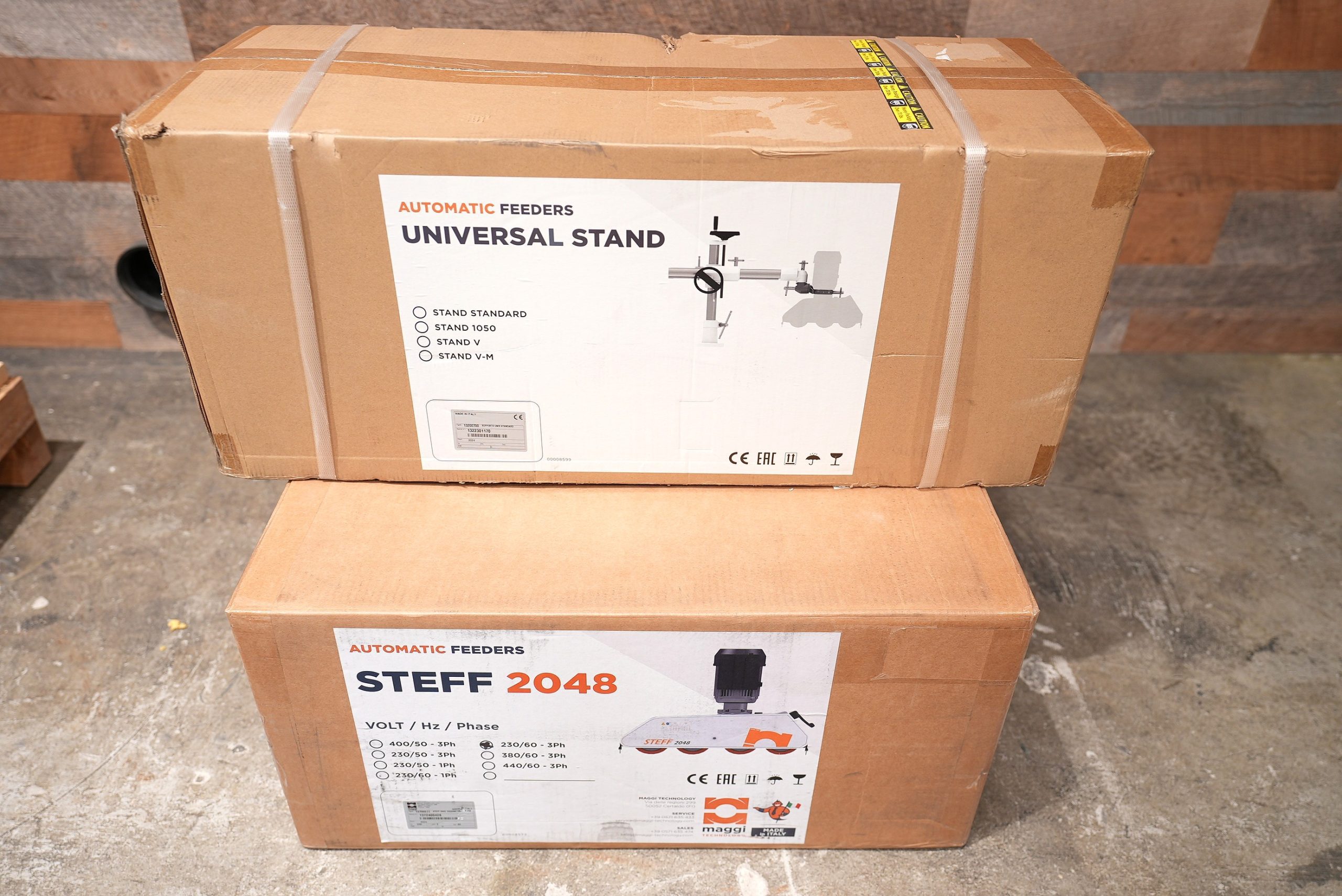

formula feed 48
Number of rollers 4
Feed speed m/min 2/4/5,5/7/11/13/16,5/33
Rollers diameter mm 120
Rollers width mm 60
Rollers excursion mm 18
Three-phase motor power kW (Hz) 0,75 (50)

Free Shipping to a commercial address with a dock or forklift! **Restrictions: Applies to lower 40 of the contiguous US states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping rather 50% off shipping. Additional cost for non-commercial or limited access add $75. Add $75 for a liftgate. Can not ship to protected SCM sales areas.

Add to Quote Request

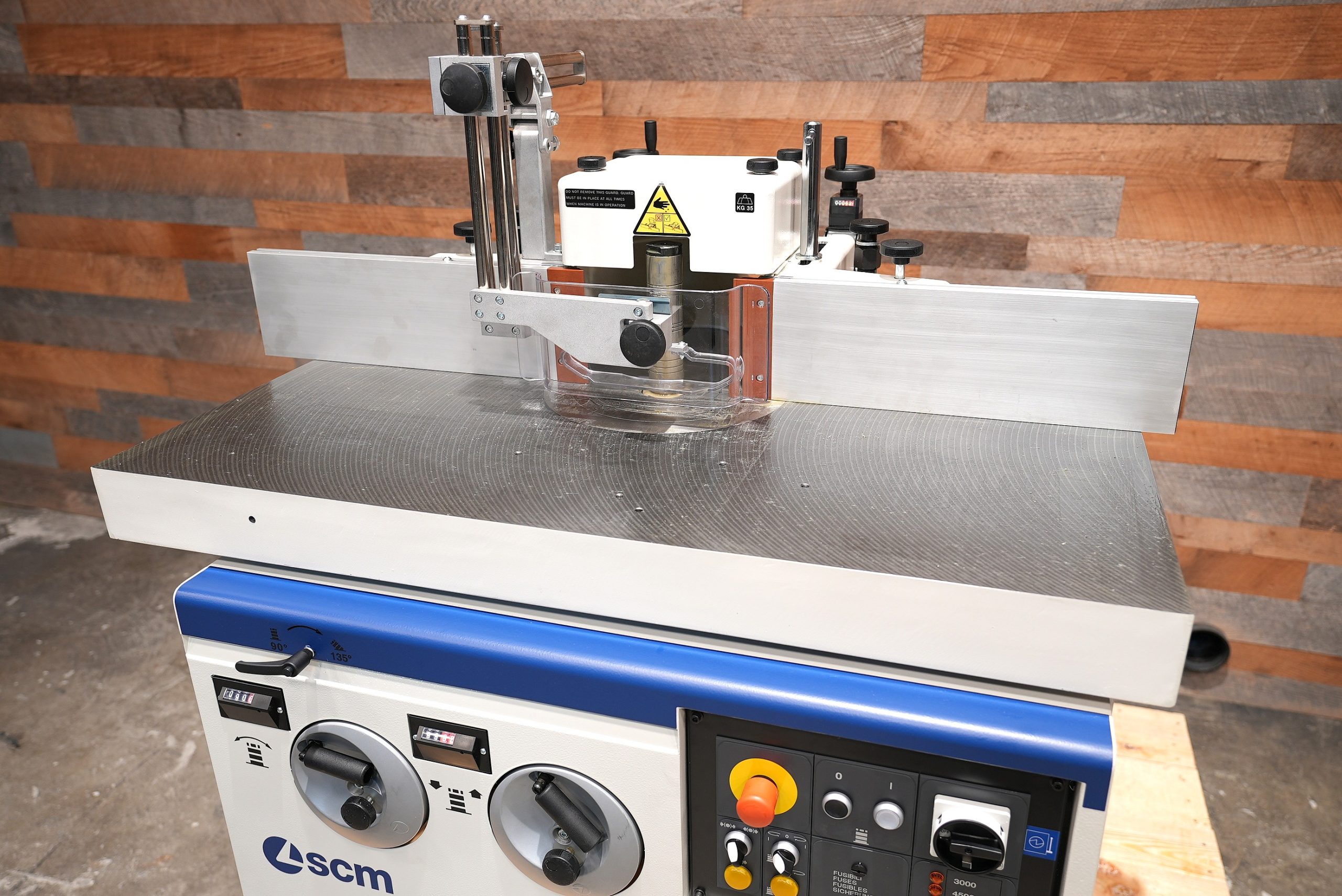

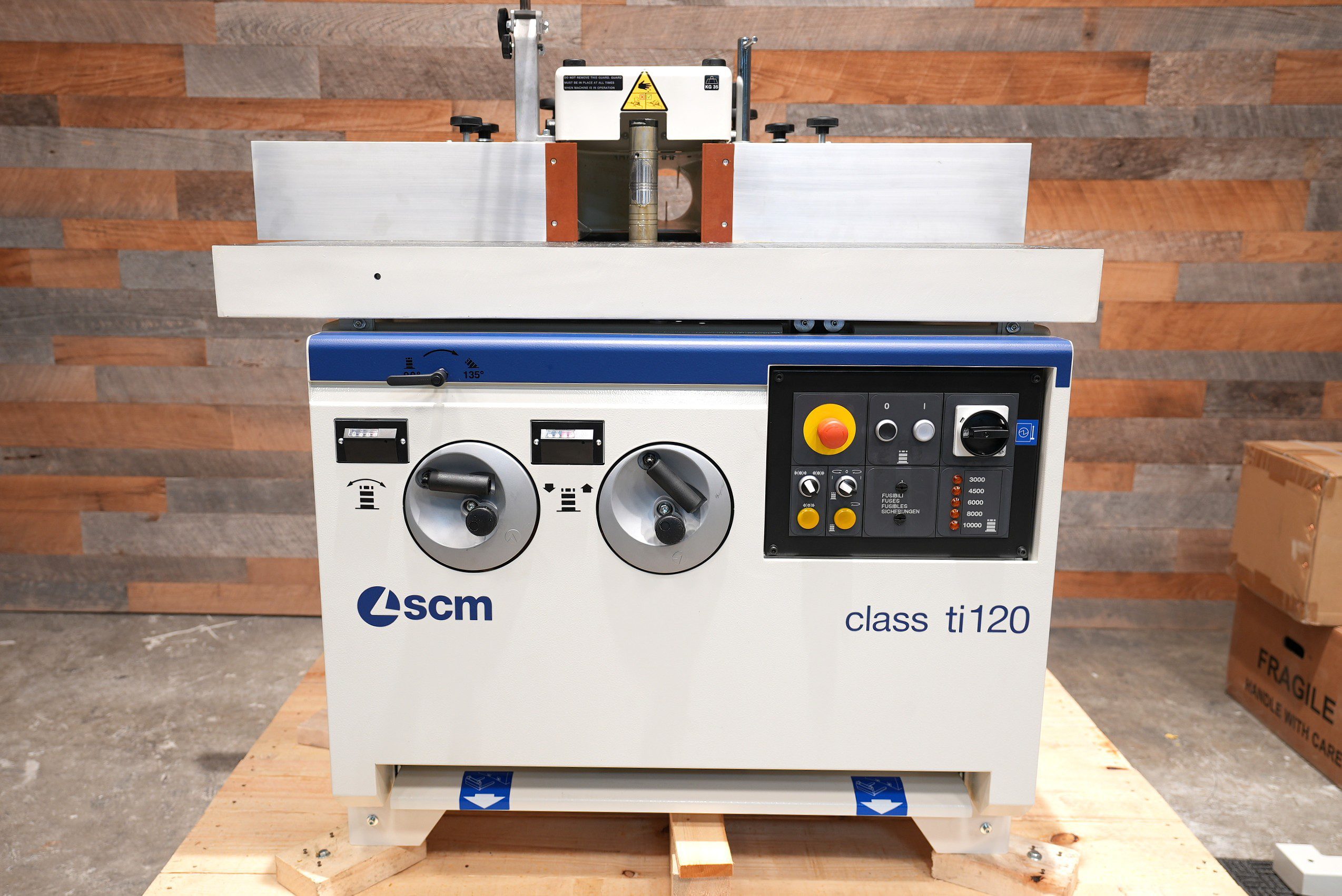

Set up precision and reliability. The operator easily adjusts all movements due to a hand wheel with mechanical decimal readouts located on the front of the machine.

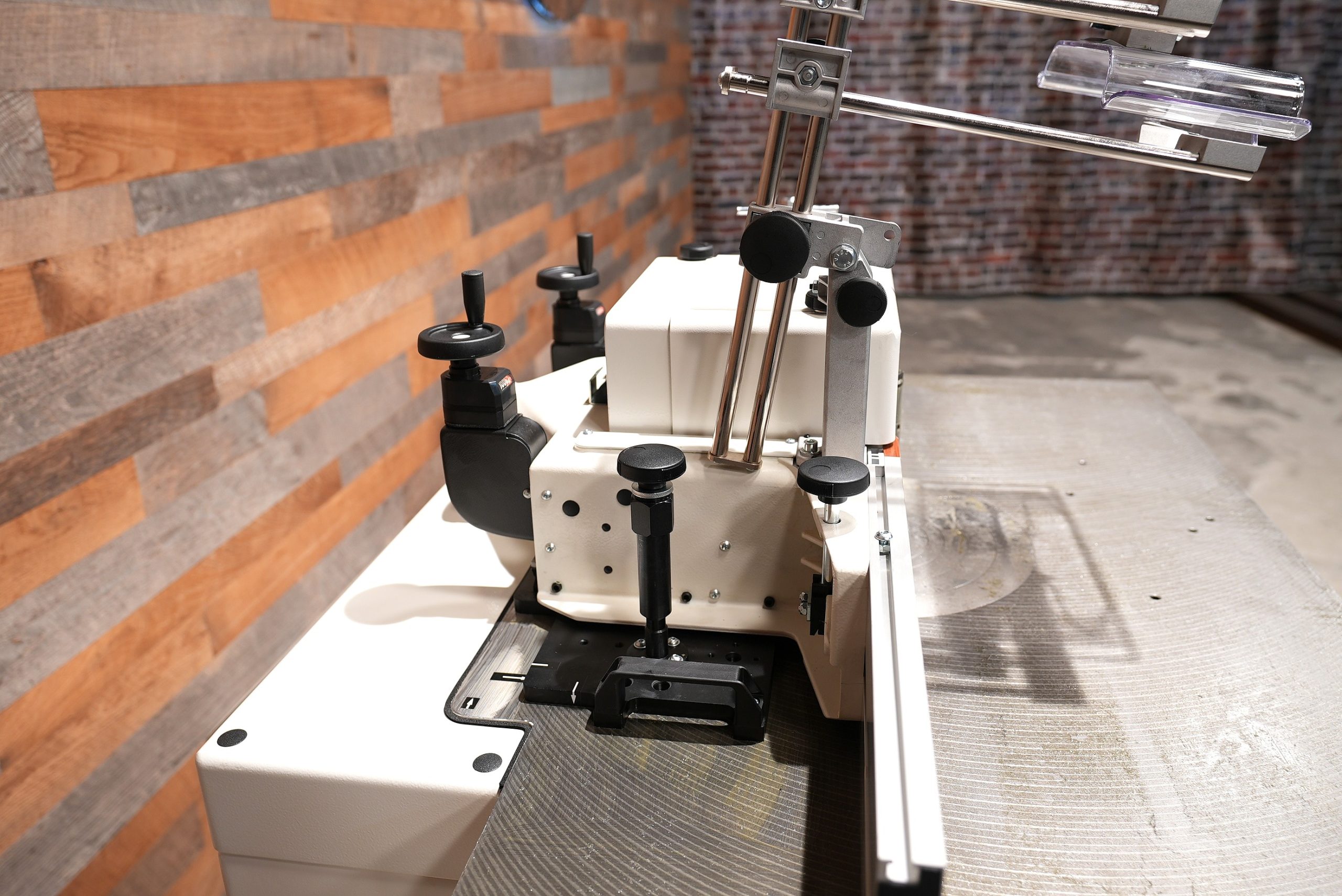

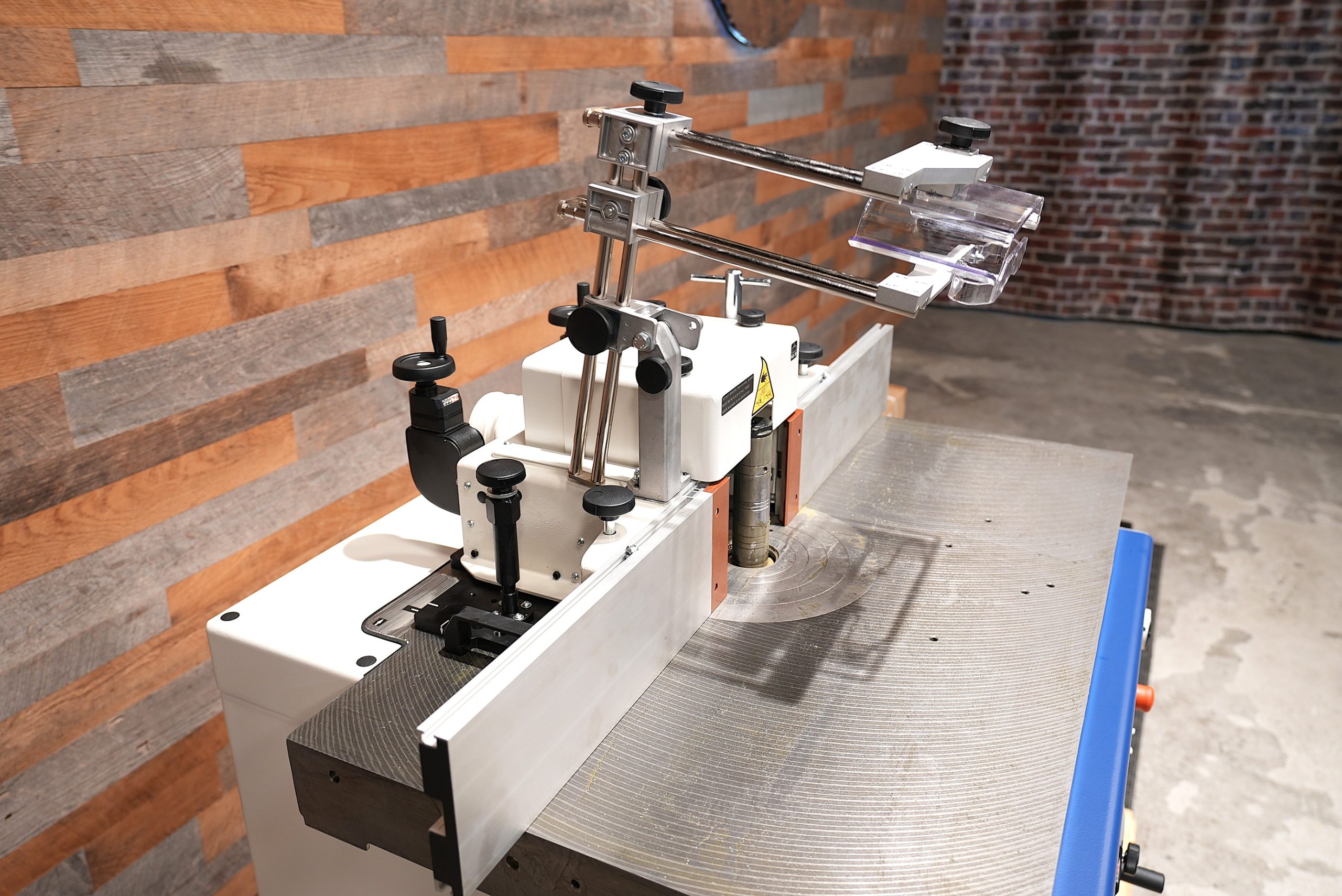

Spindle moulder fence with mechanical programming: maximum set-up speed and ease-of-use. No more test runs due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.

Easy access to the spindle to carry out different machining with the optional “Flex” system for the rapid exclusion of the fence from the working table.

Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.

***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.

Applies to lower 40 of the contiguous states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage, Oliver, nor JLT Machinery or other machines listed as not free shipping.

Financing & Leasing Options for Your Convenience!

360 Degree Machinery offers financing solutions with competitive rates, flexible terms, and a simple application. Take the hassle out of machinery purchases. Click Here to learn more now!

Set up precision and reliability. The operator easily adjusts all movements due to a hand wheel with mechanical decimal readouts located on the front of the machine.

Spindle moulder fence with mechanical programming: maximum set-up speed and ease-of-use. No more test runs due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.

Easy access to the spindle to carry out different machining with the optional “Flex” system for the rapid exclusion of the fence from the working table.
