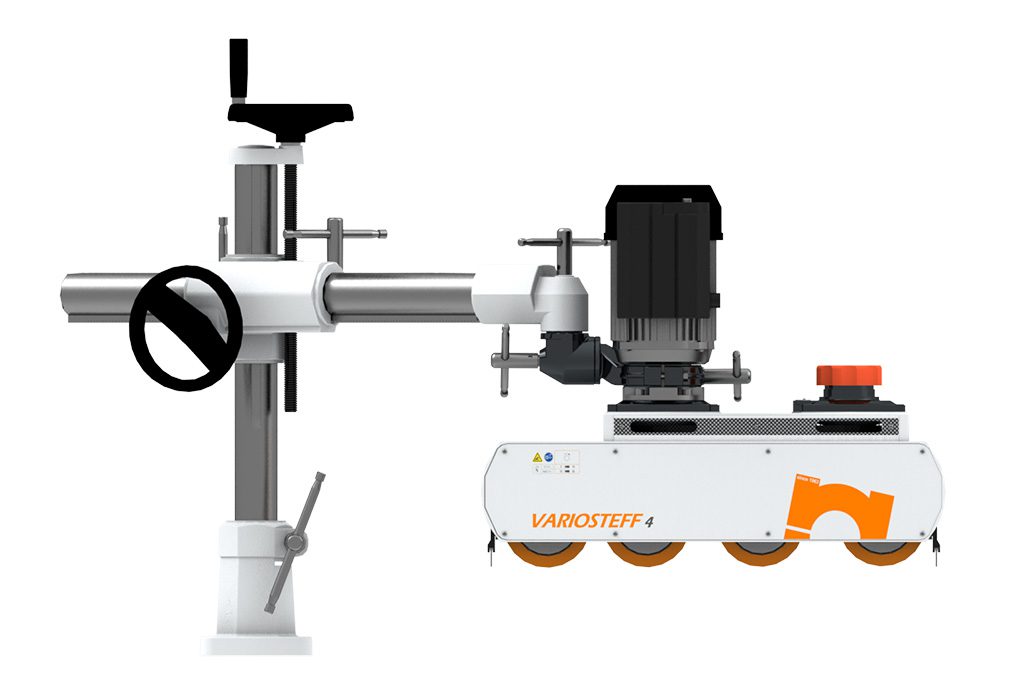

Variosteff 4 | 4-Roll Variable Speed Feeder With Stand
Variosteff 4 | 4-Roll Variable Speed Feeder With Stand
Price range: $1,925.00 through $2,025.00
The Variosteff 4 is the 4-roll version of the Variosteff 3, adding a longer contact area while keeping the same continuously variable 3-18 m/min speed range. Three-phase only, 1 HP (0.75 kW).
Specs & Features
Features:
- Roller/Belt Vertical Range of Motion is 1 inch.
- Electrostatic paint finish.
- Sintered case hardened gears.
- Bronze alloy main drive gear.
- Natural rubber, 50 shore hardness rollers/belts. (Polyurethane rollers are also available).
- Calibrated spring support to maintain consistent roller contact.
Specifications:
Feed Rollers: |
|
Number of Rollers: |
4 |
Roller Dimensions: |
Ø 120 x 60 mm |
Roller Hardness: |
50 shore |
Roller Springing Travel: |
20 mm |
Feed Speeds: |
3 – 18 m/min |
Motor Power: |
|
Three-Phase Motor: |
1 HP (0.75 kW) |
Feeder Dimensions: |
510x640x265 mm |
Shipping Dimensions: |
670x570x330 mm |
Net Weight: |
|
Gross (Shipping) Weight: |
33 kg |
Standard Support Stand: |
(*other stand models/sizes available) |
Height: |
540 mm |
Arm Length: |
705 mm |
Net Weight: |
35 kg |
Gross (Shipping) Weight: |
37 kg |
Shipping Dimensions: |
800x330x330 mm |
