Union Tool 50″ Rotary Pinch Roller

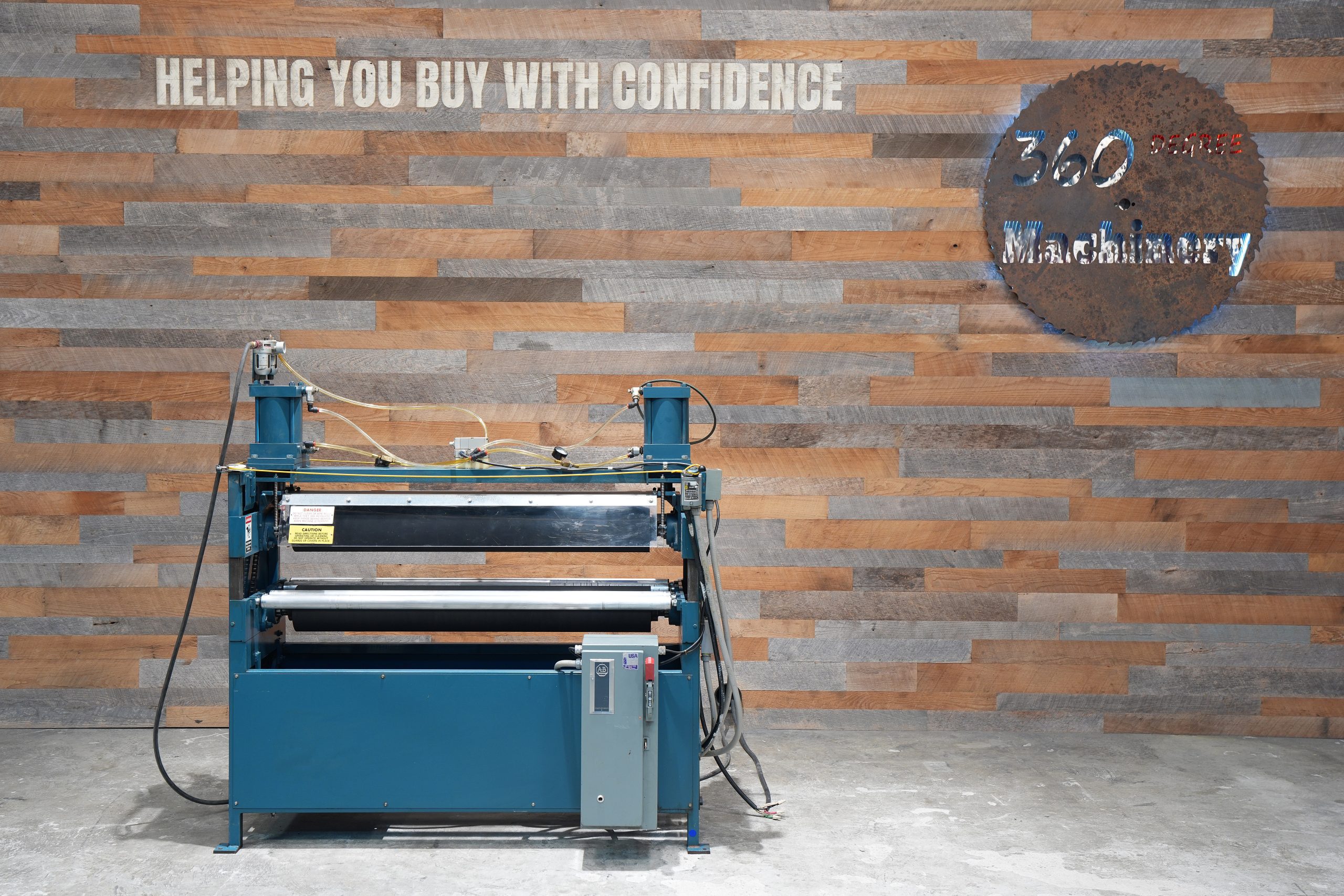

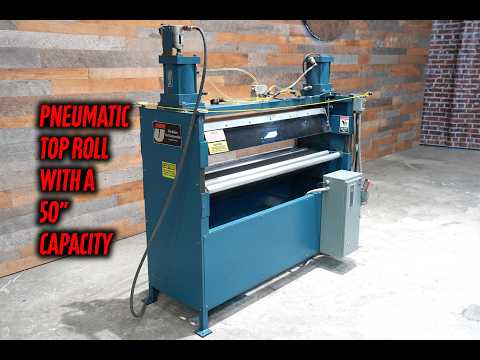

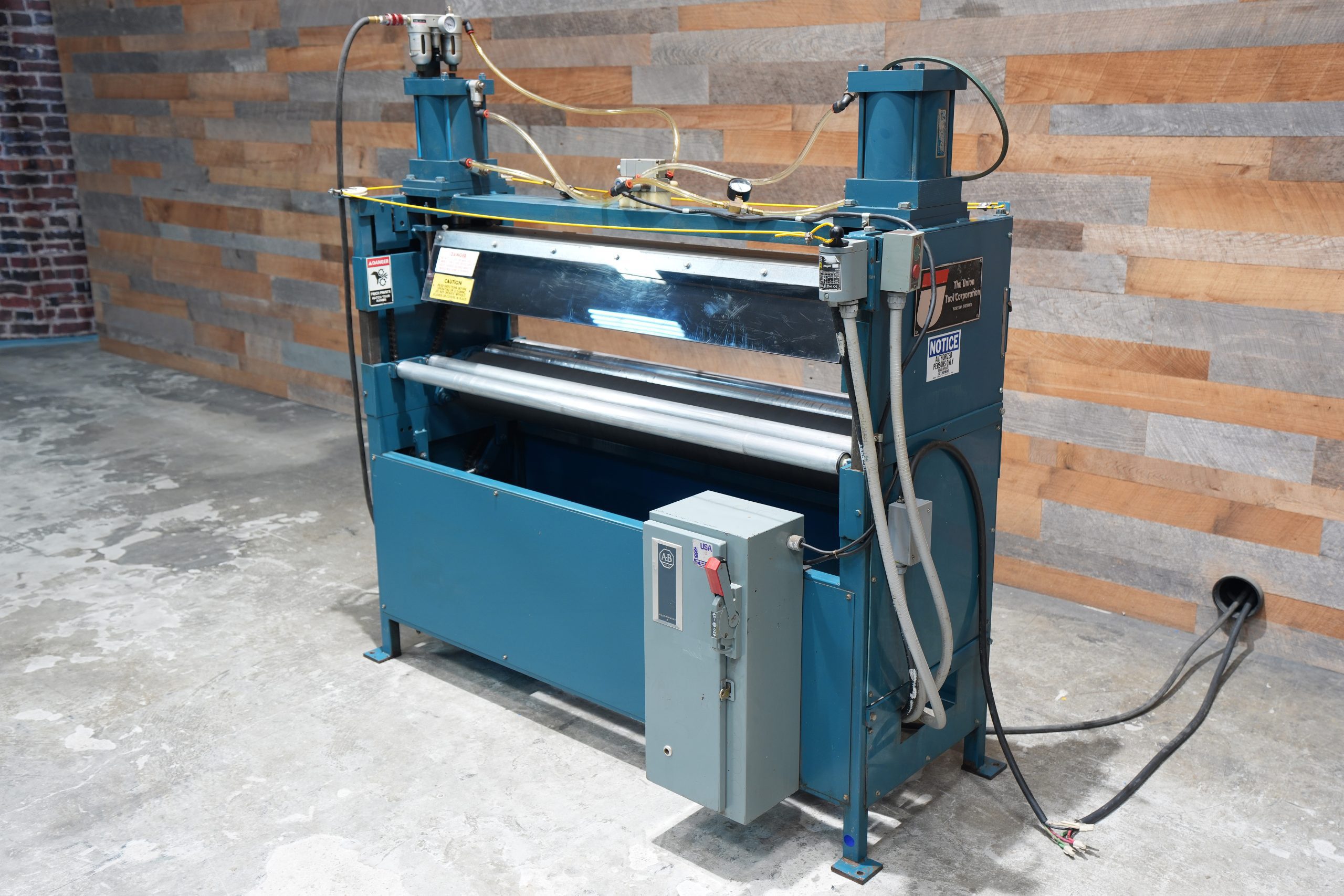

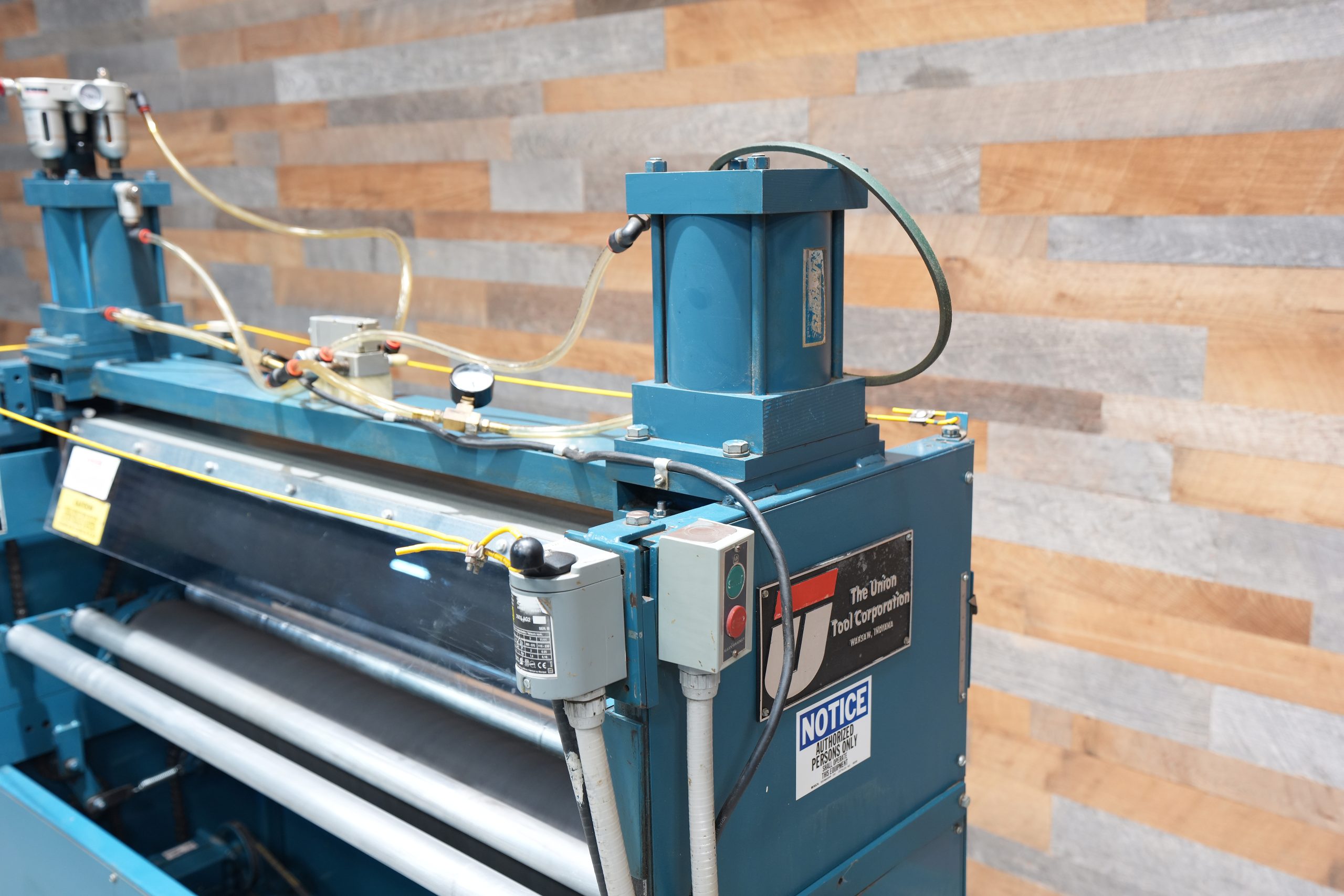

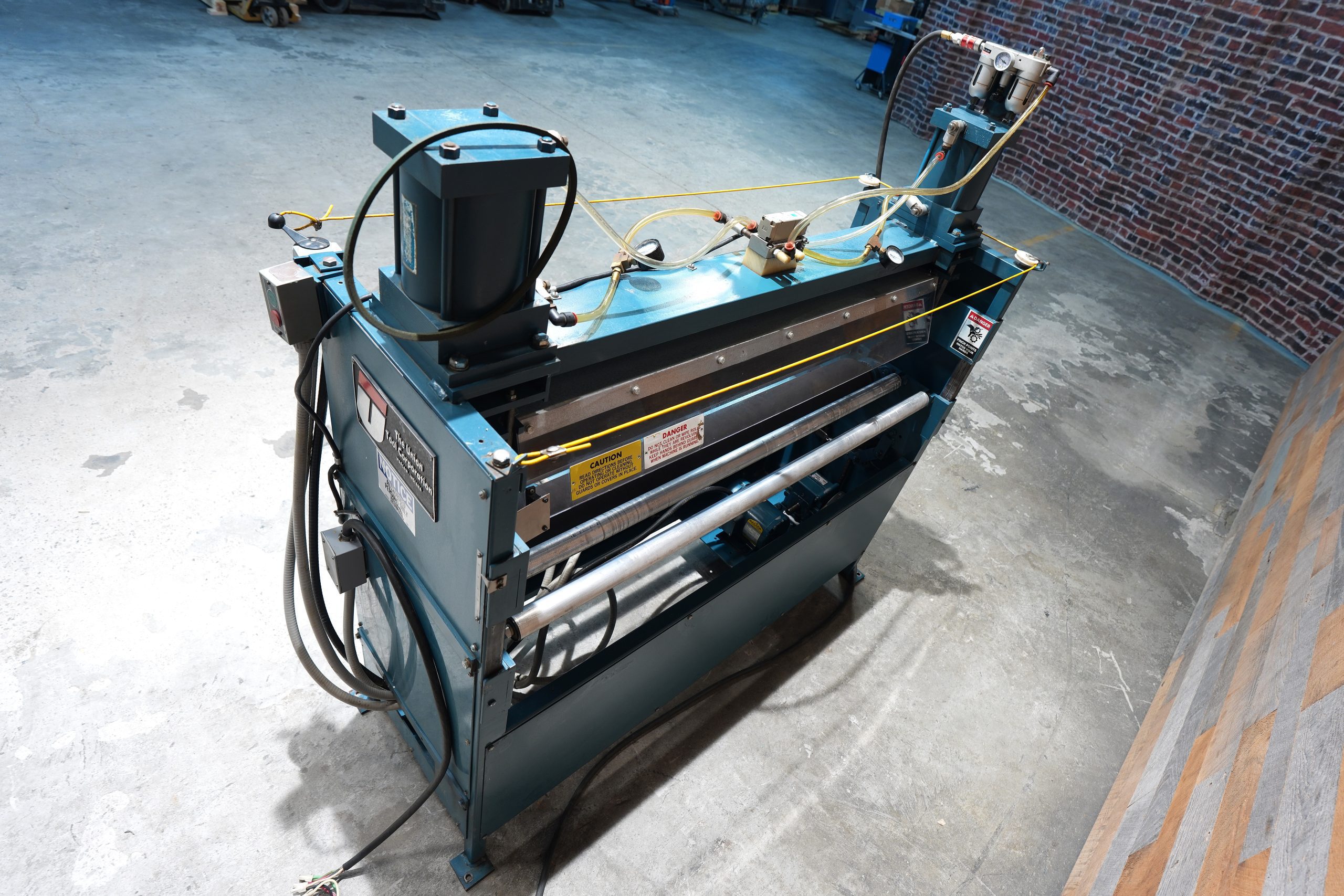

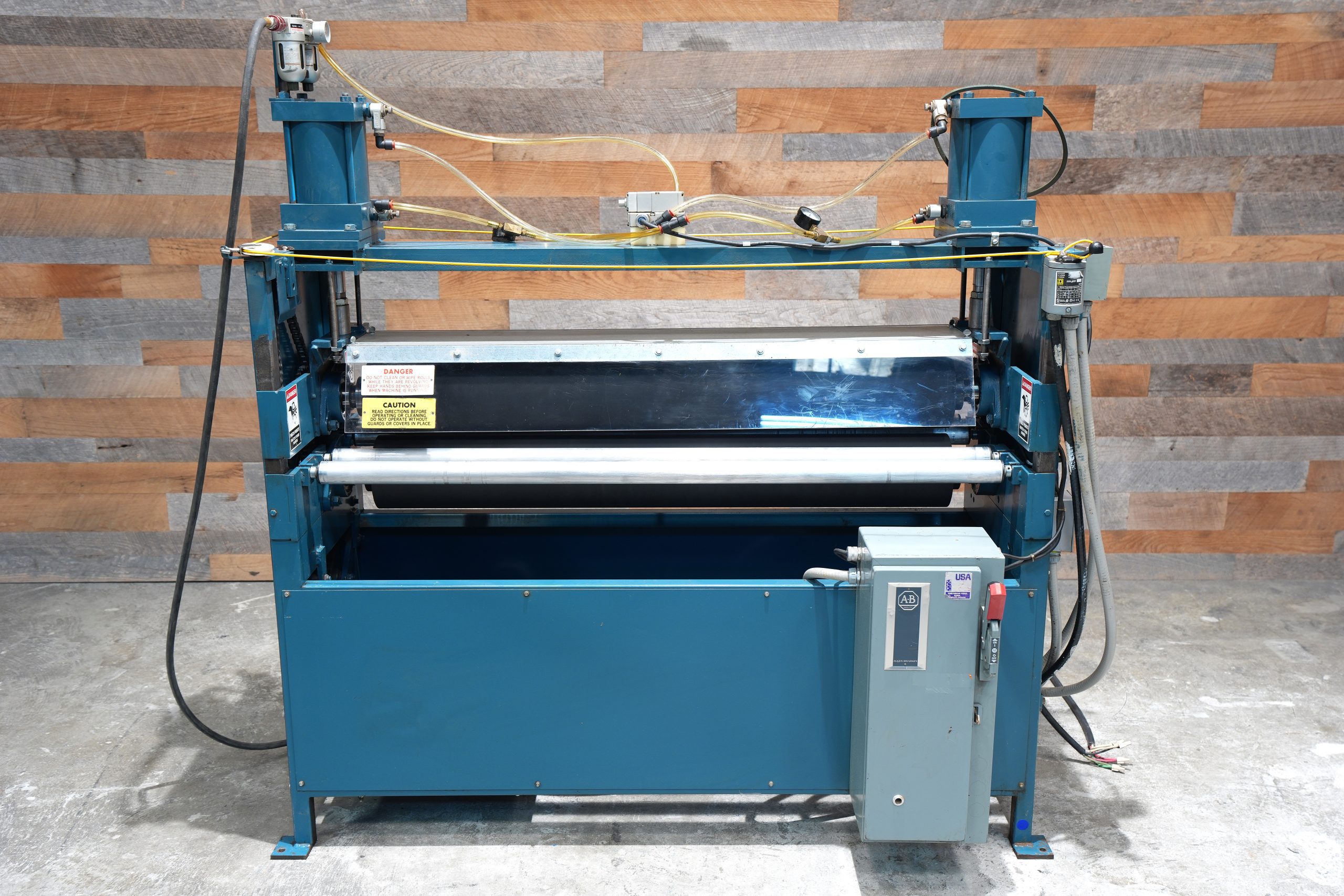

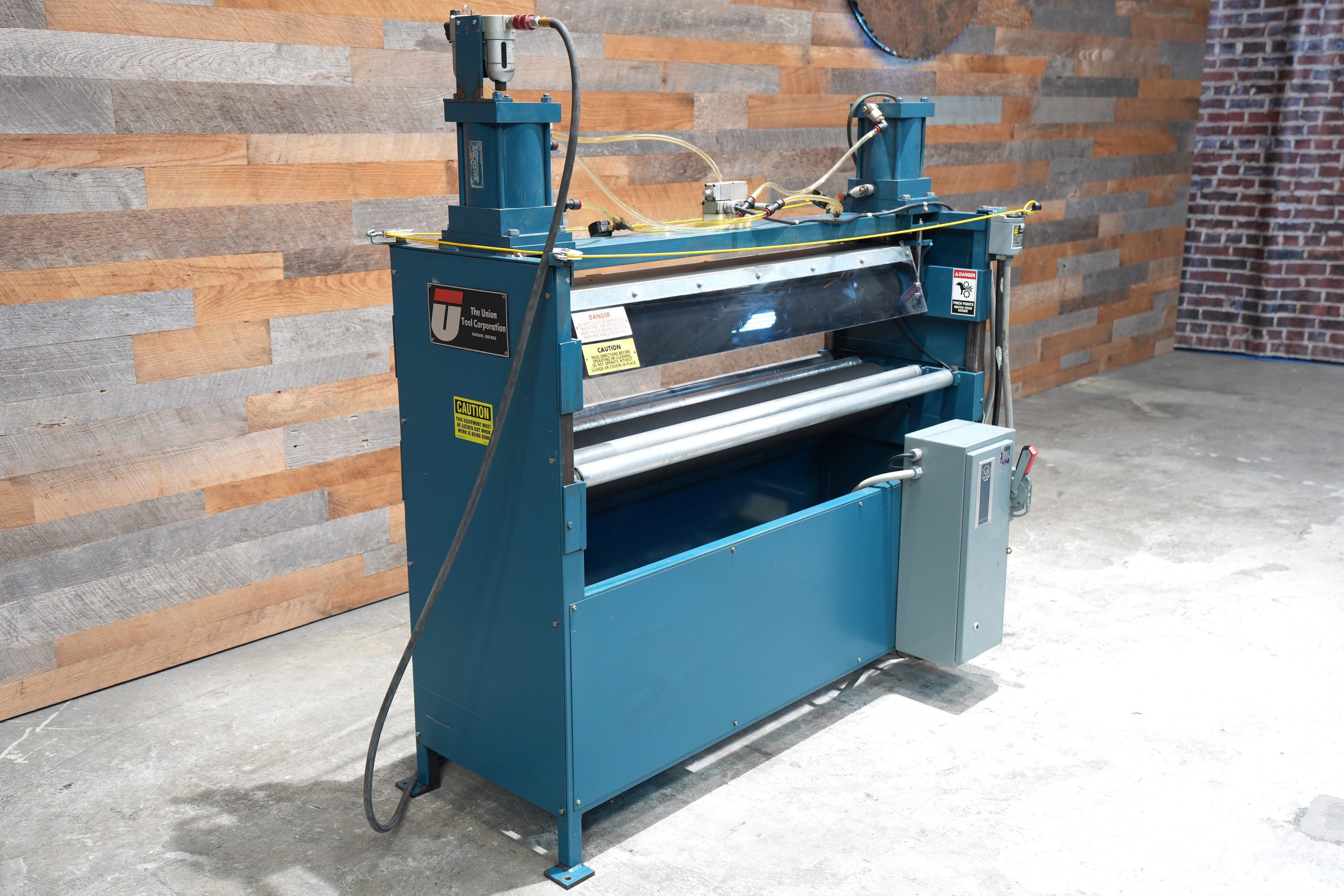

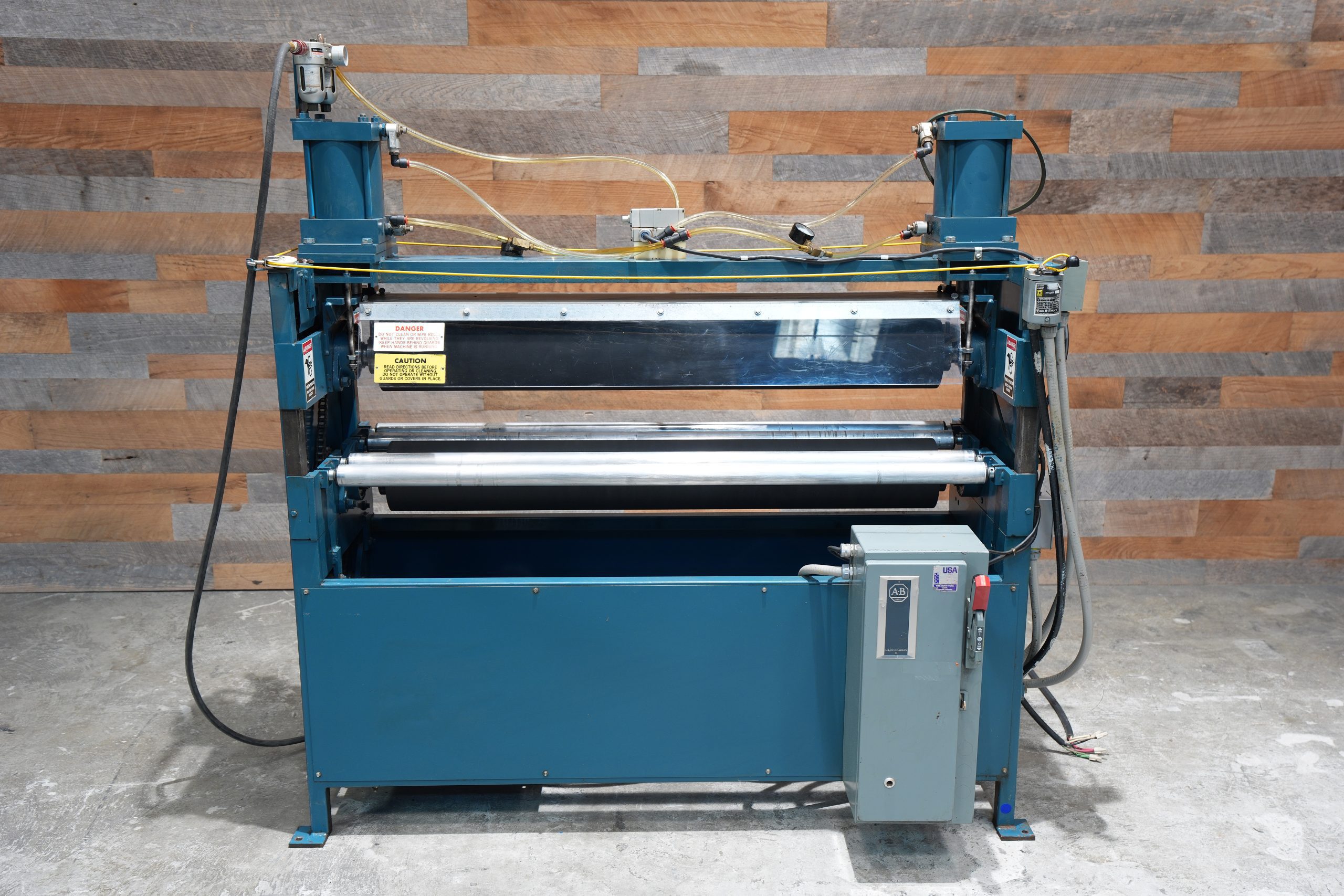

This 50″ wide Union Tool Rotary Laminator was designed to apply bonding pressure for the purpose of laminating two substrates or web materials together. The two 6-1/2″ diameter rolls with a 1/2″ rubber covering. Both rolls are chain-driven through a 1/2 HP Baldor motor featuring forward and reverse. The upper roll is adjustable in relationship to the bottom roll in a range from 0″ to 4-1/2″. This particular machine has the optional 6″ diameter air cylinders that provide an adjustable amount of laminating pressure up to a maximum of 2,800 lbs. of pressure per cylinder at 100 psi.  This relates to 97 lbs. of line contact pressure per linear inch of a 50” wide machine. Rolls are in good condition. They can be further dressed if you need them to be near flawless.

This fully functional machine has been fully cleaned, checked, and is ready to work from the time you receive it. This is our guarantee to both you and your company. It is owned by 360 Degree Machinery and located in our inventory in Kingston, TN.
